Copper SFP interface
Install the module in a compatible SFP slot to provide an auto-negotiating 10/100/1000Mbps RJ45 connection.

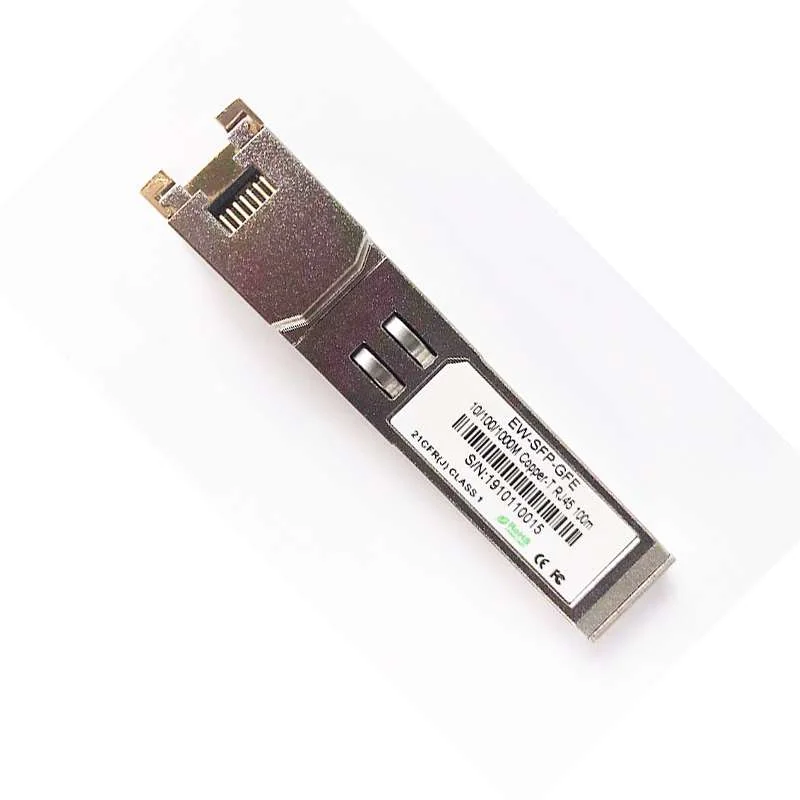

Model: EW-SFP-GFE
SFP-T-AUTO Copper SFP Transceiver
- SFP slot to 10/100/1000Mbps RJ45 conversion
- 1.25Gbps nominal data rate · 3.3V supply
- Up to 1W dissipation · 0–70°C operating case temperature
Project inquiry
Request pricing and lead time
Tell us your model, quantity and project requirements. Our networking team will help you find the right fit.
Overview
EW-SFP-GFE is a copper SFP transceiver that converts a compatible SFP slot into a 10/100/1000Mbps RJ45 interface. Its 1.25Gbps data path, 3.3V supply and compact hot-pluggable form factor help extend switch compatibility without adding a separate media converter.
Compact low-power module
The source specifies a typical 3.3V supply and maximum 1W power dissipation.
Switch compatibility
Use the module only in SFP ports and equipment that support copper SFP transceivers and the required rate negotiation.
| Specification | Details |
|---|---|
| Model | EW-SFP-GFE |
| Module type | 1.25G SFP port to 10/100/1000M RJ45 port |
| Data rate | 1.25Gbps nominal |
| Supply voltage | 3.15–3.45V; 3.3V typical |
| Power dissipation | Up to 1W |
| RJ45 interface | 10/100/1000Mbps auto-negotiating copper connection |
| Operating case temperature | 0 to +70°C |
| Operating humidity | 5–95% RH |
| Mechanical dimensions | 68mm maximum length; 13.7mm × 8.5mm body dimensions shown in drawing |
| Compatibility | SFP host port; confirm copper SFP support in the host switch |

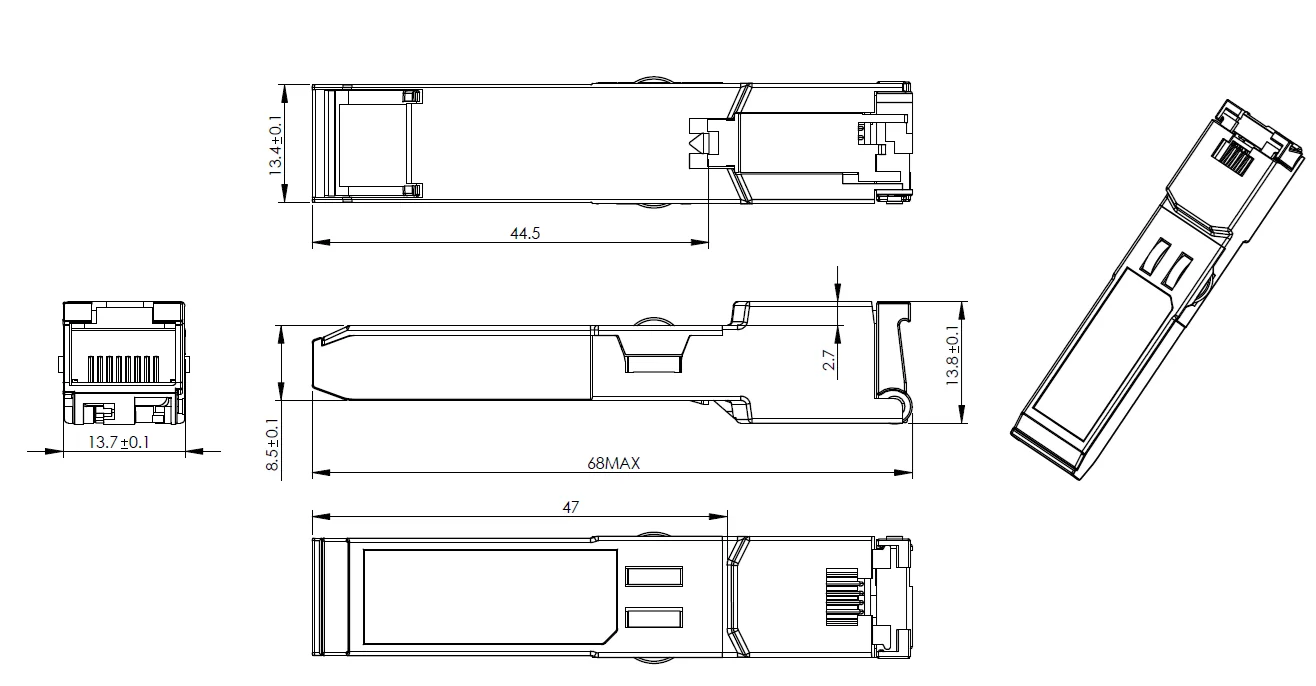

Dimensions
Order information
| Content | Quantity | Unit |
|---|---|---|
| EW-SFP-GFE copper SFP transceiver | 1 | PCS |
