Model: EW-DP240W-52

240W 52V DC Power Adapter

52V DC regulated single output
240W model rating
90–264V AC input; 47–63Hz
Fanless enclosure with 3-year warranty

Project inquiry

Request pricing and lead time

Tell us your model, quantity and project requirements. Our networking team will help you find the right fit.

info@ewindnet.com

Overview

EW-DP240W-52 is a fanless 52V DC adapter for compatible networking equipment. It accepts a wide-range AC input and provides a single regulated output with short-circuit, overcurrent and overvoltage protection.

52V DC output

Single regulated output for compatible network equipment.

Output protection

Short-circuit, overcurrent and overvoltage protection.

Fanless adapter

173 × 72.5 × 33mm desktop enclosure.

Product technical specifications
Specification	Details
Model power rating	240W
Output voltage	52V DC
Input range	90–264V AC; nominal 100–240V AC
Input frequency	47–63Hz
Efficiency	90%
Voltage accuracy	±1%
Line / load regulation	±1% / ±1%
DC connector	5.5 × 2.1mm; center positive
Dimensions (L × W × H)	173 × 72.5 × 33mm
Operating temperature	−20°C to +65°C
Warranty	3 years

Advanced capabilities

Detailed network functions stay available here without interrupting the main selection path.

Output timing

At full load, start time is ≤3 seconds with 120V AC input and ≤2 seconds with 220V AC. Hold time is ≥10ms at 120V AC and ≥20ms at 220V AC. Voltage overshoot is <5%.

Connection and cooling

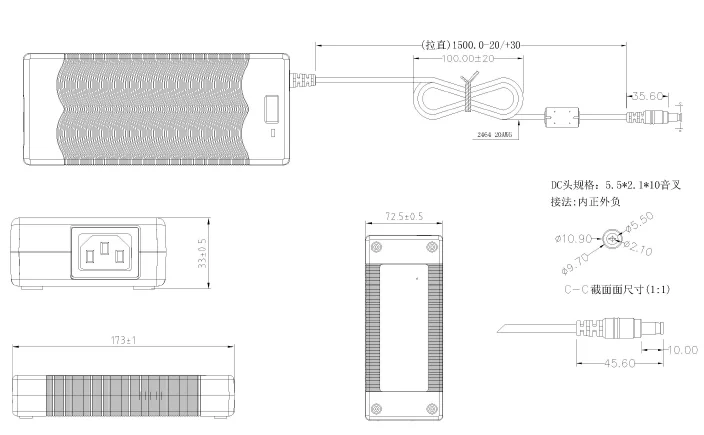

Fanless cooling. The mechanical drawing specifies a center-positive 5.5 × 2.1mm DC plug and approximately 1.5m output lead. Match the voltage, plug and polarity to the powered equipment.

Environmental limits

Operating humidity: 20–90%, non-condensing. Storage: −40°C to +85°C and 5–95% RH, non-condensing.

Isolation and EMC

The datasheet lists 100MΩ insulation resistance and input-to-output dielectric testing at 3kV AC. EMC references include EN 55022 Class A and IEC 61000-3-2 Class A.
