Model: EW-S3920G

20-Port Gigabit Fiber Aggregation Switch

16 × 1000Mbps SFP ports; modules selected separately
4 × 1000Mbps RJ45 uplinks
40Gbps full-duplex switching capacity
16-port VLAN mode and 16K MAC table

Project inquiry

Request pricing and lead time

Tell us your model, quantity and project requirements. Our networking team will help you find the right fit.

info@ewindnet.com

Overview

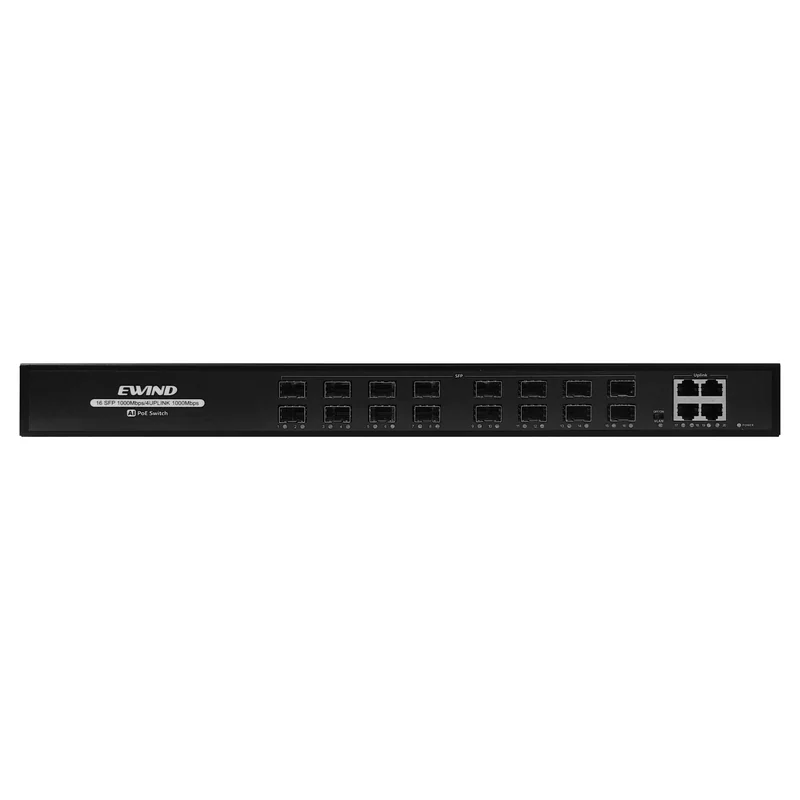

EW-S3920G aggregates 16 Gigabit SFP fiber ports with four Gigabit RJ45 uplinks in a full-duplex switching platform. VLAN support, 40Gbps switching capacity and 16K MAC learning provide a straightforward fiber aggregation layer for campus, surveillance and enterprise networks.

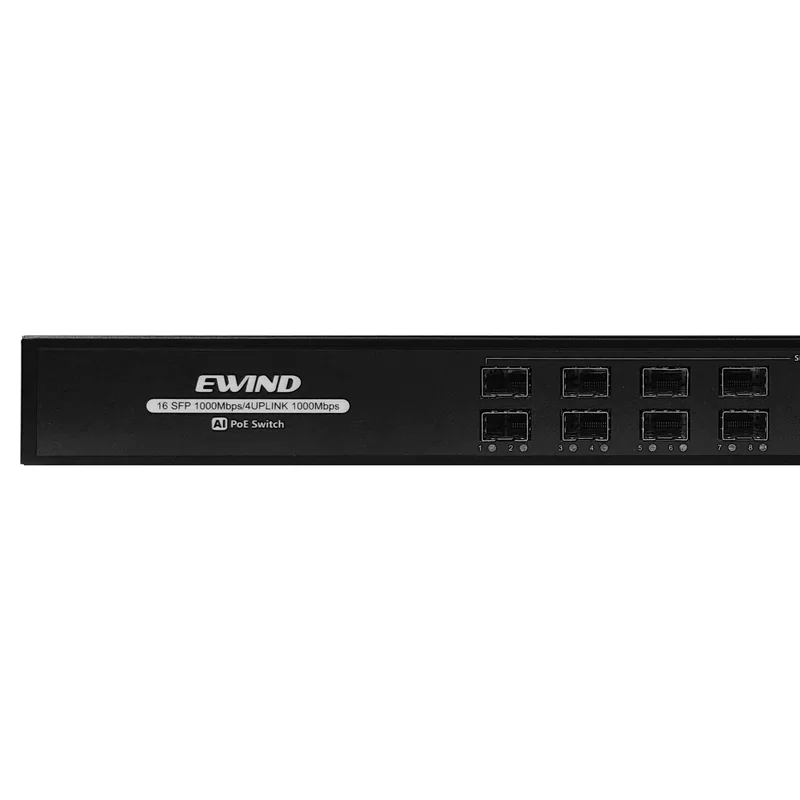

16 fiber ports

Gigabit SFP aggregation with module-dependent reach.

Four copper uplinks

1000Mbps RJ45 uplinks for upstream network connections.

40Gbps fabric

Store-and-forward switching with 29.86Mpps total forwarding.

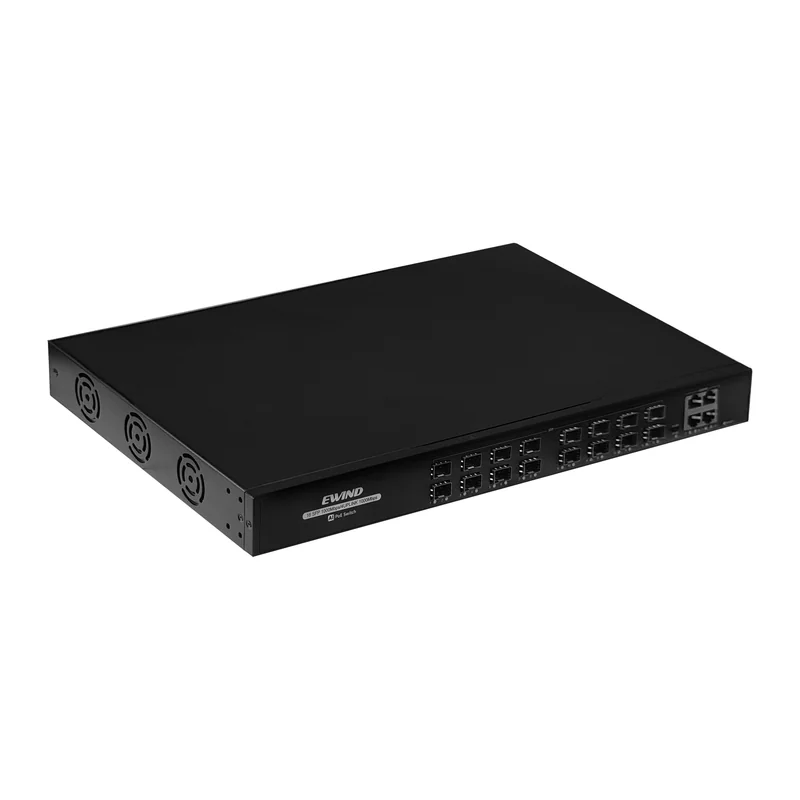

Rack-width chassis

Built-in AC supply and 440 × 285 × 55mm housing.

Product technical specifications
Specification	Details
Network ports	20 total
Fiber ports	16 × 1000Mbps SFP; maximum module rate 1.25G
RJ45 uplinks	4 × 1000Mbps; default distance 0–100m
Switching capacity	40Gbps full duplex
Forwarding rate	29.86Mpps total
MAC address table	16K entries
VLAN	Ports 1–16 support VLAN mode

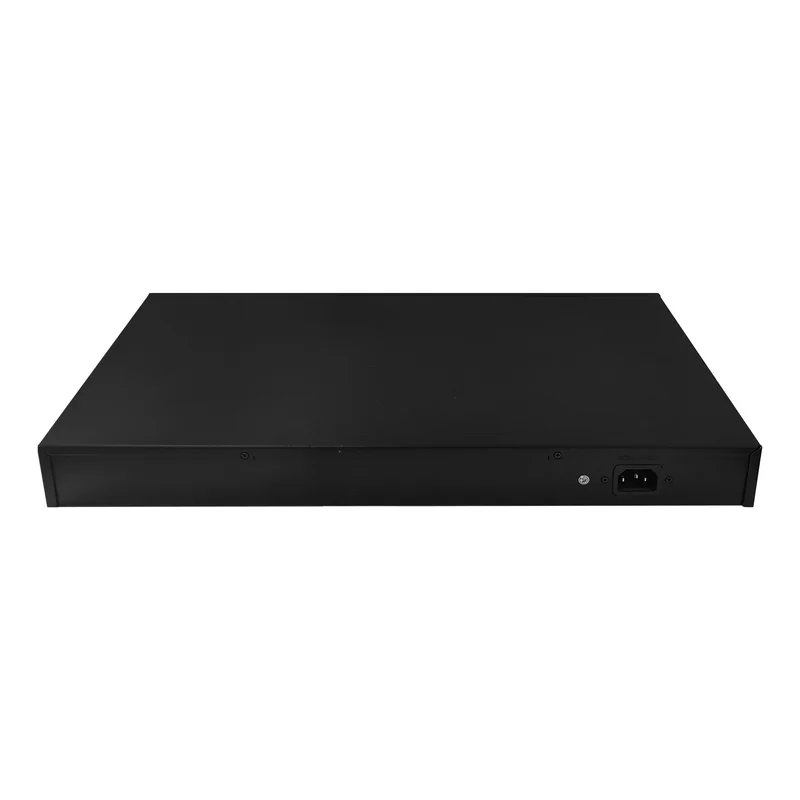

Power input	Built-in supply; 110–264V AC, 50/60Hz
Power consumption	<5W
Dimensions	440 × 285 × 55mm
Weight	3.4kg excluding input cable and packaging
Operating temperature	−10°C to +50°C
Warranty	1 year

Advanced capabilities

Detailed network functions stay available here without interrupting the main selection path.

Fiber links

SFP ports use separately selected optical modules; transmission distance follows the module. The source does not require a fixed wavelength. Do not interpret the 1.25G module ceiling as a 10G uplink.

Copper uplinks

Four RJ45 uplinks operate at 1000Mbps with a stated default distance of 0–100m and auto MDI/MDIX. All ports use store-and-forward switching.

VLAN and indicators

Ports 1–16 support a VLAN mode. LEDs show power, VLAN status and link/activity; the source’s port indicator wording includes a power state that should be confirmed against the deployed configuration.

Environment and protection

Operating humidity: 10–95%, non-condensing. Storage: −40°C to +70°C. ESD is listed as 1.5kV air/contact and surge as 4kV common mode / 2kV differential mode.
