24 fiber connections
Choose compatible SFP modules for the fiber type and required link distance.

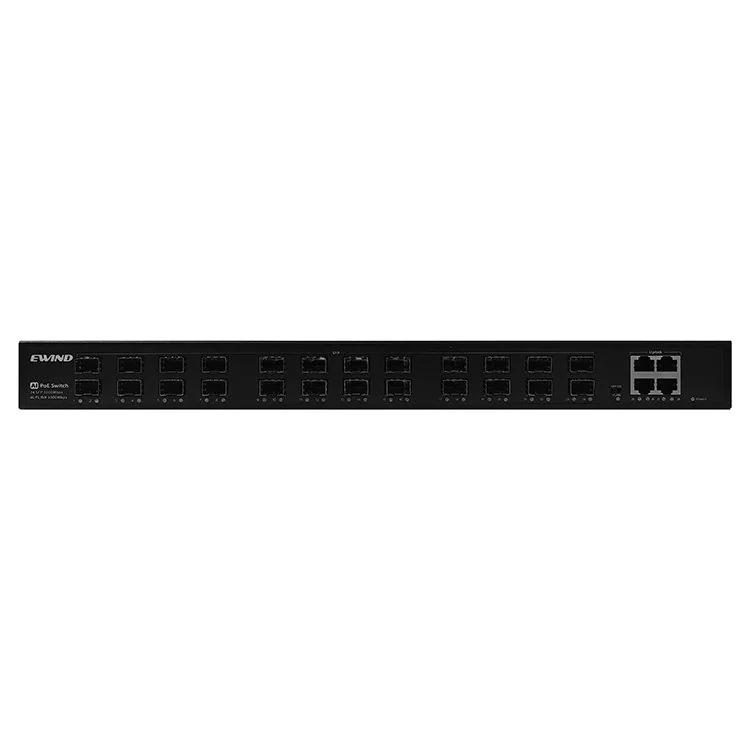

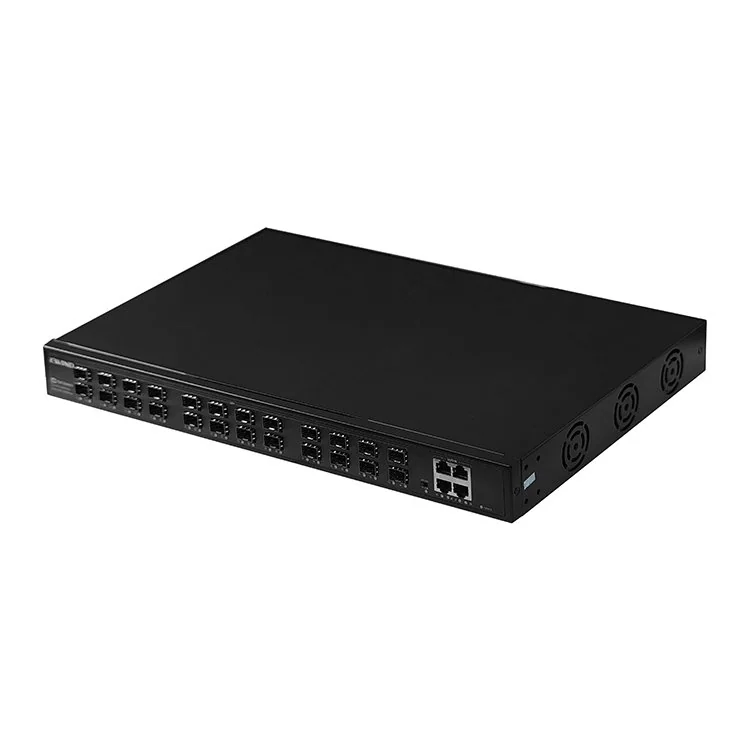

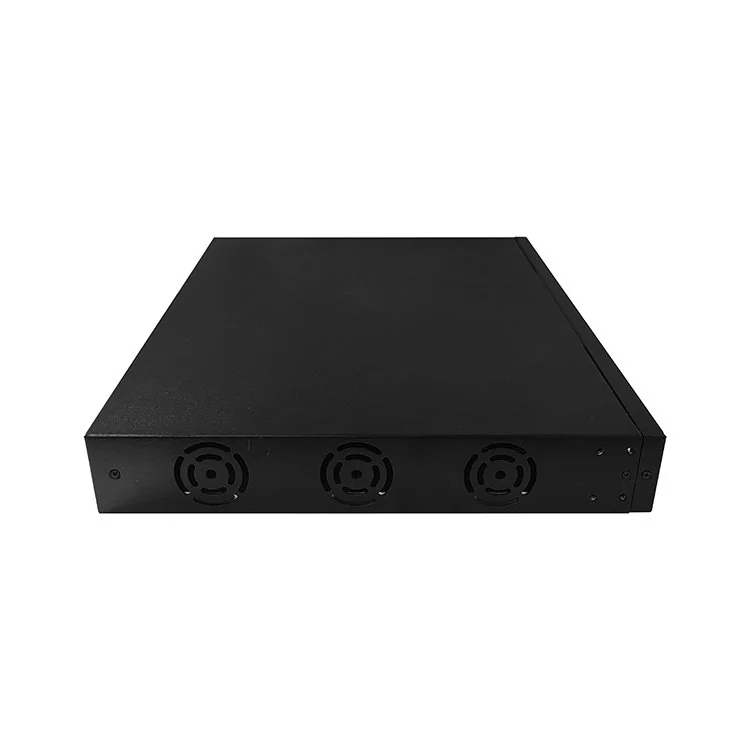

Model: EW-S3928G
28-Port Gigabit Fiber Aggregation Switch with 4 RJ45 Uplinks
- 24 Gigabit SFP fiber ports
- 4 Gigabit RJ45 uplinks
- 56Gbps switching; 16K MAC table
- Built-in AC supply; 1-year warranty
Project inquiry
Request pricing and lead time
Tell us your model, quantity and project requirements. Our networking team will help you find the right fit.
Overview
EW-S3928G aggregates 24 Gigabit SFP fiber links and provides four Gigabit RJ45 uplinks. Its 56Gbps switching capacity and port-isolation mode support fiber aggregation in access and surveillance networks.
Port isolation
The VLAN mode covers ports 1–24 for access-side isolation.
Gigabit aggregation
Four copper uplinks connect recorders, servers or the upstream network.
| Specification | Details |
|---|---|
| Model | EW-S3928G |
| Fiber ports | 24 × Gigabit SFP |
| Copper uplinks | 4 × Gigabit RJ45 |
| Switching capacity | 56Gbps |
| Forwarding rate | 41.664Mpps |
| MAC table | 16K entries |
| Forwarding method | Store and forward |
| Power input | AC 110–264V, 50/60Hz; built-in supply |
| Dimensions | 440 × 285 × 55 mm |
| Net weight | 3.4 kg, excluding cable and packaging |
| Operating temperature | −10°C to +50°C |
| Warranty | 1 year |
Order information
| Content | Quantity | Unit |
|---|---|---|
| EW-S3928G fiber switch | 1 | SET |
| User guide | 1 | PC |
| Warranty card | 1 | PC |
EW-S3928G Resources
Datasheet and configuration information for this product are available from the EWIND team.
