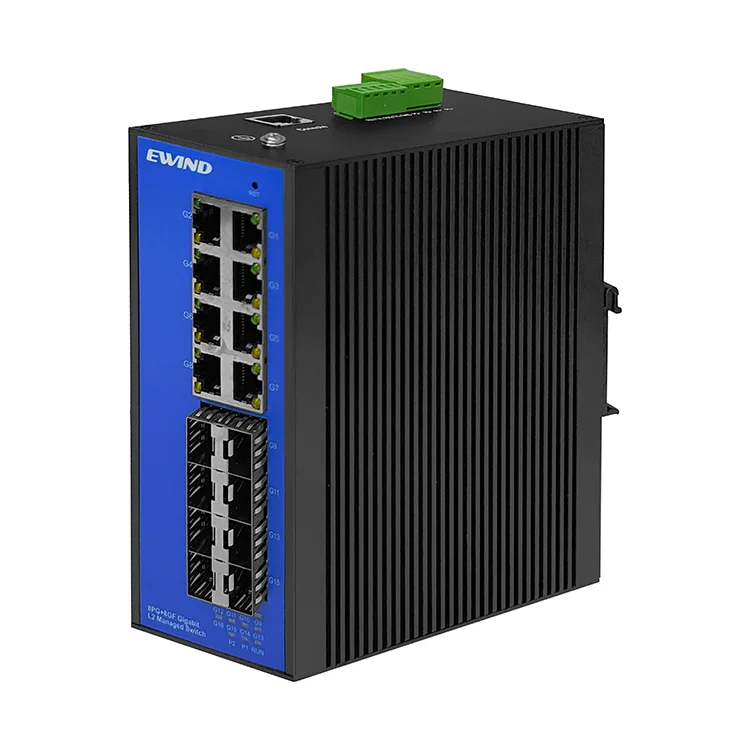

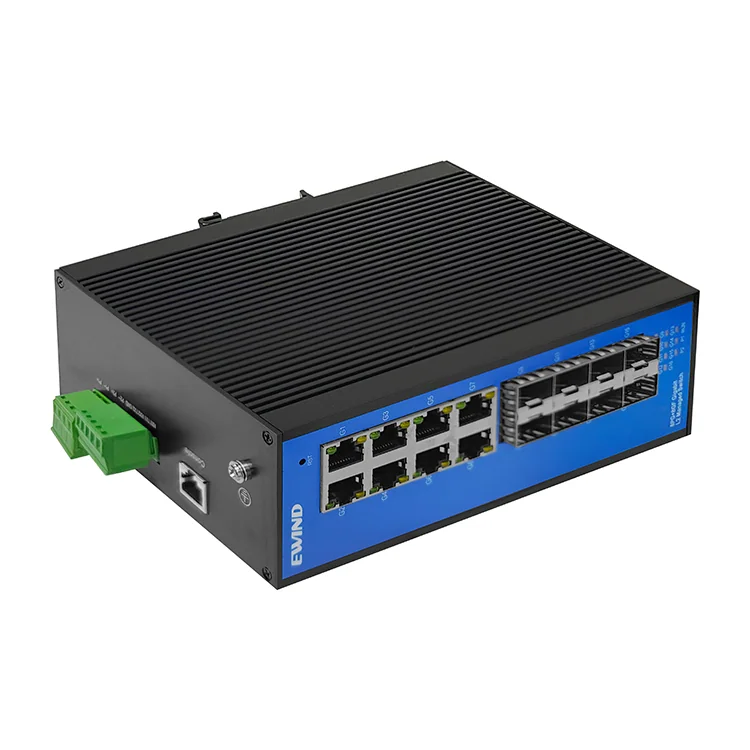

Model: EW-IS3616M

16-Port Gigabit L2+ Managed Industrial Switch with 8 SFP Uplinks

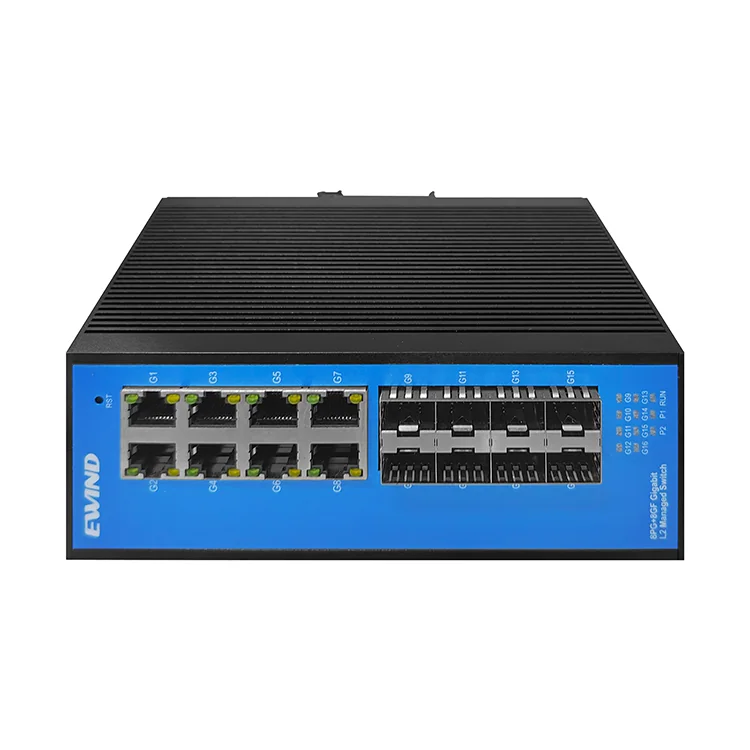

8 × 10/100/1000Mbps RJ45 ports + 8 × 100/1000Mbps SFP slots
128Gbps switching capacity · 48Mpps forwarding
L2+ management · redundant 6-pin DC input · −40 to +75°C

Project inquiry

Request pricing and lead time

Tell us your model, quantity and project requirements. Our networking team will help you find the right fit.

info@ewindnet.com

Overview

EW-IS3616M combines eight adaptive Gigabit RJ45 ports and eight 100/1000Mbps SFP fiber slots with L2+ industrial management. Its 128Gbps switching fabric, ERPS/RSTP recovery, redundant DC power and IP40 rail enclosure fit dense fiber aggregation at industrial edges.

Copper and fiber aggregation

Eight adaptive Gigabit RJ45 ports and eight SFP slots combine mixed access devices and optical rings.

Eight optical uplinks

Use 100/1000Mbps SFP modules for distributed industrial segments and longer fiber paths.

Industrial L2+ resilience

VLAN, RSTP, fast loop, aggregation, IGMP snooping, mirroring and storm suppression support reliable links.

Product technical specifications
Specification	Details
Model	EW-IS3616M
Copper ports	8 × 10/100/1000BASE-T RJ45 data ports
Fiber ports	8 × 100/1000Mbps SFP fiber slots
Management interfaces	1 × RS232 console; web management
Power input	2 sets redundant V+/V− DC interfaces; 6-pin Phoenix terminals
Switching / forwarding	128Gbps / 48Mpps
MAC / buffer	Source page does not state a MAC table or buffer value
Management features	L2+; up to 4096 VLANs; RSTP; fast loop; static aggregation; IGMP snooping

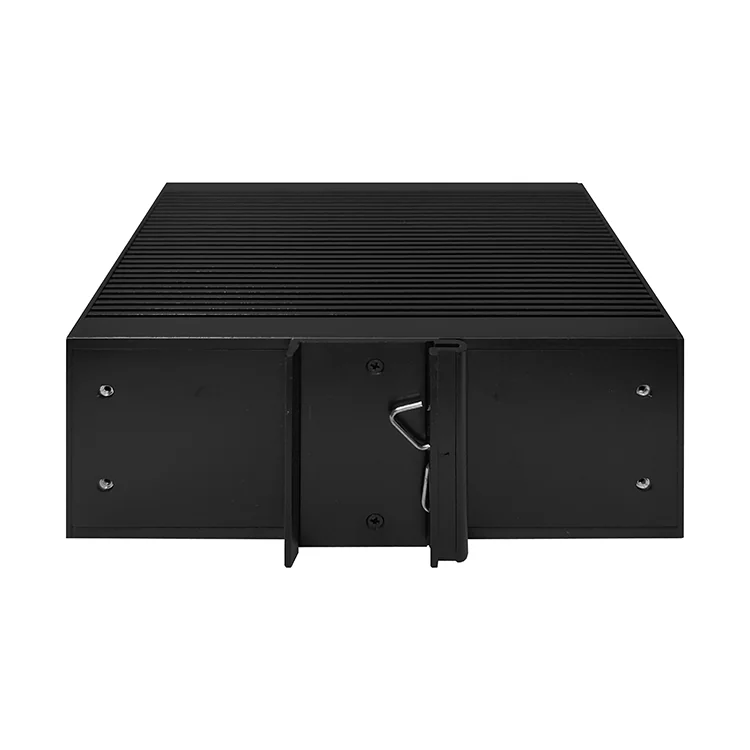

Dimensions / installation	168 × 140 × 65 mm; DIN-rail installation
Protection / environment	IP40; −40 to +75°C operating; −40 to +85°C storage; 10–90% RH
Warranty	5 years

Advanced capabilities

Detailed network functions stay available here without interrupting the main selection path.

Layer 2 controls

The source lists port-based and 802.1Q VLAN, RSTP, fast loop networking, static aggregation, unrestricted multi-to-one mirroring, loop guard, IGMP snooping and storm suppression.

Fiber planning

The eight SFP slots support 100/1000Mbps modules. Select compatible single-mode or multimode modules and fiber reach for the site.

Operations and maintenance

Web management and the RS232 console provide the listed management and maintenance functions; confirm the exact firmware feature set before deployment.

Power and thermal planning

Use both redundant DC input sets when the installation requires power resilience. The fanless enclosure is rated for −40 to +75°C operation; provide clearance for heat dissipation.
