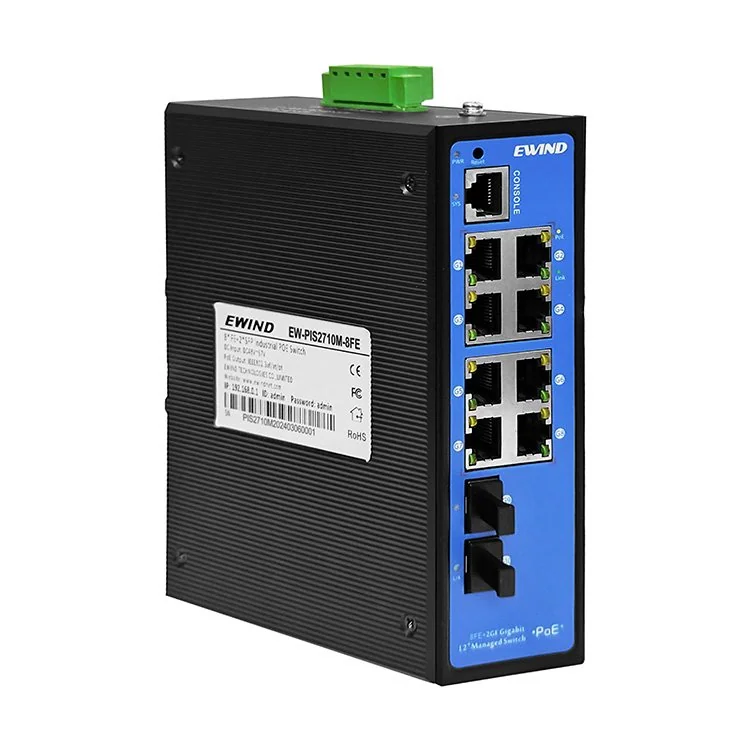

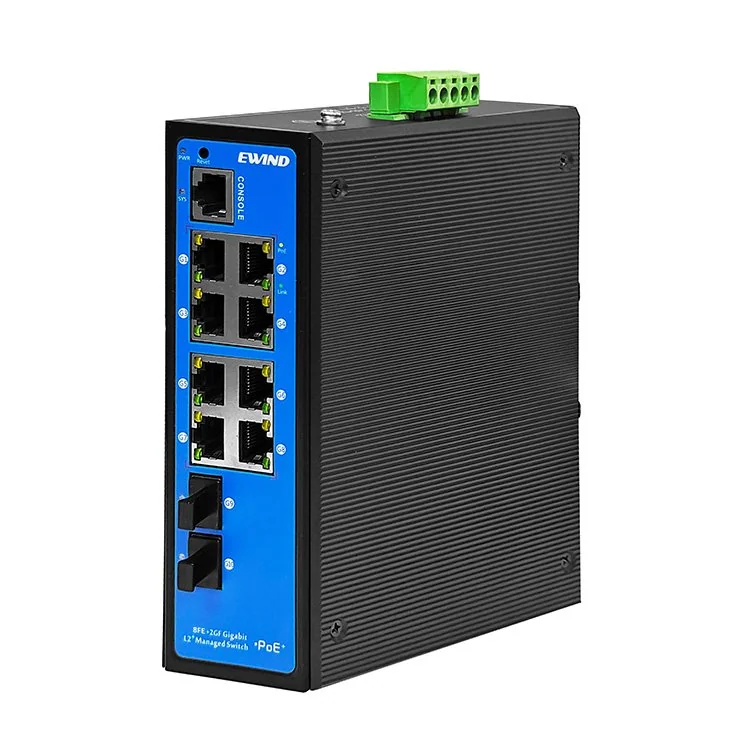

Model: EW-PIS2710M-8FE

10-Port Managed Industrial PoE Switch with Gigabit SFP Uplinks

8 × 10/100Mbps PoE ports and 2 × Gigabit SFP uplinks
IEEE 802.3af/at, up to 30W per port
L2+ management through Web, CLI and SNMP
48–57VDC redundant input; −40°C to +85°C operation

Project inquiry

Request pricing and lead time

Tell us your model, quantity and project requirements. Our networking team will help you find the right fit.

info@ewindnet.com

Overview

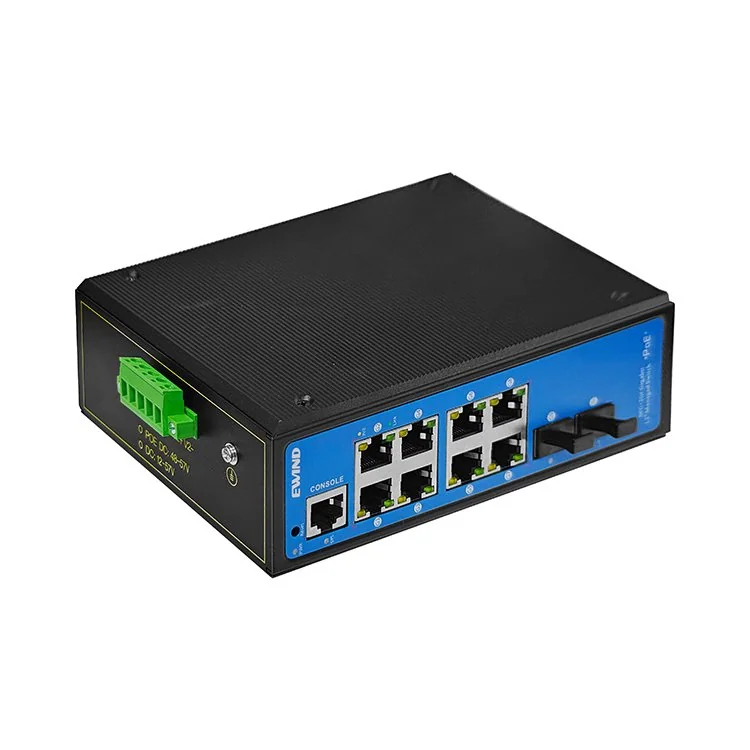

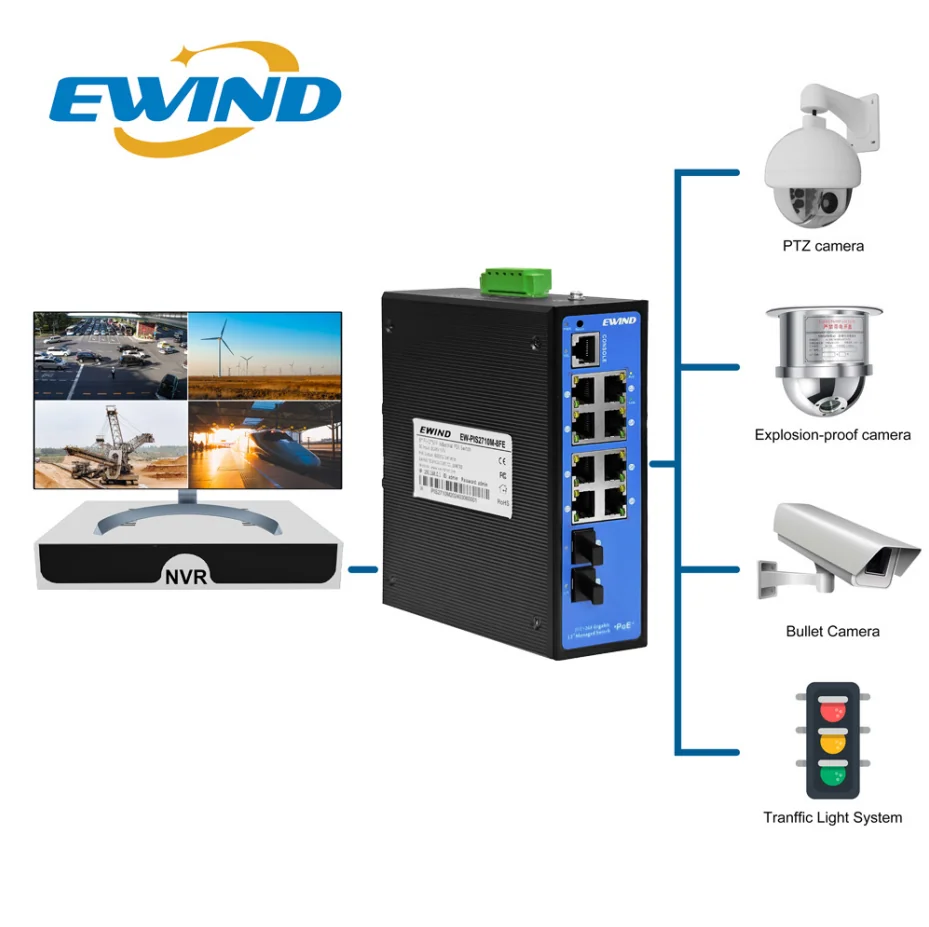

EW-PIS2710M-8FE combines eight Fast Ethernet PoE ports with two Gigabit SFP uplinks. L2+ management, redundant DC power and an IP40 DIN-rail enclosure support industrial cameras and connected field equipment.

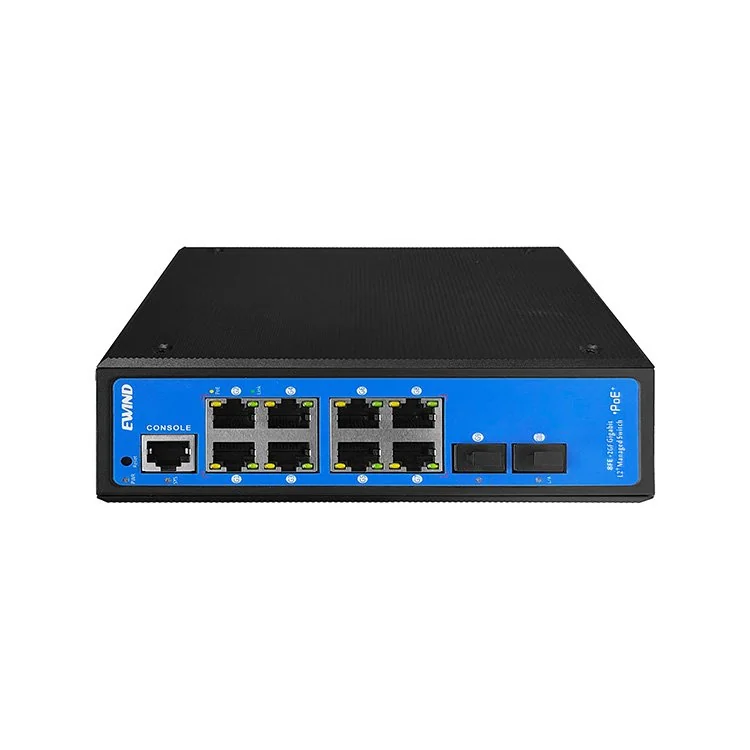

8 + 2 ports

Eight powered copper links and two Gigabit fiber uplinks.

Managed network

VLAN, spanning tree and SNMP support centralized operation.

PoE control

Allocate and monitor power for connected cameras and APs.

Industrial housing

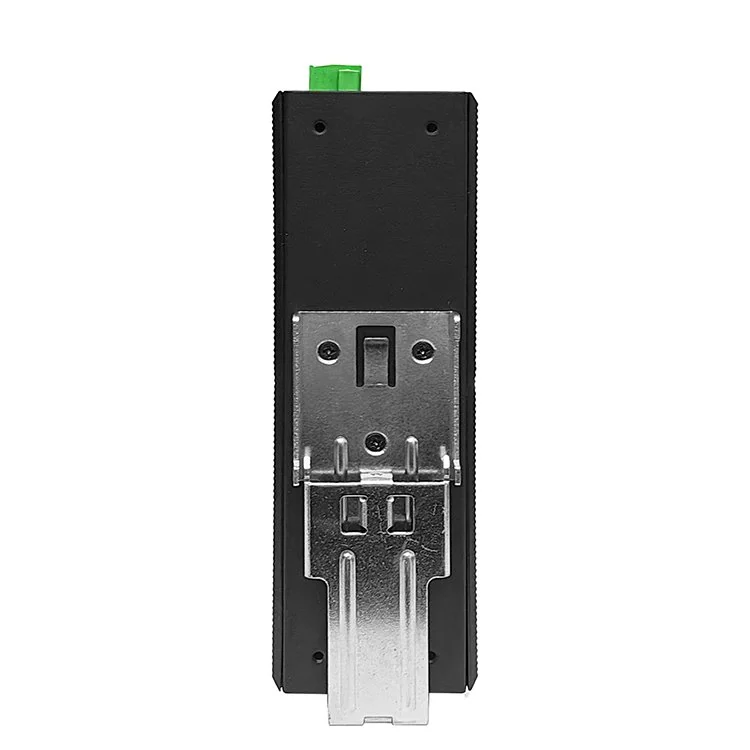

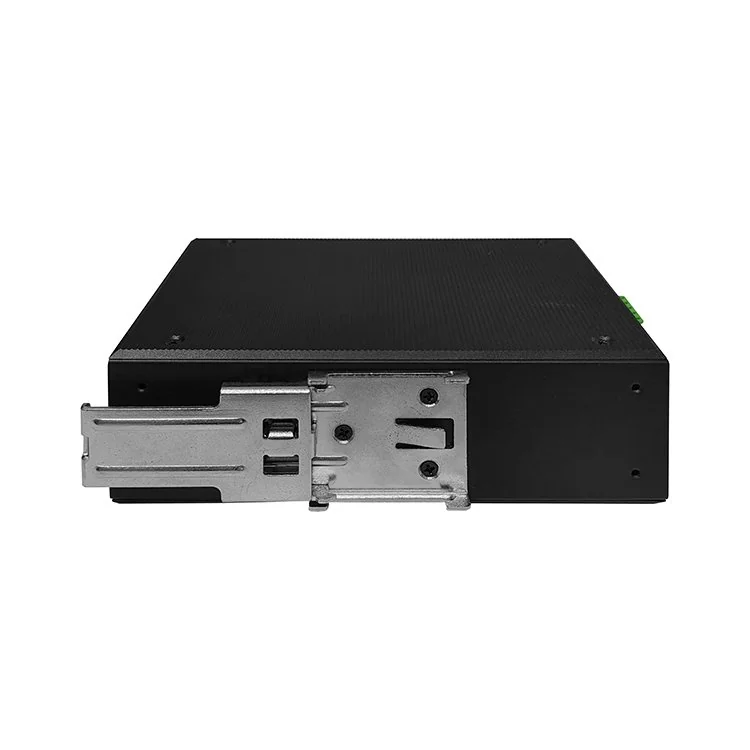

IP40 DIN-rail enclosure with redundant DC input.

Product technical specifications
Specification	Details
PoE ports	8 × 10/100Base-TX; IEEE 802.3af/at; up to 30W per port
Uplinks	2 × 1000Base-X SFP; optical modules ordered separately
Management	L2+; Web, CLI and SNMP
Switching performance	5.6Gbps non-blocking capacity; 4.17Mpps; store-and-forward
Memory	4K MAC entries; 4M buffer; 10K jumbo frames
Power input	Redundant 48–57VDC with reverse-polarity protection
Power configuration	120W listed system power; optional 48V/120W or 48V/240W supply; standby <6W

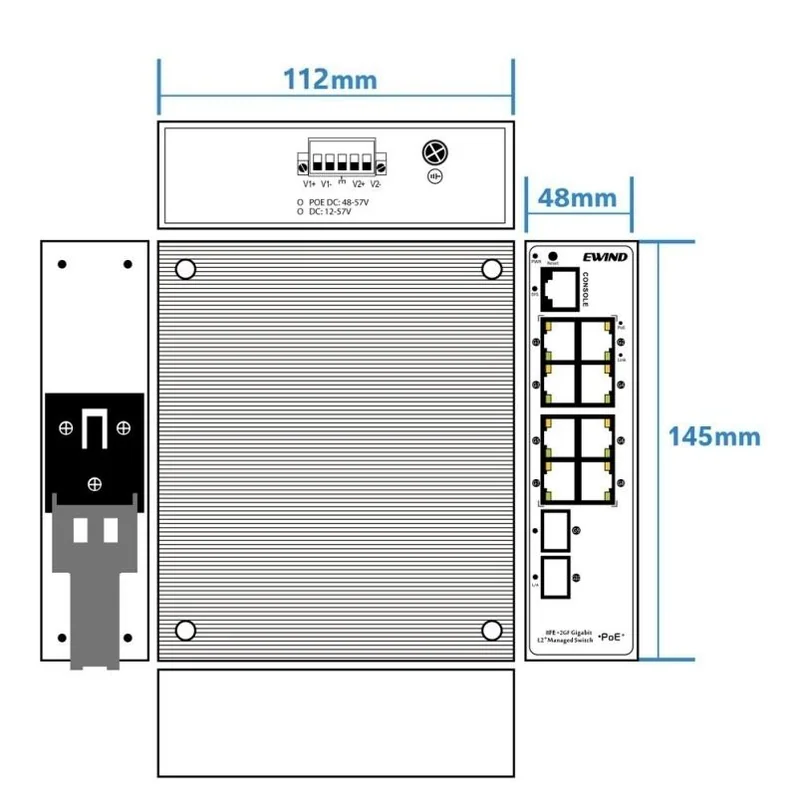

Dimensions	145 × 112 × 48mm
Operating conditions	−40°C to +85°C; 5%–90% RH, non-condensing
Protection / warranty	IP40; 6kV lightning protection; 5-year warranty
