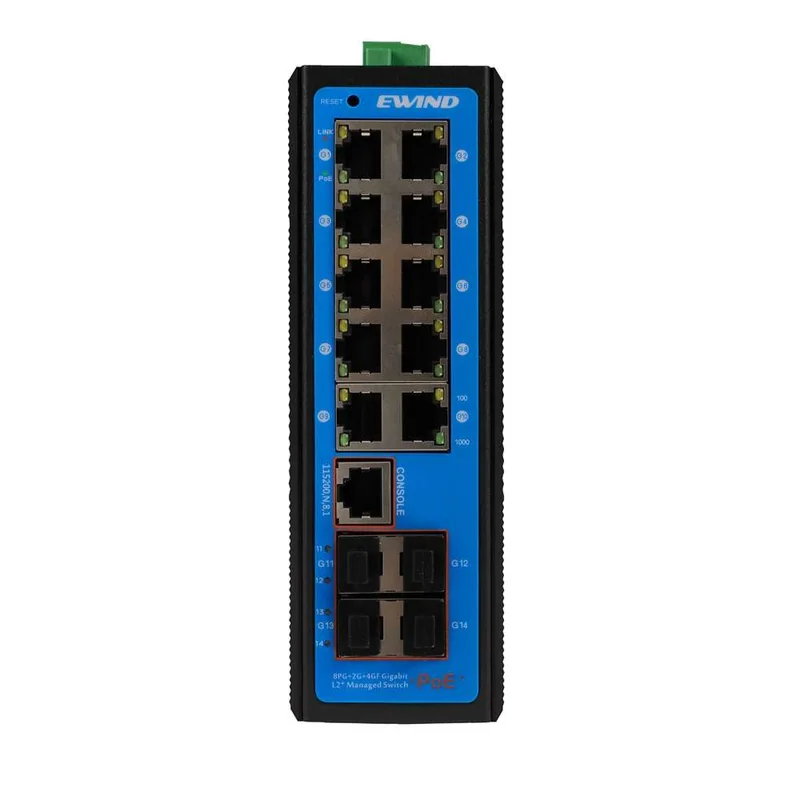

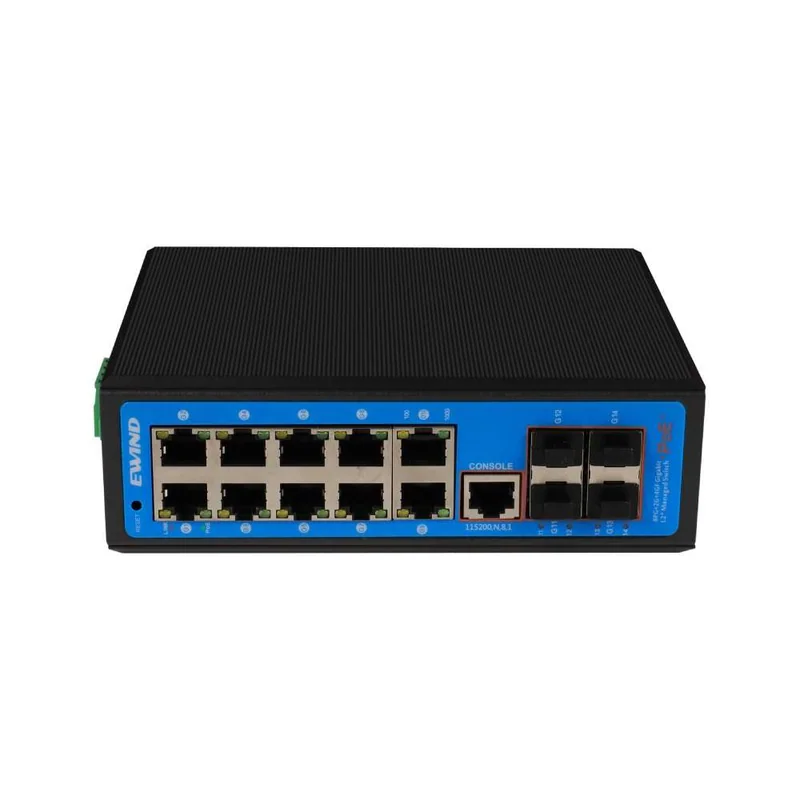

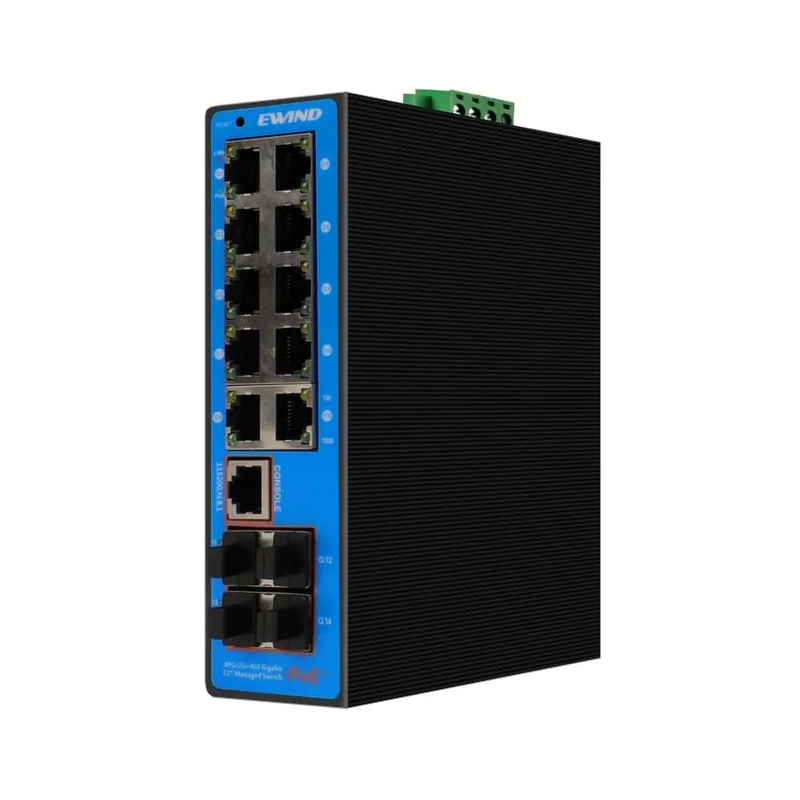

Model: EW-PIS6812M-8GE-BT

Managed Industrial PoE Switch with 2.5G SFP Uplinks

8 × Gigabit IEEE 802.3af/at/bt PoE ports
2 × Gigabit and 2 × 1G/2.5G SFP uplinks
Web, CLI and SNMP management; ERPS ring recovery
48–57VDC input; optional industrial power supply

Project inquiry

Request pricing and lead time

Tell us your model, quantity and project requirements. Our networking team will help you find the right fit.

info@ewindnet.com

Overview

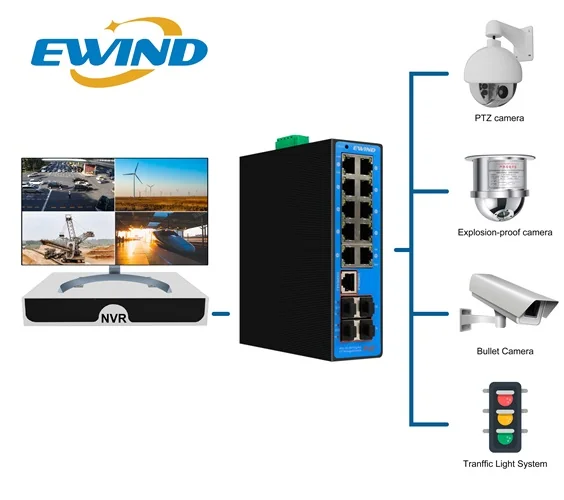

EW-PIS6812M-8GE-BT combines eight Gigabit IEEE 802.3bt PoE ports with Gigabit and 2.5G SFP uplinks. L2+ management, ERPS ring recovery and redundant DC input support industrial camera and access networks.

High-power PoE

The technical table specifies up to 90W per port, subject to the total supply budget.

2.5G fiber uplinks

Two 1G/2.5G SFP slots complement two Gigabit SFP connections.

L2+ management

VLAN, QoS, port monitoring and PoE scheduling support managed deployments.

Industrial resilience

IP40 enclosure, redundant DC input and ERPS recovery for industrial cabinets.

Product technical specifications
Specification	Details
PoE ports	8 × 10/100/1000Base-T; IEEE 802.3af/at/bt
SFP uplinks	2 × 100/1000Base-X; 2 × 1000/2.5GBase-X
PoE power	Up to 90W per port in the technical table; total load limited by the selected supply
Management	L2+; Web, CLI and SNMP; RS232 console
Memory	8K MAC entries; 6M buffer; 9.6K jumbo frames

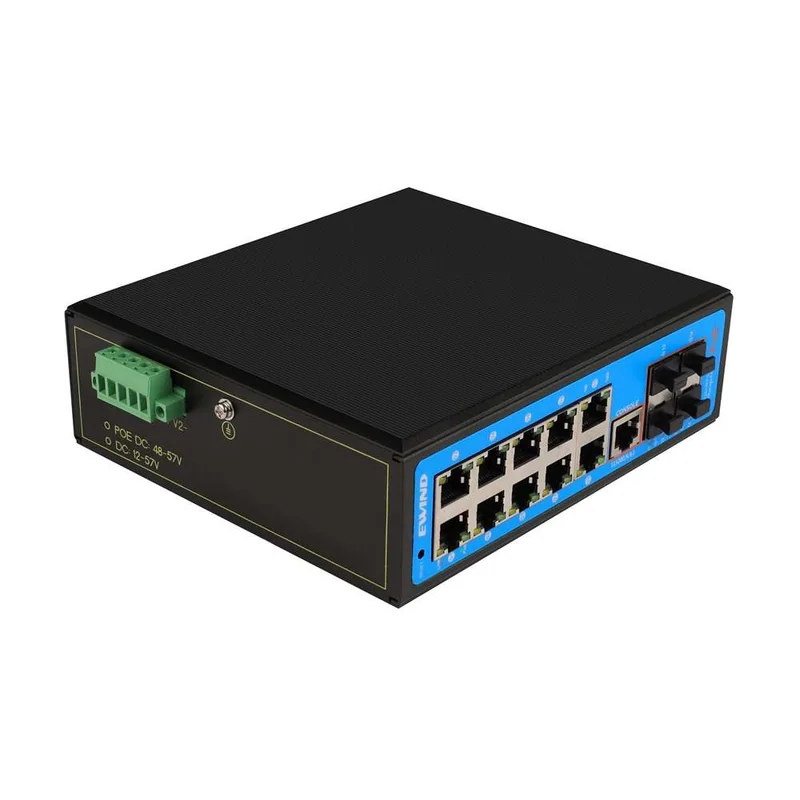

Power input	Redundant 48–57VDC; optional 48V/120W or 48V/240W industrial supply
Standby power	<12W

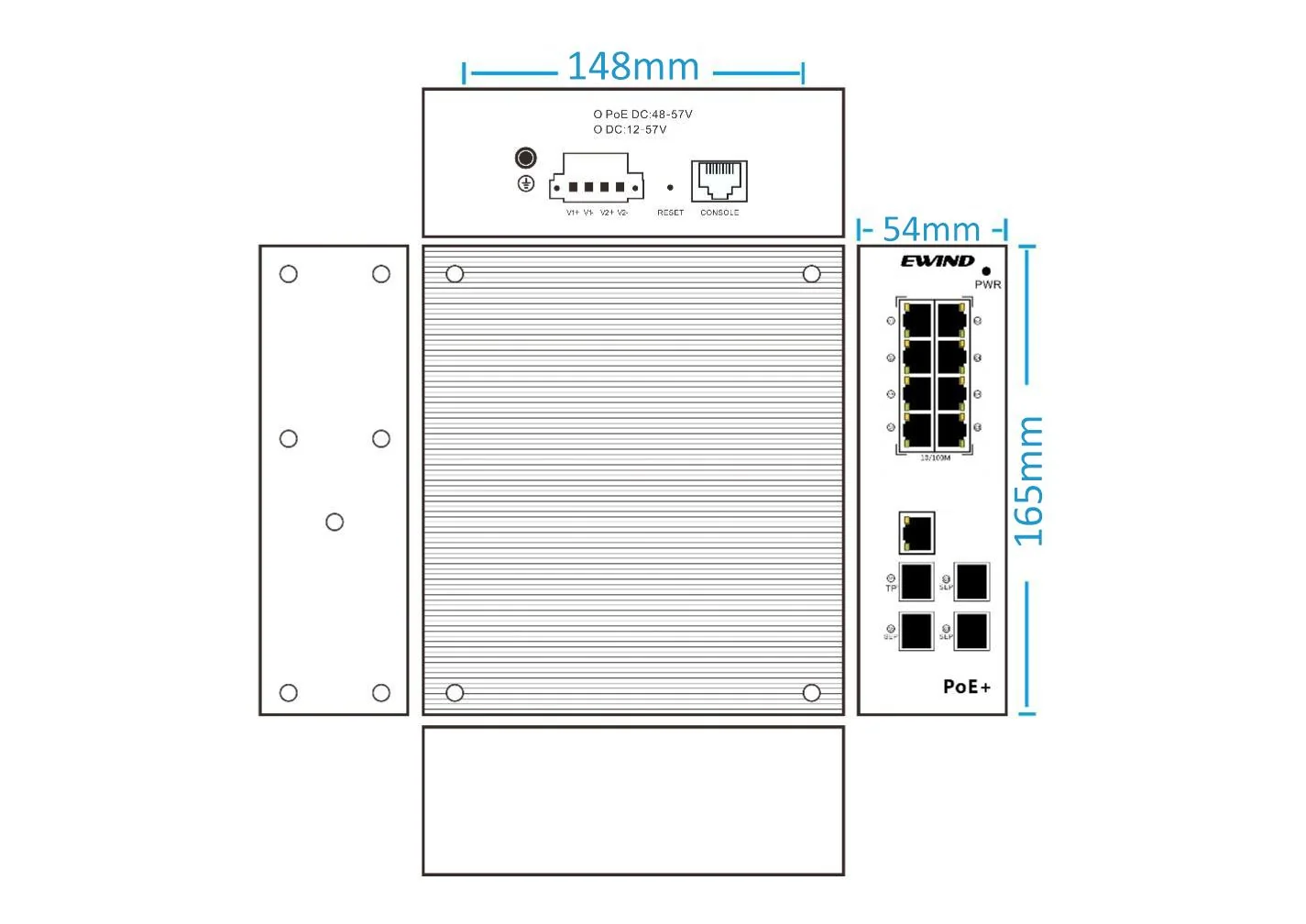

Dimensions / mounting	165 × 148 × 54mm; DIN rail
Operating conditions	−40°C to +75°C; 5%–90% RH, non-condensing
Protection / warranty	IP40; 6kV lightning protection; 5-year warranty
