Model: EW-PIS3616M-8GE

16-Port Gigabit Managed Industrial PoE Switch

8 Gigabit PoE RJ45 ports + 8 Gigabit SFP slots
IEEE 802.3af/at; up to 30W per PoE port
Web and console management with VLAN and RSTP
Redundant DC inputs; IP40 DIN-rail enclosure

Project inquiry

Request pricing and lead time

Tell us your model, quantity and project requirements. Our networking team will help you find the right fit.

info@ewindnet.com

Overview

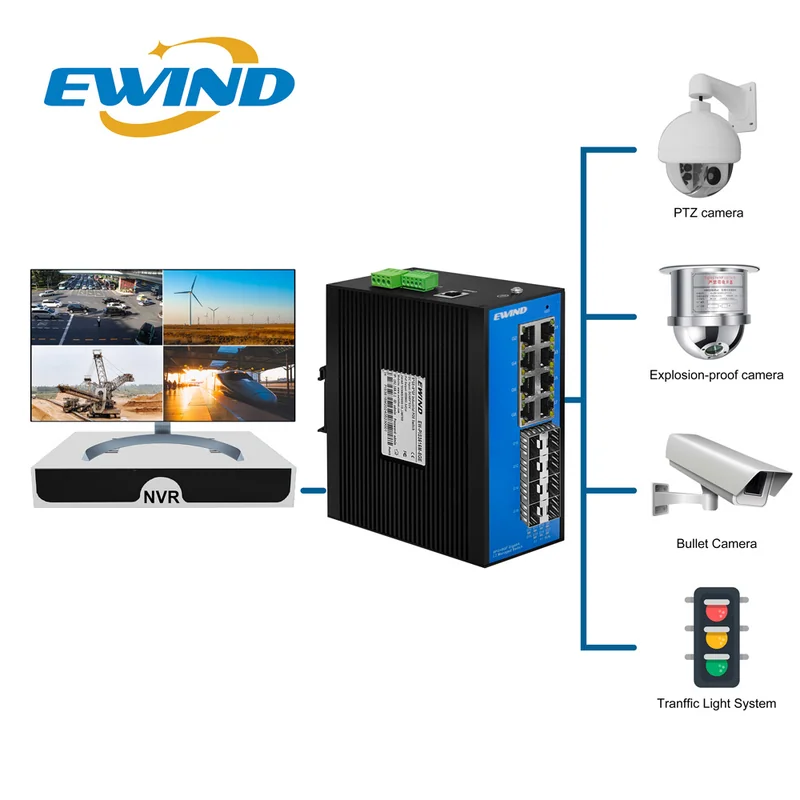

EW-PIS3616M-8GE combines eight Gigabit PoE RJ45 ports with eight Gigabit SFP connections for industrial copper-and-fiber networks. Web and console management provide VLANs, ring-network functions and traffic controls, while redundant DC inputs and a fanless DIN-rail enclosure support operation from −40°C to +75°C.

Copper and fiber

Eight Gigabit RJ45 connections and eight Gigabit SFP slots.

8 PoE ports

IEEE 802.3af/at detection for up to 30W per powered port.

Managed traffic

802.1Q VLANs, RSTP, loop detection and port rate limits.

Industrial installation

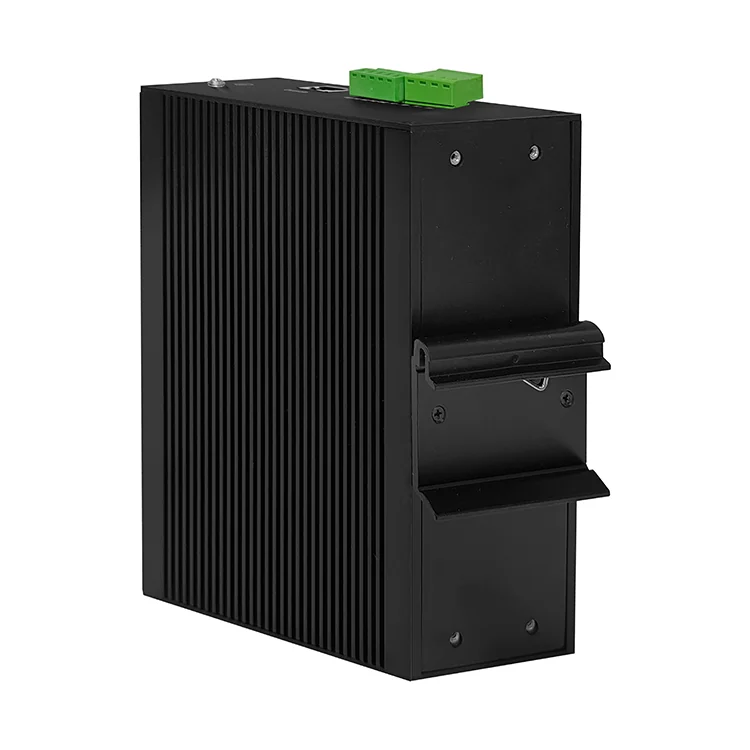

Fanless IP40 housing with DIN-rail mounting and dual DC input.

Product technical specifications
Specification	Details
PoE ports	8 × 10/100/1000Mbps RJ45
Fiber ports	8 × Gigabit SFP slots
Console	1 × RS232; 115200, N, 8, 1
PoE standard	IEEE 802.3af/at
Maximum power per PoE port	30W

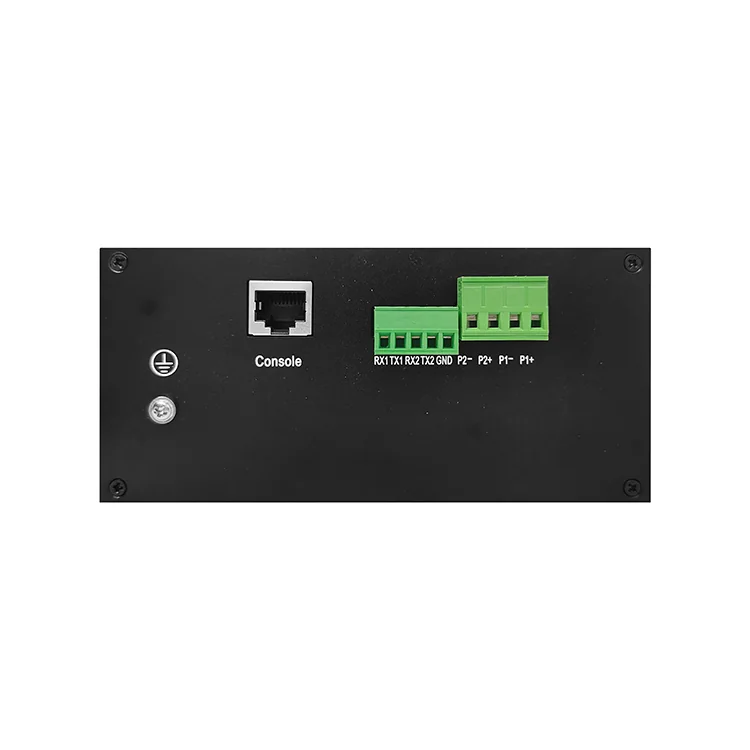

DC connections	Two redundant inputs; 6-pin terminal block
Management	Web interface and console

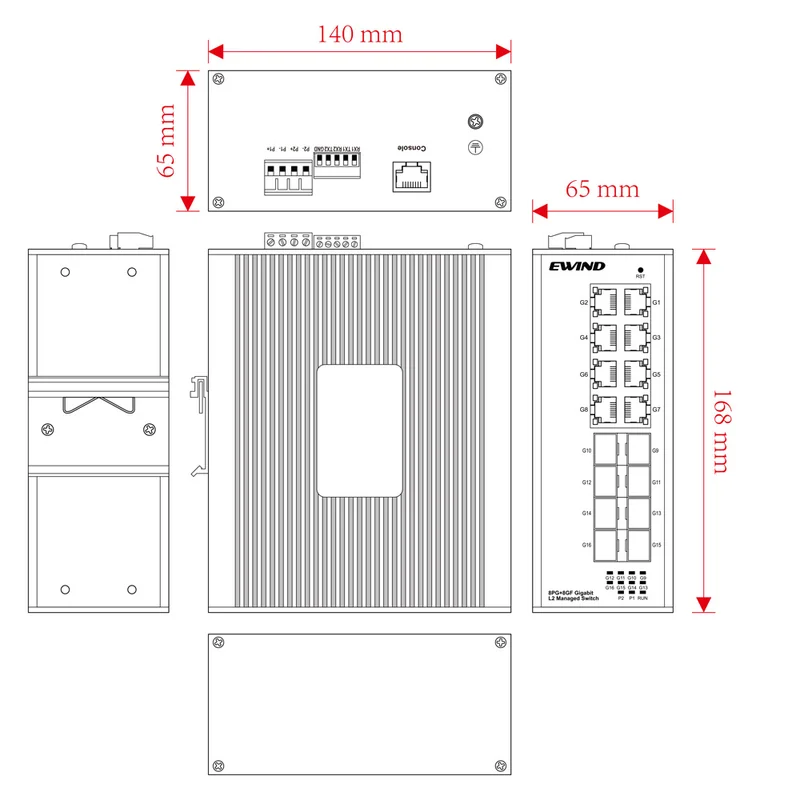

Dimensions (H × D × W)	168 × 140 × 65mm
Installation / protection	DIN rail; IP40
Operating temperature	−40°C to +75°C
Warranty	5 years

Advanced capabilities

Detailed network functions stay available here without interrupting the main selection path.

VLANs and redundancy

802.1Q and port-based VLANs, with support for up to 4096 VLANs. RSTP, fast ring-network functions, static port aggregation and loop detection/avoidance.

Traffic management

IGMP snooping, broadcast/multicast/unicast storm suppression, port input/output bandwidth controls and multi-to-one port mirroring. Copper ports support automatic speed and duplex negotiation with MDI/MDIX.

Administration and maintenance

Web and RS232 console administration. DHCP client, configuration upload/download, firmware upload, web-based factory reset and system logs.

Power planning

Ports 1–8 support IEEE 802.3af/at powered devices. The per-port maximum is 30W; overall delivery depends on the selected DC supply and system power budget. Use the input rating marked on the supplied PoE unit when selecting its power source.

Environment and fiber selection

Operating humidity: 10–90%, non-condensing. Storage: −40°C to +85°C and 5–95% RH, non-condensing. Match SFP modules to the fiber type and required reach; module-dependent distances are not fixed switch specifications.
