Model: EW-IS3610M

10-Port Gigabit L2+ Managed Industrial Switch with 2 SFP Uplinks

8 × 10/100/1000Mbps RJ45 ports + 2 × 10/100/1000Mbps SFP uplinks
20Gbps non-blocking switching · 14.88Mpps · 8K MAC
L2+ management · redundant 12–57VDC input · IP40

Project inquiry

Request pricing and lead time

Tell us your model, quantity and project requirements. Our networking team will help you find the right fit.

info@ewindnet.com

Overview

EW-IS3610M combines eight adaptive Gigabit RJ45 ports and two Gigabit SFP uplinks with L2+ industrial management. Its IPv4/IPv6 controls, ERPS recovery, ACL/QoS, redundant 12–57VDC input and IP40 rail enclosure fit compact industrial networks.

Copper and fiber access

Eight adaptive Gigabit RJ45 ports and two SFP slots connect mixed industrial devices and optical segments.

Industrial resilience

Fanless operation, ERPS/RSTP, ACLs, authentication and IP40 protection support harsh edge sites.

L2+ control set

VLAN, routing, aggregation, IGMP/MLD, QoS, mirroring and secure web/CLI management support structured networks.

Product technical specifications
Specification	Details
Model	EW-IS3610M
Copper ports	8 × 10/100/1000BASE-T data ports
Fiber uplinks	2 × 10/100/1000Mbps SFP data slots
Management interfaces	1 × RS232 console; HTTPS web, SSH/Telnet CLI and SNMP v1/v2c/v3
Power input	Redundant 5-pin Phoenix terminals; 12–57VDC
Switching / forwarding	20Gbps non-blocking / 14.88Mpps
MAC / buffer / jumbo	8K / 4.1M / 10K
Management features	L2+ IPv4/IPv6, static routing, 4K VLAN, LACP, STP/RSTP/MSTP, ERPS, IGMP/MLD and ACL
Dimensions / installation	149.2 × 122 × 50 mm in the PDF; rail-type installation
Protection / environment	IP40; −40 to +75°C operating; −40 to +85°C storage; 5–90% RH
Warranty	5 years; lifetime maintenance

Advanced capabilities

Detailed network functions stay available here without interrupting the main selection path.

Layer 2 and routing

Port/protocol/voice/MAC VLANs, QinQ, LACP, STP/RSTP/MSTP, static/default routes, IGMP/MLD snooping, mirroring and eight QoS queues per port are listed in the source.

Industrial resilience and security

G.8032 ERPS supports up to 255 loops and less than 20ms self-healing in the source. ACLs, 802.1X, AAA/RADIUS, SSH/SSL, DHCP snooping and IP/MAC/VLAN/port binding add access controls.

Fiber planning

The two SFP slots support 10/100/1000Mbps modules. Select compatible copper or optical modules and fiber reach for the site.

Source wording review

The source includes a PoE management section although the interface table presents this model as a managed industrial switch without a stated PoE budget. Confirm whether the ordered SKU is PoE-capable before planning powered endpoints.

Dimension review

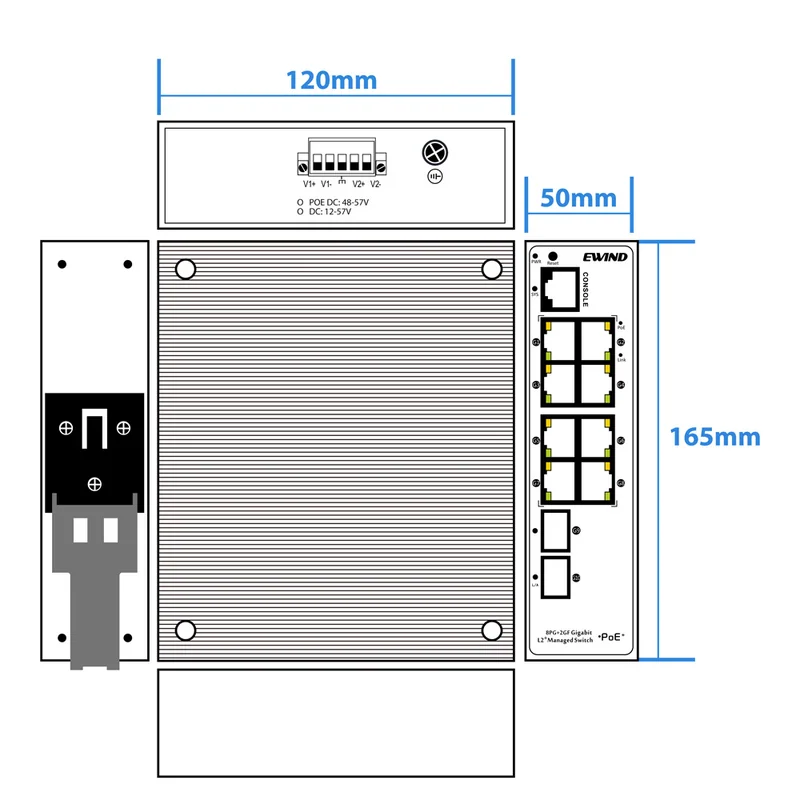

The supplied drawing labels 165 × 120 × 50mm, while the PDF table lists 149.2 × 122 × 50mm. The page uses the PDF value and keeps the drawing visible for supplier confirmation.
