Model: EW-PIS3606M-4GE-BT

4-Port 95W Gigabit Managed Industrial PoE Switch with 2 SFP Uplinks

4 × Gigabit PoE ports · up to 95W per port
2 × 100/1000M SFP uplinks
250W configuration · L2+ managed industrial housing

Project inquiry

Request pricing and lead time

Tell us your model, quantity and project requirements. Our networking team will help you find the right fit.

info@ewindnet.com

Overview

EW-PIS3606M-4GE-BT combines four Gigabit PoE ports with two 100/1000M SFP uplinks in a managed industrial enclosure. Each PoE port supports up to 95W BT, with redundant 48–57V DC input and Layer 2+ traffic controls.

High-power PoE

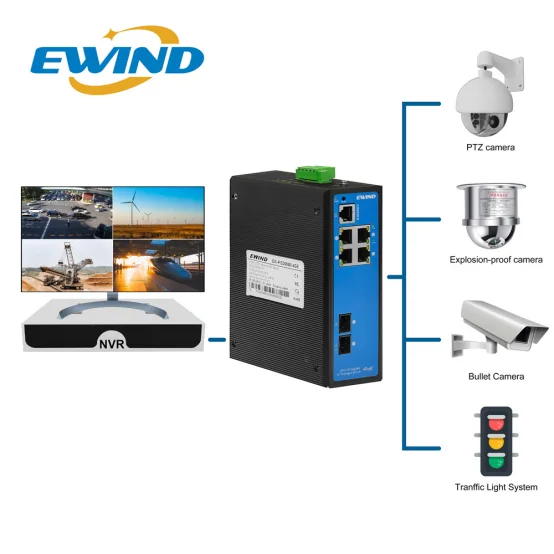

IEEE 802.3af/at/bt ports power compatible cameras, APs and industrial endpoints up to the configured per-port limit.

Copper and fiber uplinks

Four Gigabit RJ45 PoE ports and two SFP slots connect local devices and fiber segments.

Industrial resilience

Redundant 48–57V DC inputs, IP40 enclosure and −40 to +85°C operation support cabinets and field sites.

Product technical specifications
Specification	Details
Model	EW-PIS3606M-4GE-BT
PoE ports	4 × 10/100/1000BASE-T PoE
Fiber uplinks	2 × 100/1000BASE-X SFP slots; modules sold separately
PoE standard / port limit	IEEE 802.3af/at/bt; up to 95W per port
Power configuration	250W at 48–57V DC
Management	L2+ managed
Switching / forwarding	12 Gbps / 8.93 Mpps
MAC / buffer	16K / 16M
Power input	Redundant 48–57V DC; 4-pin Phoenix terminal
Enclosure / protection	IP40 aluminum enclosure

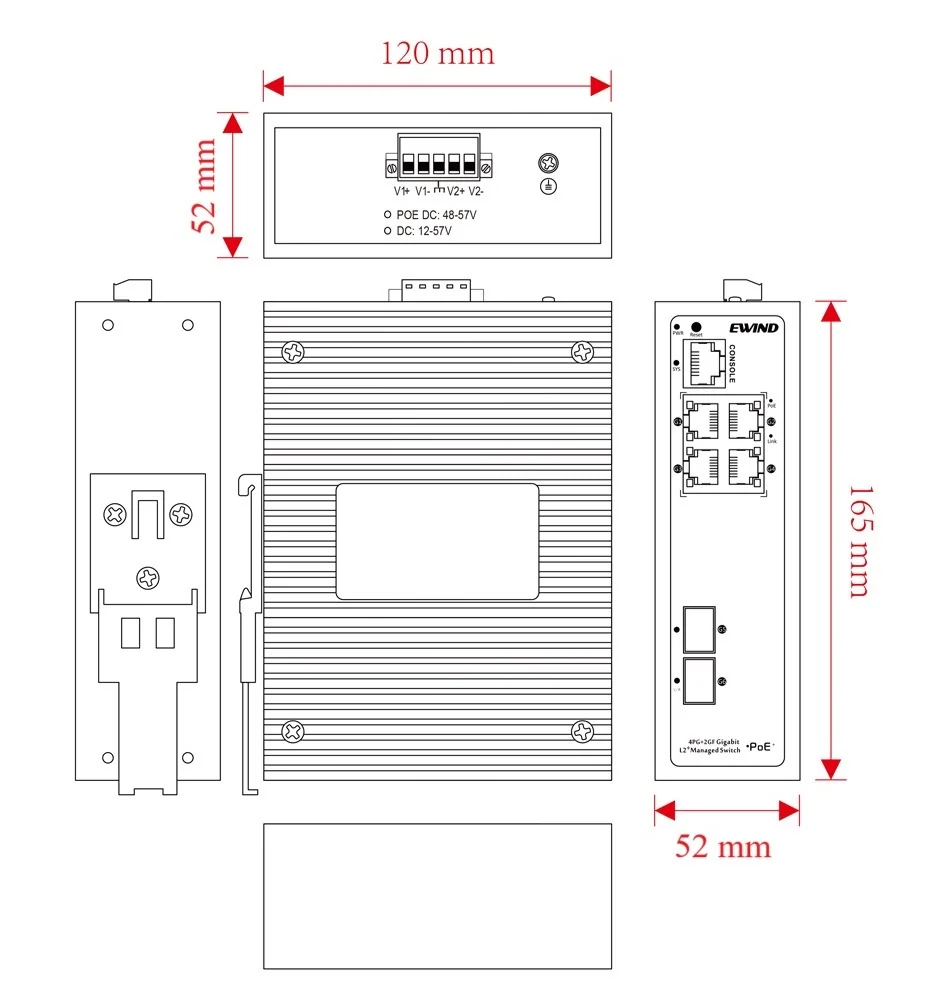

Dimensions / weight	165 × 120 × 52 mm; <0.7kg net
Operating environment	−40 to +85°C; 5–95% RH, non-condensing
Warranty	5 years
