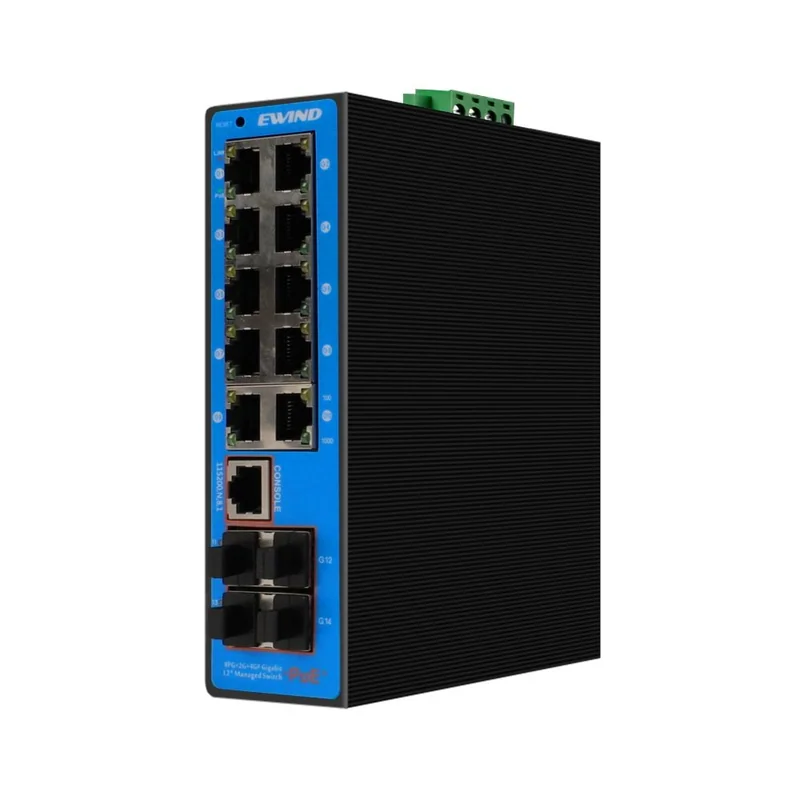

Model: EW-PIS3814M-8GE

14-Port Gigabit L2+ Industrial Managed PoE Switch

8 × Gigabit PoE RJ45 ports with IEEE 802.3af/at
2 × Gigabit non-PoE RJ45 ports and 4 × Gigabit SFP ports
256Gbps switching capacity and 32K MAC table
L2+ network and PoE management with dual redundant DC terminals

Project inquiry

Request pricing and lead time

Tell us your model, quantity and project requirements. Our networking team will help you find the right fit.

info@ewindnet.com

Overview

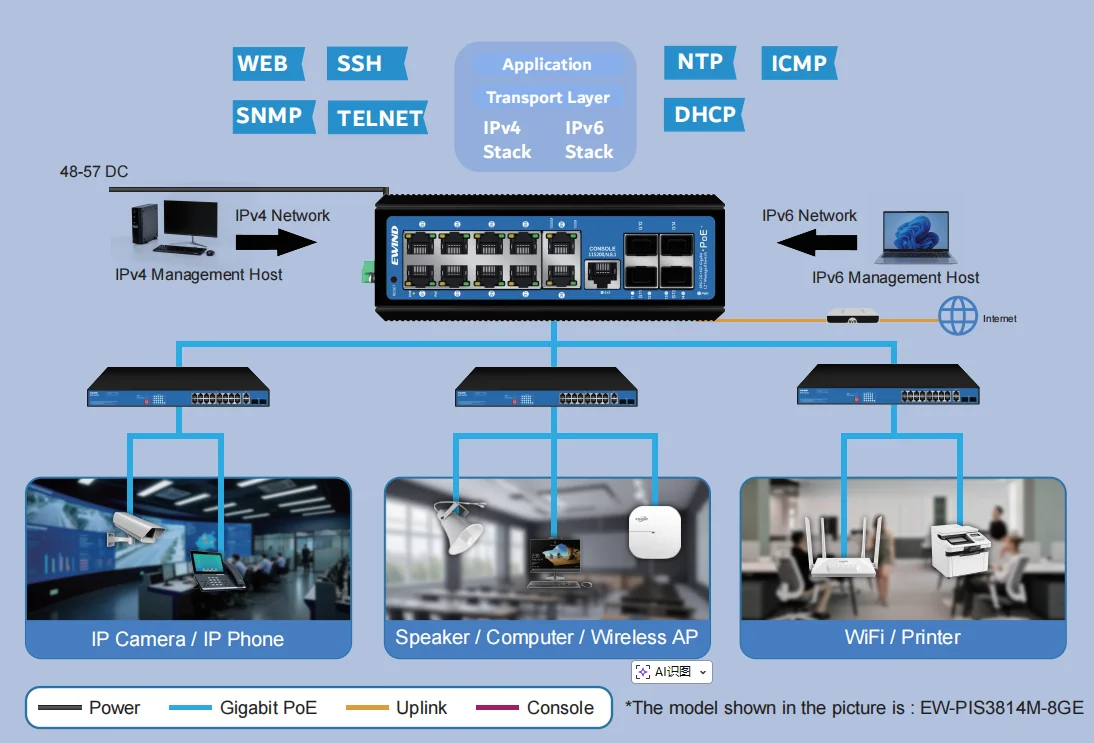

EW-PIS3814M-8GE combines eight Gigabit PoE ports, two non-PoE Gigabit RJ45 ports and four Gigabit SFP fiber ports in an industrial L2+ managed enclosure. Dual 48–57VDC input, 256Gbps switching and full PoE/network management support demanding industrial access networks.

14-port access

Combine PoE, copper uplink and four fiber ports in one industrial switch.

Managed PoE

Intelligent AF/AT recognition and per-port power management simplify deployment.

High capacity

256Gbps switching and 32K MAC learning support dense traffic.

Industrial design

Redundant 48–57VDC input and IP40 protection suit field cabinets.

Product technical specifications
Specification	Details
Interfaces	8 × 10/100/1000Mbps PoE RJ45; 2 × 10/100/1000Mbps non-PoE RJ45; 4 × 1000Mbps SFP
PoE standard	IEEE 802.3af/at; 15.4W standard / 30W maximum per port
Power input	48–57VDC redundant dual 5-bit industrial terminals
Switching capacity	256Gbps
MAC table	32K
Management	L2+ full network management, PoE management and configuration
Console	RS232 console port

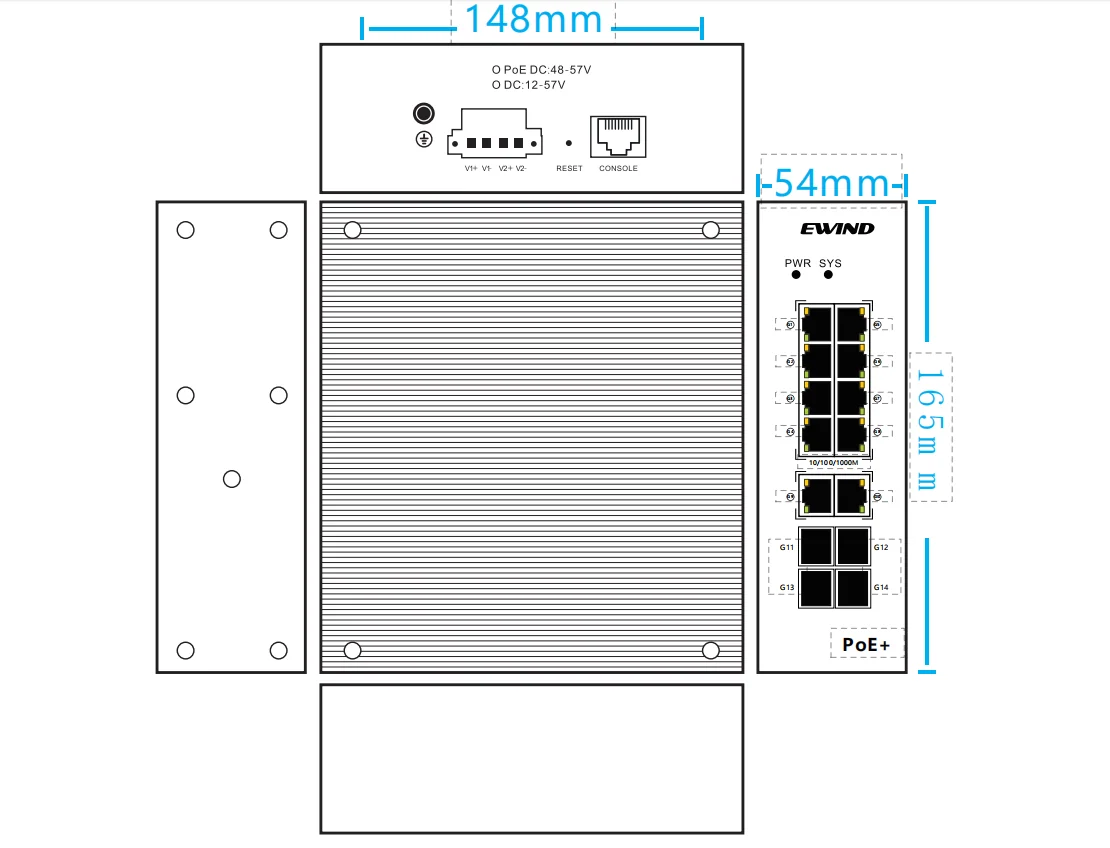

Dimensions	148 × 96 × 54mm
Protection	IP40
PoE polarity	1/2 positive and 3/6 negative
Warranty	Source page lists product features; confirm final warranty terms in the ordering document
