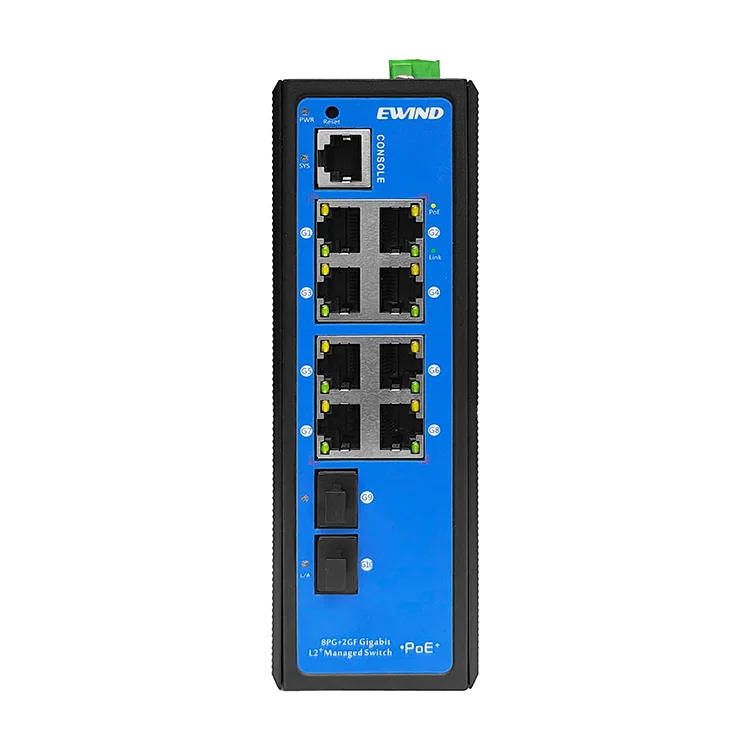

Model: EW-PIS3610M-8GE

10-Port Gigabit L2+ Managed Industrial PoE Switch with 2 SFP Uplinks

8 × 10/100/1000Mbps IEEE 802.3af/at PoE ports · 30W max per port
2 × 10/100/1000Mbps SFP uplinks · RS232 console
20Gbps non-blocking switching · 140W minimum PoE budget · IP40

Project inquiry

Request pricing and lead time

Tell us your model, quantity and project requirements. Our networking team will help you find the right fit.

info@ewindnet.com

Overview

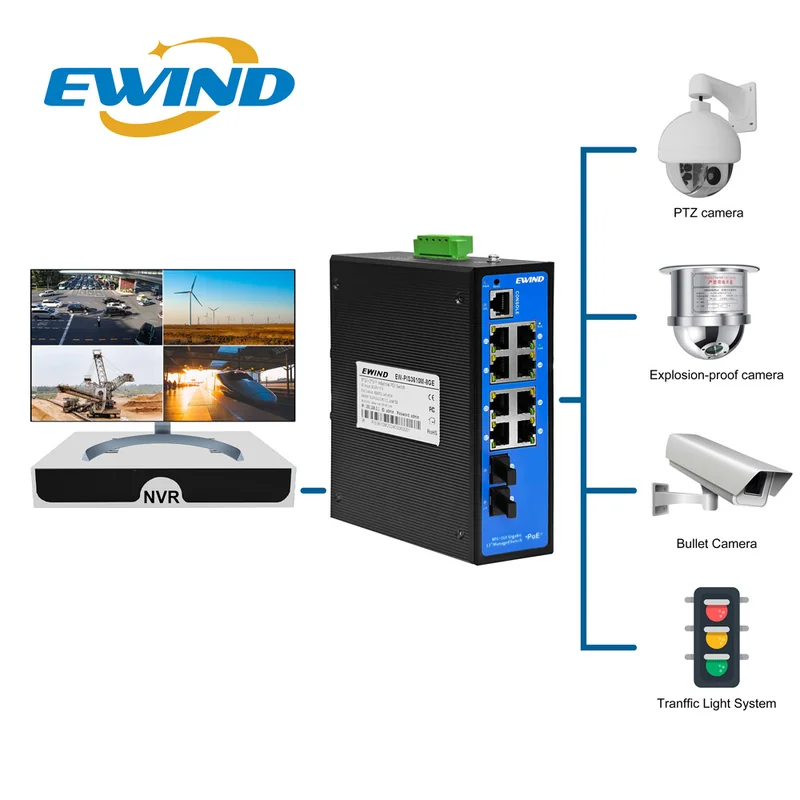

EW-PIS3610M-8GE provides eight Gigabit PoE ports and two 10/100/1000Mbps SFP uplinks with L2+ management in a compact industrial enclosure. PoE scheduling, IPv4/IPv6 controls, ERPS recovery, redundant 48–57VDC input and IP40/NEMA TS-2 protection suit industrial edge networks.

Managed PoE outputs

Configure allocation, priority, delayed startup, schedules and live status for eight AF/AT ports.

Two Gigabit SFP uplinks

Two SFP slots connect industrial access segments over copper or fiber modules.

Industrial L2+ resilience

ERPS, STP/RSTP/MSTP, ACLs, QoS, authentication and redundant power support critical edge links.

Product technical specifications
Specification	Details
Model	EW-PIS3610M-8GE
PoE ports	8 × 10/100/1000BASE-T; IEEE 802.3af/at; up to 30W per port
Fiber uplinks	2 × 10/100/1000Mbps SFP fiber slots
Management interfaces	1 × RS232 console; HTTPS web, SSH/Telnet CLI and SNMP v1/v2c/v3

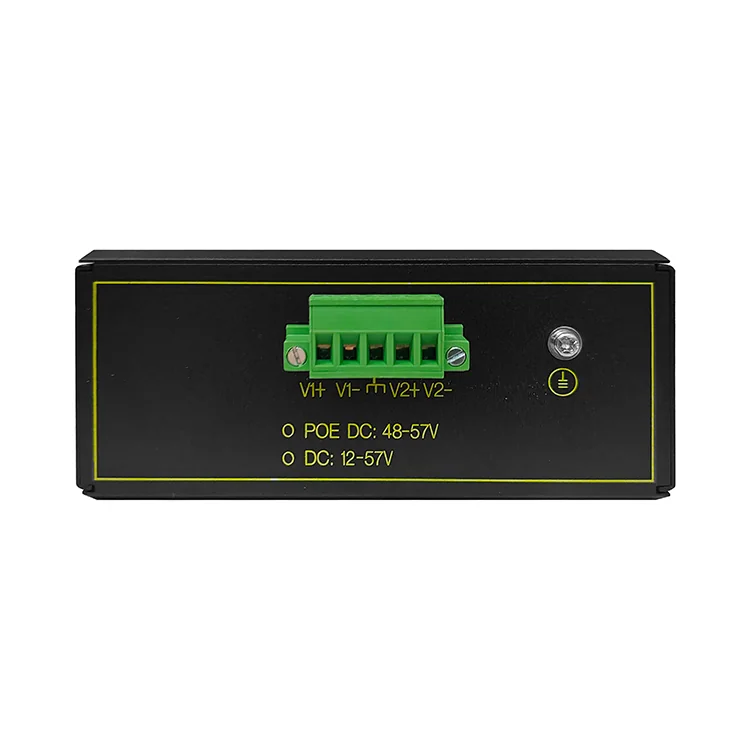

Power input	Redundant 5-pin terminals; 48–57VDC; optional 48V/120W or 48V/240W supply
Switching / forwarding	20Gbps non-blocking / 14.88Mpps
MAC / buffer / jumbo	8K / 4.1M / 10K
PoE budget	Minimum 140W stated; total input options listed as 120W / 240W

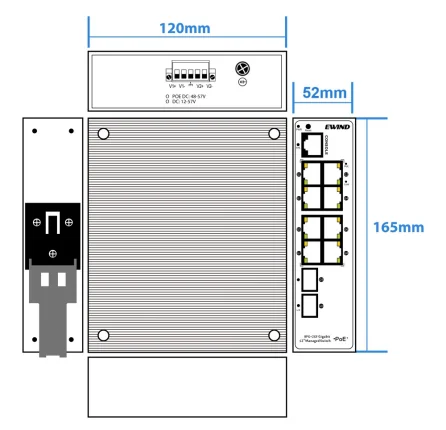

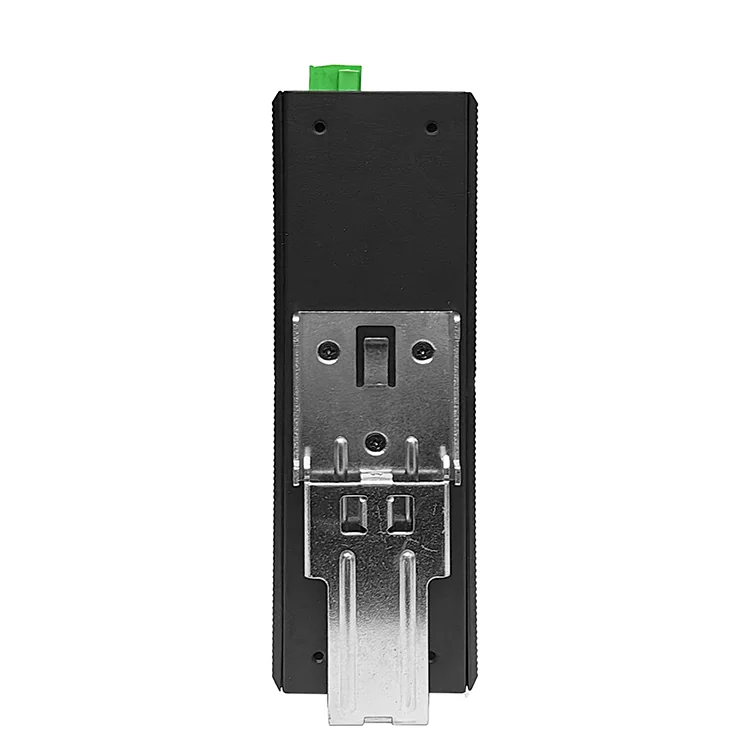

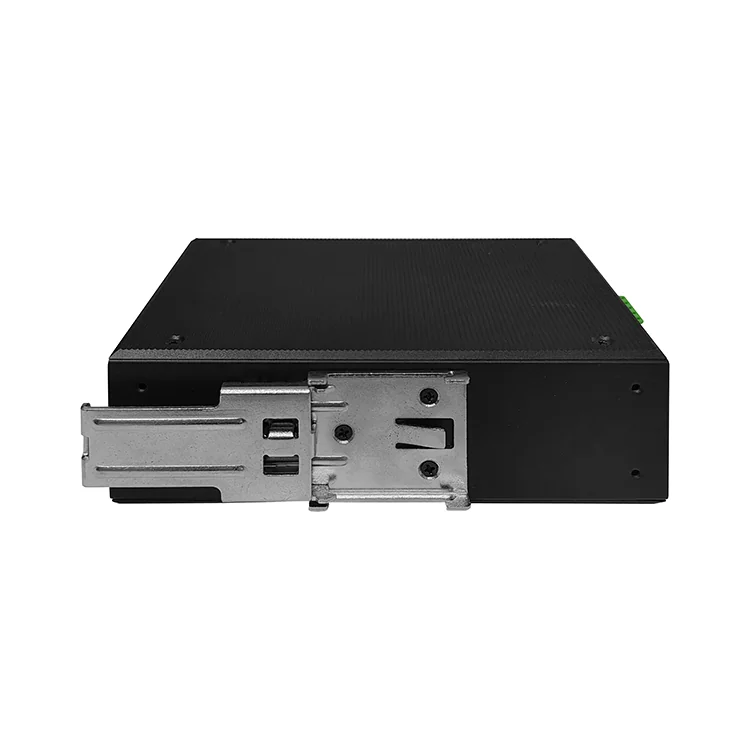

Dimensions / installation	165 × 120 × 52 mm; rail-type installation
Protection / environment	IP40 and NEMA TS-2; −40 to +75°C; 5–90% RH
Warranty	5 years; lifetime maintenance

Advanced capabilities

Detailed network functions stay available here without interrupting the main selection path.

PoE controls

Configure total limits, per-port allocation, AF/AT enablement, priority, live status, delayed startup and schedules. Confirm the selected 120W or 240W supply and the aggregate endpoint load.

Layer 2 and routing

Port/protocol/voice/MAC VLANs, QinQ, LACP, STP/RSTP/MSTP, static/default routes, IGMP/MLD snooping, mirroring and eight QoS queues per port are listed in the source.

Industrial resilience and security

G.8032 ERPS supports up to 255 loops and less than 20ms self-healing in the source. ACLs, 802.1X, AAA/RADIUS, SSH/SSL, DHCP snooping and IP/MAC/VLAN/port binding add access controls.

Fiber planning

The two SFP slots support 10/100/1000Mbps modules. Select compatible copper or optical modules and fiber reach for the site.
