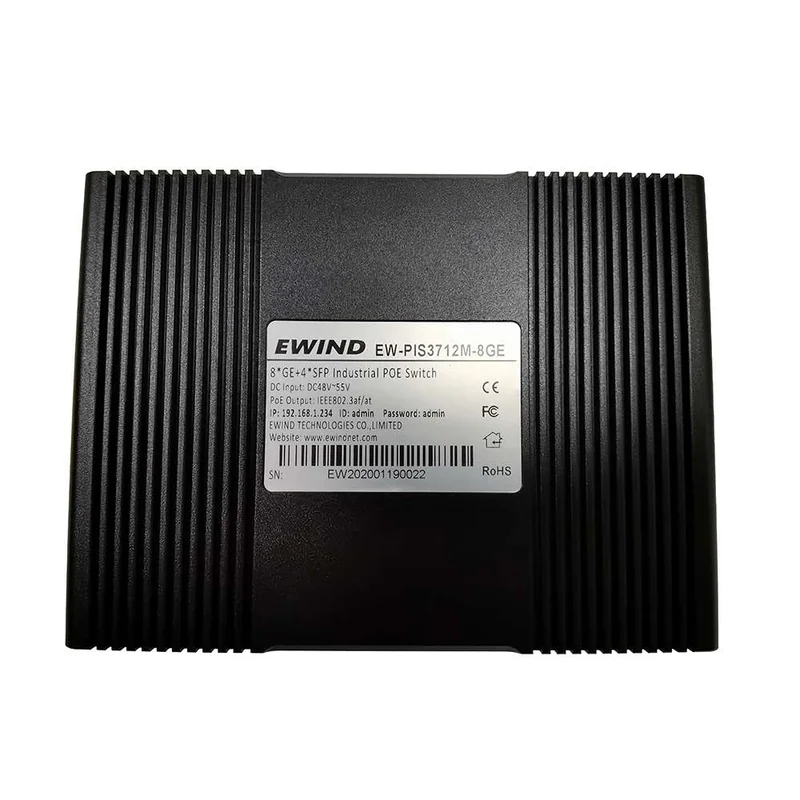

Model: EW-PIS3712M-8GE

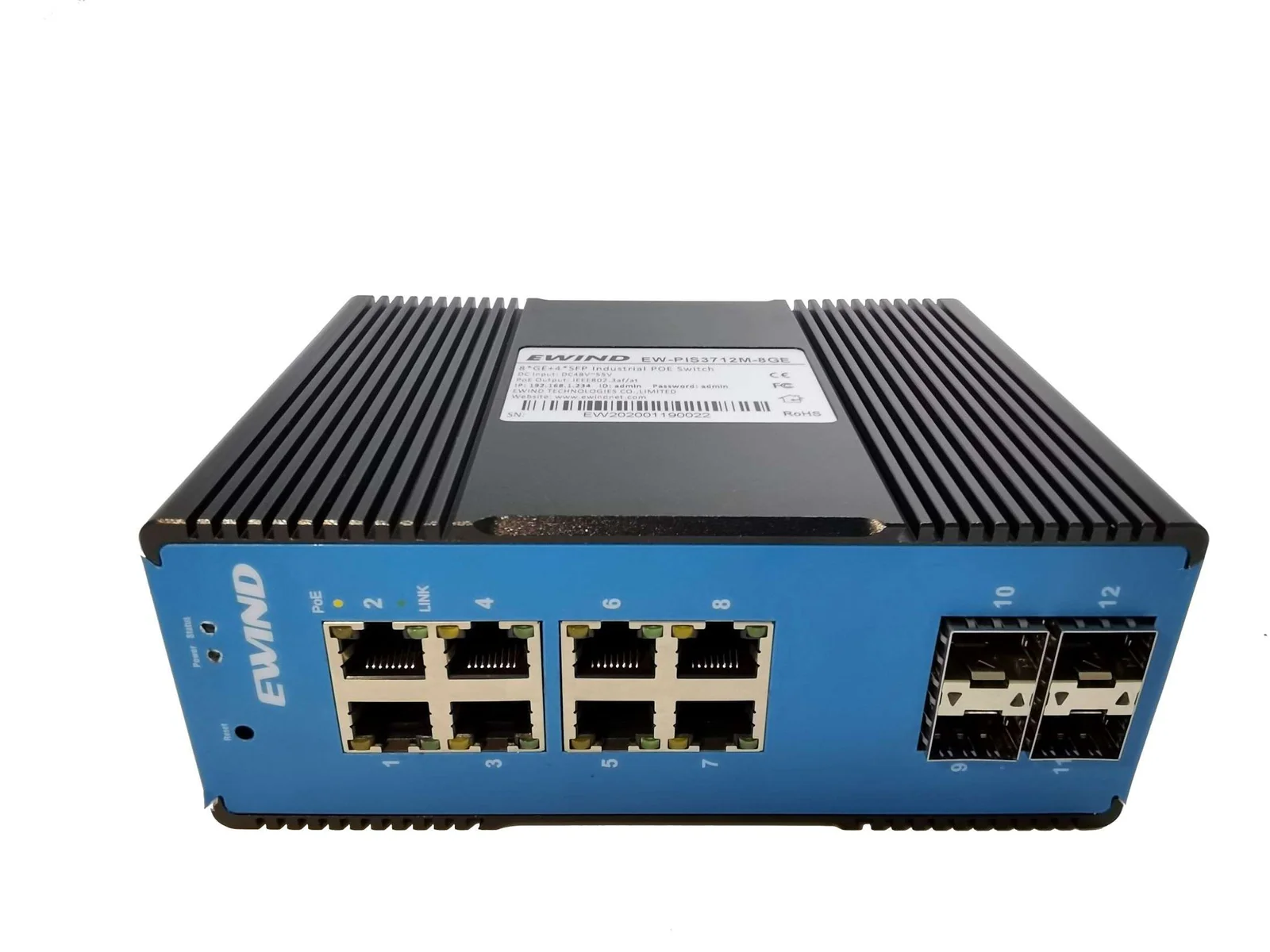

8-Port Gigabit Managed Industrial PoE Switch with 4 SFP Uplinks

8 × Gigabit PoE ports, up to 30W each
4 × 100/1000Mbps SFP uplinks
L2+ management, static routing and ERPS
IP40; DIN rail; −40 to +85°C

Project inquiry

Request pricing and lead time

Tell us your model, quantity and project requirements. Our networking team will help you find the right fit.

info@ewindnet.com

Overview

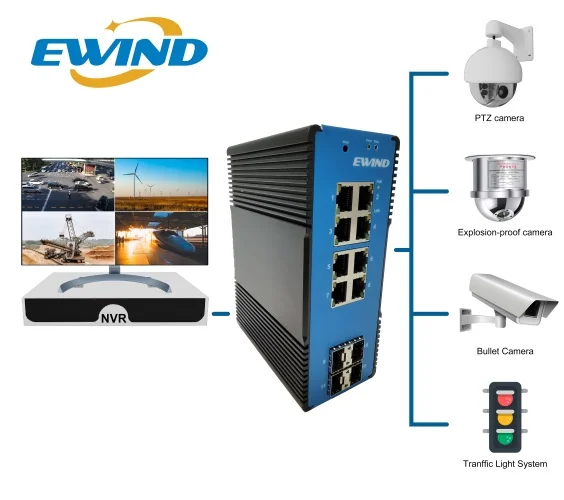

EW-PIS3712M-8GE combines eight Gigabit IEEE 802.3af/at PoE ports with four 100/1000Mbps SFP uplinks. L2+ management, ERPS ring support and redundant 48–57V DC inputs provide managed connectivity for industrial camera and control networks.

Managed PoE access

Eight af/at ports supply compatible industrial endpoints with up to 30W per port.

Fiber network management

Four SFP slots, VLANs, link aggregation and ERPS support segmented, redundant networks.

Industrial installation

Redundant DC terminals, an IP40 enclosure and fanless cooling support DIN-rail deployment.

Product technical specifications
Specification	Details
PoE ports	8 × 10/100/1000Mbps RJ45; IEEE 802.3af/at
SFP uplinks	4 × 100/1000Mbps
Management / console	L2+ / RS232, 115200 baud, 8N1
PoE output per port	Up to 30W; pairs 1/2 positive, 3/6 negative

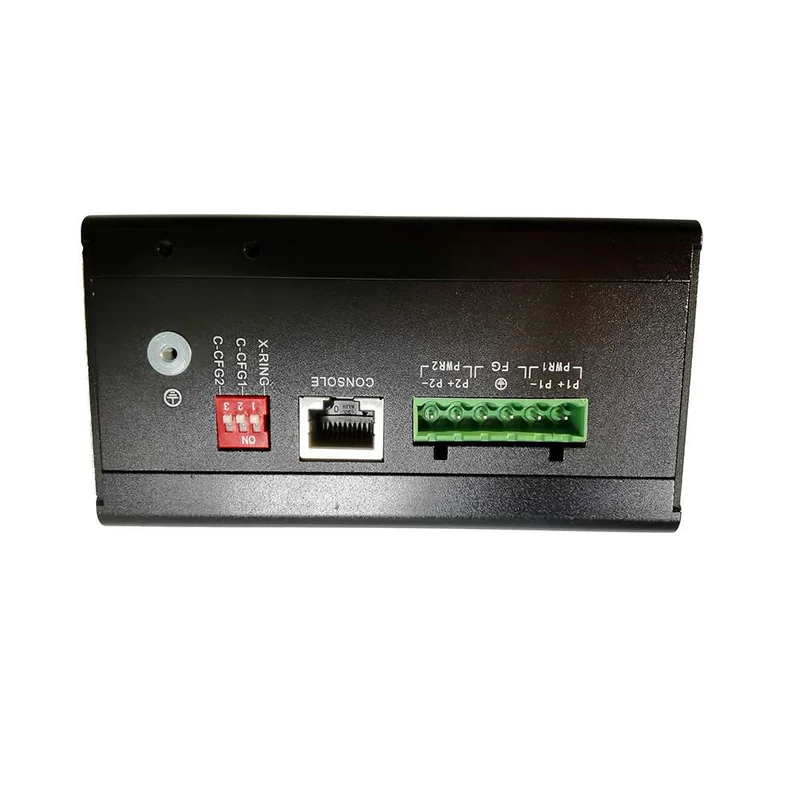

Power input	48–57V DC; redundant 6-pin terminal; reverse-polarity protection
External supply	Not included; 48V 120W or 240W options
Switching / forwarding	24Gbps / 17.9Mpps
MAC table / buffer	16K entries / 12M

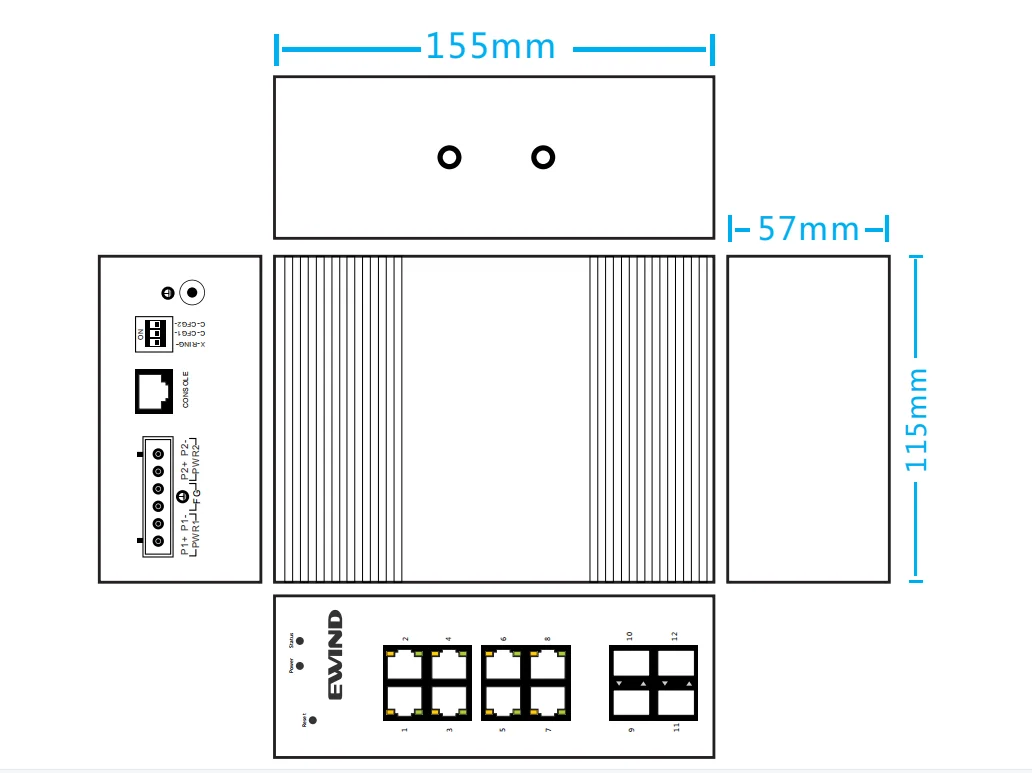

Dimensions	155 × 115 × 57mm
Operating temperature	−40 to +85°C
Enclosure / mounting	IP40 / DIN rail
Warranty	5 years

Advanced capabilities

Detailed network functions stay available here without interrupting the main selection path.

VLAN and routing

4094 VLANs; Access, Trunk and Hybrid ports; port-, VLAN- and flow-based QinQ. Static IPv4 and blackhole routing; static/dynamic ARP and proxy ARP.

Redundancy and multicast

Static aggregation and LACP, STP/RSTP/MSTP and G.8032 ERPS single/multiple rings. IGMP snooping v1/v2/v3 and N:1 port mirroring.

QoS and security

Eight queues per port with SP/WRR scheduling, ingress/egress rate limits and policy QoS. IP/MAC ACLs, port/MAC 802.1X authentication, RADIUS and DHCP snooping.

Management and optical selection

Web management, SNMP v2c, console, Telnet, TFTP firmware upgrade and syslog. SFP modules are purchased separately; select fiber type and link distance for the deployment.

Power and environment

Select the external supply for the combined PoE load and switch consumption. Operating humidity: 5–90% RH; storage: −40 to +125°C and 5–95% RH, non-condensing. Net/gross weight: <1.3kg / <1.5kg.

Protection and hardware

ESD ±8kV contact / ±15kV air; surge power ±4kV common mode / ±2kV differential mode and ports ±4kV. Hardware factory-reset control and fault contact are provided.
