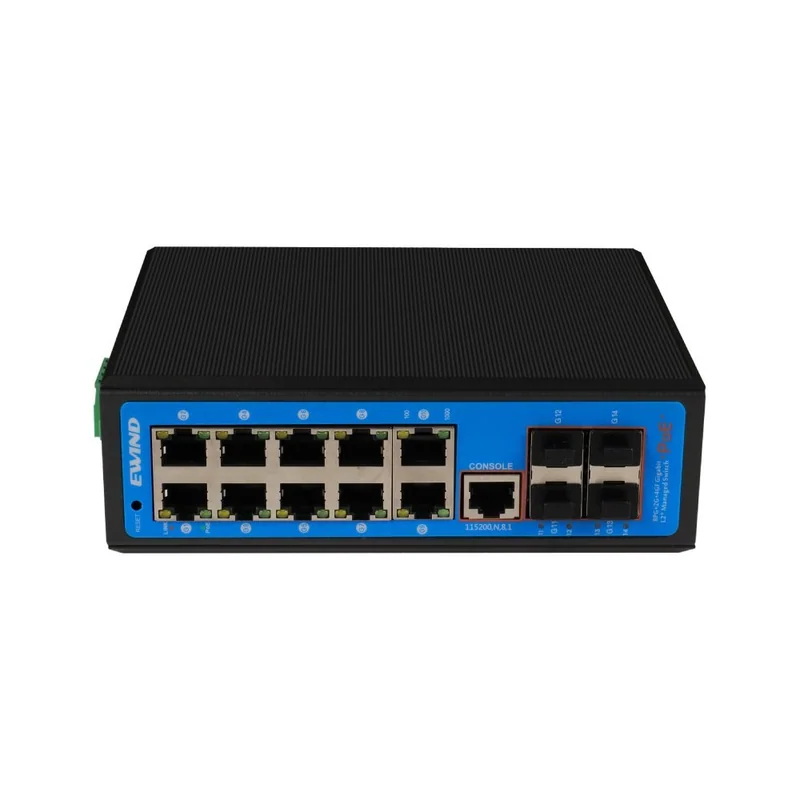

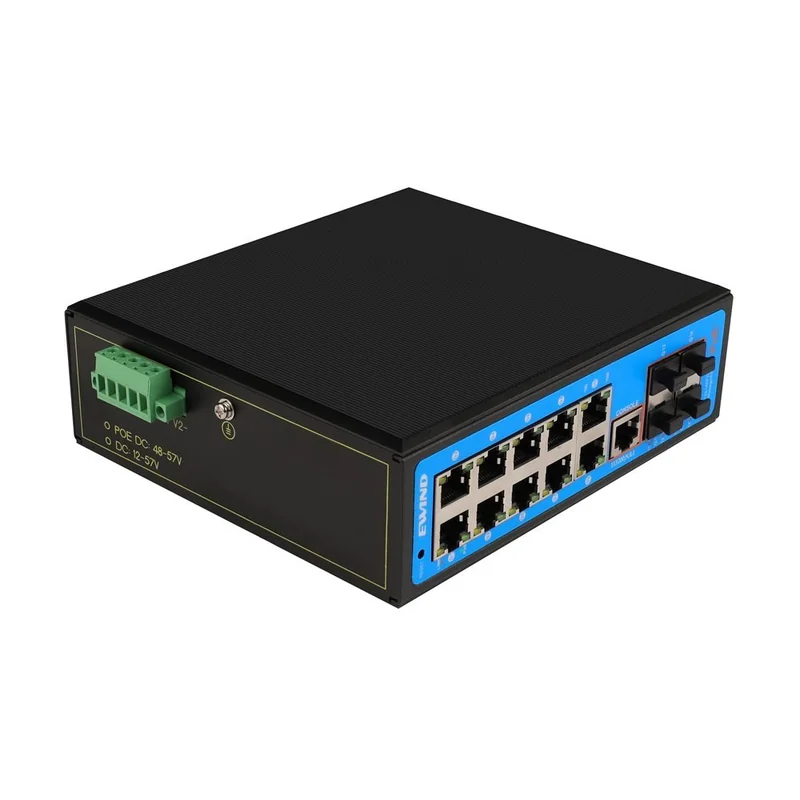

Model: EW-PIS3814M-8GE-BT

8-Port Gigabit Industrial PoE++ Switch with 4 SFP Uplinks

8 × Gigabit IEEE 802.3af/at/bt PoE ports
2 × Gigabit data ports + 4 × 100/1000Mbps SFP
L2+ network and PoE management
Redundant 48–57V DC; IP40; DIN rail

Project inquiry

Request pricing and lead time

Tell us your model, quantity and project requirements. Our networking team will help you find the right fit.

info@ewindnet.com

Overview

EW-PIS3814M-8GE-BT combines eight Gigabit IEEE 802.3af/at/bt PoE ports, two Gigabit data ports and four 100/1000Mbps SFP uplinks. L2+ network and PoE management, redundant 48–57V DC inputs and DIN-rail mounting support industrial cameras, wireless equipment and sensors.

High-power PoE access

IEEE 802.3af/at/bt support for compatible powered endpoints; size the supply for the required load.

Six additional data links

Two copper data ports and four fiber slots connect upstream or adjacent equipment.

Industrial deployment

IP40 enclosure with redundant DC inputs and DIN-rail mounting.

Product technical specifications
Specification	Details
PoE ports	8 × 10/100/1000Mbps RJ45
Additional RJ45 ports	2 × 10/100/1000Mbps; data only
SFP uplinks	4 × 100/1000Mbps
PoE standards	IEEE 802.3af/at/bt
Management	L2+; network and PoE configuration
MAC address table	32K entries

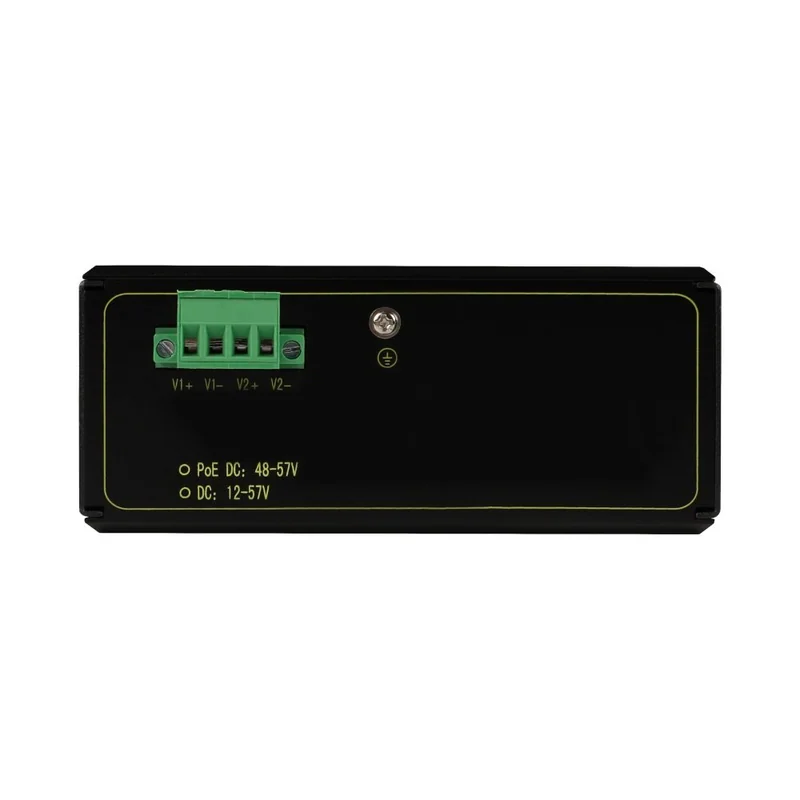

Power input	48–57V DC; redundant inputs

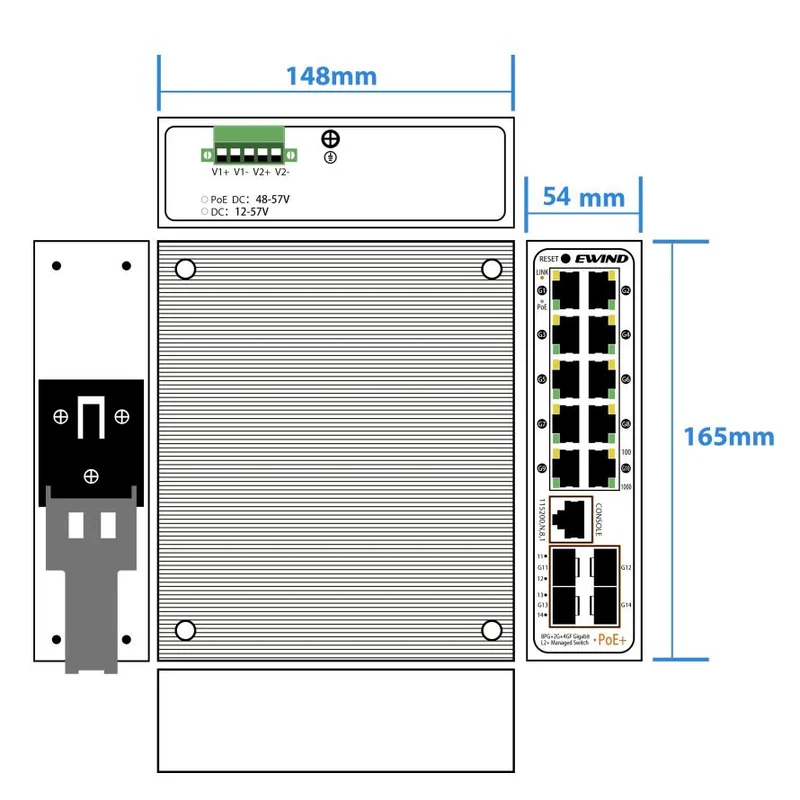

Dimensions	165 × 148 × 54mm, per supplied drawing

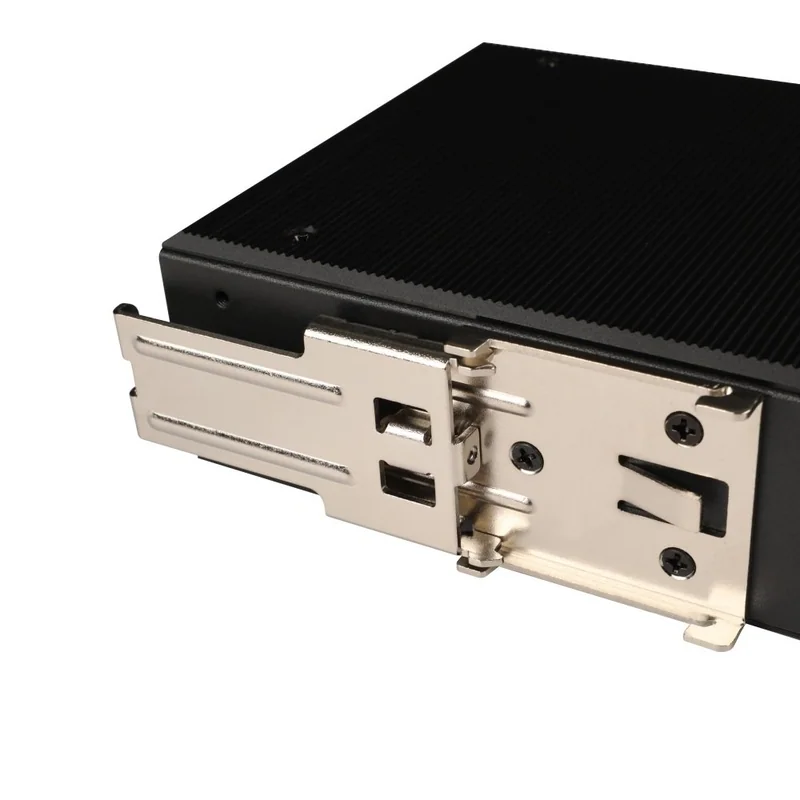

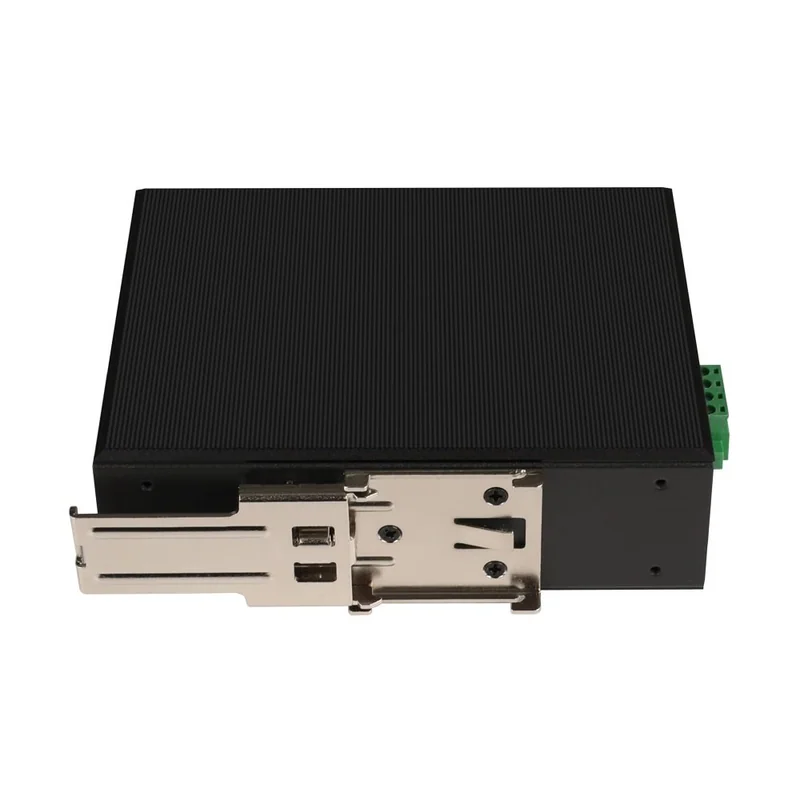

Enclosure / mounting	IP40 / DIN rail
Warranty	5 years
