Model: EW-PIS3624M-16GE

24-Port Gigabit Managed Industrial PoE Switch with 8 SFP Uplinks

16 × 10/100/1000Mbps IEEE 802.3af/at PoE ports · up to 30W
8 × 100/1000Mbps SFP fiber uplinks · RS232 console
168Gbps switching · redundant 48–57VDC input · IP40 rail mount

Project inquiry

Request pricing and lead time

Tell us your model, quantity and project requirements. Our networking team will help you find the right fit.

info@ewindnet.com

Overview

EW-PIS3624M-16GE combines sixteen Gigabit PoE ports and eight 100/1000Mbps SFP uplinks in an industrial enclosure. The source page describes L2+ management and AI watchdog/extend functions, while the supplied PDF also contains an unmanaged plug-and-play description; the page preserves that source distinction for review.

Sixteen Gigabit PoE outputs

Ports 1–16 support AF/AT intelligent recognition with 15.4W standard power and up to 30W per port.

Eight fiber uplinks

Eight 100/1000Mbps SFP slots connect distributed industrial segments over fiber.

Industrial recovery features

AI watchdog, VLAN, 300m extend mode, RSTP/fast loop and redundant power support resilient edge deployments.

Product technical specifications
Specification	Details
Model	EW-PIS3624M-16GE
PoE ports	16 × 10/100/1000Mbps; IEEE 802.3af/at; up to 30W per port
Fiber uplinks	8 × 100/1000Mbps SFP fiber slots
Management interfaces	1 × RS232 console (115200,N,8,1); source page describes L2+ management
Power input	Redundant 6-pin industrial terminals; DC 48–57V
Switching / forwarding	168Gbps / 60Mpps
PoE budget	240W maximum PoE output stated in the PDF
Management features	Up to 4096 VLANs, RSTP, fast loop, static aggregation, IGMP snooping, mirroring and web/console controls listed in source

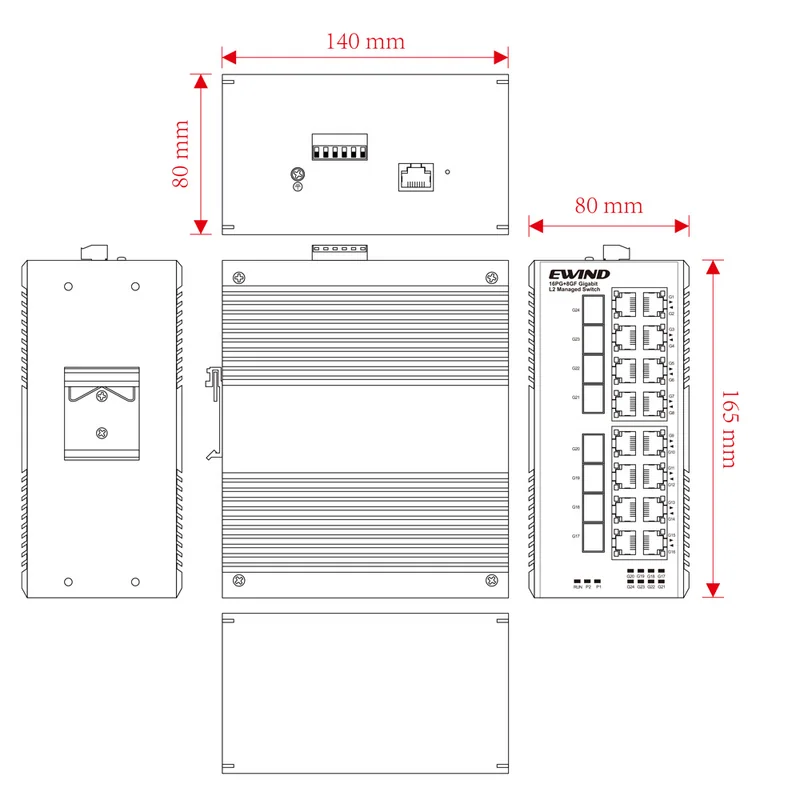

Dimensions / installation	165 × 140 × 80 mm; DIN-rail installation
Protection / environment	IP40; −40 to +75°C operating; −40 to +85°C storage; 10–90% RH
Warranty	5 years; lifetime maintenance

Advanced capabilities

Detailed network functions stay available here without interrupting the main selection path.

Source wording review

The web/source feature block calls this an L2+ managed switch, while the supplied PDF description says “Unmanaged model, plug and play.” The technical page also lists VLAN, RSTP, loop, mirroring and web/console functions. Confirm the firmware variant and management SKU before procurement.

Layer 2 and recovery

The source lists port-based/802.1Q VLAN, RSTP, fast loop, static aggregation, IGMP snooping, port mirroring, loop guard, storm suppression and AI Watchdog/300m extend functions.

PoE planning

Each port is rated up to 30W with a 240W total PoE output stated in the PDF. Keep the aggregate endpoint load within that budget and verify the 48–57V supply.

Fiber planning

The eight SFP slots support 100/1000Mbps modules. Select compatible single-mode or multimode modules and fiber reach for the site.
