Model: EW-PIS3620M-16GE

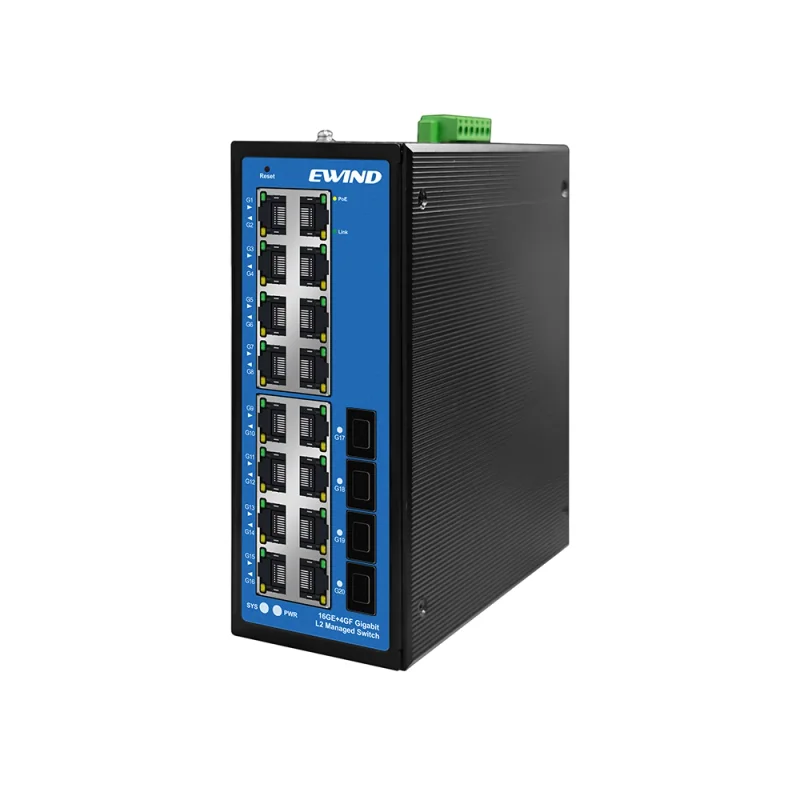

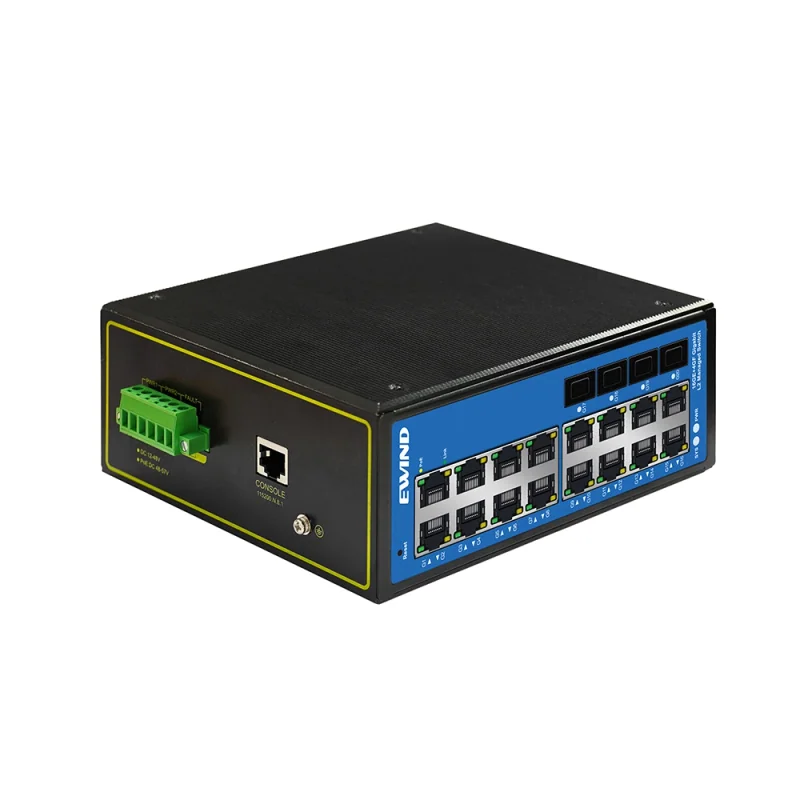

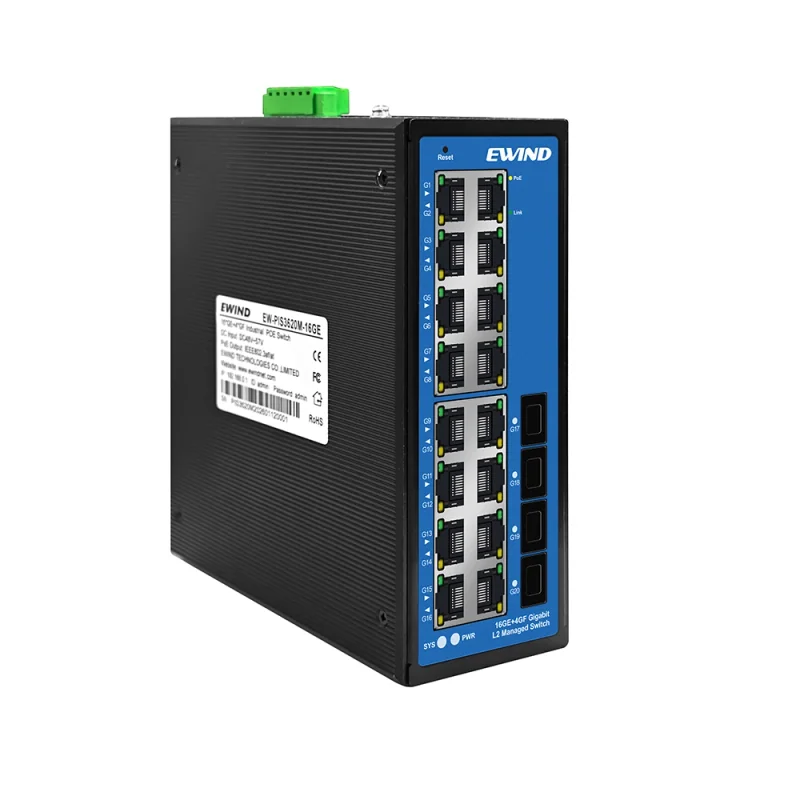

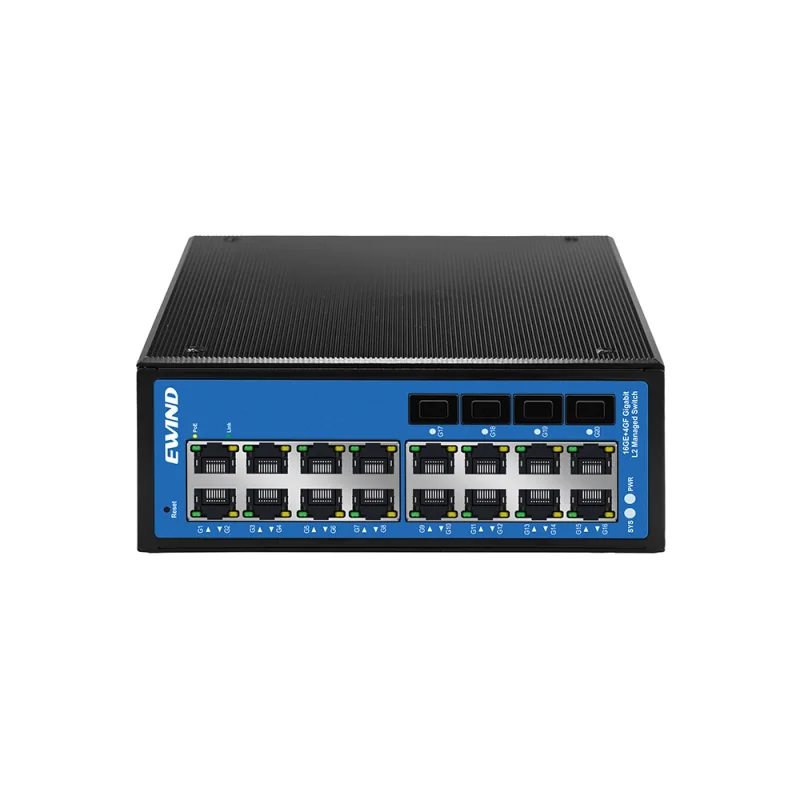

16-Port Gigabit L2+ Managed Industrial PoE Switch with 4 SFP Uplinks

16 × Gigabit IEEE 802.3af/at PoE ports · up to 30W per port
4 × 100/1000Mbps SFP uplinks · RS232 console
Redundant 48–57VDC PoE input · −40 to +85°C · 5-year warranty

Project inquiry

Request pricing and lead time

Tell us your model, quantity and project requirements. Our networking team will help you find the right fit.

info@ewindnet.com

Overview

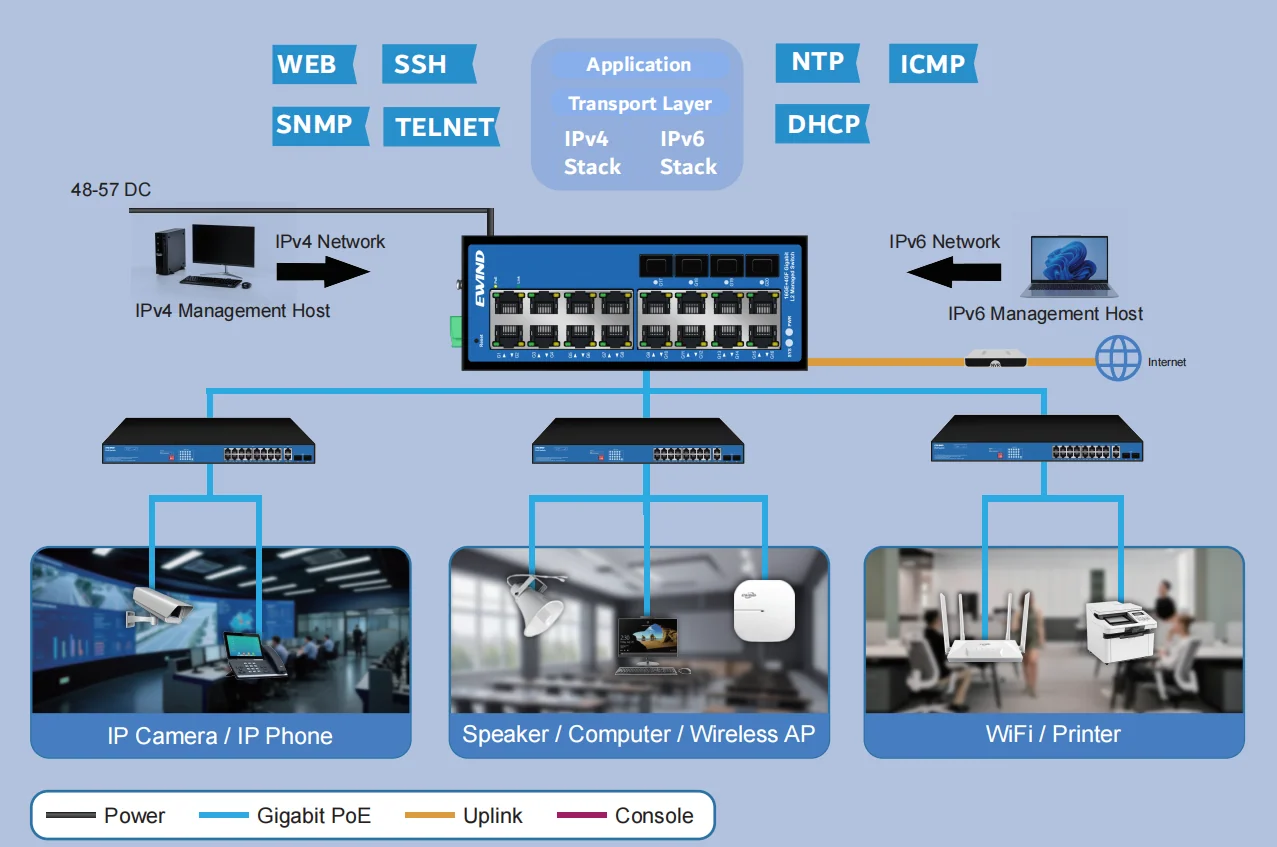

EW-PIS3620M-16GE combines sixteen Gigabit PoE ports and four 100/1000Mbps SFP uplinks with L2+ management. It supports PoE scheduling, IPv4/IPv6 management, static routing, ACL/QoS and ERPS ring recovery in an IP40 enclosure for desktop or 35mm DIN-rail installation.

Managed PoE outputs

Control port power, schedules, priority and startup delay, and monitor each port's power status.

Four fiber uplinks

Four 100/1000Mbps SFP slots connect industrial access segments over fiber.

Ring recovery and security

ERPS, STP/RSTP/MSTP, ACLs and authentication support resilient industrial networks.

Product technical specifications
Specification	Details
Model	EW-PIS3620M-16GE
PoE ports	16 × 10/100/1000Mbps; IEEE 802.3af/at; up to 30W per port
Uplinks / console	4 × 100/1000Mbps SFP; 1 × RS232 console

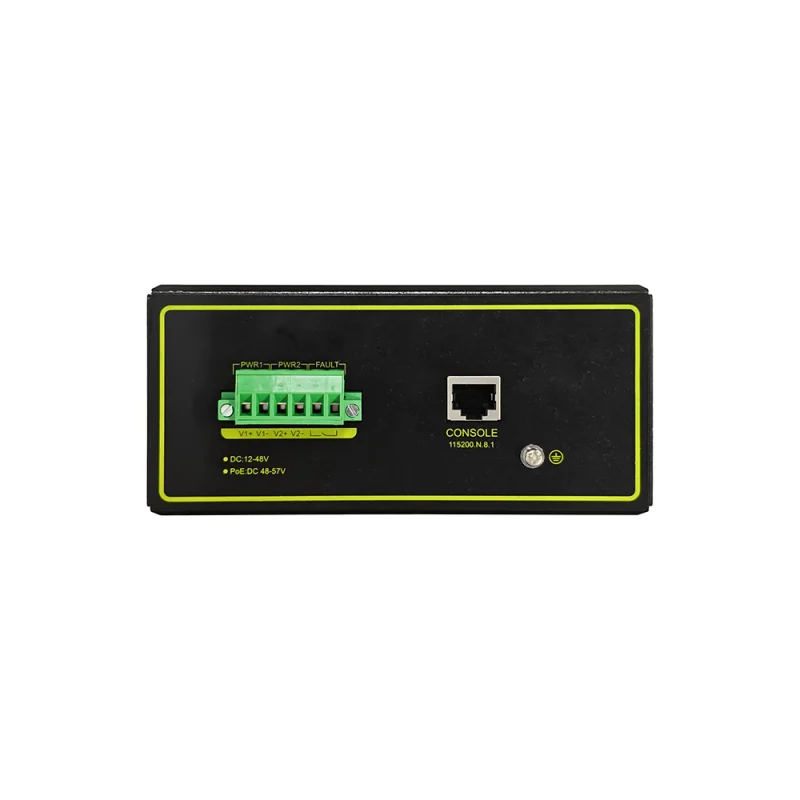

Power input	Redundant 6-pin terminal; 48–57VDC for PoE; 12–48VDC data operation
Power consumption	Standby <10W; full load <240W
Switching / forwarding	40Gbps / 58Mpps, as listed in the datasheet
MAC / buffer / jumbo	16K / 4M / 9.6K
Management	L2+; IPv4/IPv6; static routing; HTTPS, SSH, SNMP v1/v2c/v3

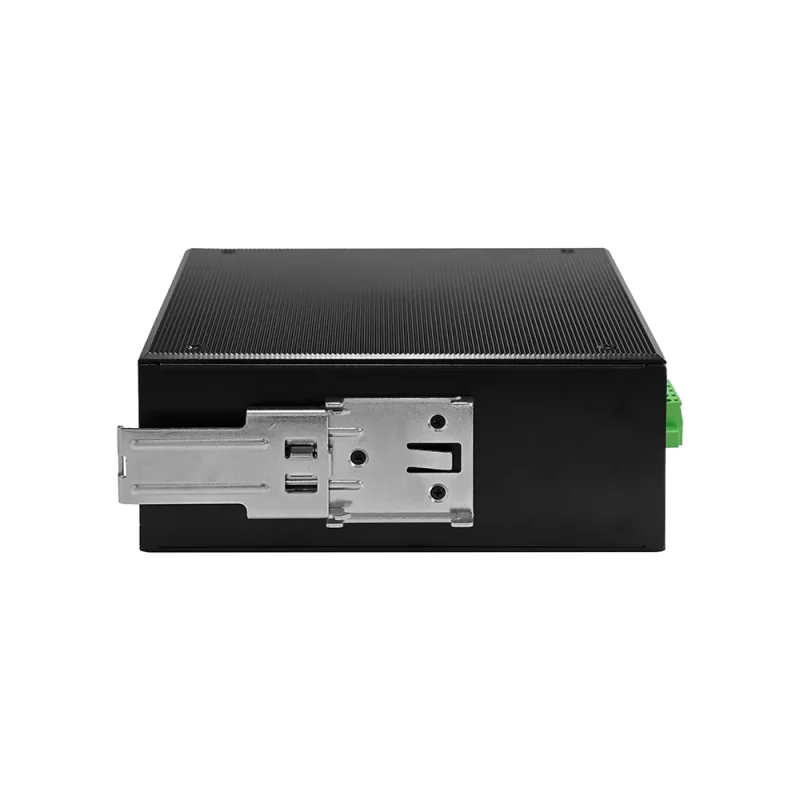

Dimensions / installation	165 × 148 × 68 mm; desktop or 35mm DIN rail
Environment / protection	−40 to +85°C; 5–90% RH non-condensing; IP40
Warranty	5 years; lifetime maintenance
