High-power devices
Four af/at/bt ports support higher-power endpoints within the shared 250W configuration.

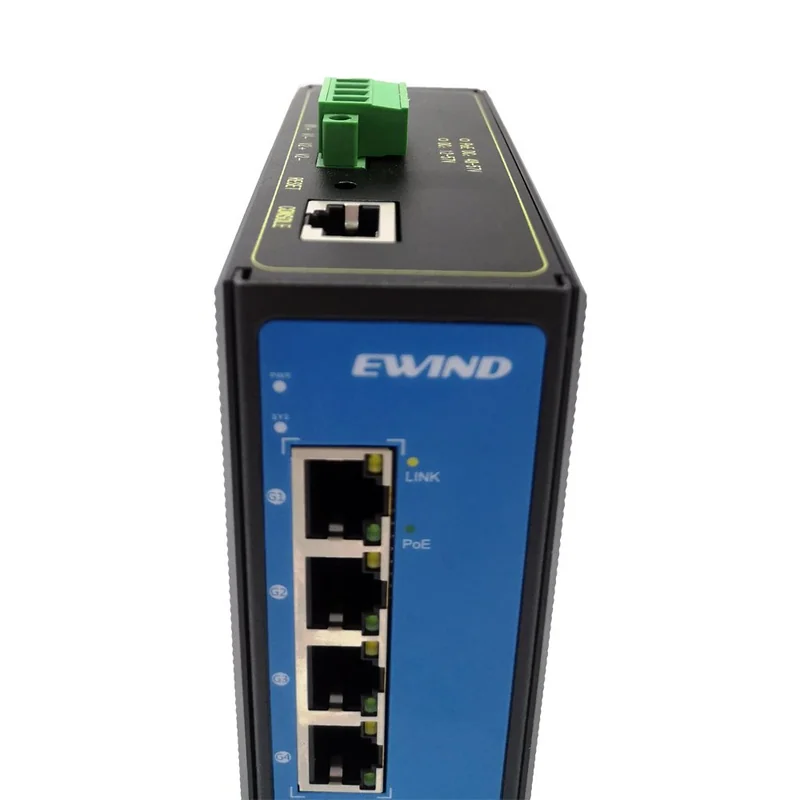

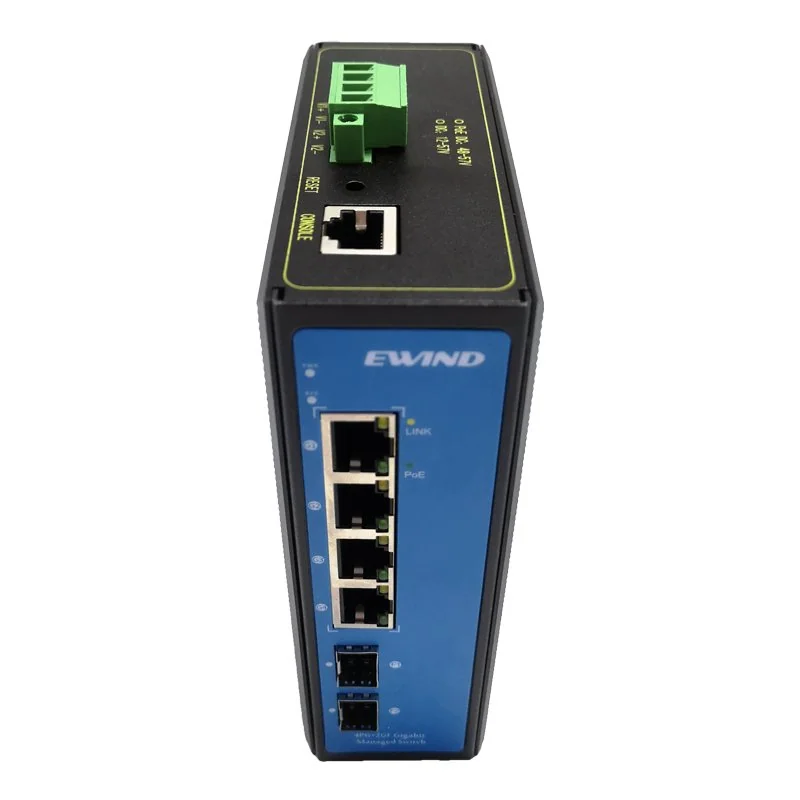

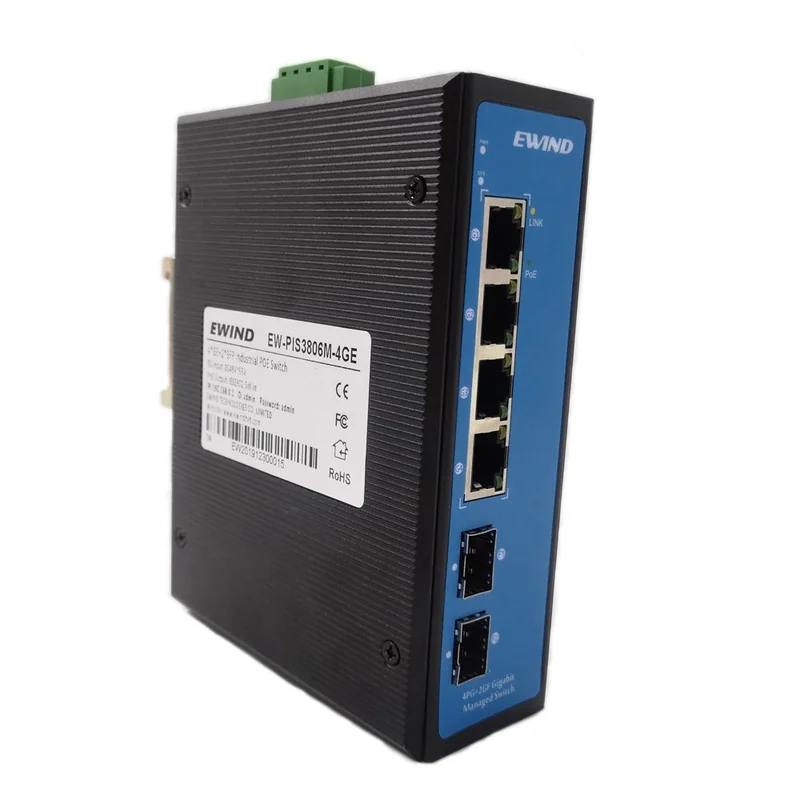

Model: EW-PIS3806M-4GE-BT
4-Port Industrial Managed PoE++ Switch with 2 Gigabit SFP Uplinks
- 4 Gigabit PoE ports + 2 Gigabit SFP uplinks
- IEEE 802.3af/at/bt; 95W maximum port rating
- 250W power configuration; external DC supply
- L2+ management; IP40; 5-year warranty
Project inquiry
Request pricing and lead time
Tell us your model, quantity and project requirements. Our networking team will help you find the right fit.
Overview
EW-PIS3806M-4GE-BT combines four Gigabit PoE ports with two Gigabit SFP uplinks. It supports af/at/bt powered devices, redundant 48–57V DC inputs and L2+ management for industrial networks operating from −40°C to +85°C.
Managed fiber uplinks
Two SFP slots support 100/1000Mbps links with VLANs and ring protection.
Industrial DC power
Redundant 48–57V inputs and DIN-rail mounting support cabinet installations.
| Specification | Details |
|---|---|
| Model | EW-PIS3806M-4GE-BT |
| PoE ports | 4 × Gigabit RJ45; IEEE 802.3af/at/bt |
| Uplinks | 2 × 100/1000Mbps SFP |
| Per-port power | Up to 95W, manufacturer-rated maximum |
| Power configuration | 250W; external supply required |
| Input voltage | DC 48–57V; redundant inputs |
| Management | L2+; static routing, web, CLI and SNMP |
| Switching / forwarding | 12Gbps / 8.93Mpps |
| MAC table | 8K entries |
| Dimensions / enclosure | 145 × 112 × 48 mm; IP40 |
| Operating temperature | −40°C to +85°C |
| Warranty | 5 years |
Order information
| Content | Quantity | Unit |
|---|---|---|
| EW-PIS3806M-4GE-BT industrial PoE switch | 1 | SET |
| User guide | 1 | PC |
| Warranty card | 1 | PC |
EW-PIS3806M-4GE-BT Resources
PDF · Specifications · Installation · Ordering
