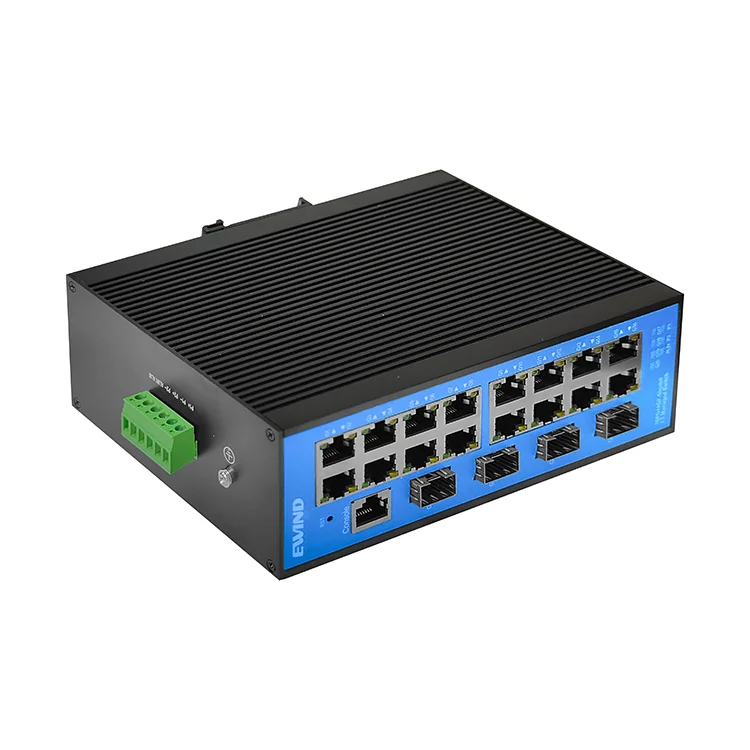

Model: EW-PIS3628M-24GE

28-Port Gigabit L2+ Managed Industrial PoE Switch with 4 SFP Uplinks

24 × 10/100/1000Mbps IEEE 802.3af/at PoE ports · up to 30W
4 × 100/1000Mbps SFP fiber uplinks · RS232 console
196Gbps switching · redundant 48–57VDC input · IP40

Project inquiry

Request pricing and lead time

Tell us your model, quantity and project requirements. Our networking team will help you find the right fit.

info@ewindnet.com

Overview

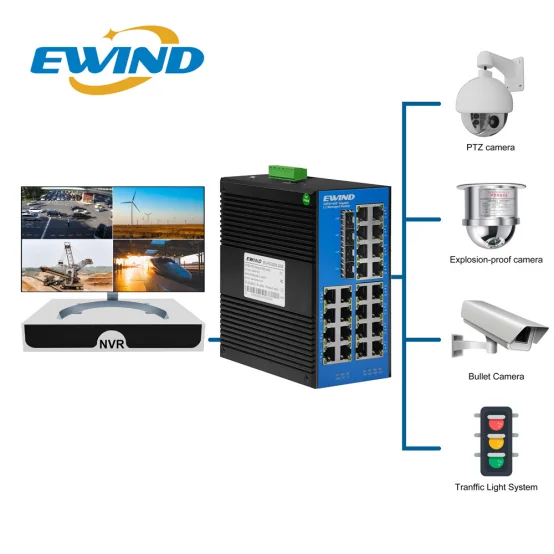

EW-PIS3628M-24GE is a high-density industrial PoE switch with twenty-four Gigabit PoE ports and four 100/1000Mbps SFP uplinks. L2+ management, 196Gbps switching, redundant 48–57VDC input and IP40 rail installation support large industrial surveillance and control networks.

Twenty-four Gigabit PoE outputs

Ports 1–24 support AF/AT intelligent recognition with 15.4W standard power and up to 30W per port.

Four fiber uplinks

Four 100/1000Mbps SFP slots connect distributed industrial segments over fiber.

L2+ industrial control

VLAN, RSTP, fast loop, aggregation, IGMP snooping, mirroring and storm suppression support resilient networks.

Product technical specifications
Specification	Details
Model	EW-PIS3628M-24GE
PoE ports	24 × 10/100/1000Mbps; IEEE 802.3af/at; up to 30W per port
Fiber uplinks	4 × 100/1000Mbps SFP fiber slots
Management interfaces	1 × RS232 console (115200,N,8,1); web management

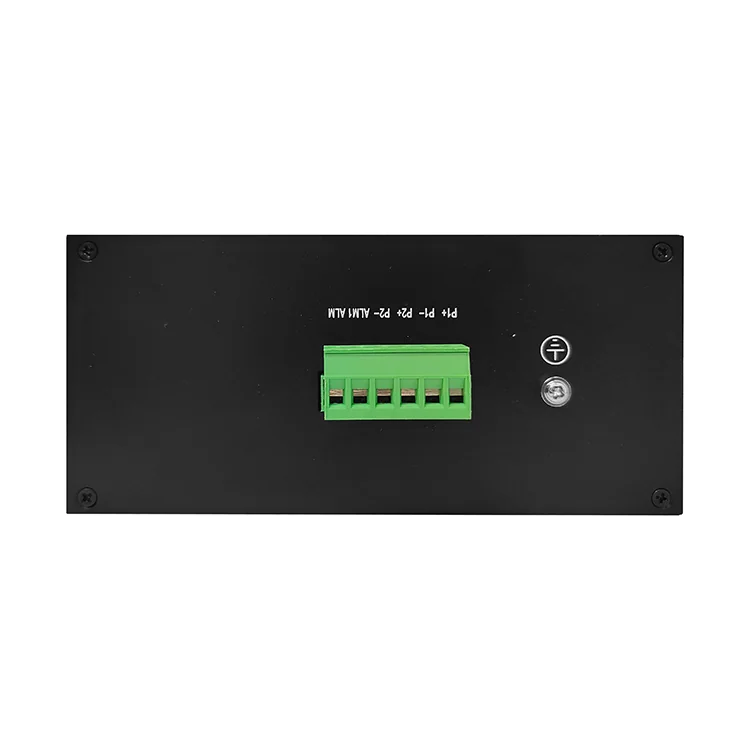

Power input	Redundant 6-pin industrial terminals; DC 48–57V
Switching / forwarding	196Gbps / 68Mpps
MAC address table	32K
Management features	L2+; up to 4096 VLANs; RSTP; fast loop; static aggregation; IGMP snooping

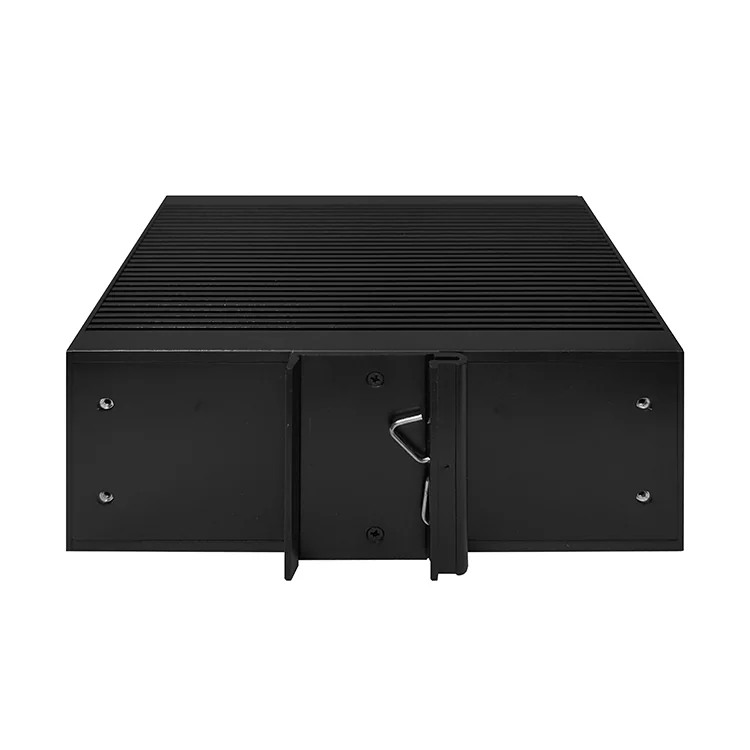

Dimensions / installation	168 × 140 × 80 mm; DIN-rail installation
Protection / environment	IP40; −40 to +75°C operating; −40 to +85°C storage; 10–90% RH
Warranty	5 years

Advanced capabilities

Detailed network functions stay available here without interrupting the main selection path.

Layer 2 controls

The source lists port-based and 802.1Q VLAN, RSTP, fast loop networking, static aggregation, unrestricted multi-to-one mirroring, loop guard, IGMP snooping and storm suppression.

PoE planning

Each port is rated up to 30W. Keep the aggregate endpoint load within the installed 48–57V supply and verify the power budget before commissioning all 24 ports.

Fiber planning

The four SFP slots support 100/1000Mbps modules. Select compatible single-mode or multimode modules and fiber reach for the site.

Operations and maintenance

Web management and the RS232 console support DHCP client, configuration/profile upload and download, package upgrade, factory restore and system logging.
