Model: EW-EPIS3910SH-8GE

8-Port Gigabit Cloud-Managed Industrial Hybrid PoE Switch

8 × 10/100/1000Mbps PoE ports with mixed voltage profiles
1 × Gigabit RJ45 uplink + 1 × 1000Mbps SFP fiber uplink
DC 9–57V redundant industrial input · 20Gbps switching · IP40

Project inquiry

Request pricing and lead time

Tell us your model, quantity and project requirements. Our networking team will help you find the right fit.

info@ewindnet.com

Overview

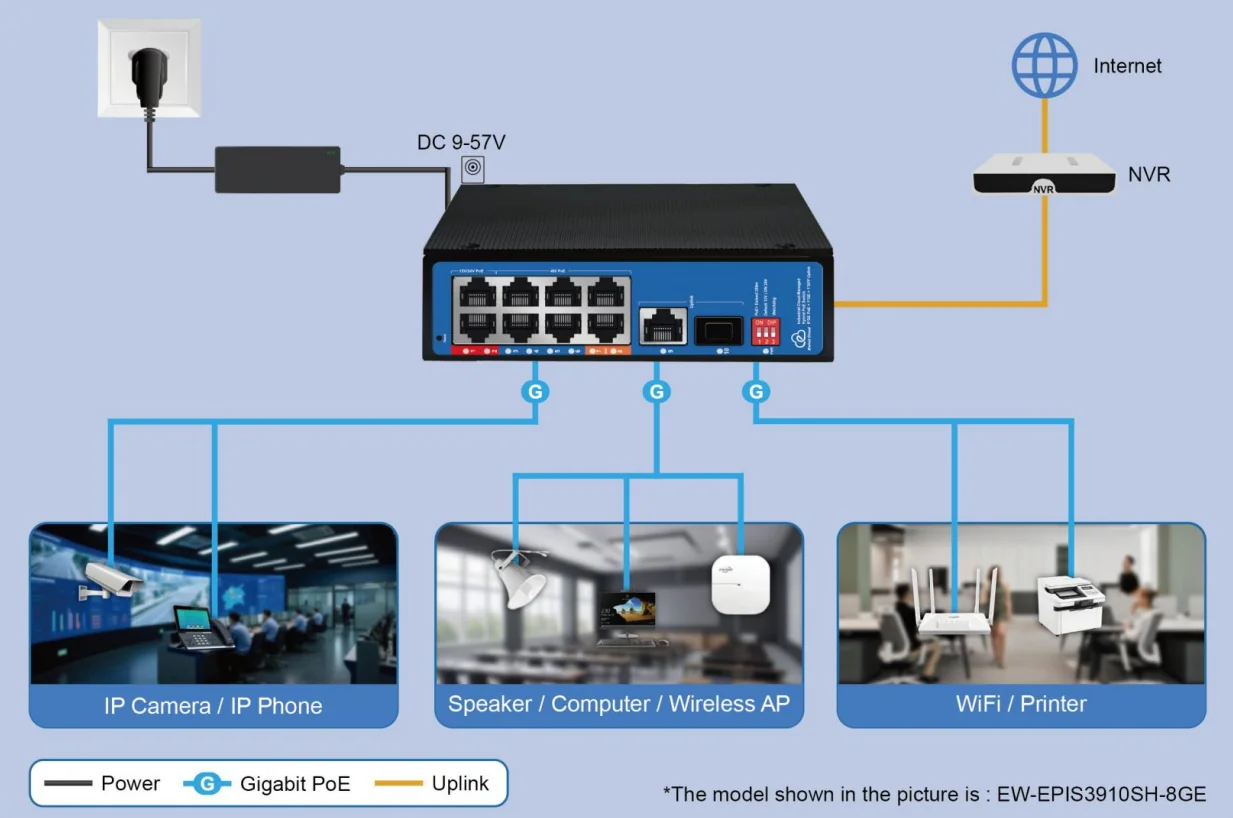

EW-EPIS3910SH-8GE is an industrial cloud-managed hybrid PoE switch with eight Gigabit PoE ports, one Gigabit RJ45 uplink and one Gigabit SFP fiber uplink. Its DC 9–57V input, selectable 12/24V output, 90W bt ports, cloud controls and IP40 protection fit demanding edge deployments.

Hybrid PoE power profiles

Ports 1–2 provide selectable 12/24V non-standard PoE, ports 3–6 support 802.3af/at, and ports 7–8 support 802.3bt up to 90W.

Copper and fiber uplinks

A Gigabit RJ45 uplink and a 1000Mbps SFP slot connect the industrial edge to copper or fiber infrastructure.

Cloud and industrial resilience

Remote cloud management, ONVIF topology, 300m extend/watchdog DIP functions and IP40 protection support unattended sites.

Product technical specifications
Specification	Details
Model	EW-EPIS3910SH-8GE
PoE ports	8 × 10/100/1000BASE-T
PoE profiles	Ports 1–2: 12/24V; ports 3–6: IEEE 802.3af/at; ports 7–8: IEEE 802.3bt up to 90W
Uplinks	1 × 10/100/1000BASE-T RJ45 + 1 × 1000Mbps SFP fiber
Input / power	DC 9–57V; standby <10W; full load <120W below 24V or <200W above 24V
Management	Cloud-managed; mobile app, web platform and AI DIP controls
Switching / forwarding	20Gbps / 14.88Mpps
MAC / buffer / jumbo	8K / 2M / 10K
Dimensions / installation	137 × 117 × 42 mm; industrial mounting with optional rail footprint shown in drawing
Protection / environment	IP40; −40 to +75°C; 5–90% RH
Warranty	5 years; lifetime maintenance

Advanced capabilities

Detailed network functions stay available here without interrupting the main selection path.

Port power planning

Ports 1–2 are non-standard outputs: 12V mode supports up to 9.6W and 24V mode up to 19.2W. Ports 3–6 provide 15.4W standard and up to 30W each at 48V, while ports 7–8 support 802.3bt up to 90W.

Cloud and topology

The EWIND platform and mobile app provide remote status, alarms, fault detection and port restart. ONVIF discovery builds a cloud topology map of connected cameras and devices.

Industrial uplinks and input

The RJ45 and SFP ports are data uplinks. The switch accepts DC 9–57V through the industrial Phoenix terminal and supports redundant dual-power wiring as described in the source.

DIP-switch functions

AI DIP codes provide Watchdog, 300m Extend and 12/24V output switching. Confirm the selected voltage and endpoint wiring before energizing non-standard ports.
