Model: EW-IP8804CG-3GE

IP66 Waterproof 4-Port Gigabit PoE Switch

3 × 10/100/1000Mbps PoE ports · 30W maximum per port
1 × 10/100/1000Mbps RJ45 uplink + DC input
12Gbps switching · 8K MAC · IP66 protection

Project inquiry

Request pricing and lead time

Tell us your model, quantity and project requirements. Our networking team will help you find the right fit.

info@ewindnet.com

Overview

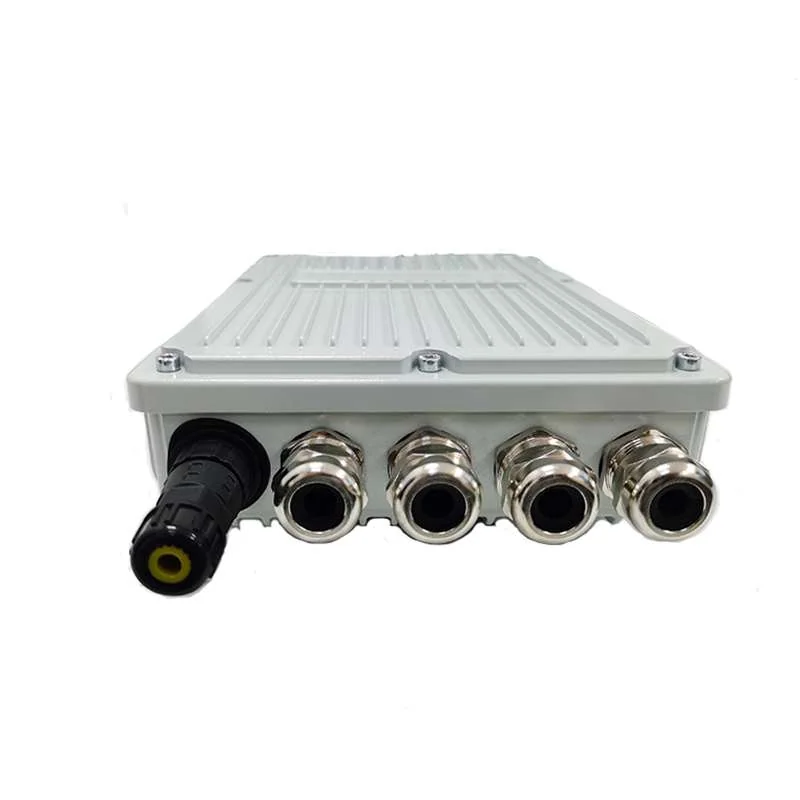

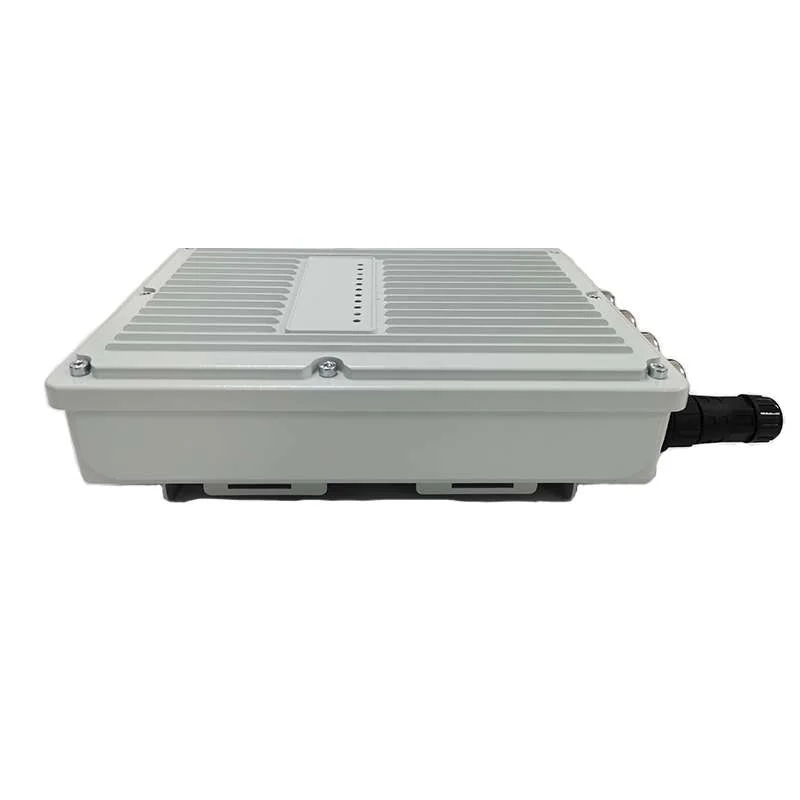

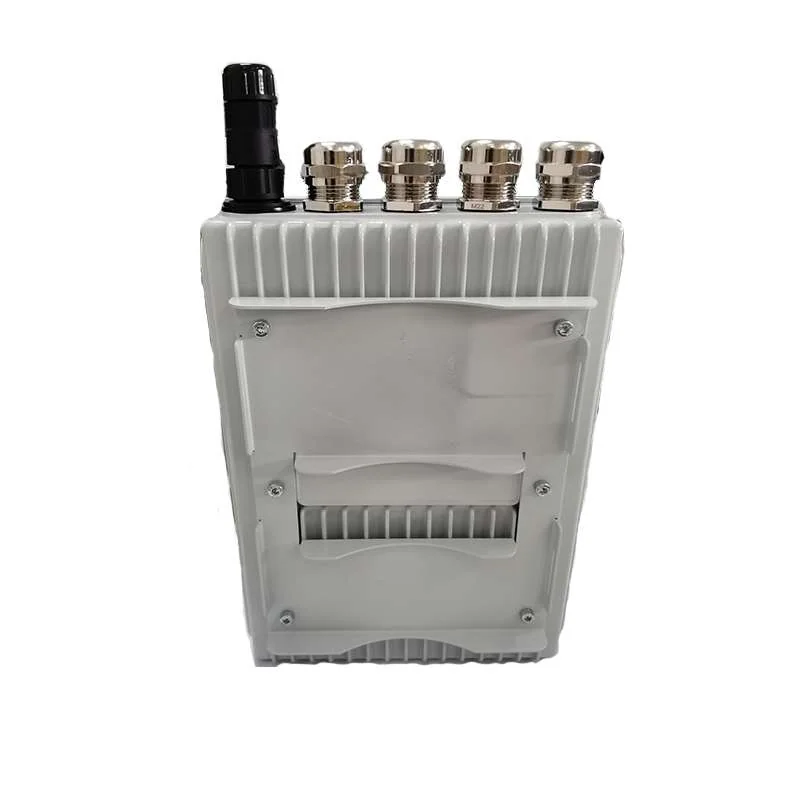

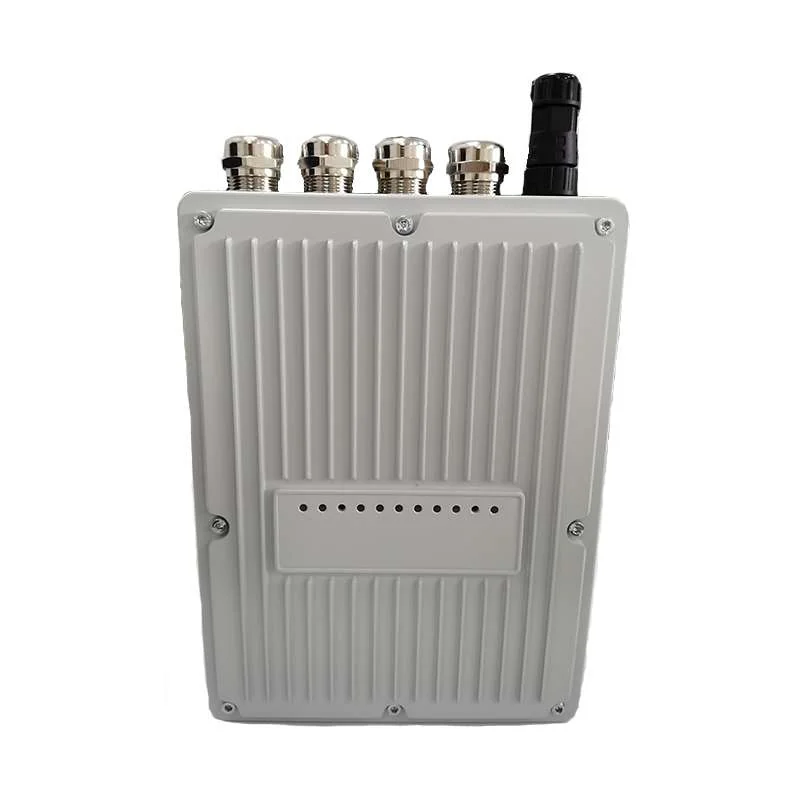

EW-IP8804CG-3GE is a sealed four-port Gigabit PoE switch with three PoE outputs, one data-only Gigabit RJ45 uplink and a DC input. Its IP66 enclosure, 30W-per-port capability and wall/desktop installation suit exposed camera and access-control edges.

Three Gigabit PoE outputs

Ports 1–3 provide IEEE PoE with 15.4W standard power and up to 30W per port.

Dedicated Gigabit uplink

A data-only 10/100/1000Mbps RJ45 uplink connects the sealed PoE edge to the upstream network.

Sealed installation

IP66 protection, 4kV port surge protection and desktop or wall mounting support exposed deployments.

Product technical specifications
Specification	Details
Model	EW-IP8804CG-3GE
PoE ports	3 × 10/100/1000BASE-T PoE; ports 1–3
Uplink	1 × 10/100/1000BASE-T RJ45 data port
Power input	1 × DC input; default pin 1/2(+), 3/6(-), optional 4/5(+), 7/8(-)
PoE power	15.4W average, up to 30W per port
Management / forwarding	Unmanaged; store-and-forward at full wire speed
Switching / forwarding	12Gbps / 8.93Mpps
MAC / buffer	8K / 2M
Dimensions / installation	240 × 177 × 53 mm; desktop or wall mounted
Protection / environment	IP66; 4kV 8/20μs port protection; −20 to +55°C; 5–90% RH
Warranty	Source page does not state a warranty term
