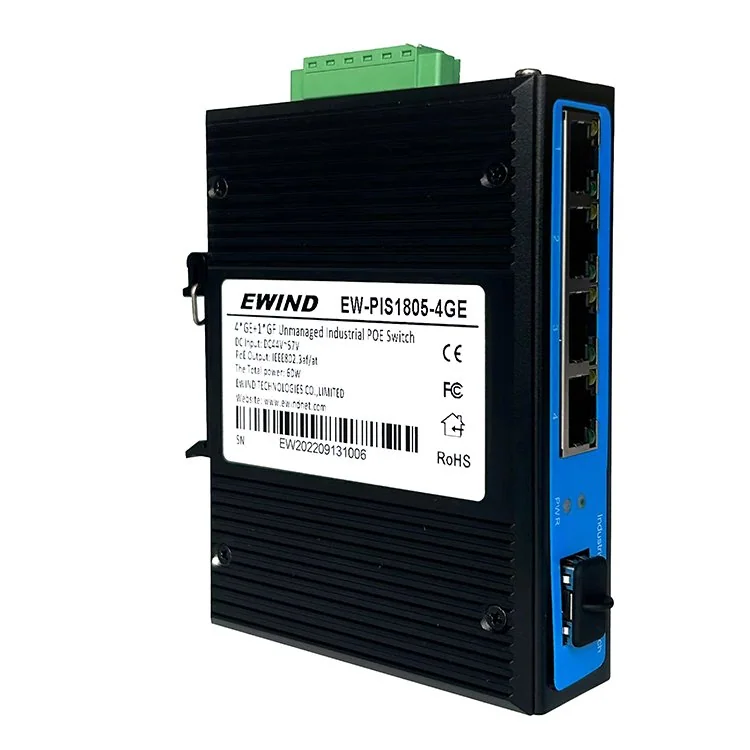

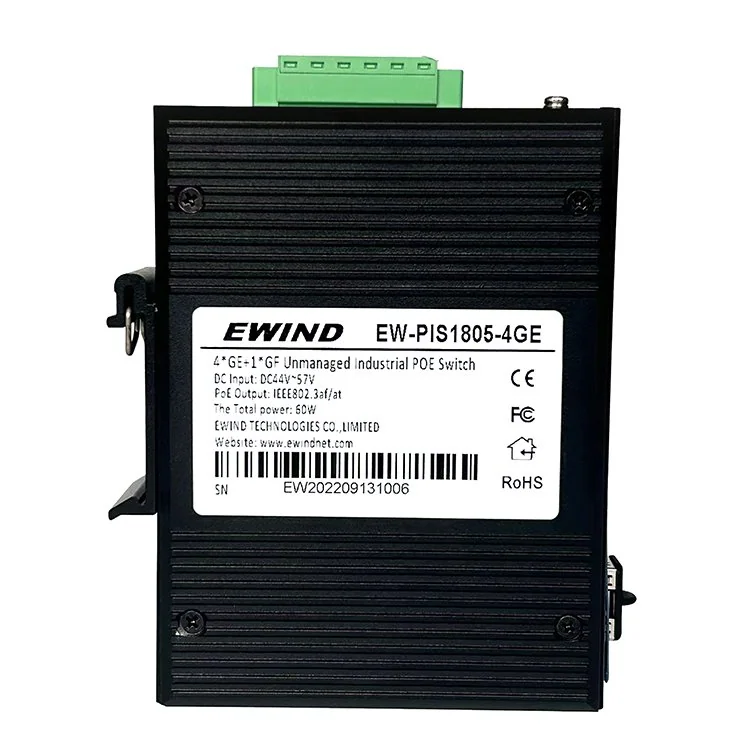

Model: EW-PIS1805-4GE

5-Port Industrial Gigabit PoE Switch with SFP

4 × 10/100/1000Mbps PoE ports with IEEE 802.3af/at
1 × 100/1000Mbps Gigabit SFP uplink
60W AF or 120W AT total PoE budget
Redundant 48–57VDC industrial Phoenix input

Project inquiry

Request pricing and lead time

Tell us your model, quantity and project requirements. Our networking team will help you find the right fit.

info@ewindnet.com

Overview

EW-PIS1805-4GE is an industrial PoE switch with four Gigabit PoE ports and one Gigabit SFP uplink. It supports 60W AF or 120W AT power budgets, redundant 48–57VDC input and DIN rail mounting for compact surveillance and automation nodes.

120W AT budget

Power four endpoints with up to 30W per PoE port.

Fiber uplink

A Gigabit SFP slot extends the industrial link over optional fiber modules.

Industrial protection

IP40, 6kV lightning protection and reverse-polarity protection suit field cabinets.

Compact deployment

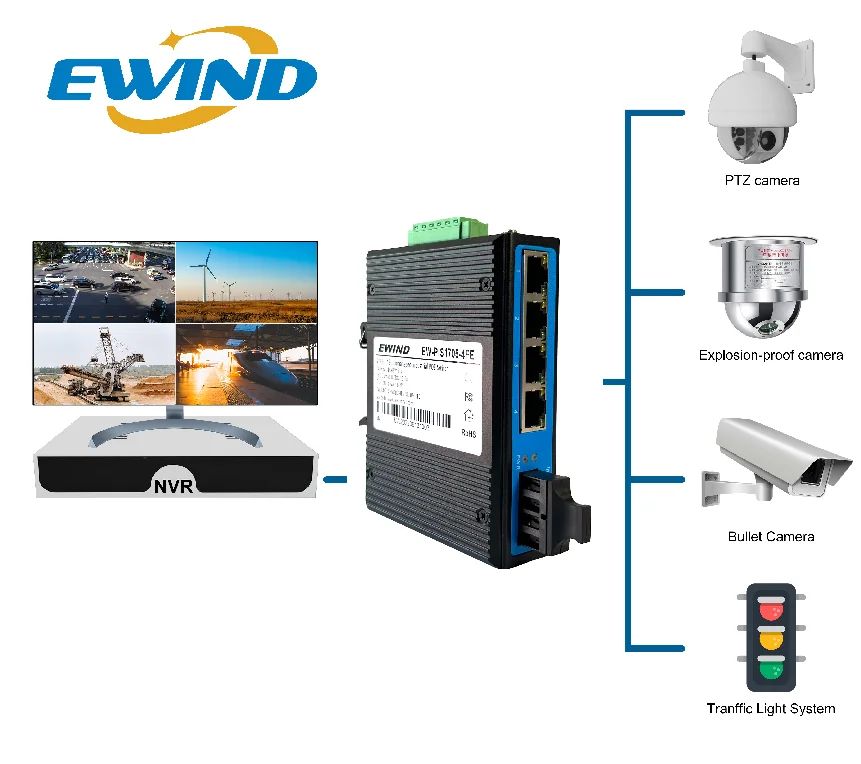

Desktop or DIN rail mounting fits cameras, NVR links and remote endpoints.

Product technical specifications
Specification	Details

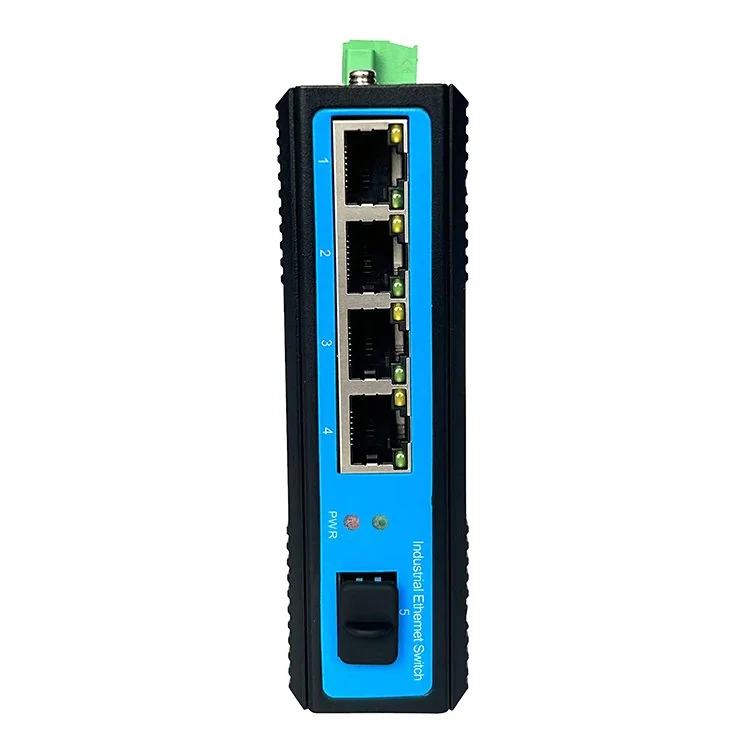

Interfaces	4 × 10/100/1000Mbps PoE RJ45; 1 × 100/1000Mbps SFP
PoE standard	IEEE 802.3af/at; up to 30W per port
PoE budget	60W at 48VDC / AF; 120W at 48VDC / AT
Switching performance	10Gbps; 7.44Mpps at 64 bytes; store-and-forward
Memory	4K MAC table; 1M buffer; 10K jumbo frames
Power input	48–57VDC; dual 6-pin Phoenix terminals with reverse-polarity protection
Fiber reach	Multimode 850nm up to 550m; single-mode 1310nm up to 40km or 1550nm up to 120km
Dimensions / weight	118 × 86 × 39mm; net under 0.7kg, gross under 1kg

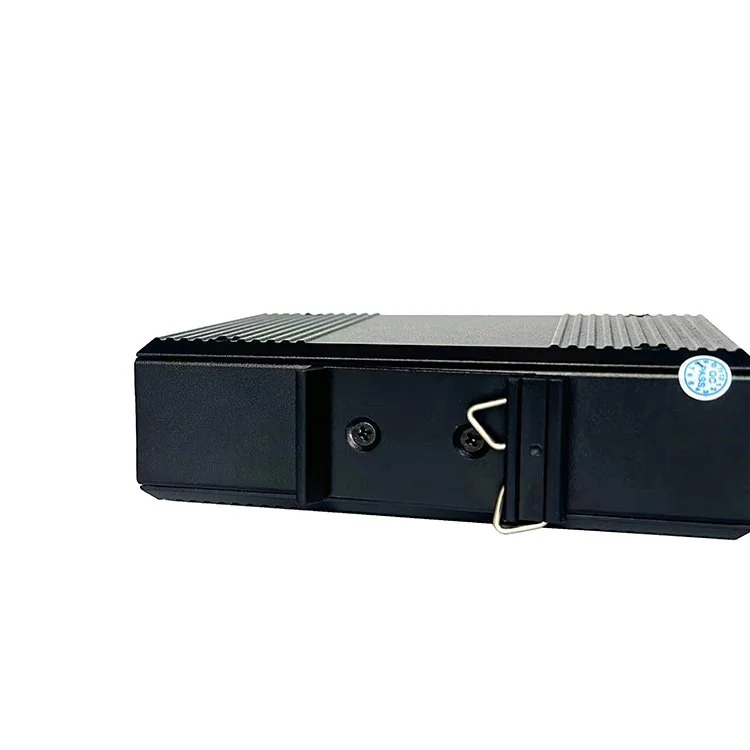

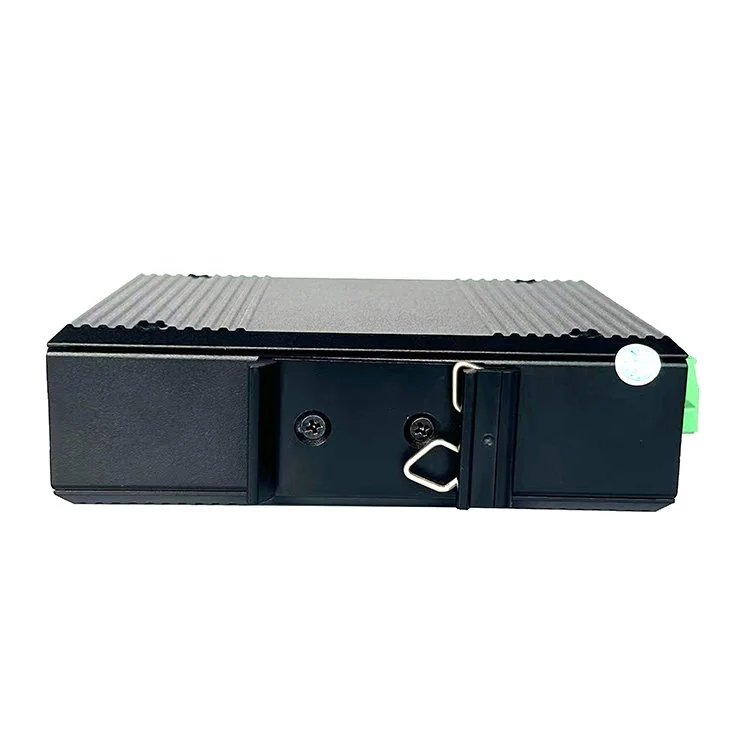

Installation	Desktop or 35mm DIN rail
Environment / protection	Operating −40°C to +85°C; storage −40°C to +125°C; IP40 and 6kV industrial protection
Warranty	5 years; lifelong maintenance
