Model: EW-PIS1806F-4GE

6-Port Full Gigabit Industrial PoE Fiber Switch

4 × Gigabit 802.3af/at PoE + 1 × Gigabit RJ45 + 1 × 100/1000Base-X SFP
12Gbps switching capacity · 8.93Mpps forwarding · 4K MAC
48VDC redundant Phoenix input · 60W/120W profiles · 6kV surge protection

Project inquiry

Request pricing and lead time

Tell us your model, quantity and project requirements. Our networking team will help you find the right fit.

info@ewindnet.com

Overview

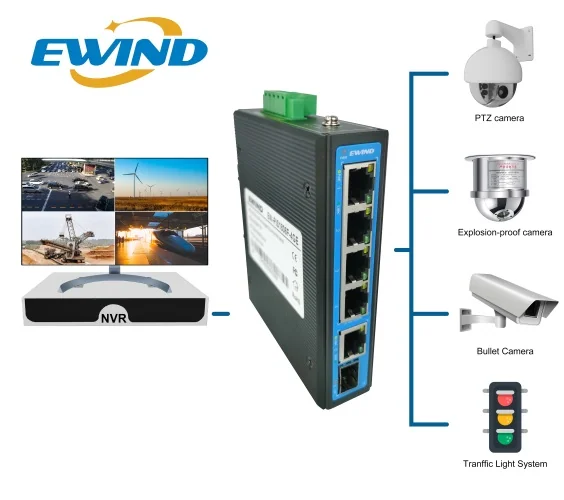

EW-PIS1806F-4GE combines four Gigabit 802.3af/at PoE ports with a Gigabit RJ45 uplink and a 100/1000Base-X SFP slot. Redundant 48VDC input, industrial protection and DIN-rail mounting suit camera, NVR and other outdoor or plant-floor links.

Copper and fiber uplinks

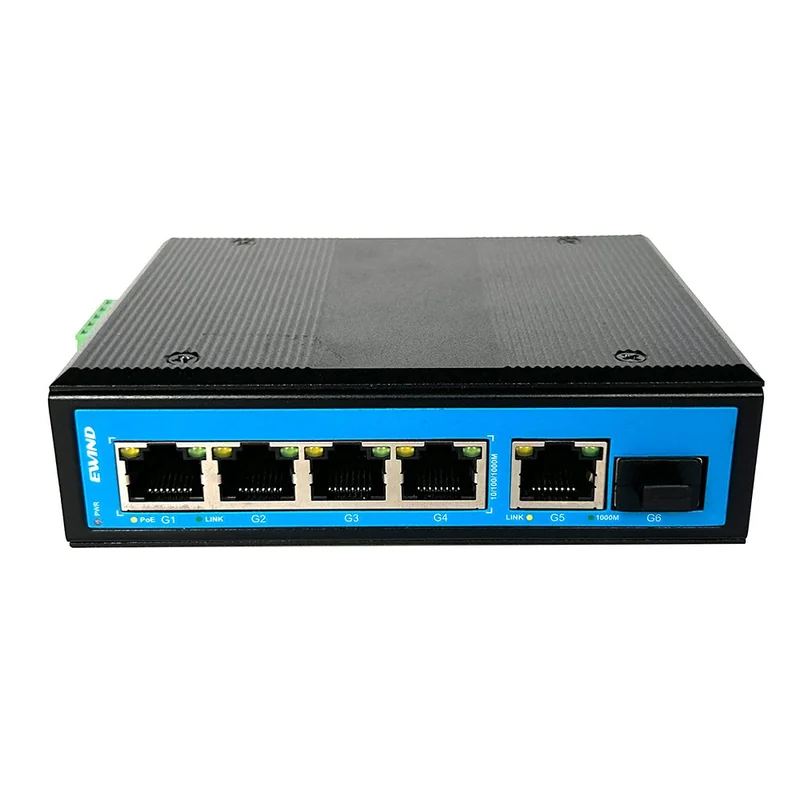

Four Gigabit PoE access ports pair with a Gigabit RJ45 uplink and a 100/1000Base-X SFP slot for flexible backhaul.

802.3af/at power budget

Each PoE port supports up to 30W, with 60W 802.3af or 120W 802.3at total profiles using the matching optional supply.

Long-distance optical reach

Optional single-mode or multimode LC modules support links up to 40km at 1310nm or 120km at 1550nm, subject to the selected optic.

Industrial protection

Redundant DC terminals, reverse-polarity protection, IP40 housing and 6kV lightning protection support demanding installations.

Product technical specifications
Specification	Details
Model	EW-PIS1806F-4GE
Ports	4 × 10/100/1000BASE-T 802.3af/at PoE; 1 × 1000BASE-T uplink; 1 × 100/1000BASE-X SFP
Optical options	LC single-mode or multimode, single-fiber or dual-fiber modules; multimode 850nm up to 550m; single-mode 1310nm up to 40km or 1550nm up to 120km
Switching performance	12Gbps switching capacity; 8.93Mpps at 64 bytes; store-and-forward; 4K MAC; 1M buffer; 10K jumbo frames

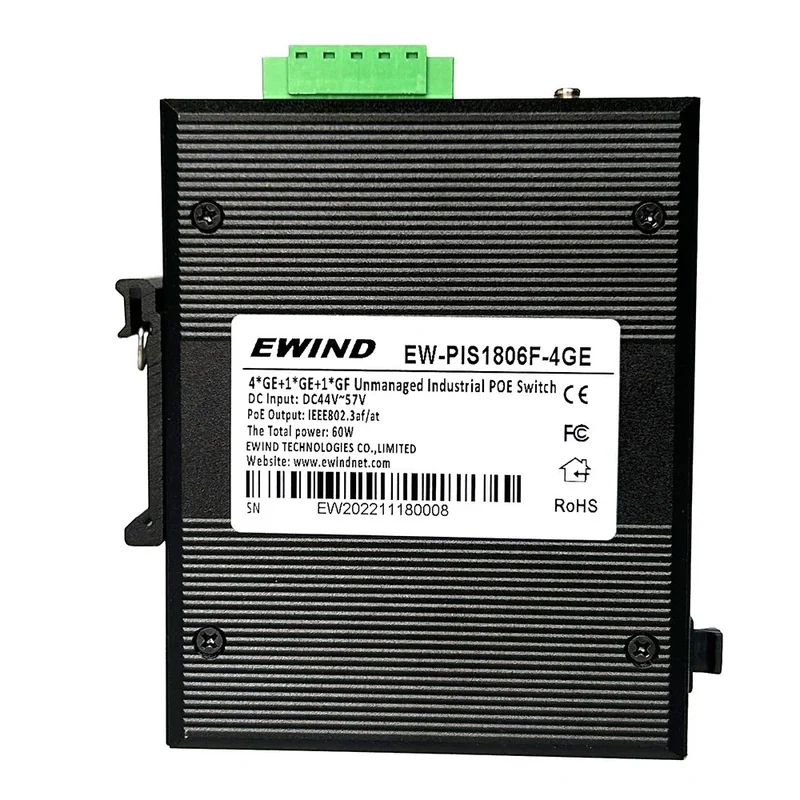

Power input	Redundant 5-pin Phoenix V+/V− interfaces; 48–57VDC; reverse-polarity protection
PoE budget	30W maximum per port; 60W/48VDC with 802.3af or 120W/48VDC with 802.3at; optional 48V/60W or 48V/120W supply
Consumption / LEDs	Standby <2W; full load <60W or <120W by profile; PWR, link/activity, speed and PoE indicators

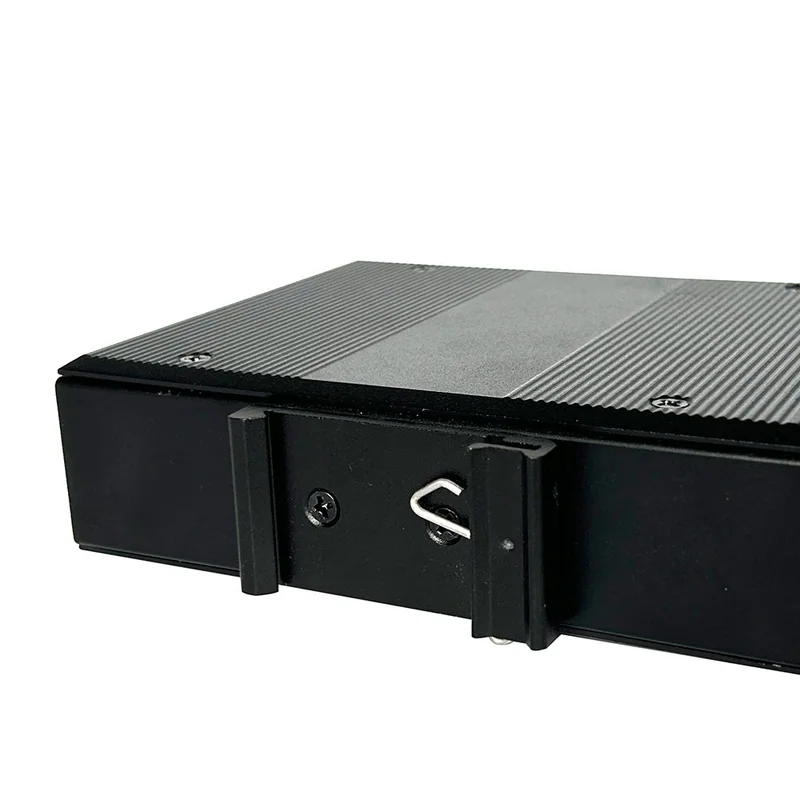

Dimensions / installation	98 × 120 × 36 mm in the specification; desktop or 35mm DIN rail
Protection / environment	IP40; 6kV 8/20μs lightning protection; −40 to +85°C operating; −40 to +125°C storage; 5–95% RH
Warranty	5 years; lifetime maintenance

Advanced capabilities

Detailed network functions stay available here without interrupting the main selection path.

Power-supply selection

The switch is supplied without a power adaptor. Select the optional 48V/60W or 48V/120W industrial supply to match the 802.3af or 802.3at budget.

Fiber planning

Choose the SFP wavelength, fiber mode and distance for the uplink. The listed 40km and 120km distances apply to the matching single-mode optics, not every module.

Dimension reference

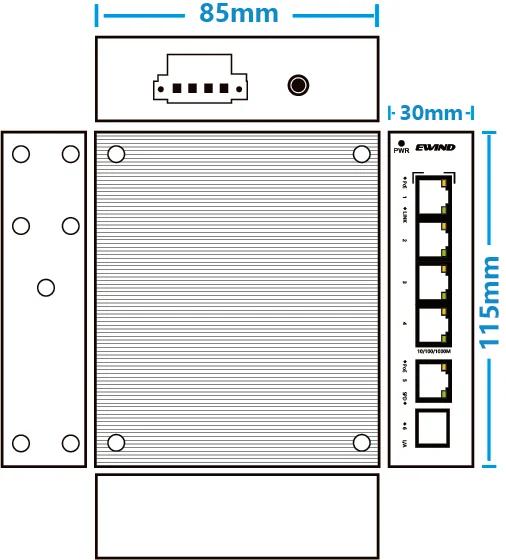

The supplied mechanical drawing labels 85 × 30 × 115mm, while the product specification states 98 × 120 × 36mm. Confirm the final enclosure and mounting clearance with the current datasheet before installation.

Deployment protection

Use both redundant DC inputs where the power design requires it, keep the DIN rail or desktop surface properly bonded, and observe the stated temperature and surge limits.
