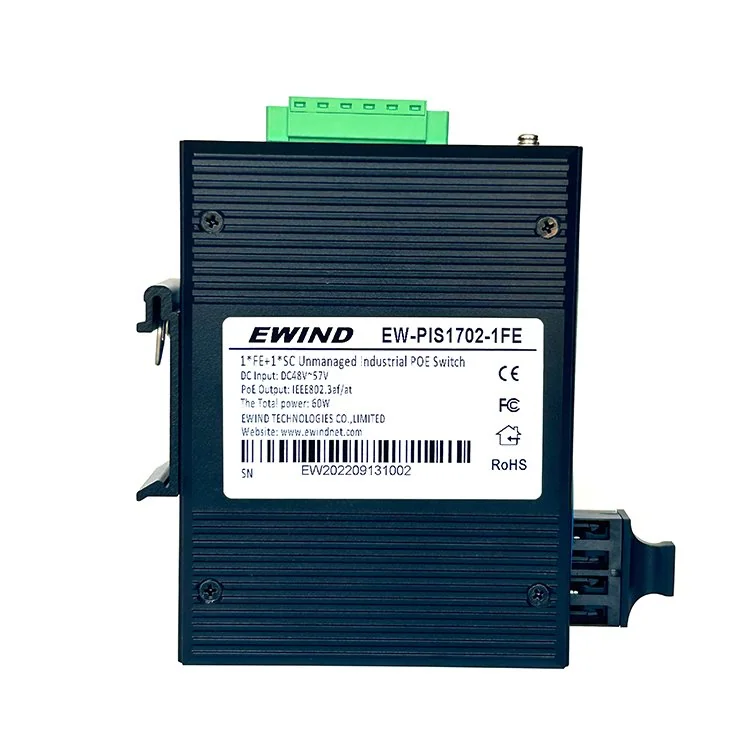

Model: EW-PIS1702-1FE

Mini 2-Port Fast Ethernet Industrial PoE Fiber Switch

1 × 10/100Mbps PoE port + 1 × 155Mbps SC fiber uplink
30W max PoE output · 1.6Gbps switching · 2K MAC
48–57VDC industrial input · IP40 · −40 to +75°C

Project inquiry

Request pricing and lead time

Tell us your model, quantity and project requirements. Our networking team will help you find the right fit.

info@ewindnet.com

Overview

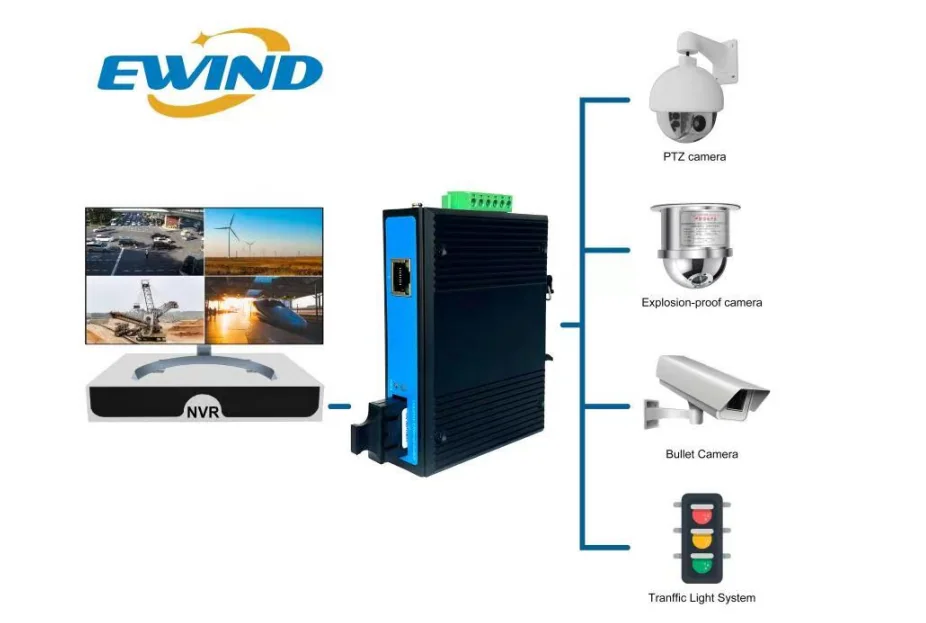

EW-PIS1702-1FE is a compact industrial fiber switch with one 10/100Mbps PoE port and one 155Mbps SC uplink. Its 48–57VDC input, redundant Phoenix terminals, DIN-rail option and IP40 protection suit small remote camera and control endpoints.

Compact copper/fiber edge

One Fast Ethernet PoE port and one SC fiber uplink connect a remote endpoint to the optical network.

SC fiber reach

The default single-mode dual-fiber SC module is specified for 20km; other multimode and single-mode reaches are listed.

Industrial installation

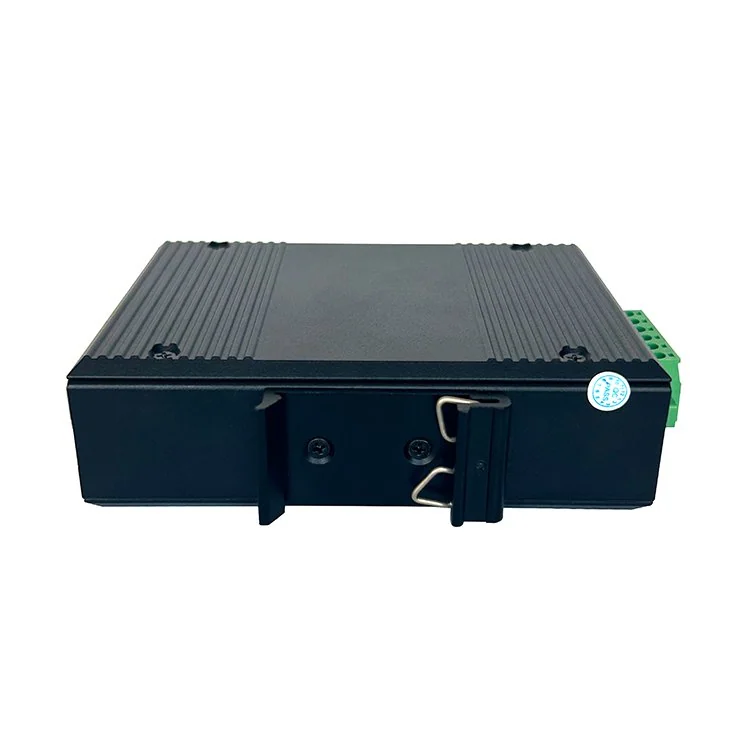

Redundant DC terminals, anti-reverse protection, IP40 and DIN-rail mounting support remote cabinets.

Product technical specifications
Specification	Details
Model	EW-PIS1702-1FE
PoE port	1 × 10/100BASE-T/TX PoE; IEEE 802.3af/at
Fiber uplink	1 × 155Mbps SC data port; default single-mode dual-fiber 20km module

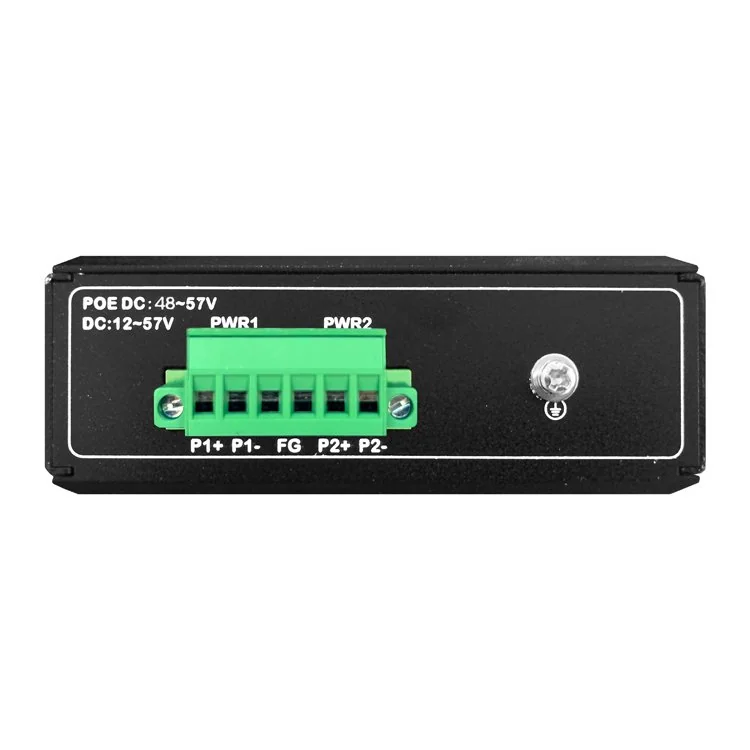

Power input	2 sets redundant 6-pin Phoenix terminals; 48–57VDC
PoE power / input rating	30W maximum per port; 36W total input; optional 48V/24W or 48V/36W supply
Switching / forwarding	1.6Gbps / 0.30Mpps
MAC / buffer / jumbo	2K / 768K / 1536 bytes

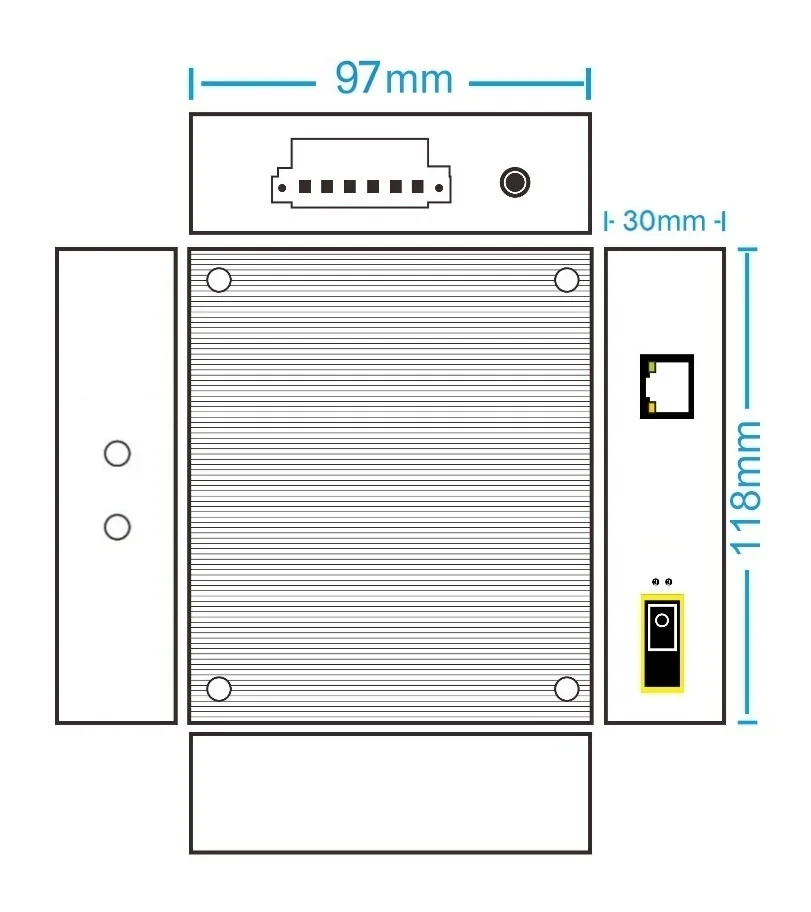

Dimensions / installation	118 × 97 × 30 mm; desktop or DIN rail
Protection / environment	IP40; 6kV 8/20μs lightning protection; −40 to +75°C; 5–90% RH
Warranty	5 years; lifetime maintenance
