Model: EW-IS3624M

24-Port Gigabit Managed Industrial Ethernet Switch with 8 SFP Uplinks

16 × 10/100/1000Mbps RJ45 ports + 8 × 100/1000Mbps SFP slots
168Gbps switching capacity · 60Mpps forwarding · 32K MAC
L2+ management · redundant 12–57VDC input · IP40 rail-mount enclosure

Project inquiry

Request pricing and lead time

Tell us your model, quantity and project requirements. Our networking team will help you find the right fit.

info@ewindnet.com

Overview

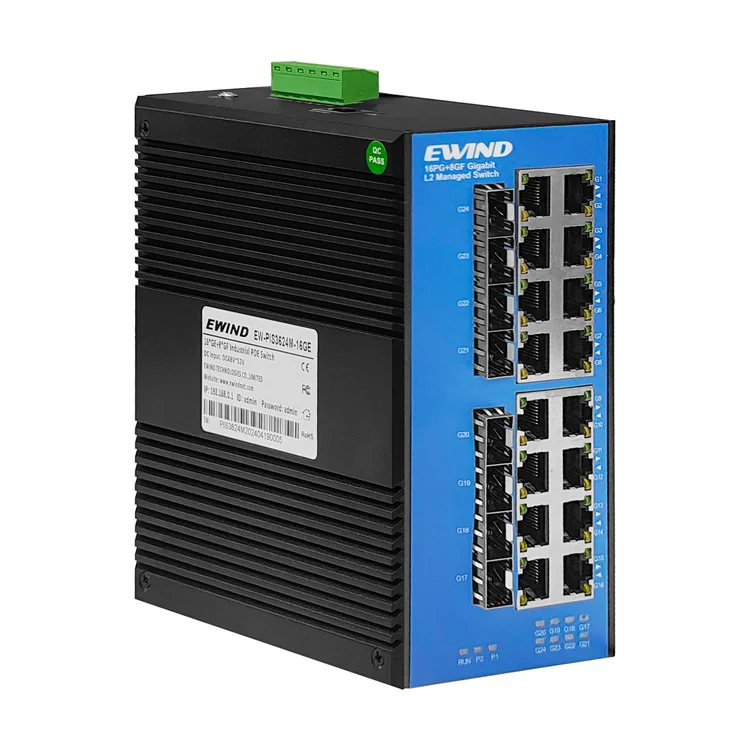

EW-IS3624M expands industrial access with sixteen 10/100/1000Mbps RJ45 ports and eight 100/1000Mbps SFP fiber slots. L2+ management, 168Gbps switching, rail installation and redundant DC power support large mixed copper/fiber surveillance and control networks.

High-density industrial access

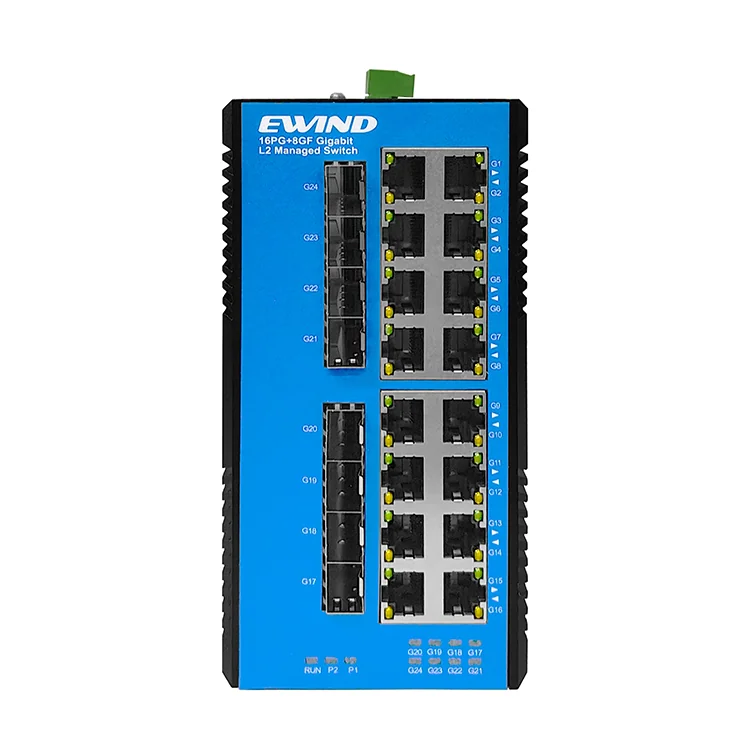

Sixteen adaptive Gigabit RJ45 ports and eight SFP slots combine copper and optical devices in one node.

Eight fiber uplinks

Eight 100/1000Mbps SFP ports provide flexible optical uplinks for distributed industrial segments.

Resilient management

VLAN, RSTP, fast loop, static aggregation, IGMP snooping, mirroring and storm suppression support structured networks.

Product technical specifications
Specification	Details
Model	EW-IS3624M
Copper ports	16 × 10/100/1000BASE-T RJ45 data ports
Fiber ports	8 × 100/1000Mbps SFP fiber slots
Management interfaces	1 × RS232 console (115200,N,8,1); web management
Power input	2 sets redundant V+/V− DC interfaces; 12–57VDC industrial Phoenix terminals
Switching / forwarding	168Gbps / 60Mpps
MAC address table	32K
Management features	L2+; up to 4096 VLANs; RSTP; fast loop; static aggregation; IGMP snooping

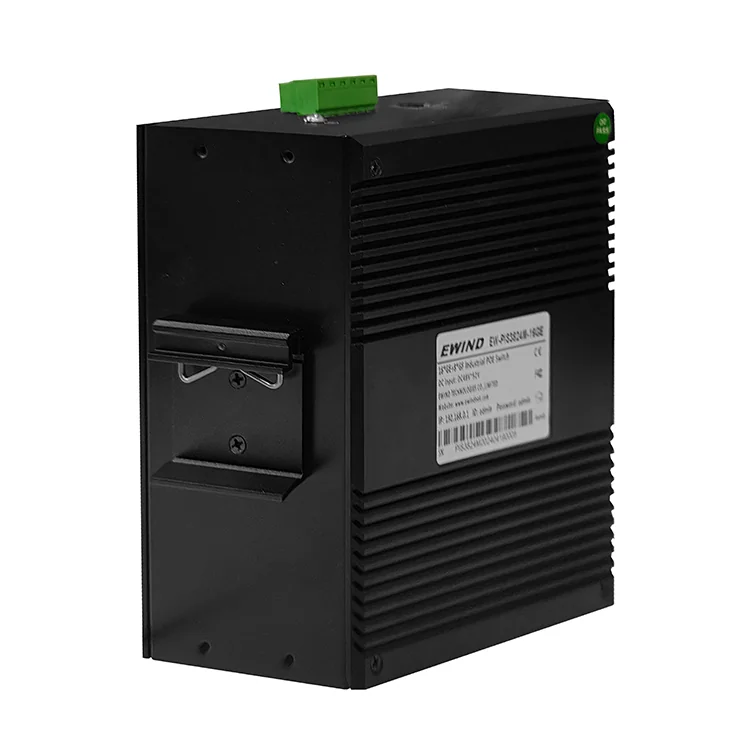

Dimensions / installation	168 × 140 × 80 mm; DIN-rail installation
Protection / environment	IP40; −40 to +75°C operating; −40 to +85°C storage; 10–90% RH
Warranty	5 years

Advanced capabilities

Detailed network functions stay available here without interrupting the main selection path.

Layer 2 controls

The source lists port-based and 802.1Q VLAN, RSTP, fast loop networking, static aggregation, unrestricted multi-to-one mirroring, loop guard, IGMP snooping and storm suppression.

Fiber planning

The eight SFP slots support 100/1000Mbps modules. The source describes single-mode and multimode, single- and dual-fiber options; select modules and fiber reach for the site.

Operations and maintenance

Web management and the RS232 console support DHCP client, configuration/profile upload and download, package upgrade, factory restore and system logging.

Power and thermal planning

Use both redundant DC input sets when the installation requires power resilience. The fanless enclosure is rated for −40 to +75°C operation; provide clearance for heat dissipation.
