Model: EW-IS3620M

20-Port Gigabit Managed Industrial Ethernet Switch

16 × 10/100/1000Mbps RJ45 data ports + 4 × 100/1000Mbps SFP slots
158Gbps switching capacity · 58Mpps forwarding · 32K MAC
L2+ management · redundant 12–57VDC input · IP40 rail-mount enclosure

Project inquiry

Request pricing and lead time

Tell us your model, quantity and project requirements. Our networking team will help you find the right fit.

info@ewindnet.com

Overview

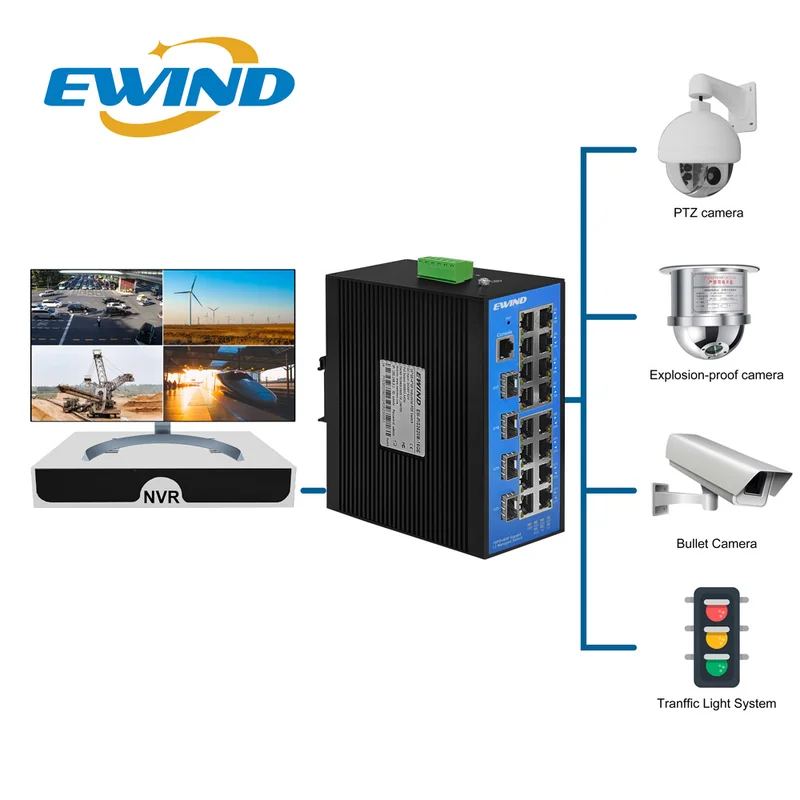

EW-IS3620M is a fanless managed industrial switch with sixteen 10/100/1000Mbps RJ45 ports, four 100/1000Mbps SFP fiber slots, an RS232 console and redundant DC power terminals. Its L2+ controls, 158Gbps switching fabric, rail installation and IP40 housing fit industrial surveillance and control networks.

Dense copper and fiber access

Sixteen adaptive Gigabit RJ45 ports and four SFP fiber slots combine mixed copper and optical devices in one industrial node.

Industrial resilience

Fanless cooling, IP40 protection, −40 to +75°C operation and redundant Phoenix-terminal power support demanding sites.

L2+ control set

VLAN, RSTP, fast loop, static aggregation, IGMP snooping, mirroring, storm suppression and web/console management support structured networks.

Product technical specifications
Specification	Details
Model	EW-IS3620M
Copper ports	16 × 10/100/1000BASE-T RJ45 data ports
Fiber ports	4 × 100/1000Mbps SFP fiber slots
Management interfaces	1 × RS232 console (115200,N,8,1); web management
Power input	2 sets redundant V+/V− DC interfaces; 12–57VDC industrial Phoenix terminals
Switching / forwarding	158Gbps / 58Mpps
MAC address table	32K
Management features	L2+; up to 4096 VLANs; RSTP; fast loop; static aggregation; IGMP snooping

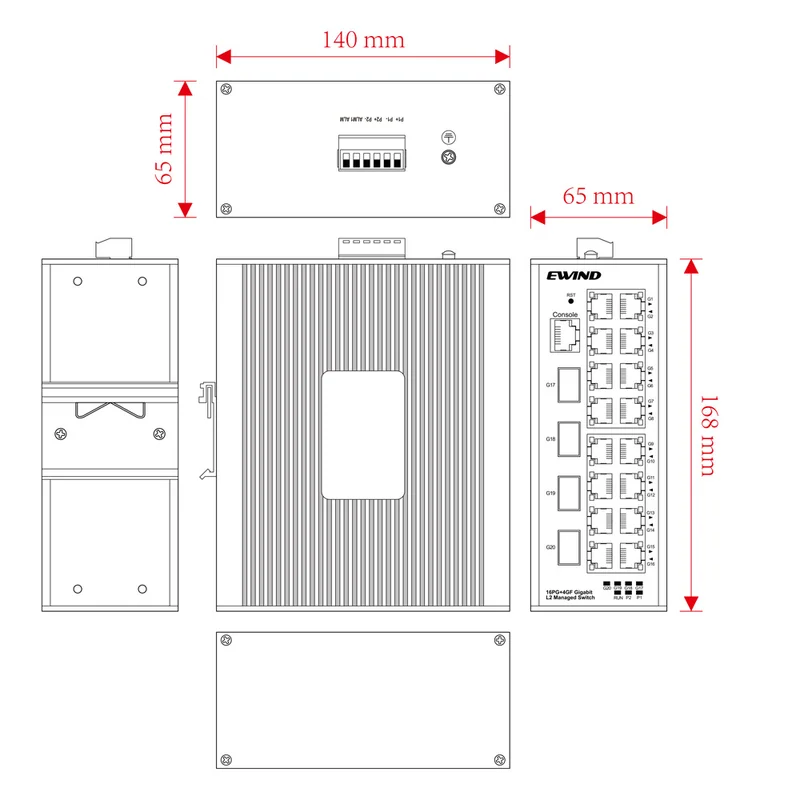

Dimensions / installation	168 × 140 × 65 mm; DIN-rail installation
Protection / environment	IP40; −40 to +75°C operating; −40 to +85°C storage; 10–90% RH
Warranty	5 years

Advanced capabilities

Detailed network functions stay available here without interrupting the main selection path.

Layer 2 controls

The source lists port-based and 802.1Q VLAN, RSTP, fast loop networking, static aggregation, unrestricted multi-to-one mirroring, loop guard, IGMP snooping and storm suppression.

Operations and maintenance

Web management and the RS232 console support DHCP client, configuration/profile upload and download, package upgrade, factory restore and system logging.

Fiber planning

The SFP slots support 100/1000Mbps modules. The source describes single-mode and multimode, single- and dual-fiber options; select modules and fiber reach for the site.

Power and thermal planning

Use both redundant DC input sets when the installation requires power resilience. The fanless enclosure is rated for −40 to +75°C operation; provide the specified clearance for heat dissipation.
