24 powered ports
Gigabit PoE access for cameras, APs and IP phones.

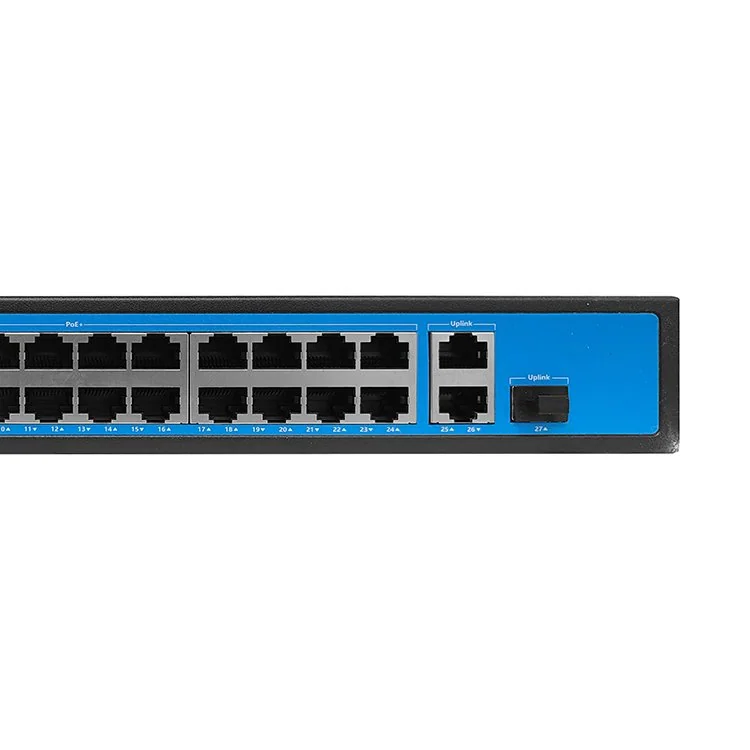

Model: EW-S1827CG-AP

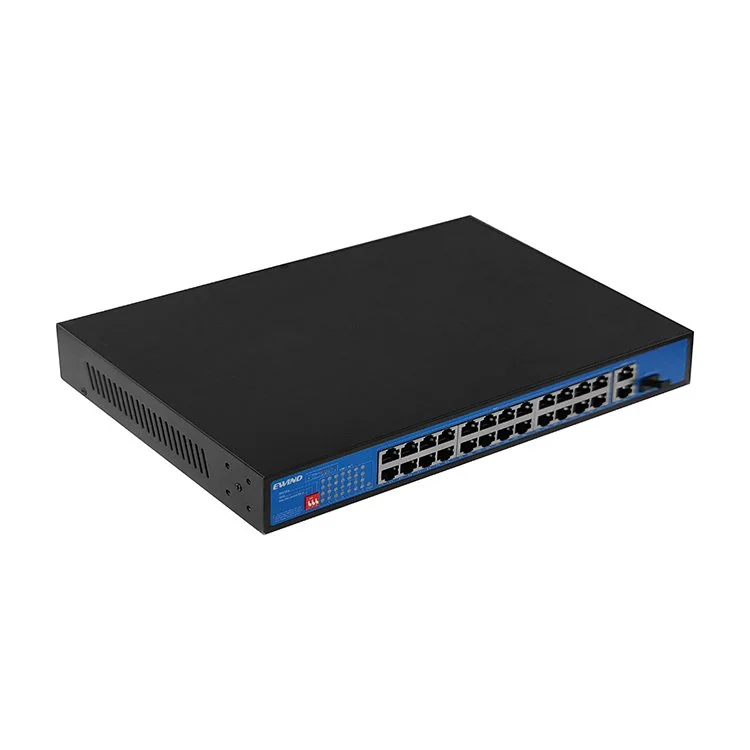

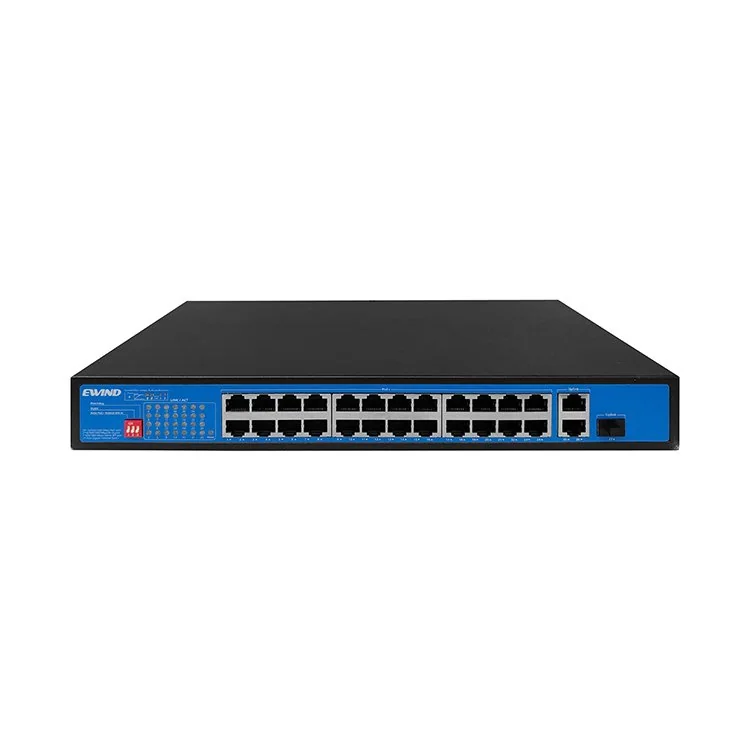

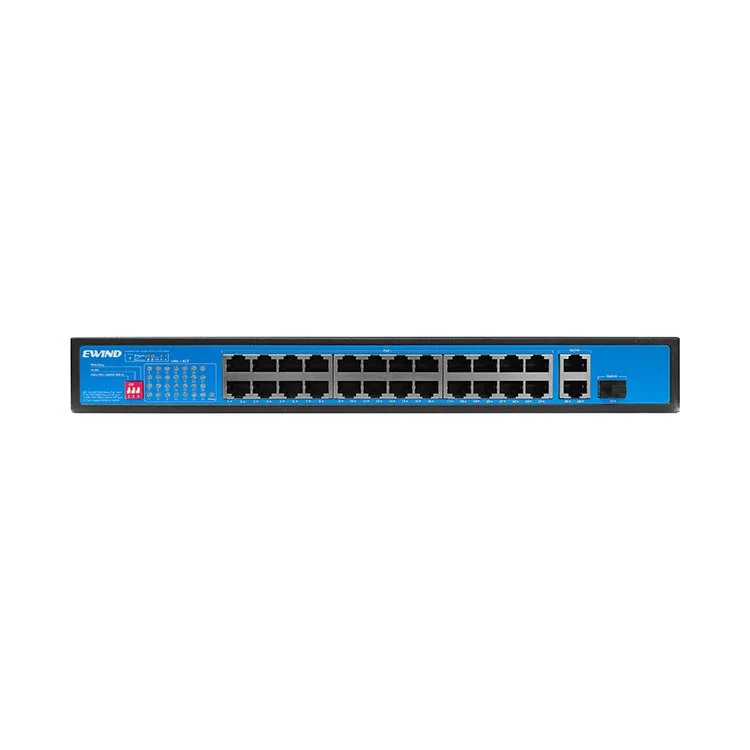

27-Port Gigabit PoE Switch with RJ45 and SFP Uplinks
- 24 × Gigabit PoE ports; 2 × Gigabit RJ45 and 1 × Gigabit SFP uplinks
- IEEE 802.3af/at, up to 30W per port; 300W total budget
- 54Gbps switching capacity and 40.18Mpps forwarding
- Fanless enclosure with built-in 100–240VAC supply
Project inquiry
Request pricing and lead time
Tell us your model, quantity and project requirements. Our networking team will help you find the right fit.
Overview
EW-S1827CG-AP powers up to 24 Gigabit PoE devices within a 300W budget. Two Gigabit RJ45 uplinks and one SFP slot connect the access network to an NVR or upstream switch, while watchdog and isolation switches simplify local operation.
300W budget
Up to 30W per port within the total PoE budget.
Copper and fiber uplinks
Two RJ45 ports and one Gigabit SFP slot for upstream connections.

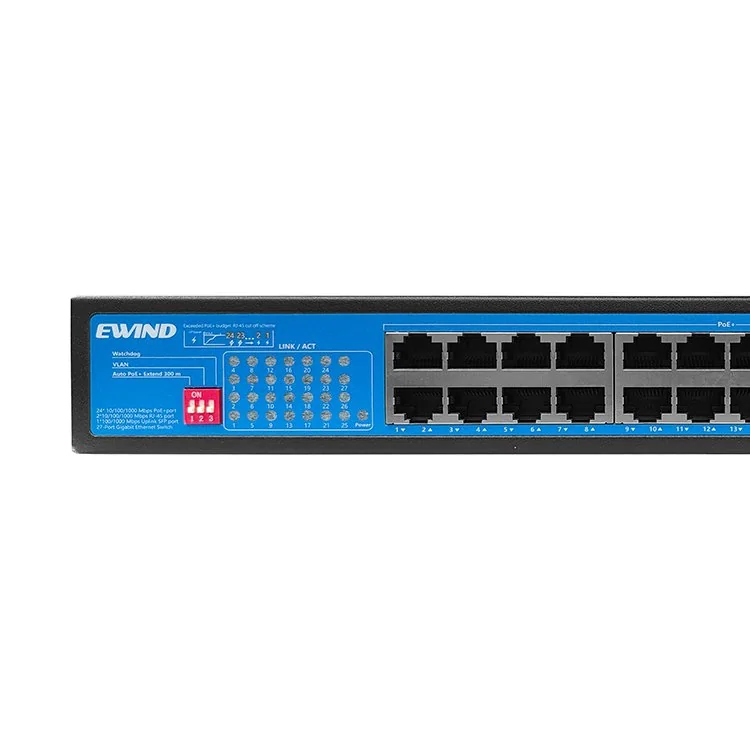

Local PoE controls
DIP switches enable extend, isolation and watchdog functions.
| Specification | Details |
|---|---|
| PoE ports | 24 × 10/100/1000Base-T; IEEE 802.3af/at |
| Uplinks | 2 × Gigabit RJ45; 1 × 1000Base-X SFP (optic ordered separately) |
| PoE power | Up to 30W per port; 300W total |
| Switching performance | 54Gbps non-blocking capacity; 40.18Mpps; store-and-forward |
| Memory | 8K MAC table; 4M buffer |

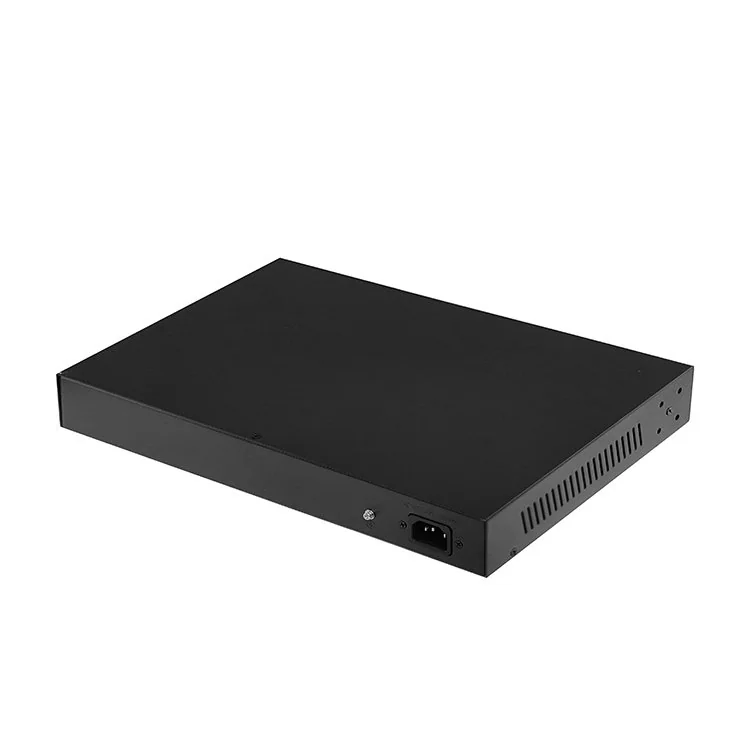

| Power supply | Built-in 100–240VAC, 50–60Hz; standby <5W |
| Enclosure | Fanless; IP30; 330 × 215 × 44mm |
| Mounting | Desktop, wall mount or 19-inch 1U cabinet |
| Operating conditions | −20°C to +55°C; 5%–90% RH, non-condensing |
| Warranty | 2 years; lifetime maintenance |

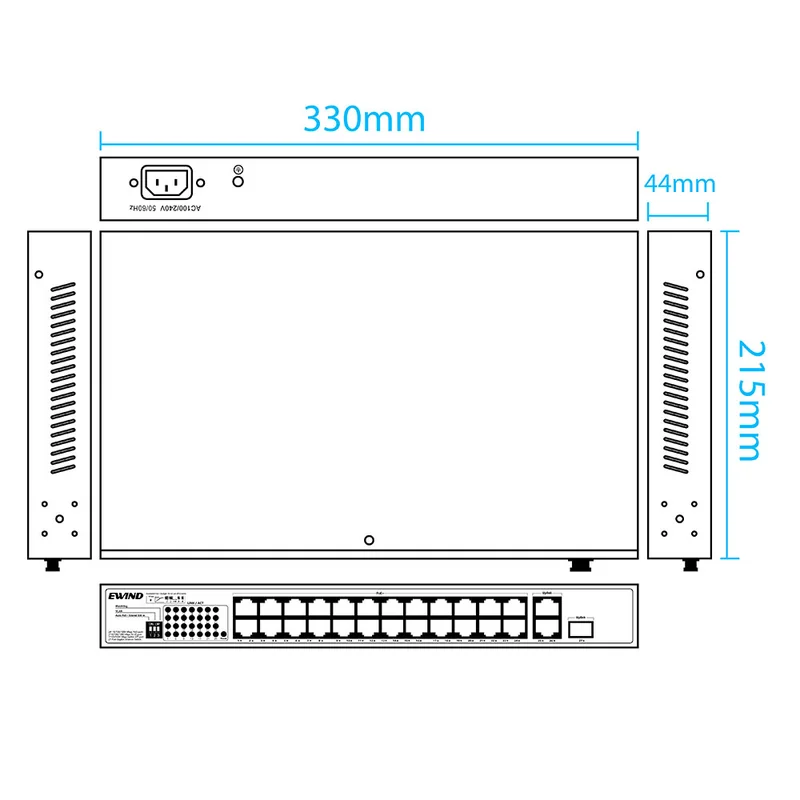

Dimensions
Order information
| Content | Quantity | Unit |
|---|---|---|
| 27-Port Gigabit PoE Switch (EW-S1827CG-AP) | 1 | SET |
| Rack ears | 1 | PAIR |
| User guide | 1 | PC |
| Warranty card | 1 | PC |

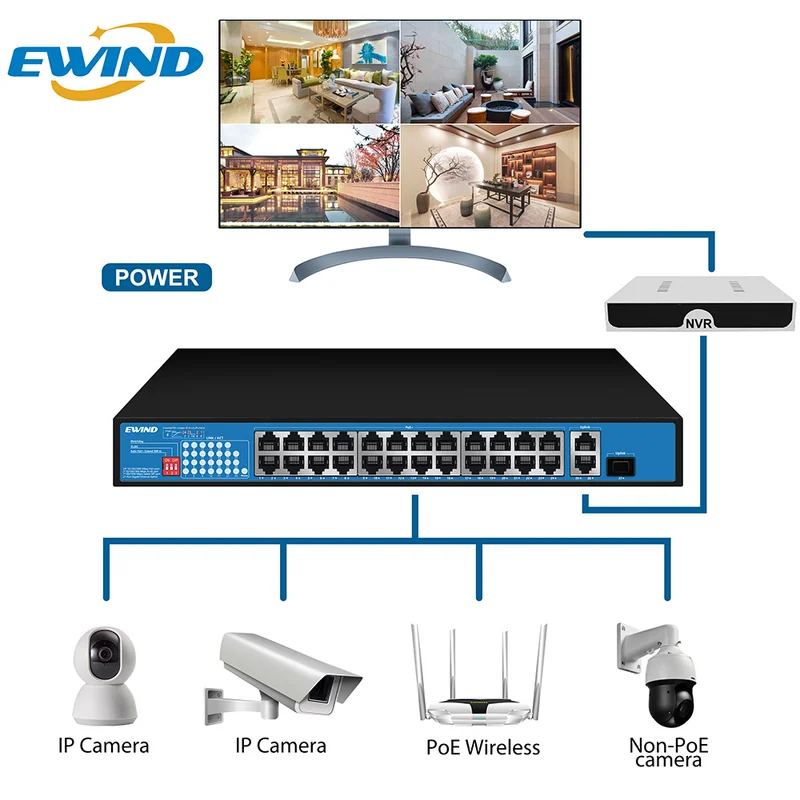

Applications
Enterprise, campus and security networks.
