Eight Fast Ethernet PoE outputs
Ports 1–8 support IEEE 802.3af/at with 15.4W standard power and up to 30W per port.
Model: EW-S1710CFU-AP

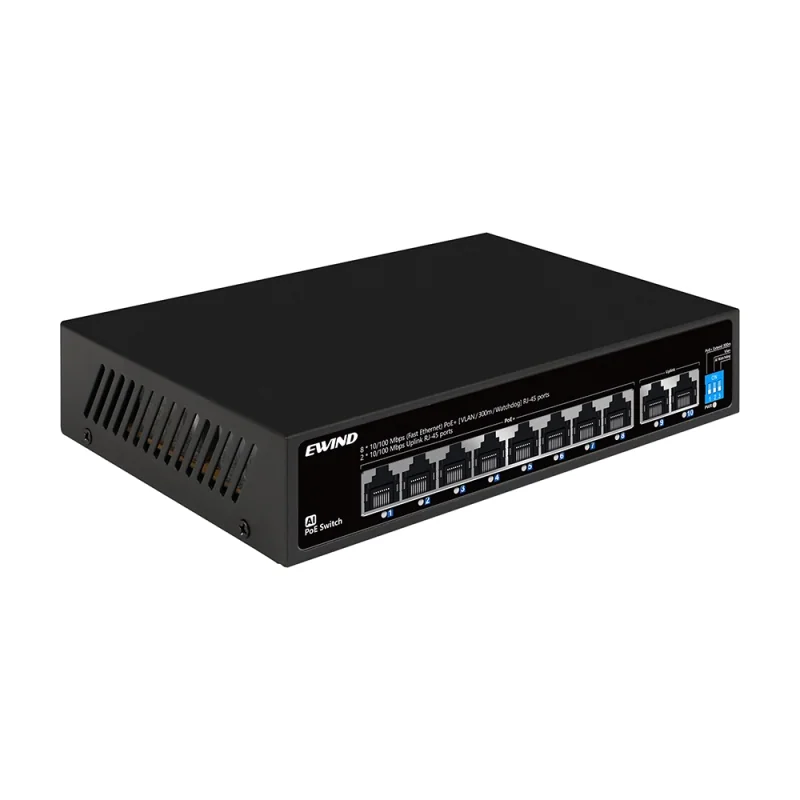

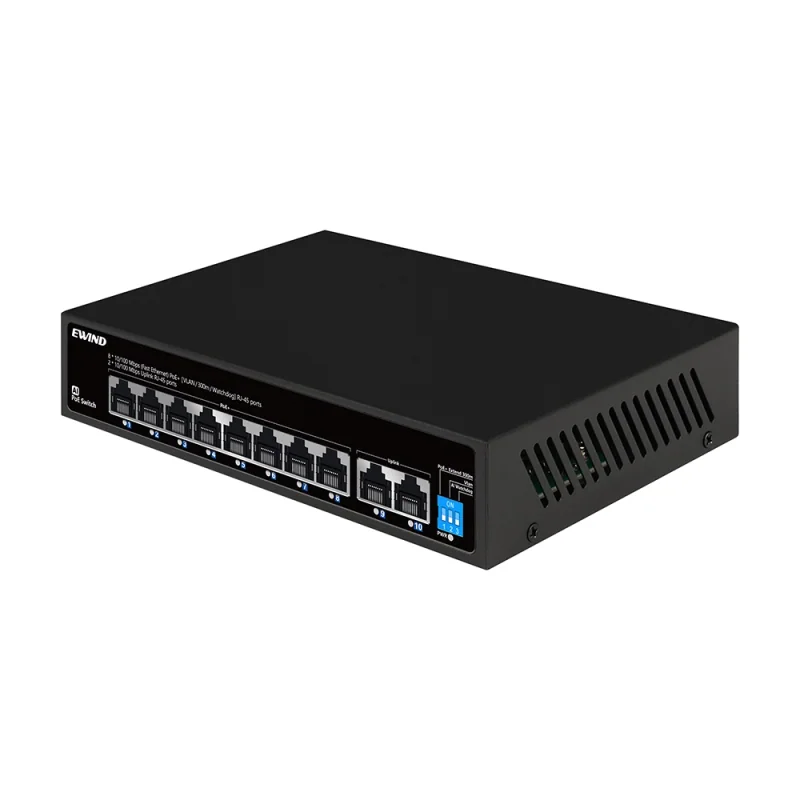

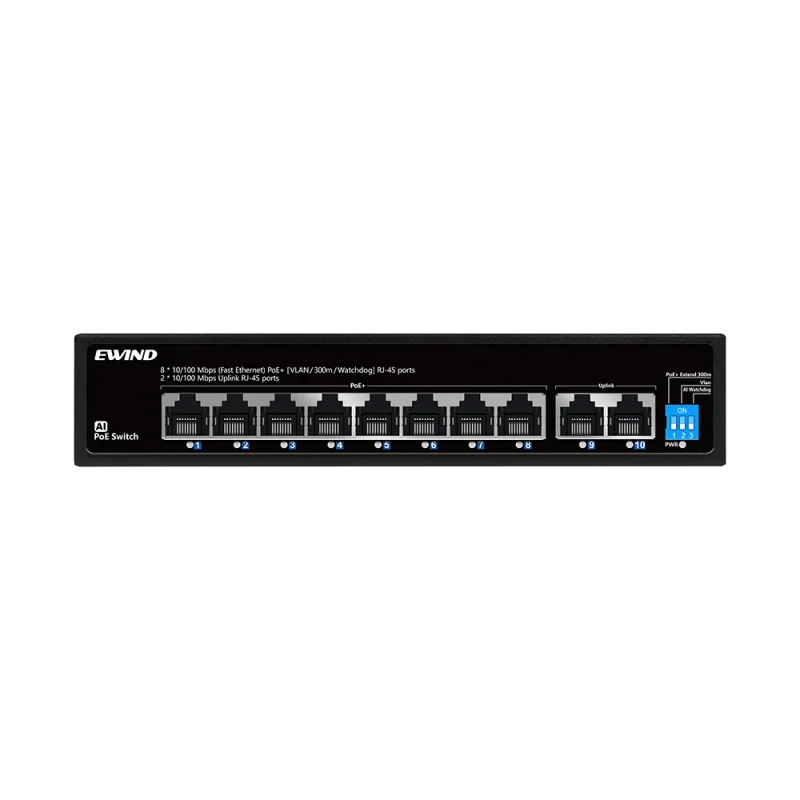

8-Port Fast Ethernet Unmanaged PoE Switch with 2 Fast Ethernet Uplinks
- 8 × 10/100Mbps PoE ports · IEEE 802.3af/at
- 2 × 10/100Mbps RJ45 uplinks
- 96W built-in AC supply · 2Gbps switching · 300m extend mode
Project inquiry
Request pricing and lead time
Tell us your model, quantity and project requirements. Our networking team will help you find the right fit.
Overview
EW-S1710CFU-AP provides eight 10/100Mbps PoE ports and two 10/100Mbps RJ45 uplinks for straightforward edge deployments. The 96W built-in supply adds 300m extend mode, VLAN isolation and AI PoE watchdog recovery without a management interface.
Two Fast Ethernet uplinks
Two data-only RJ45 uplinks provide 10/100Mbps connectivity to the upstream network or recorder.

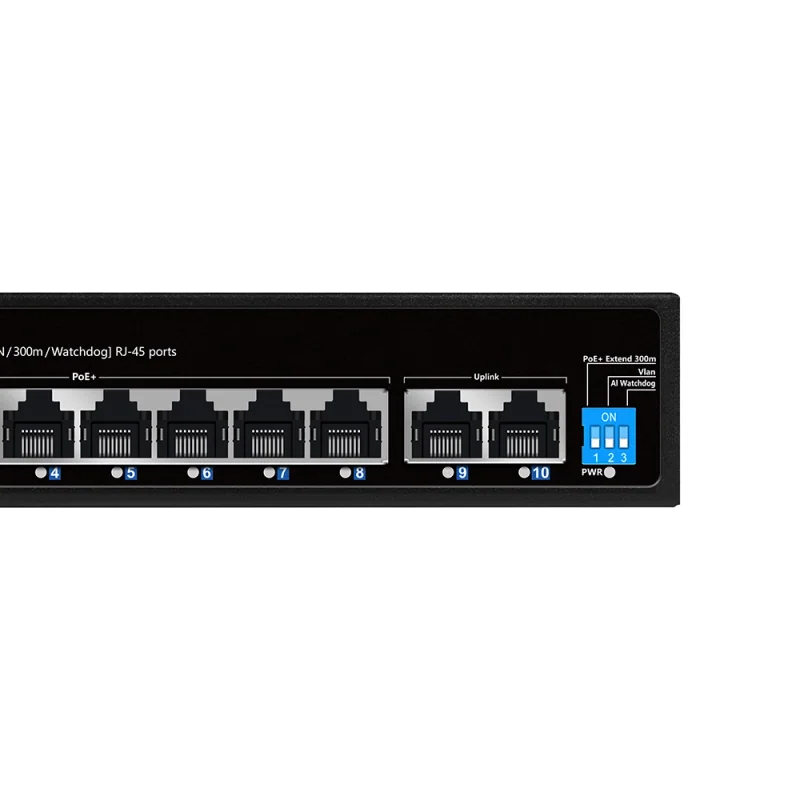

Extend, VLAN and watchdog
DIP modes provide 300m transmission, per-port VLAN isolation and AI PoE watchdog recovery.
| Specification | Details |
|---|---|
| Model | EW-S1710CFU-AP |
| PoE ports | 8 × 10/100BASE-T PoE; ports 1–8 |
| Uplinks | 2 × 10/100BASE-T RJ45 data ports |
| PoE standard / port limit | IEEE 802.3af/at; 15.4W standard, up to 30W per port |
| Total power / supply | 96W; built-in AC 100–240V, 50–60Hz |
| Management | Unmanaged; DIP-switch controls |
| Switching / forwarding | 2Gbps / 1.49Mpps |
| MAC / buffer | 2K / 768K |
| Dimensions / installation | 195 × 130 × 40 mm; desktop or wall mount |
| Protection / environment | IP30; −20 to +55°C; 5–90% RH |
| Warranty | 1 year; lifetime maintenance |

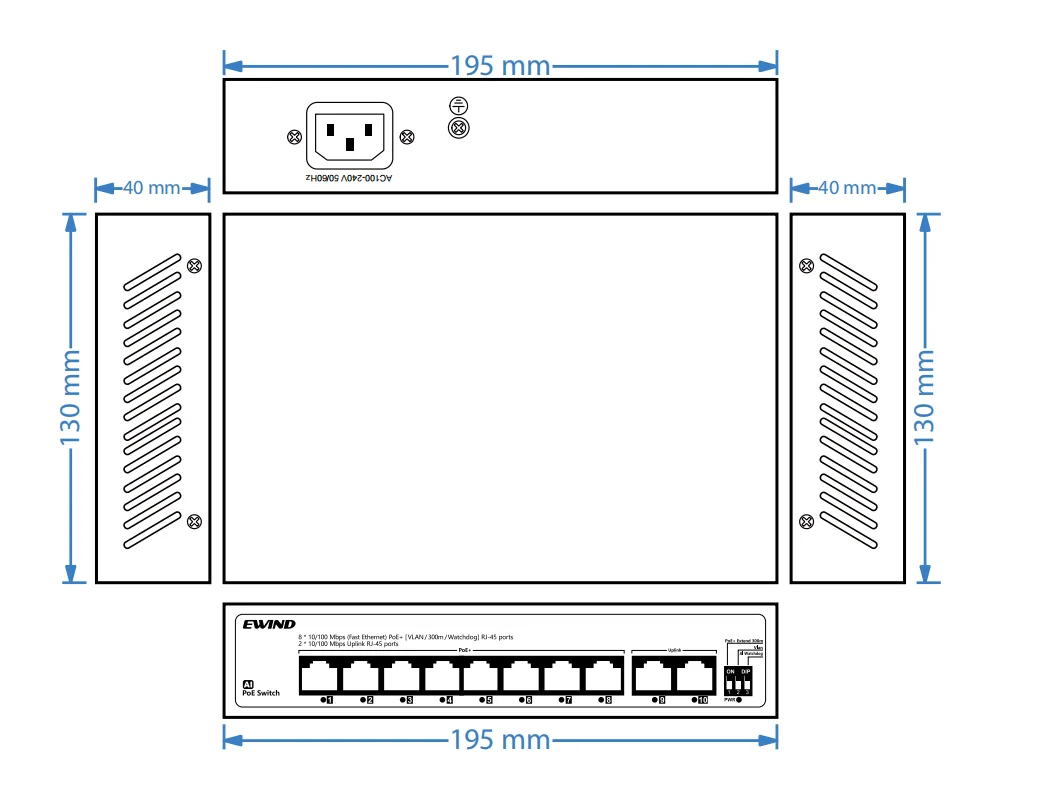

Dimensions
Order information
| Content | Quantity | Unit |
|---|---|---|
| 100M Unmanaged PoE Switch | 1 | SET |
| User Guide and Warranty Card | 1 | PC |
| AC Power cord | 1 | PC |
