Twelve Fast Ethernet ports

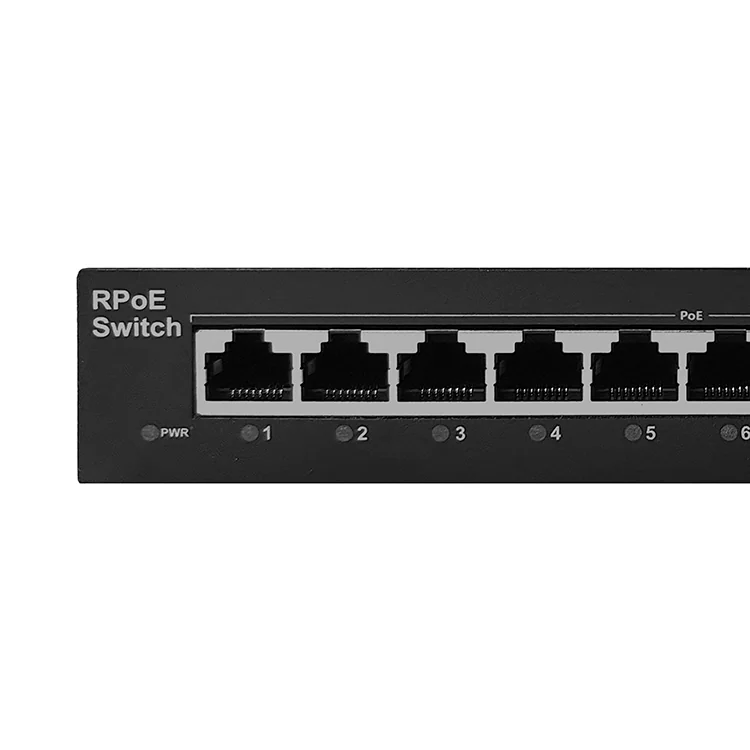

The product panel separates eight reverse-power input ports from four uplinks.
Model: EW-S2212CF
12-Port Fast Ethernet Reverse PoE Switch with 4 Uplinks
- 12 × 10/100Mbps RJ45 ports
- Panel layout: 8 reverse-PoE inputs + 4 uplinks
- Standard sharing or VLAN isolation mode
- 200 × 65 × 35mm metal enclosure
Project inquiry
Request pricing and lead time
Tell us your model, quantity and project requirements. Our networking team will help you find the right fit.
Overview

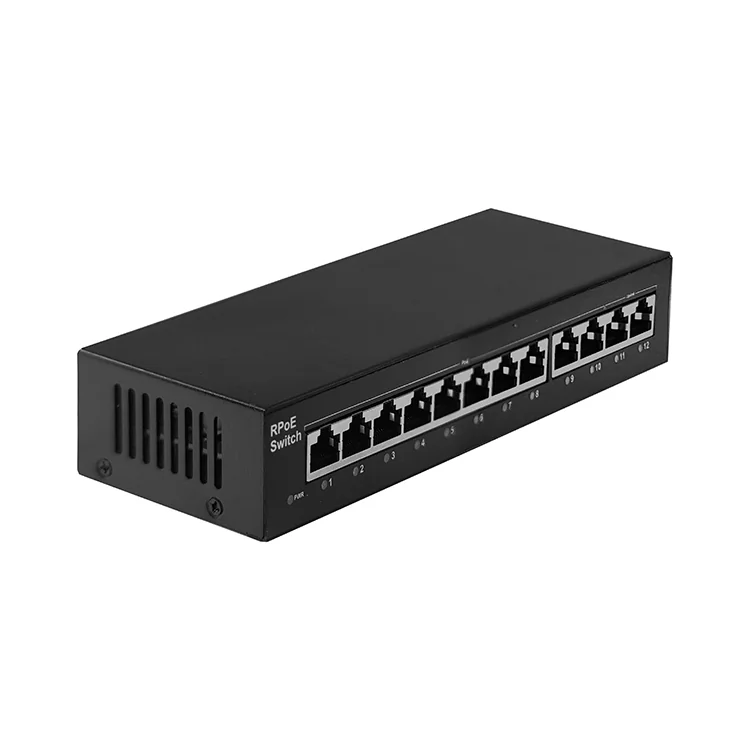

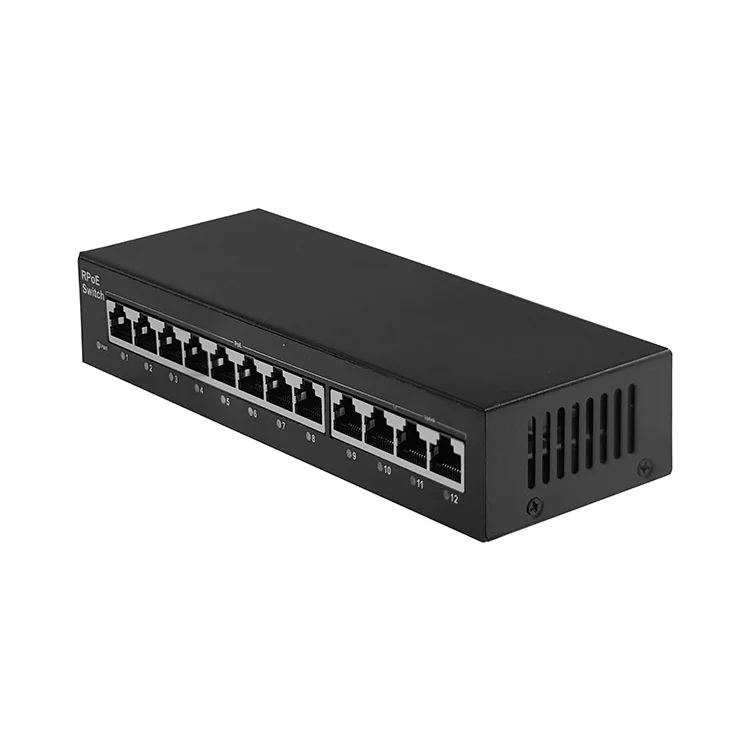

EW-S2212CF provides twelve Fast Ethernet ports for reverse-powered access networks. The illustrated front panel groups ports 1–8 as PoE inputs and ports 9–12 as uplinks. Unmanaged switching, VLAN isolation and a compact metal enclosure support installations with a matched reverse-PoE power arrangement.
Reverse-powered access
Receive power through compatible input links; select the required voltage and wiring configuration.
Compact enclosure
A 200 × 65 × 35mm housing with external power supply ordered separately.
| Specification | Details |
|---|---|
| Ethernet ports | 12 × 10/100Mbps RJ45 |
| Illustrated port layout | Ports 1–8: PoE IN; ports 9–12: uplink |
| Management | Unmanaged |
| Operating modes | Standard sharing / VLAN isolation |
| Switching capacity | 2.4Gbps |
| Forwarding method | Store-and-forward |
| MAC address table | 1K entries |
| DC connector | 5.5 × 2.1mm |
| Dimensions (L × W × H) | 200 × 65 × 35mm |
| Weight | 0.35kg |
| Power supply | Not included |
| Warranty | 1 year |

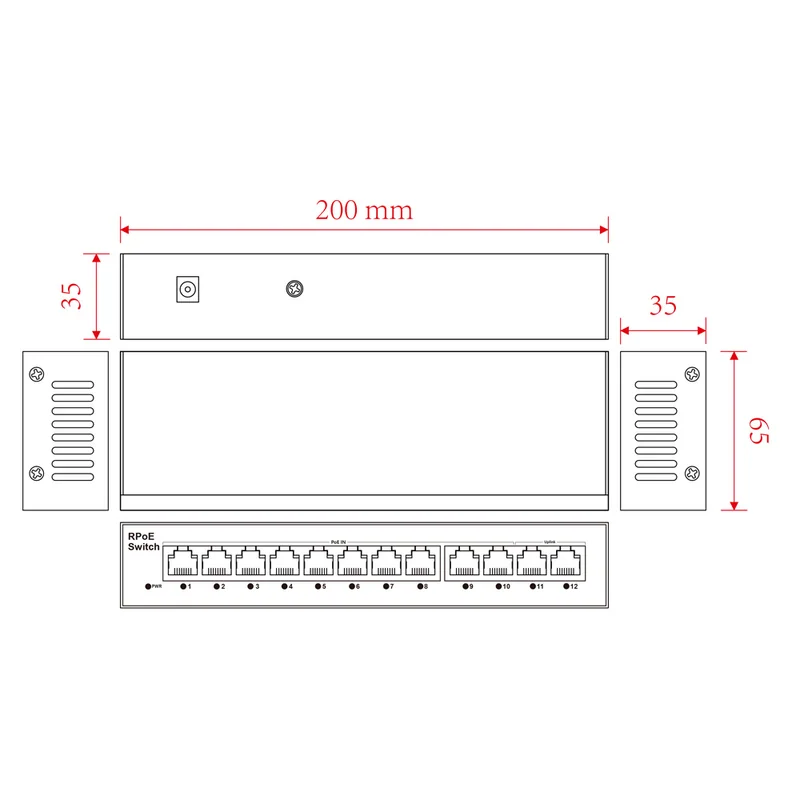

Dimensions
Order information
| Content | Quantity | Unit |
|---|---|---|
| EW-S2212CF 12-port reverse PoE switch; specify power configuration | 1 | SET |
| User guide | 1 | PC |
| Warranty card | 1 | PC |
