16 PoE access ports
Fast Ethernet connections for cameras, APs and VoIP devices.
Model: EW-S1919CF-AP
19-Port Fast Ethernet PoE Switch with Gigabit Uplinks
- 16 × 10/100Mbps IEEE 802.3af/at PoE ports
- 2 × Gigabit RJ45 uplinks + 1 × 100/1000Mbps SFP
- 300W power supply; 30W maximum per PoE port
- Extend, VLAN isolation, watchdog and AI testing modes
Project inquiry
Request pricing and lead time
Tell us your model, quantity and project requirements. Our networking team will help you find the right fit.
Overview
EW-S1919CF-AP connects 16 Fast Ethernet PoE devices with two Gigabit RJ45 uplinks and one 100/1000Mbps SFP uplink. IEEE 802.3af/at power, a 300W supply and four DIP-switch modes support compact surveillance and access networks.

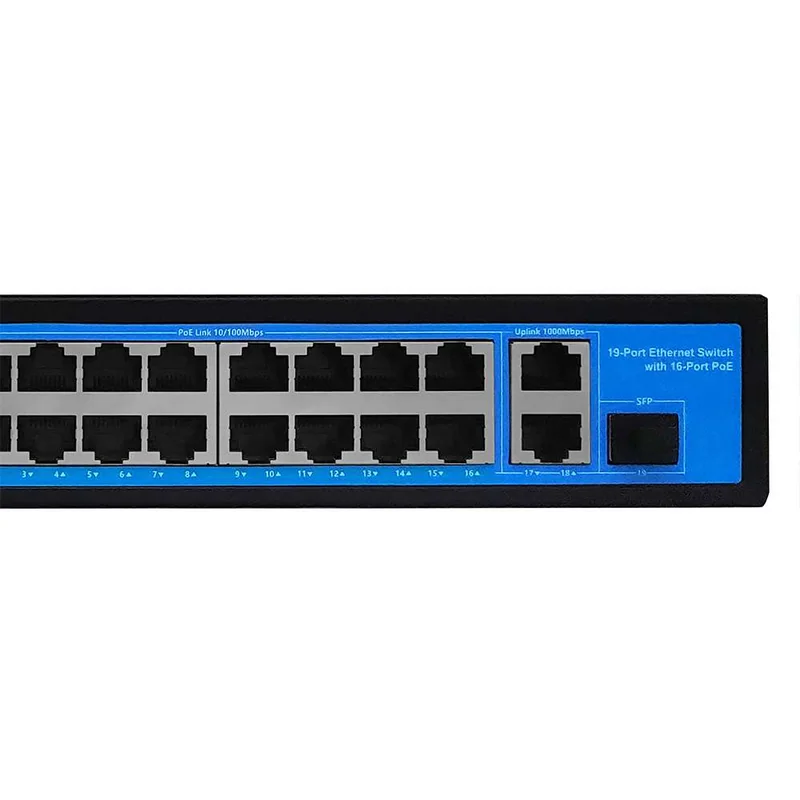

Three uplink options
Two Gigabit copper ports and one Gigabit SFP slot.

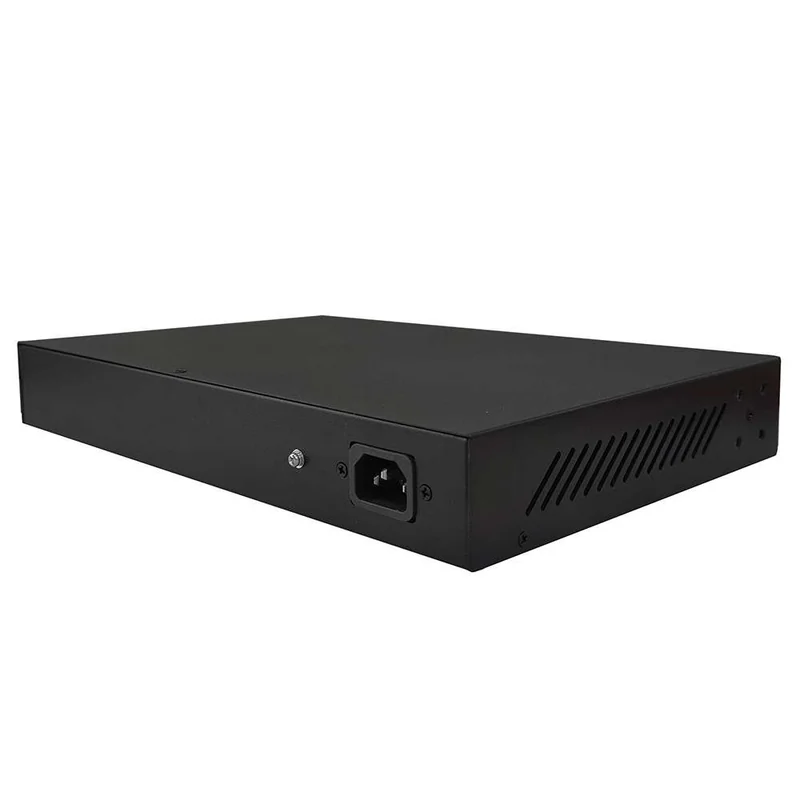

300W power supply
Up to 30W per PoE port, constrained by the shared supply.

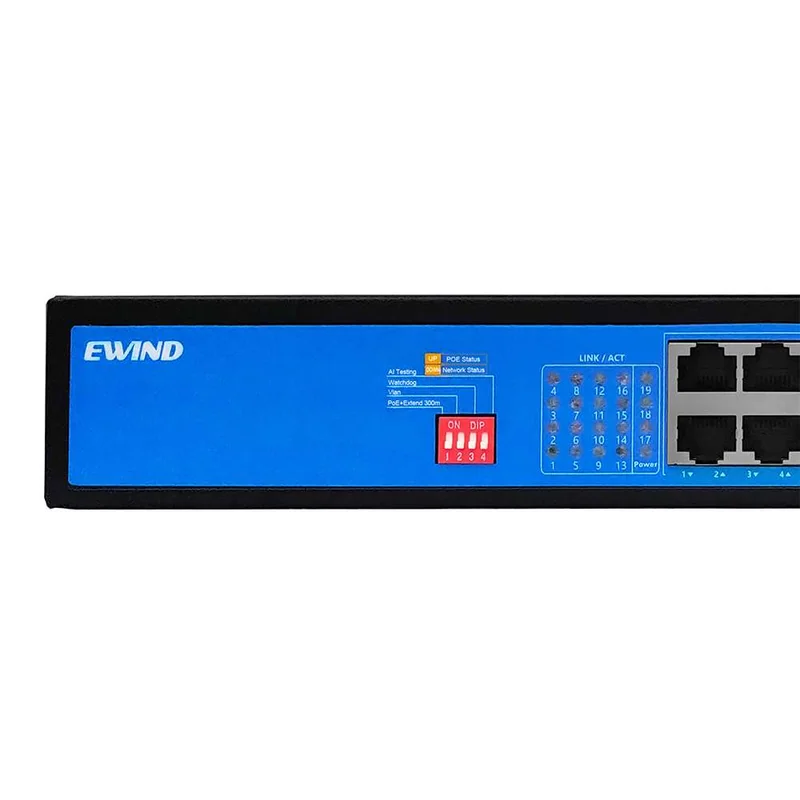

DIP-switch tools
Extend, isolation, watchdog and PoE/network testing controls.
| Specification | Details |
|---|---|
| PoE access ports | 16 × 10/100Mbps RJ45 |
| Copper uplinks | 2 × 10/100/1000Mbps RJ45 |
| Fiber uplink | 1 × 100/1000Mbps SFP |
| PoE standard | IEEE 802.3af/at |
| Maximum power per port | 30W |
| Power input | 100–240V AC, 50/60Hz, built-in 300W supply |
| Switching capacity | 9.2Gbps |
| Forwarding rate | 6.84Mpps |
| Dimensions (W × D × H) | 330 × 220 × 45mm |
| Operating temperature | −20°C to +55°C |
| Warranty | 2 years |

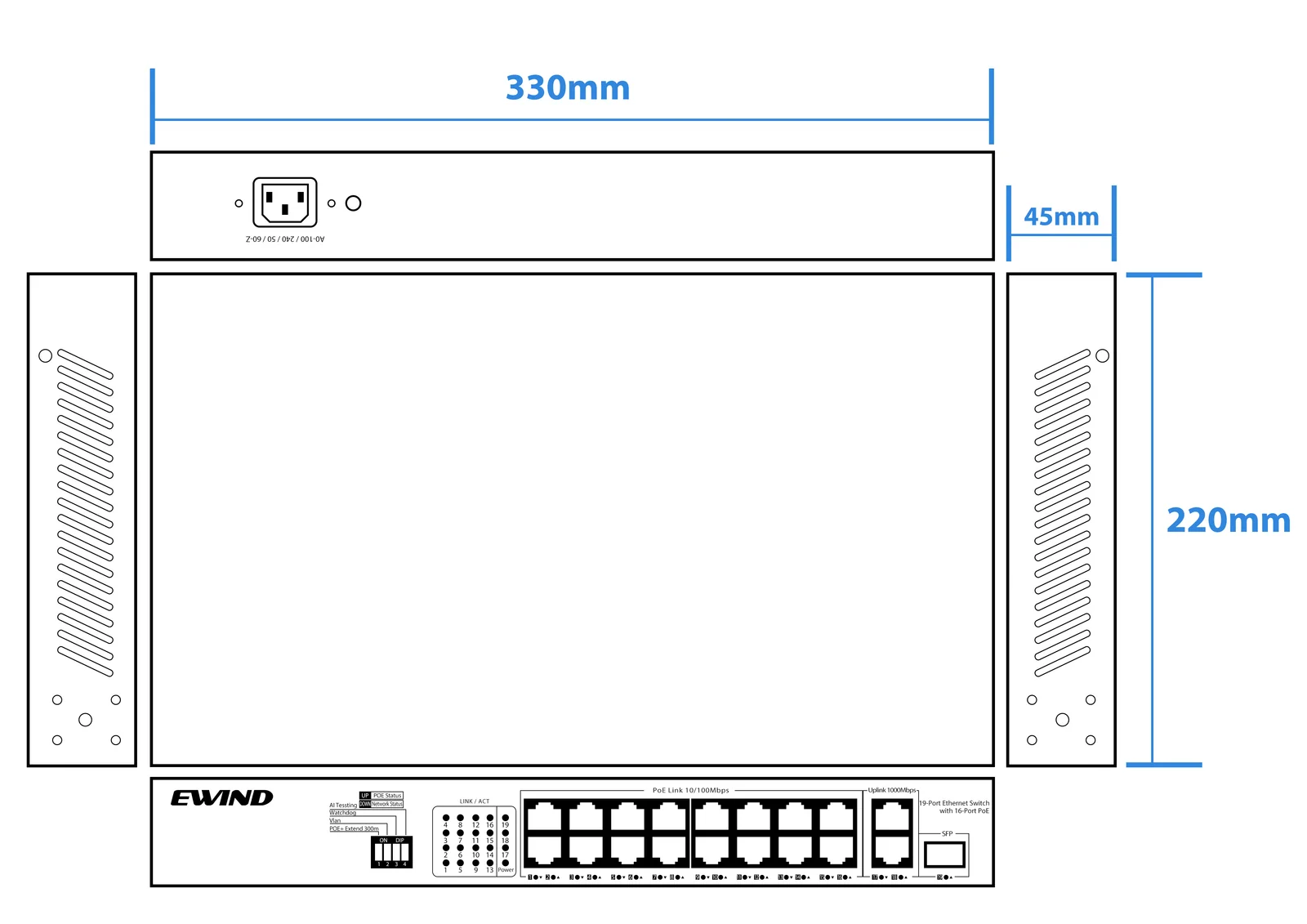

Dimensions
Order information
| Content | Quantity | Unit |
|---|---|---|
| EW-S1919CF-AP 19-port Fast Ethernet PoE switch with Gigabit uplinks | 1 | SET |
| Rack-mount brackets | 1 | PAIR |
| User guide | 1 | PC |
| Warranty card | 1 | PC |

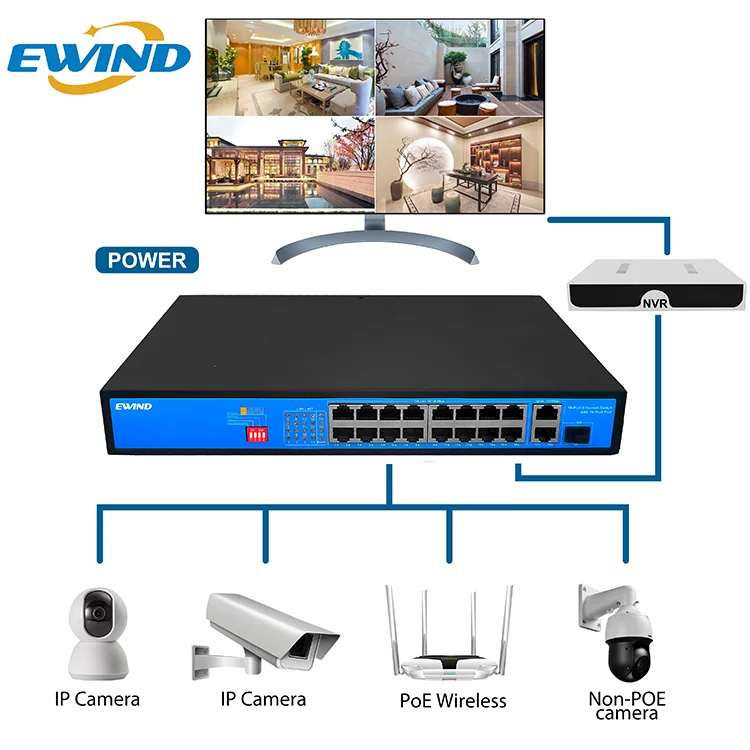

Applications
Enterprise, campus and security networks.
EW-S1919CF-AP Resources
PDF · Specifications · Installation · Ordering
