24 powered connections
IEEE 802.3af/at detection powers compatible cameras, access points and phones, subject to the available total power.
Model: EW-S1927CG-AP-AT
24-Port Gigabit PoE Switch with 3 Uplink Ports and 400W Power Supply
- 24 Gigabit PoE ports · up to 30W per port
- 2 Gigabit RJ45 uplinks + 1 Gigabit SFP slot
- 400W internal supply · fanless enclosure
Project inquiry
Request pricing and lead time
Tell us your model, quantity and project requirements. Our networking team will help you find the right fit.
Overview
EW-S1927CG-AP-AT powers up to 24 Gigabit PoE devices and provides two copper uplinks plus one Gigabit SFP slot. Its 400W internal supply, fanless design and switch-selectable isolation, extended reach and PoE watchdog functions suit surveillance and wireless access installations.
Three uplink ports
Two Gigabit copper uplinks and one Gigabit SFP slot provide 27 independent ports in total.
Simple hardware controls
DIP switches enable port isolation, PoE watchdog and extended reach without a management interface.
| Specification | Details |
|---|---|
| Model | EW-S1927CG-AP-AT |
| PoE ports | 24 × 10/100/1000BASE-T RJ45 |
| Uplinks | 2 × Gigabit RJ45 + 1 × 1000BASE-X SFP slot |
| PoE standard / port limit | IEEE 802.3af/at; up to 30W per port |
| Power supply rating | 400W internal supply |
| AC input | 100–240V AC, 50/60Hz |
| Management | Unmanaged; DIP-switch controls |
| Switching / forwarding | 54 Gbps / 40.18 Mpps |
| MAC address table | 8K entries |
| Cooling / enclosure | Fanless; IP30 |
| Operating environment | −20 to +55°C; 5–90% RH, non-condensing |
| Dimensions | 330 × 220 × 44 mm |
| Installation | Desktop, wall mount or 19-inch rack with brackets |
| Warranty | 2 years |

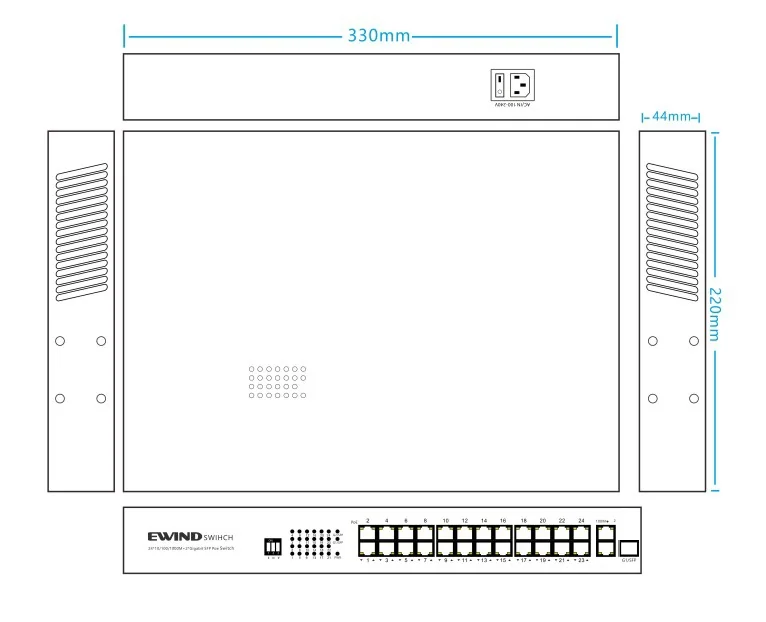

Dimensions
Order information
| Content | Quantity | Unit |
|---|---|---|
| EW-S1927CG-AP-AT PoE switch | 1 | SET |
| Rack-mount brackets | 1 | PAIR |
| User guide | 1 | PCS |
| Warranty card | 1 | PCS |
