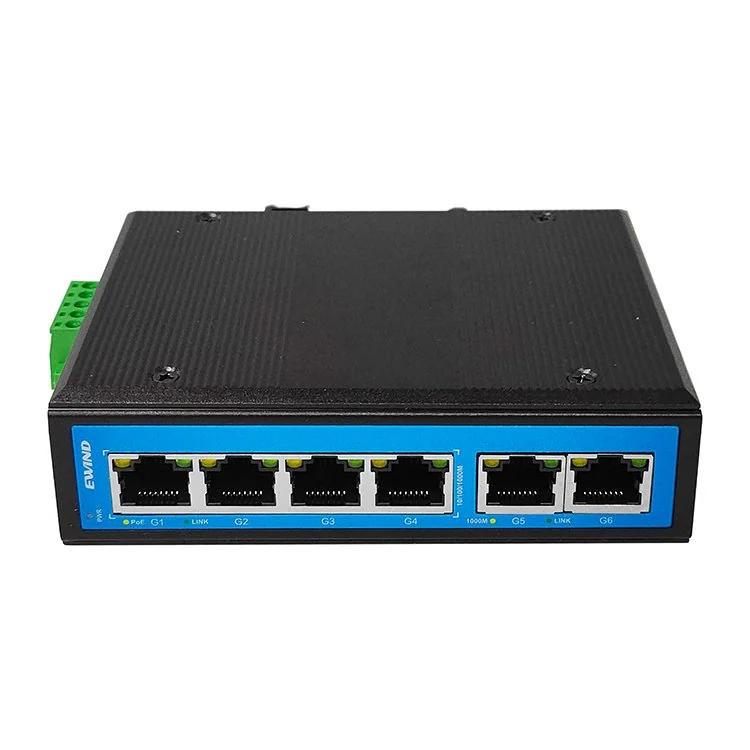

Model: EW-PIS1806GE

6-Port Gigabit Industrial PoE Switch

4 × Gigabit PoE ports and 2 × Gigabit RJ45 uplinks
IEEE 802.3af/at, up to 30W per PoE port
60W or 120W power configuration; supply ordered separately
IP40, DIN-rail mounting and redundant DC input

Project inquiry

Request pricing and lead time

Tell us your model, quantity and project requirements. Our networking team will help you find the right fit.

info@ewindnet.com

Overview

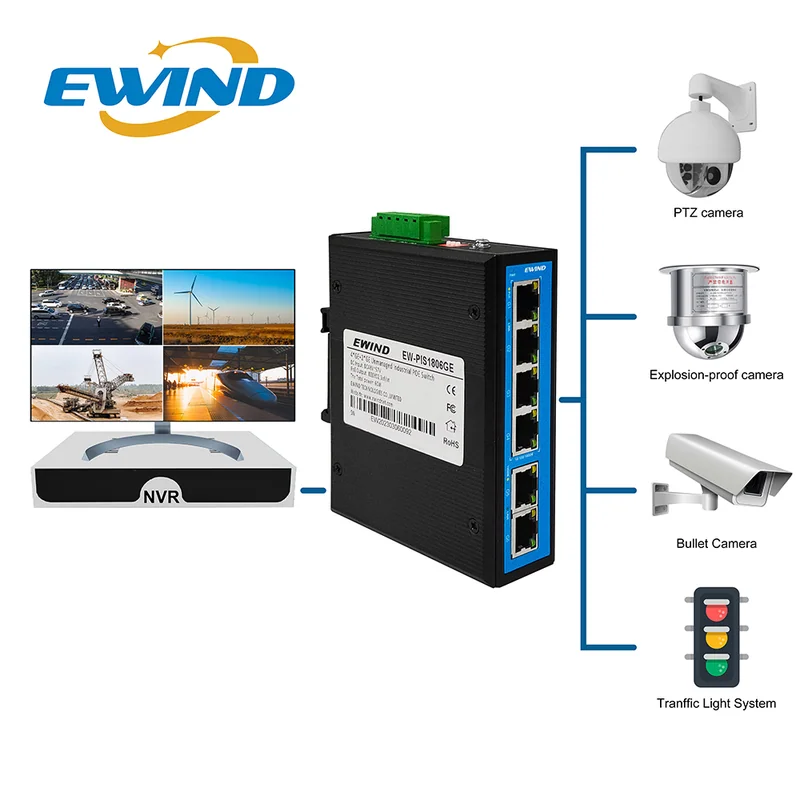

EW-PIS1806GE connects four Gigabit PoE devices and two Gigabit copper uplinks. Redundant 48–57VDC input, a DIN-rail enclosure and −40°C to +85°C operation support industrial camera and sensor networks.

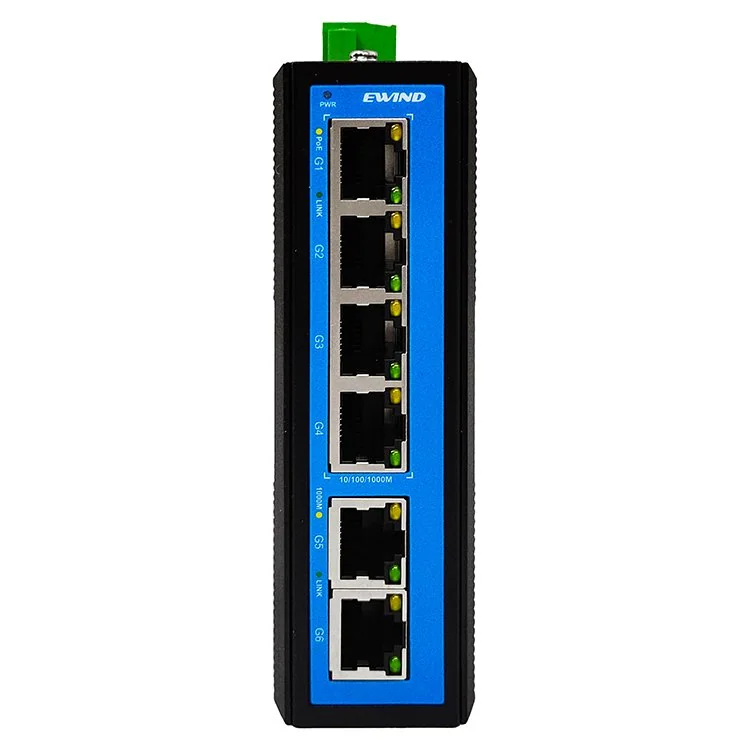

Six Gigabit ports

Four powered ports and two data uplinks connect edge devices and the upstream network.

30W per port

IEEE 802.3af/at support with 60W or 120W system power configurations.

Industrial enclosure

IP40 protection and −40°C to +85°C operation for cabinet installations.

Watchdog controls

AI watchdog, VLAN and extend functions are listed in the product datasheet.

Product technical specifications
Specification	Details
PoE ports	4 × 10/100/1000Base-T; IEEE 802.3af/at; up to 30W per port
Uplinks	2 × 10/100/1000Base-T RJ45 data ports
Switching performance	12Gbps; 8.93Mpps; store-and-forward
Memory	4K MAC entries; 1M buffer; 10K jumbo frames

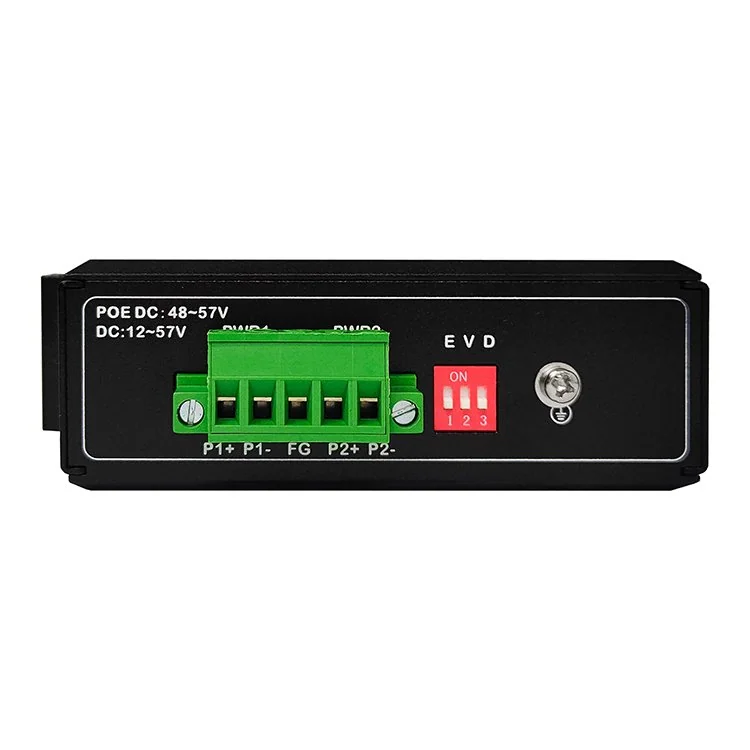

Power input	Redundant 48–57VDC; five-pin Phoenix terminal; reverse-polarity protection
Power configurations	60W or 120W at 48VDC; industrial power supply ordered separately
Power consumption	Standby <2W; full load <60W or <120W, depending on configuration

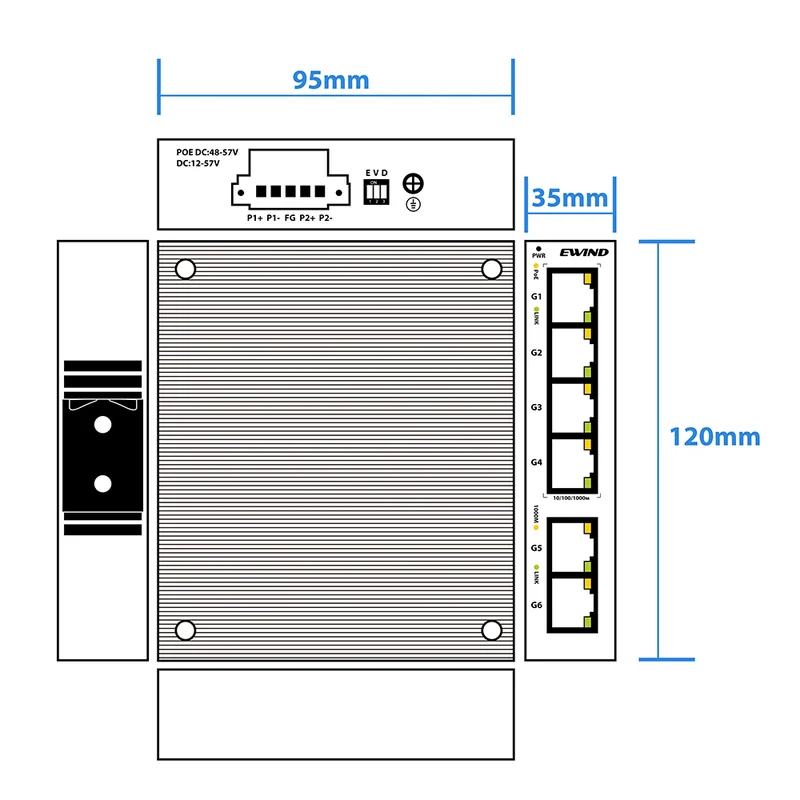

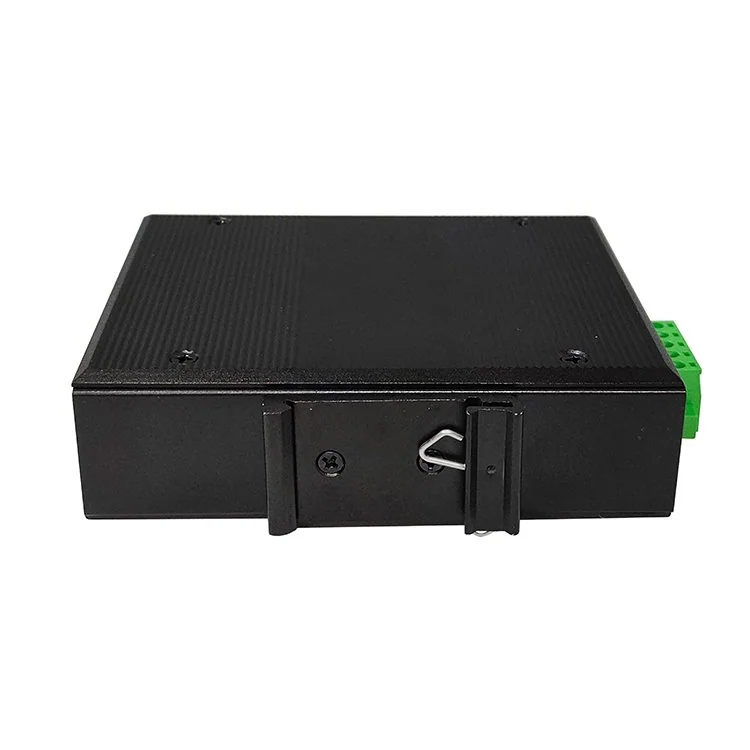

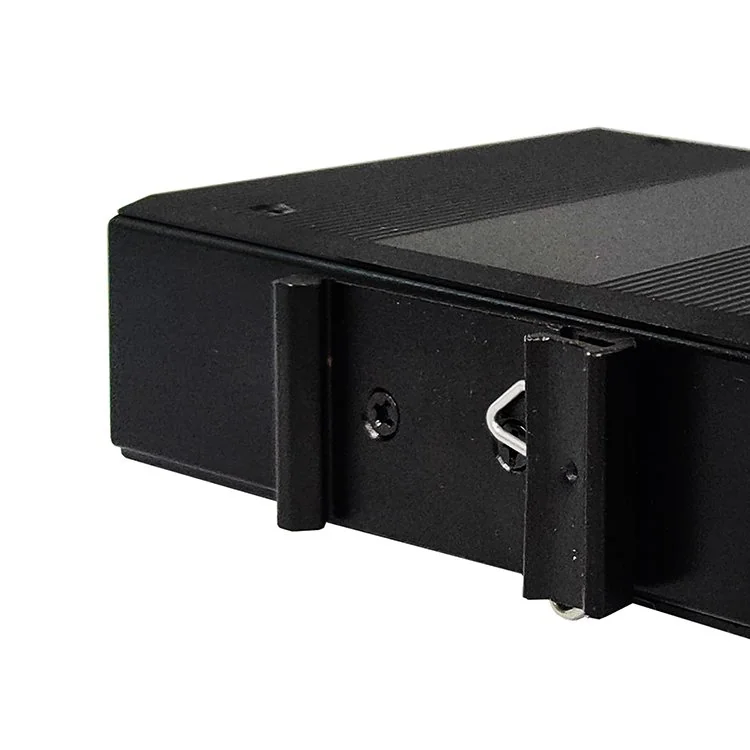

Dimensions / mounting	120 × 95 × 35mm; desktop or DIN rail
Operating conditions	−40°C to +85°C; 5%–90% RH, non-condensing
Protection	IP40; 6kV lightning protection
Warranty	5 years; lifetime maintenance
