4 PoE + 1 uplink
Four powered Fast Ethernet links and one data port.

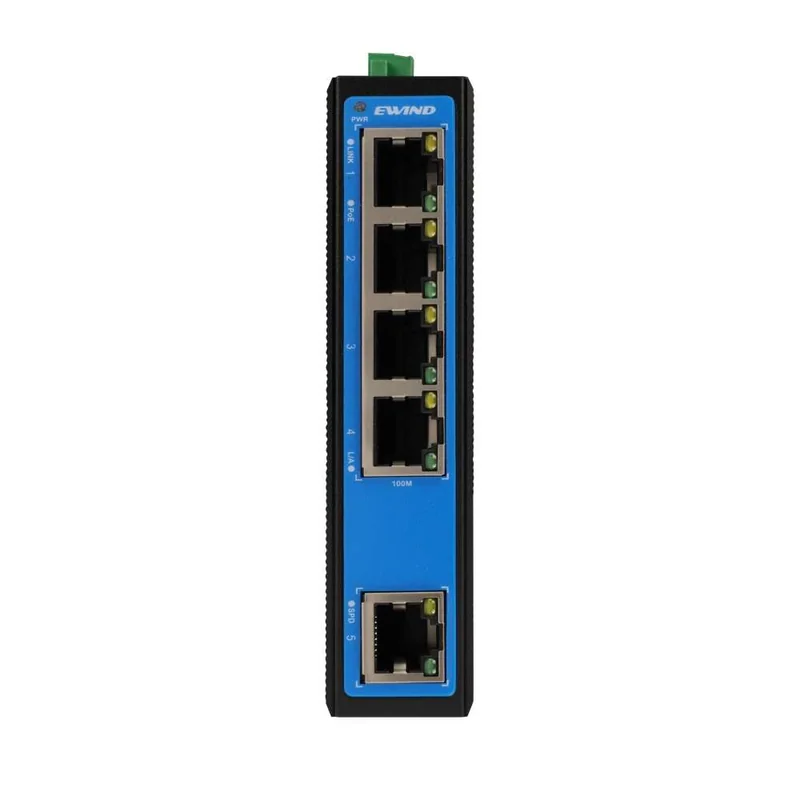

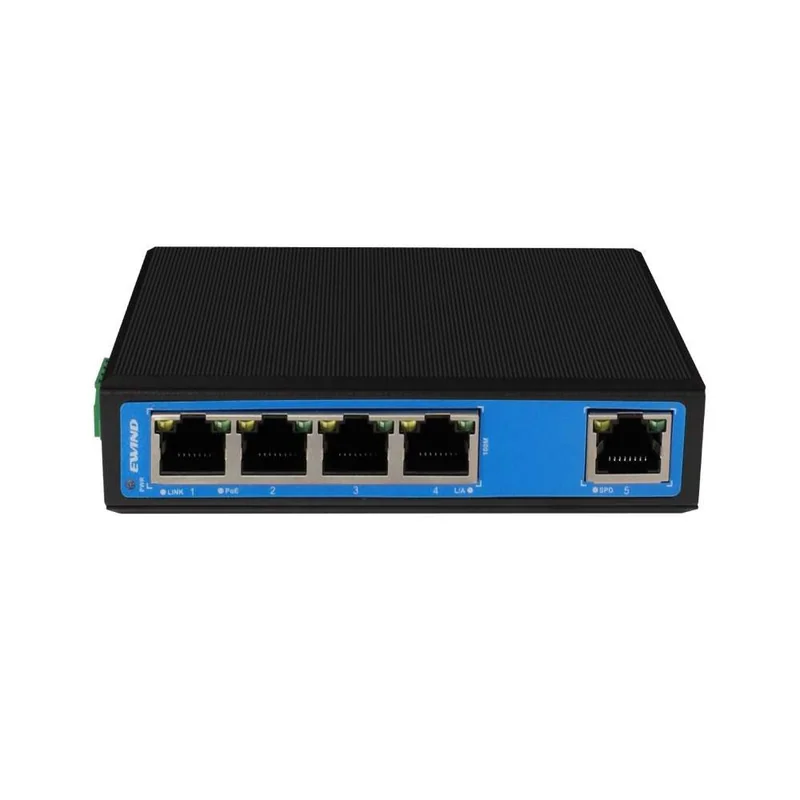

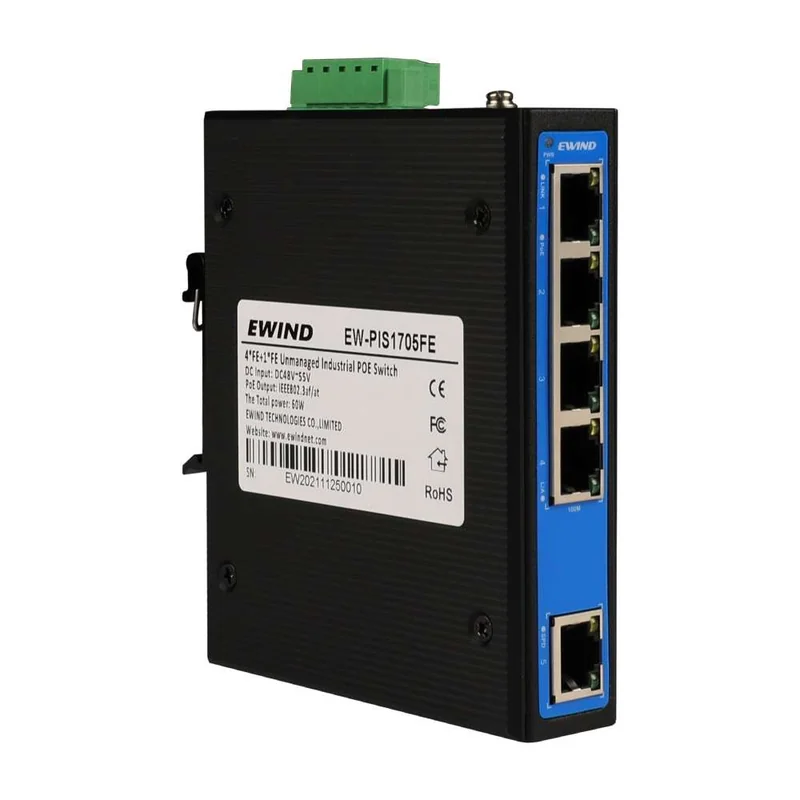

Model: EW-PIS1705FE
5-Port 10/100M Industrial PoE Switch
- 4 × 10/100Mbps IEEE 802.3af/at PoE ports and 1 × data uplink
- Up to 30W per port; 60W standard system power
- Plug-and-play unmanaged operation
- 119 × 100 × 30mm DIN-rail enclosure
Project inquiry
Request pricing and lead time
Tell us your model, quantity and project requirements. Our networking team will help you find the right fit.
Overview
EW-PIS1705FE is a compact industrial PoE switch with four 10/100Mbps PoE ports and one data uplink. Redundant 48–57VDC input, IP40 protection and DIN-rail installation suit cameras and sensors in industrial cabinets.
30W per port
IEEE 802.3af/at with a 60W standard budget.
IP40 industrial
Wide-temperature operation and reverse-polarity protection.
Plug and play
Unmanaged switching needs no configuration.
| Specification | Details |
|---|---|
| Ports | 4 × 10/100Mbps PoE ports and 1 × 10/100Mbps RJ45 uplink |
| PoE standard | Ports 1–4; IEEE 802.3af/at; 30W maximum per port |
| Switching performance | 1Gbps; 0.744Mpps; store-and-forward |
| Memory | 2K MAC entries; 768K buffer; 1536-byte jumbo frame |

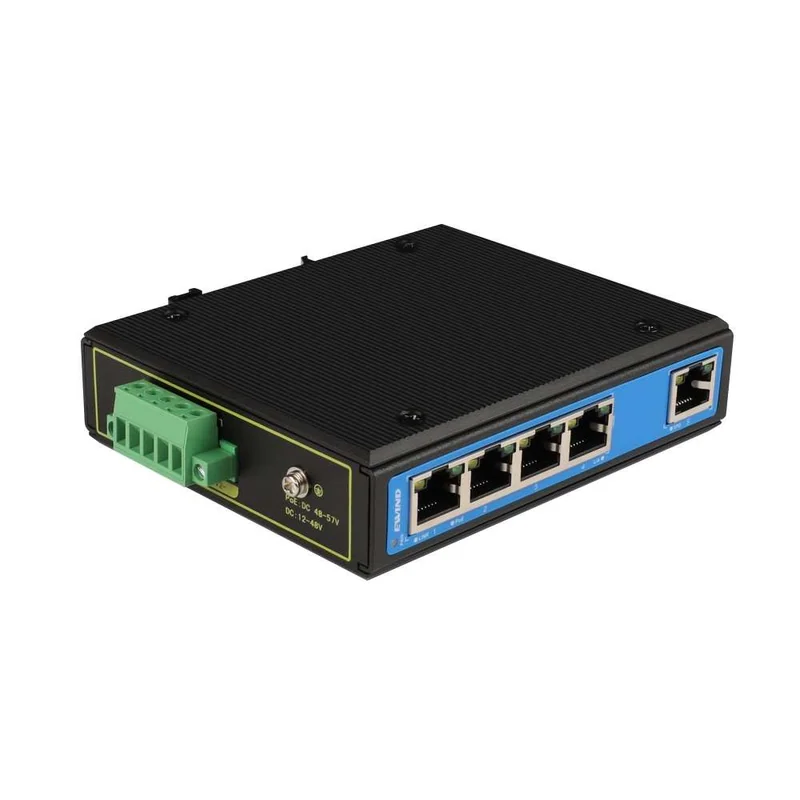

| Power input | 48–57VDC; five-pin Phoenix terminal; reverse-polarity protection |
| Power configuration | 60W at 48VDC standard; optional 120W industrial supply |
| Dimensions / mounting | 119 × 100 × 30mm; desktop or DIN rail |
| Operating conditions | −40°C to +75°C; 5%–90% RH, non-condensing |
| Protection / warranty | IP40; 6kV lightning protection; 5-year warranty |

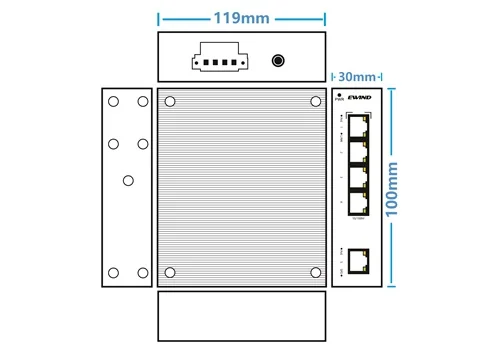

Dimensions
Order information
| Content | Quantity | Unit |
|---|---|---|
| 5-Port 10/100M Industrial PoE Switch (EW-PIS1705FE) | 1 | SET |
| User guide | 1 | PC |
| Warranty card | 1 | PC |

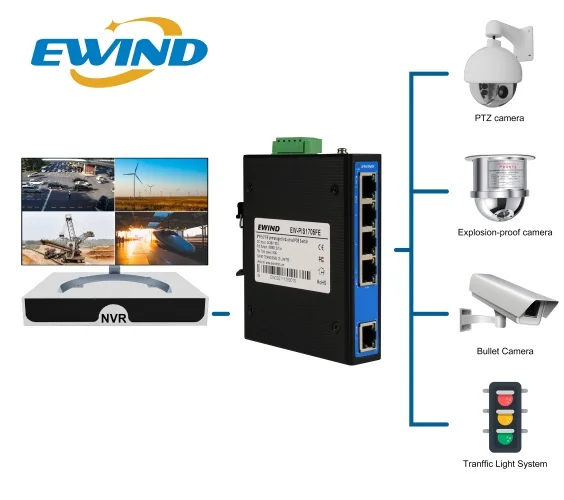

Applications
Industrial automation, transport and outdoor surveillance networks.
