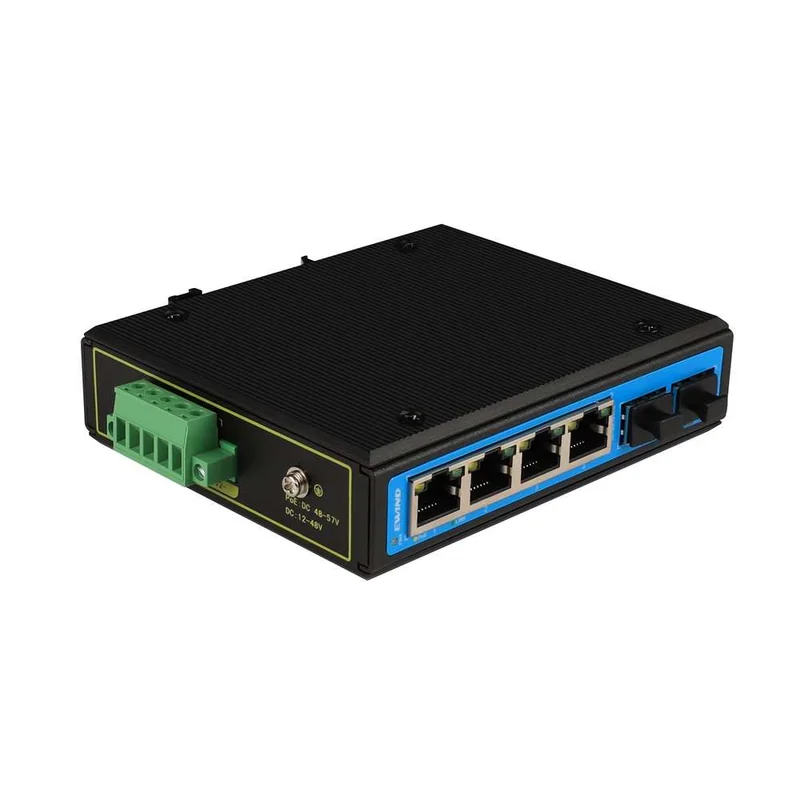

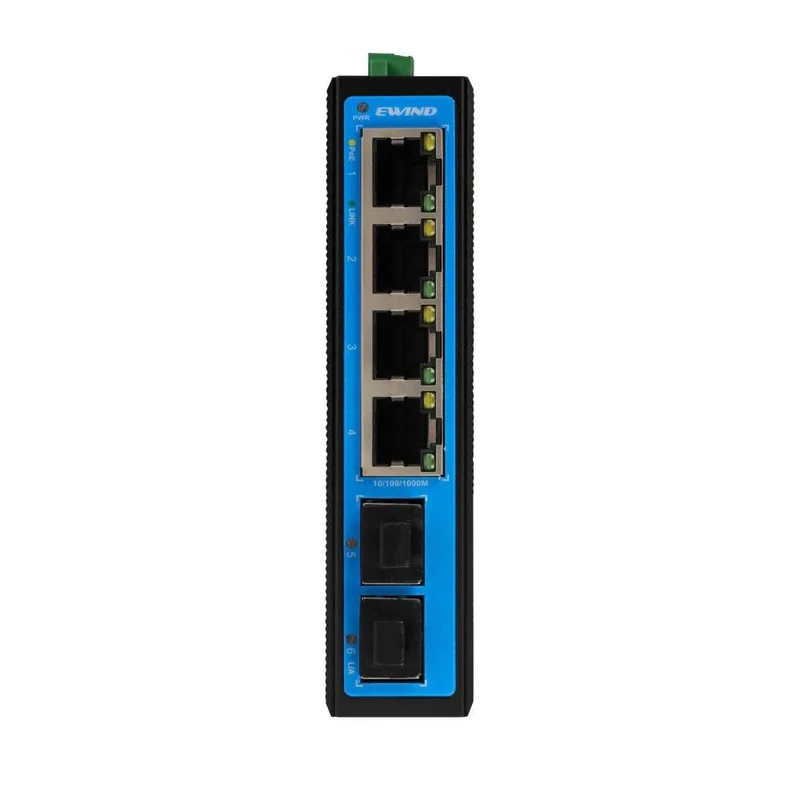

Model: EW-IS1806E

6-Port Gigabit Industrial Unmanaged Ethernet Switch

4 × Gigabit access ports + 2 Gigabit uplinks
12–57V DC redundant input · reverse-polarity protection
IP40 · −40 to +80°C · DIN rail

Project inquiry

Request pricing and lead time

Tell us your model, quantity and project requirements. Our networking team will help you find the right fit.

info@ewindnet.com

Overview

EW-IS1806E provides four Gigabit access ports and two Gigabit uplinks in a compact industrial enclosure. Redundant 12–57V DC input, DIN-rail mounting and fanless unmanaged operation suit transport, power and automation cabinets.

Six Gigabit data ports

Connect four local devices and two upstream links with automatic speed, duplex and MDI/MDIX handling.

Redundant industrial power

Dual V+/V− inputs on a five-pin Phoenix terminal support resilient cabinet power.

Compact DIN-rail housing

The 98 × 120 × 36 mm IP40 enclosure supports desktop or 35mm DIN-rail installation.

Product technical specifications
Specification	Details
Model	EW-IS1806E
Access ports	4 × 10/100/1000BASE-T RJ45 data ports
Uplinks	2 × 1000BASE-T RJ45 data ports
Management	Unmanaged; plug and play
Switching / forwarding	12 Gbps / 8.93 Mpps
MAC / buffer	8K / 1M
Power input	Dual 12–57V DC; 5-pin Phoenix terminal
Power consumption	Standby <1W; full load <3W
Enclosure / installation	IP40; desktop or 35mm DIN rail
Dimensions	98 × 120 × 36 mm
Operating environment	−40 to +80°C; 5–90% RH, non-condensing
Warranty	5 years
