Model: EW-IS1706E

6-Port Fast Ethernet Industrial Unmanaged Switch

4 × 10/100Mbps access ports + 2 × 100Mbps uplinks
Dual 12–57V DC input · reverse-polarity protection
−40 to +80°C · DIN rail · 5-year warranty

Project inquiry

Request pricing and lead time

Tell us your model, quantity and project requirements. Our networking team will help you find the right fit.

info@ewindnet.com

Overview

EW-IS1706E provides four Fast Ethernet access ports and two Fast Ethernet uplinks for industrial data networks. Redundant 12–57V DC input, DIN-rail mounting and IP40 protection support transport, power and automation cabinets.

Six Fast Ethernet ports

Four access ports and two uplinks connect industrial devices with automatic speed and MDI/MDIX handling.

Redundant DC power

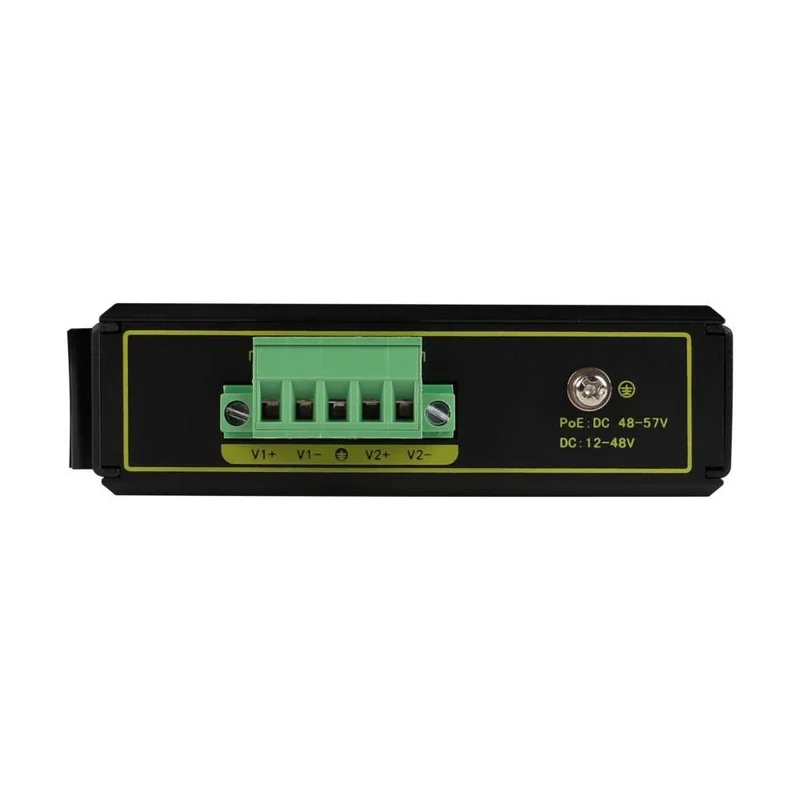

Dual V+/V− inputs on a five-pin Phoenix terminal help maintain cabinet connectivity.

Compact industrial enclosure

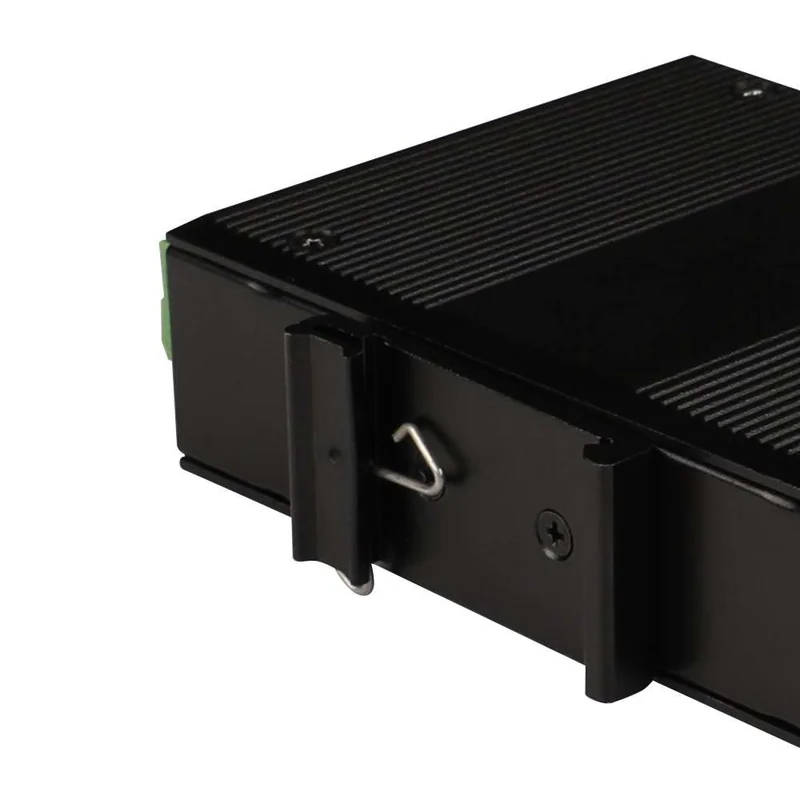

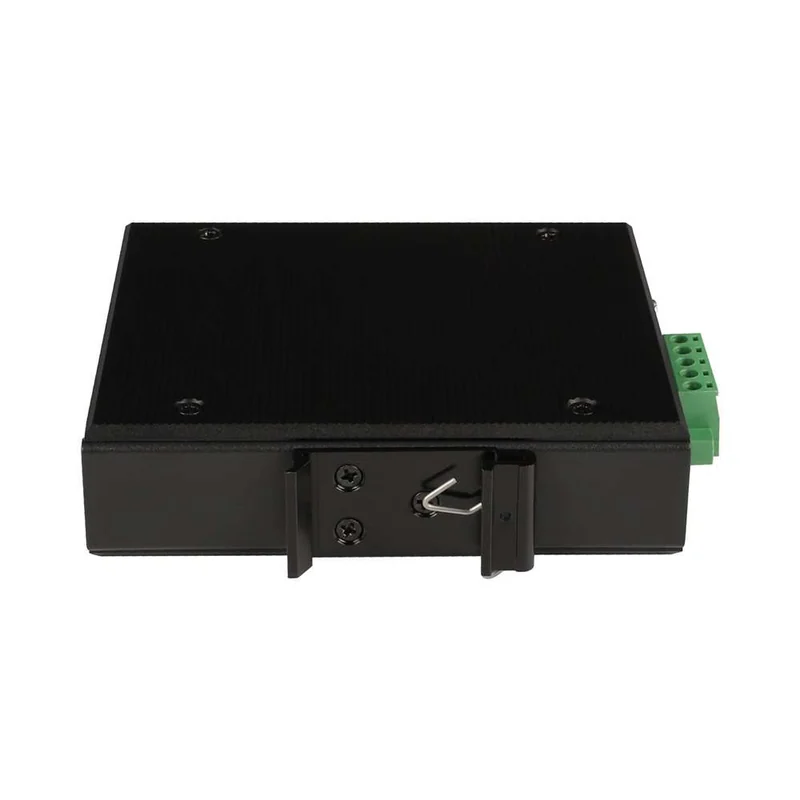

The IP40 enclosure supports desktop or 35mm DIN-rail installation in harsh environments.

Product technical specifications
Specification	Details
Model	EW-IS1706E
Access ports	4 × 10/100BASE-T RJ45 data ports
Uplinks	2 × 10/100BASE-T RJ45 data ports
Management	Unmanaged; plug and play
Switching / forwarding	1.6 Gbps / 0.744 Mpps
MAC / buffer	1K / 1M
Power input	Dual 12–57V DC; 5-pin Phoenix terminal
Power consumption	Standby <1W; full load <3W
Enclosure / installation	IP40; desktop or 35mm DIN rail

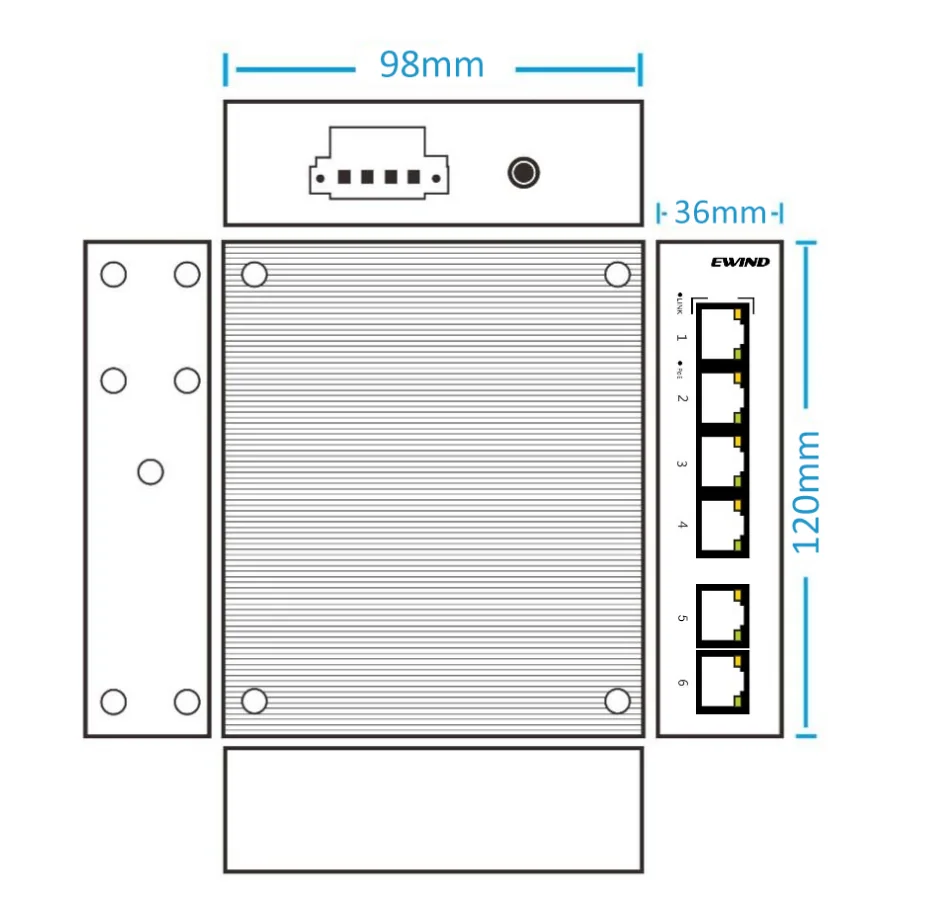

Dimensions	98 × 120 × 36 mm
Operating environment	−40 to +80°C; 5–90% RH, non-condensing
Warranty	5 years
