Eight Gigabit PoE ports
Eight auto-sensing Gigabit copper ports power cameras, APs and other edge devices.
Model: EW-S1910CFG-DP
10-Port Gigabit PoE Switch with RJ45 and SFP Uplinks
- 8 × 10/100/1000Base-T PoE ports plus Gigabit RJ45 and SFP uplinks
- IEEE 802.3af/at PoE with 30W maximum and 120W total budget
- AI Extend up to 300m, VLAN isolation and AI PoE watchdog self-healing
- 20Gbps switching capacity, 14.88Mpps forwarding rate and 8K MAC table
Project inquiry
Request pricing and lead time
Tell us your model, quantity and project requirements. Our networking team will help you find the right fit.
Overview
EW-S1910CFG-DP is a 10-port Gigabit PoE switch with eight PoE ports, Gigabit RJ45 and SFP uplinks, AI watchdog and a 120W external power budget for compact security networks.
RJ45 + SFP uplinks
A Gigabit copper uplink and Gigabit SFP uplink support flexible backhaul.
120W PoE budget
External 52VDC power supports up to 30W per port and a 120W total load.
AI protection
VLAN isolation and AI PoE watchdog help isolate faults and recover unresponsive cameras.
| Specification | Details |
|---|---|
| Fixed ports | 8 × 10/100/1000Base-T/TX PoE ports, 1 × Gigabit RJ45 uplink and 1 × 100/1000Base-X SFP uplink |
| PoE standard | Ports 1–8 support IEEE 802.3af/at; 30W maximum and 15.4W typical per port |
| Features | Port priority, AI Extend 300m, VLAN and port isolation, AI PoE watchdog self-healing |
| Switching performance | Store-and-forward; 20Gbps switching capacity and 14.88Mpps forwarding rate |
| Memory | 8K MAC table and 2M buffer memory |
| Power | 120W at 52VDC with external adapter; standby under 4W and full load under 120W |
| Copper reach | Cat5 up to 300m at 10Mbps; Cat5 or later up to 100m at 100Mbps and Gigabit |
| Dimensions and weight | 200 × 105 × 29mm; net under 1.8kg and gross under 2.5kg |
| Installation | Desktop type or wall mounted |
| Environment | Operating −20℃ to +55℃; storage −40℃ to +75℃; operating humidity 5%–90% RH, non-condensing |
| Protection | IP30 with ESD and surge protection |
| Warranty | 3 years, lifetime maintenance |

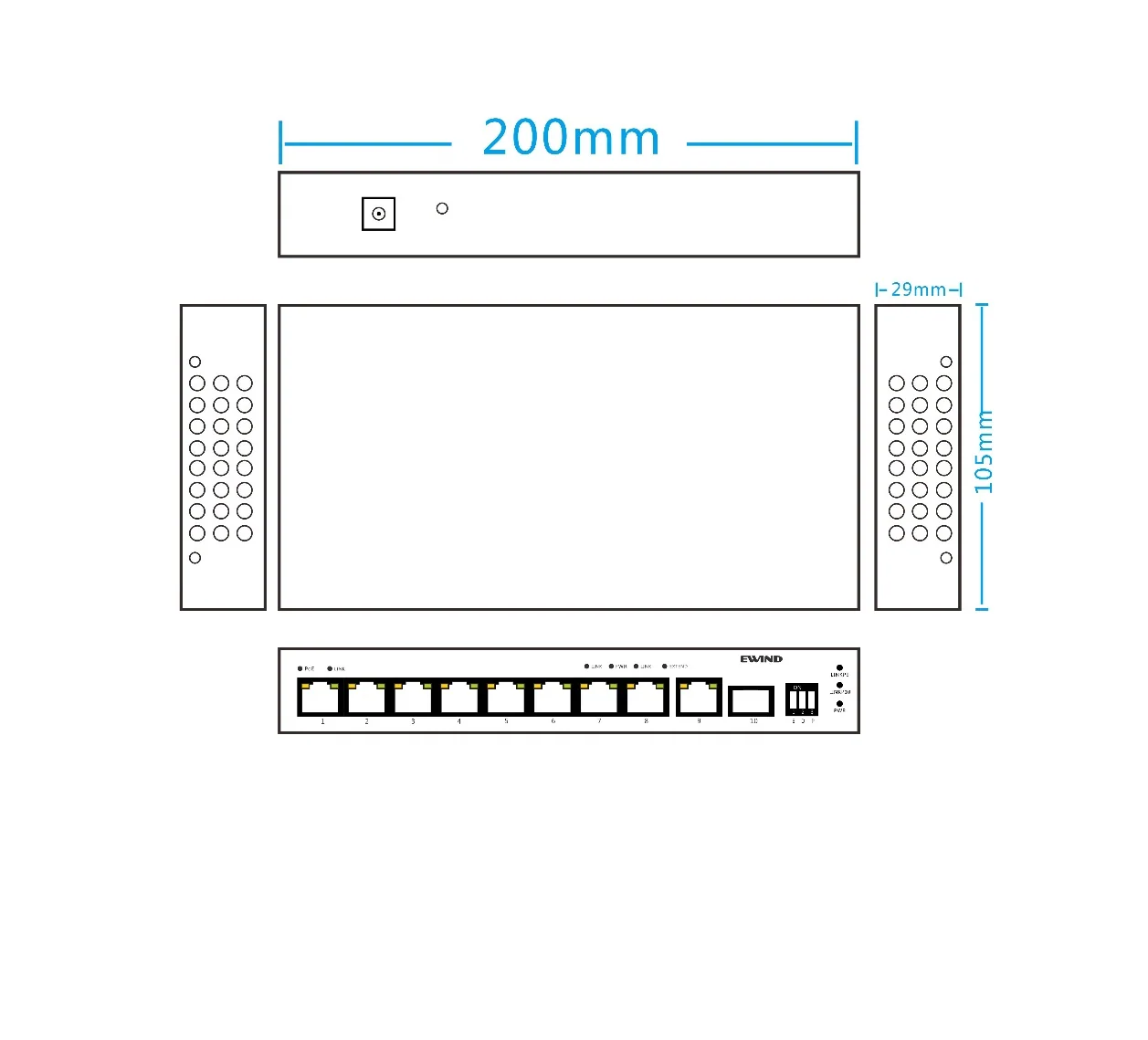

Dimensions
Order information
| Content | Quantity | Unit |
|---|---|---|
| 10 Ports Full Giga PoE Switch (EW-S1910CFG-DP) | 1 | SET |
| External Power Adapter (120W) | 1 | PC |
| User Guide | 1 | PC |
| Warranty Card | 1 | PC |

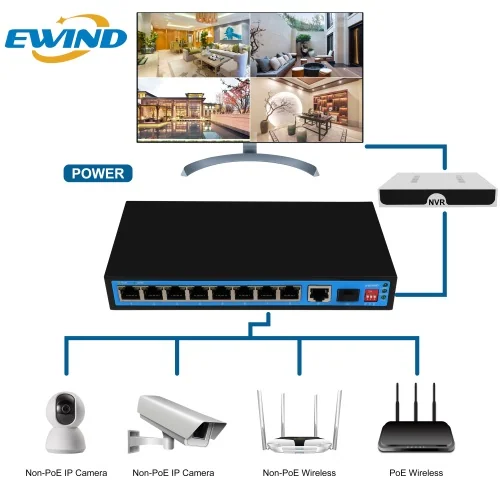

Applications
Gigabit PoE and fiber uplinks for CCTV, wireless access, NVRs and compact security networks.
EW-S1910CFG-DP Resources
PDF · Specifications · Installation · Ordering
