Four PoE outputs
Ports 1–4 support compatible AF/AT endpoints with 15.4W standard power and up to 30W per port.

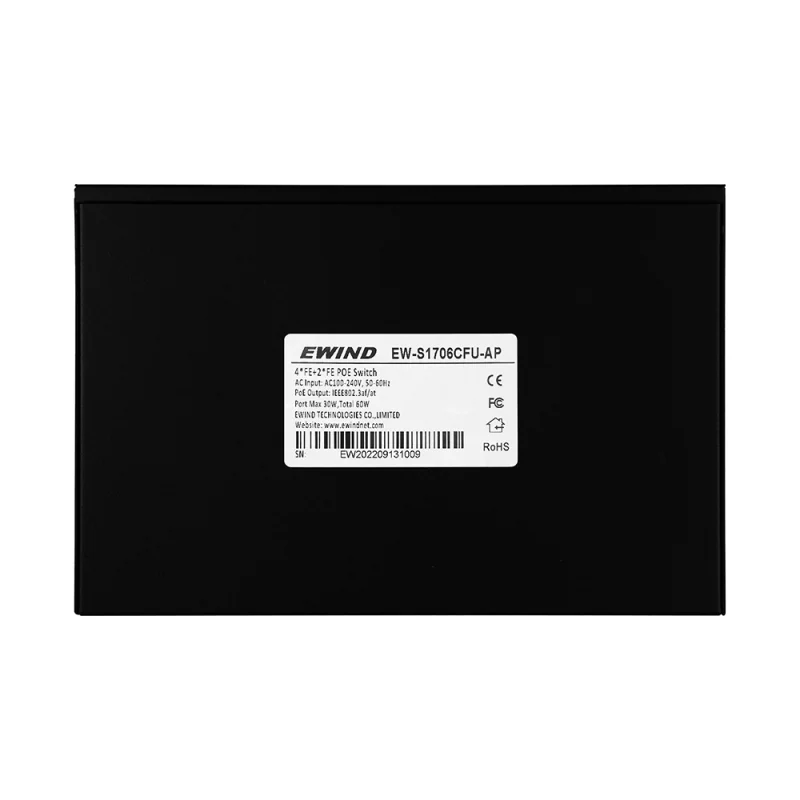

Model: EW-S1706CFU-AP

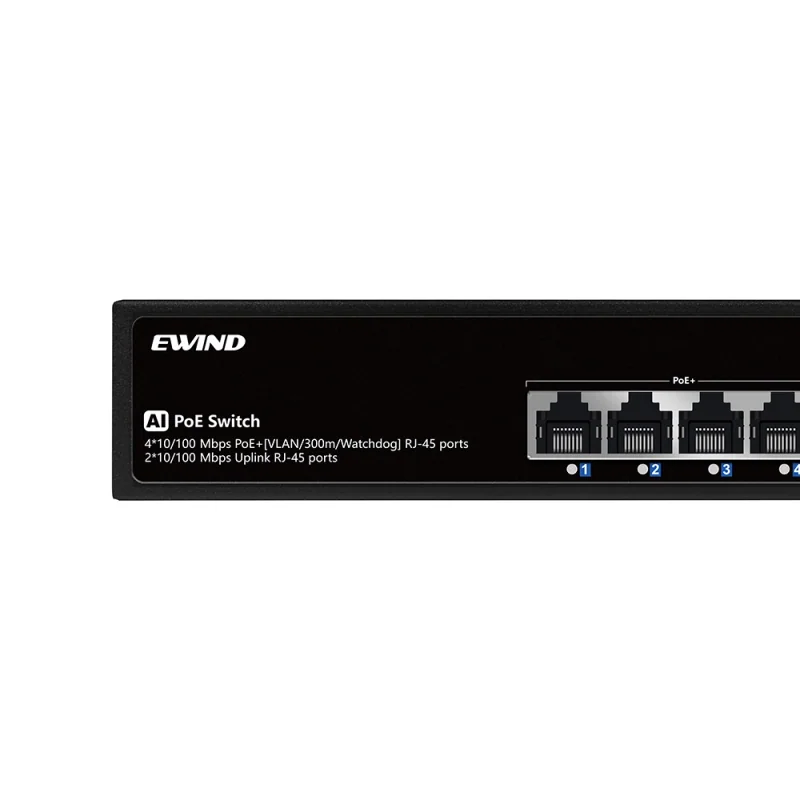

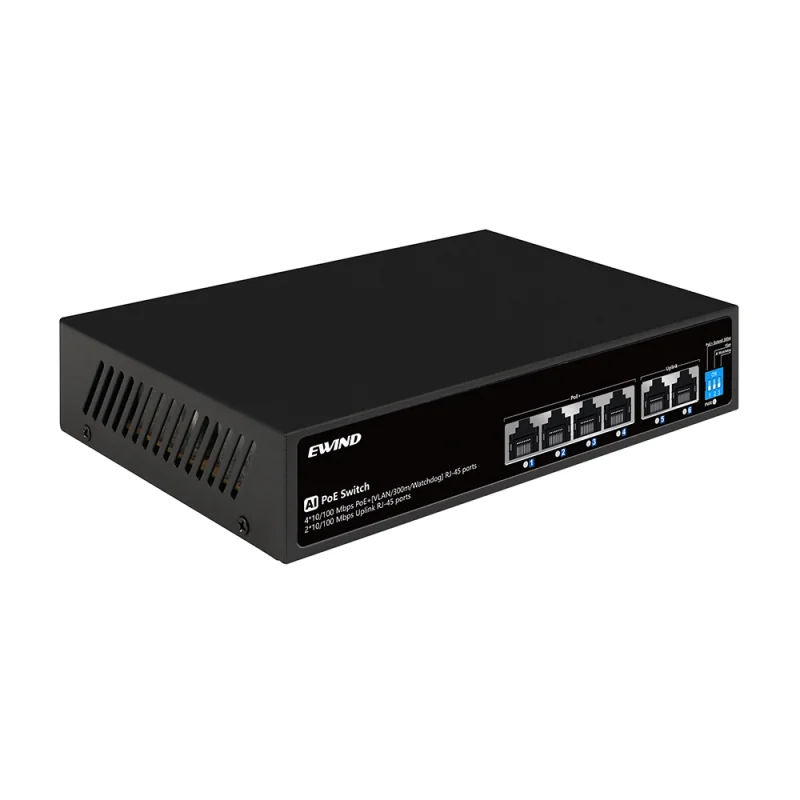

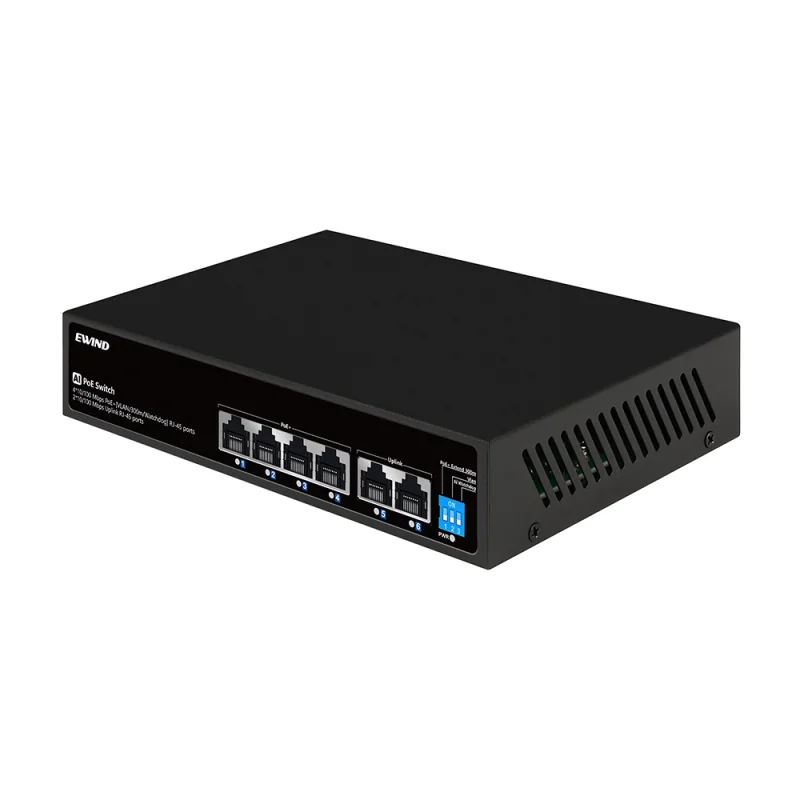

4-Port Fast Ethernet PoE Switch with 2 Fast Ethernet Uplinks
- 4 × 10/100Mbps PoE ports · up to 30W per port
- 2 × 10/100Mbps data-only uplinks
- 300m extend · VLAN isolation · AI PoE watchdog
Project inquiry
Request pricing and lead time
Tell us your model, quantity and project requirements. Our networking team will help you find the right fit.
Overview
EW-S1706CFU-AP is a compact unmanaged Fast Ethernet PoE switch with four 10/100Mbps PoE ports and two 10/100Mbps uplinks. Its 300m extend mode, VLAN isolation and AI PoE watchdog provide straightforward coverage for small camera and access networks.
Fast Ethernet uplinks
Two 10/100Mbps uplinks connect the compact PoE segment to the upstream network.
Simple hardware modes

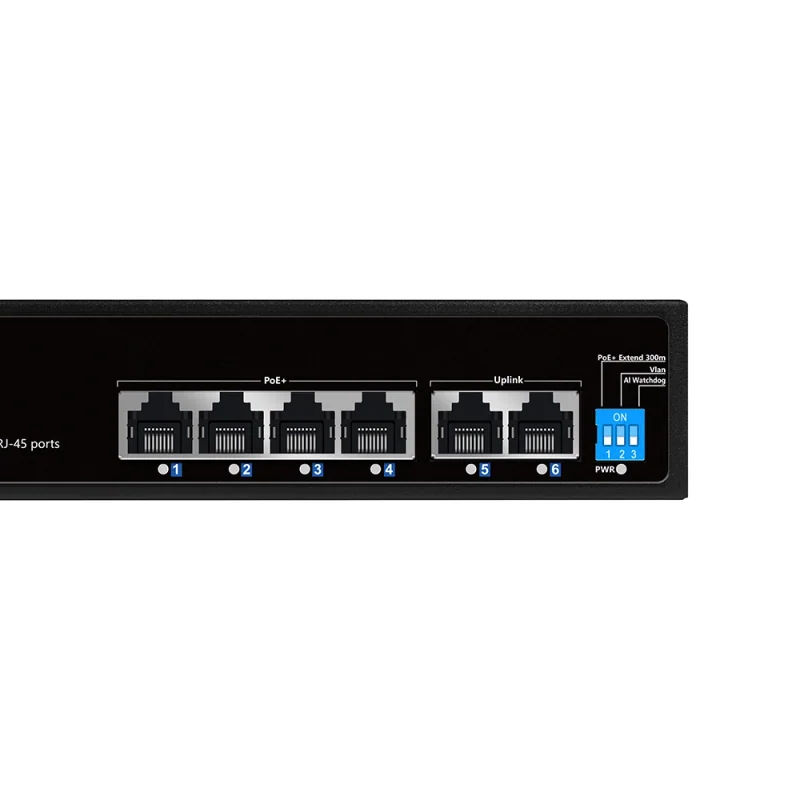

DIP switches enable 300m reach, per-port VLAN isolation and AI PoE watchdog recovery.
| Specification | Details |
|---|---|
| Model | EW-S1706CFU-AP |
| PoE ports | 4 × 10/100BASE-T PoE; ports 1–4 |
| Uplinks | 2 × 10/100BASE-T data ports |
| PoE standard / port limit | IEEE 802.3af/at; 15.4W standard, up to 30W per port |
| Management | Unmanaged; DIP-switch extend, VLAN isolation and AI PoE watchdog |

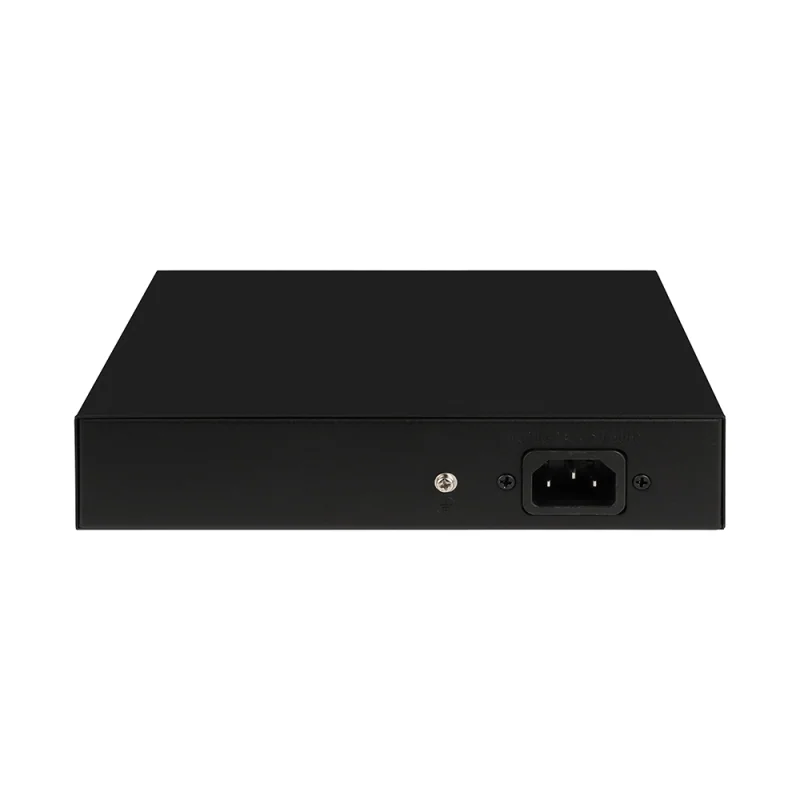

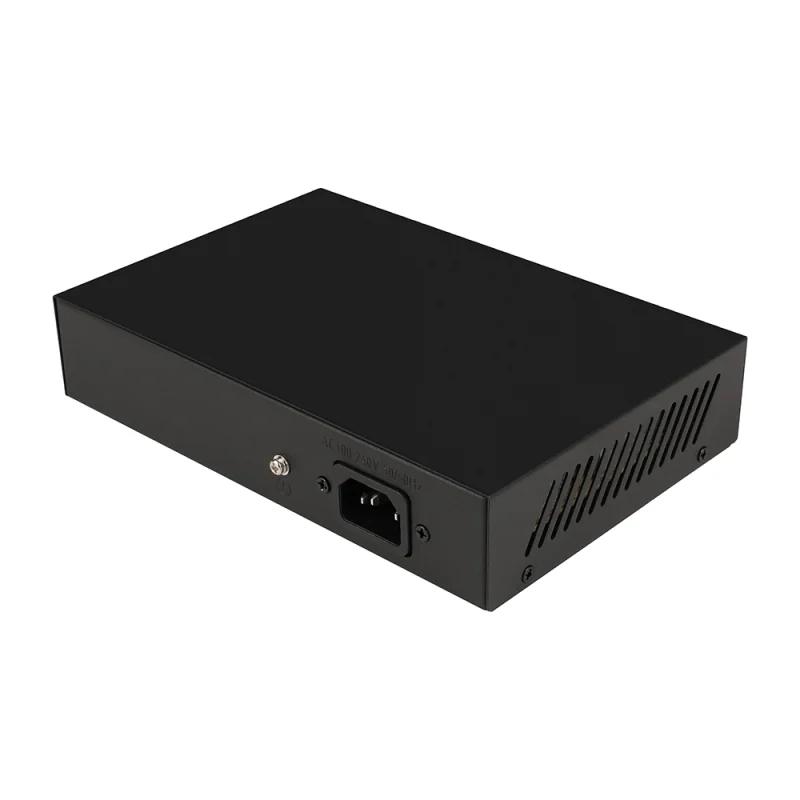

| Power supply | Built-in AC 100–240V, 50/60Hz; family datasheet lists 65W for the 4-port model |
| Dimensions / installation | 195 × 130 × 40 mm; desktop or wall mount |
| Protection / environment | IP30; −20 to +55°C; 5–90% RH |
| Warranty | 3 years; lifetime maintenance |

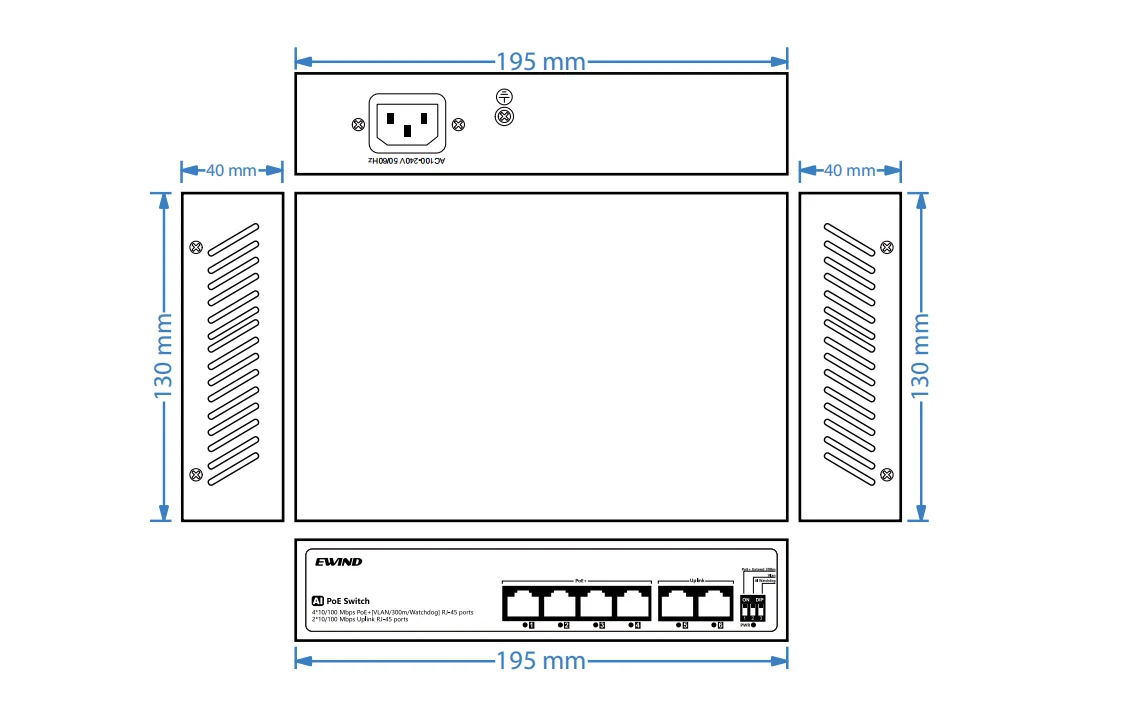

Dimensions
Order information
| Content | Quantity | Unit |
|---|---|---|
| EW-S1706CFU-AP unmanaged PoE switch | 1 | SET |
| User guide and warranty card | 1 | PC |
| AC power cord | 1 | PC |
EW-S1706CFU-AP Resources
PDF · Specifications · Installation · Ordering
