Four uplinks
Use dedicated copper and SFP connections for recorders and upstream networking.
Model: EW-S1928CG-AP

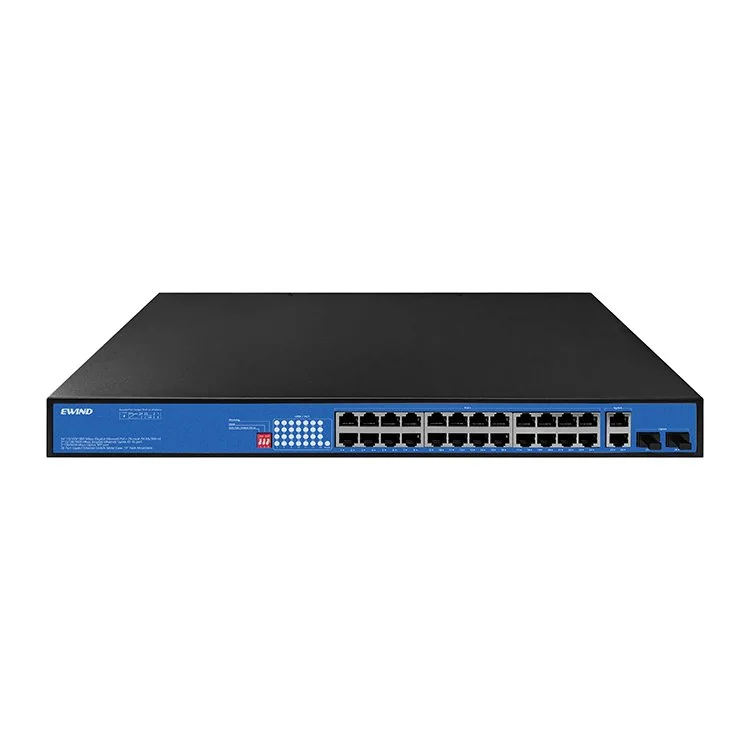

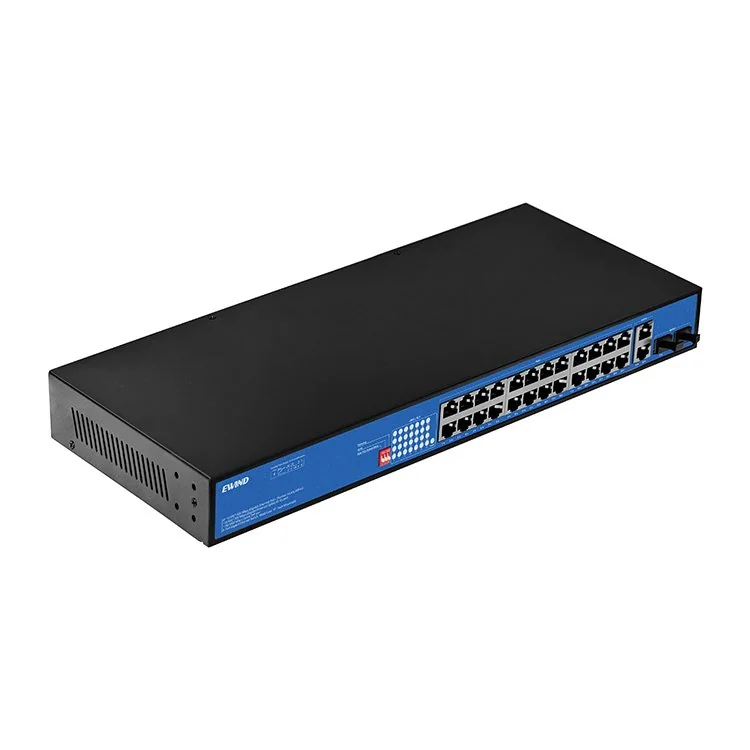

24-Port Gigabit PoE Switch with 2 RJ45 and 2 SFP Uplinks
- 24 Gigabit PoE ports; IEEE 802.3af/at

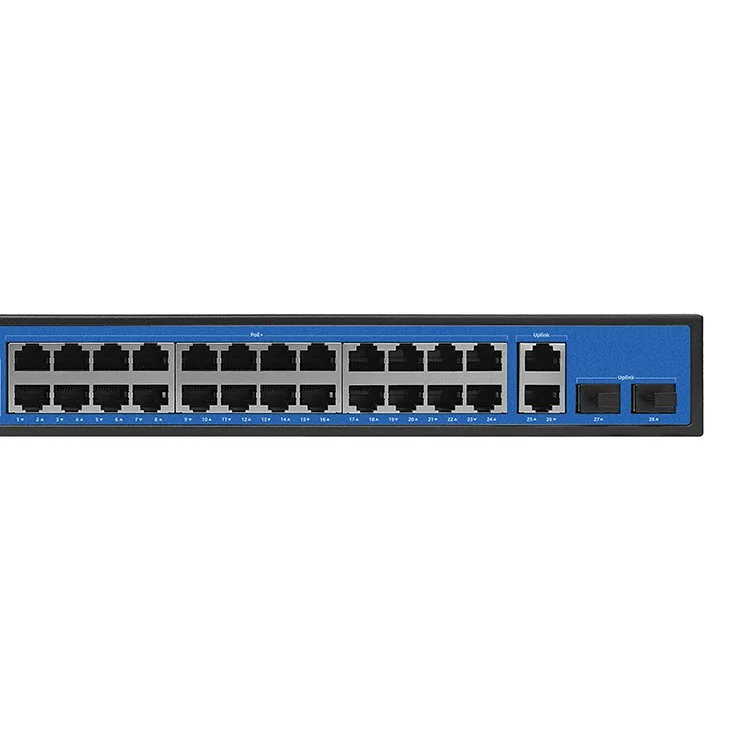

- 2 Gigabit RJ45 + 2 Gigabit SFP uplinks
- 300W built-in AC power supply
- Fanless; DIP-controlled extension and watchdog
Project inquiry
Request pricing and lead time
Tell us your model, quantity and project requirements. Our networking team will help you find the right fit.
Overview
EW-S1928CG-AP provides 24 Gigabit PoE ports plus two Gigabit copper and two Gigabit fiber uplinks. Its fanless design, built-in 300W supply and DIP-controlled watchdog suit camera and access-point networks that need straightforward installation.
PoE access
Each of the 24 access ports supports up to 30W for compatible powered devices.
Simple recovery controls

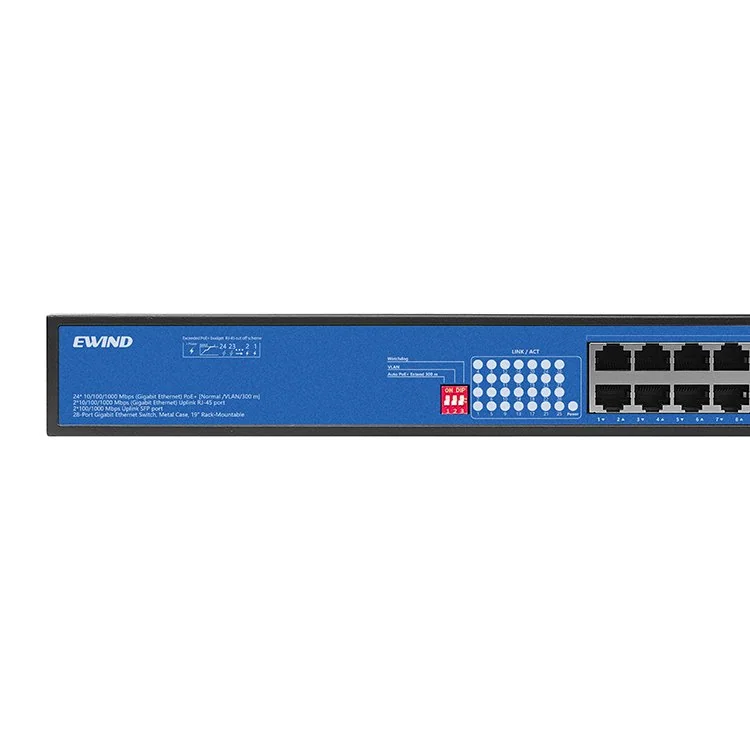

DIP switches enable extended reach, access-port isolation and PoE watchdog.
| Specification | Details |
|---|---|
| Model | EW-S1928CG-AP |
| PoE ports | 24 × 10/100/1000BASE-T RJ45 |
| Uplinks | 2 × Gigabit RJ45 + 2 × Gigabit SFP |
| PoE standard | IEEE 802.3af/at; up to 30W per port |
| Power supply | 300W; AC 100–240V, 50–60Hz |
| Management | Unmanaged; E/V/D DIP controls |
| Switching capacity | 56Gbps |
| Forwarding rate / MAC table | 41.664Mpps / 8K entries |
| Cooling | Fanless |
| Dimensions | 440 × 190 × 44 mm |
| Operating temperature | −20°C to +55°C |
| Warranty | 3 years |
Order information
| Content | Quantity | Unit |
|---|---|---|
| EW-S1928CG-AP switch | 1 | SET |
| User guide | 1 | PC |
| Warranty card | 1 | PC |
