Model: EW-S1806CF-AP

65W 6-Port Fast Ethernet Smart Hi-PoE Switch

4 × 10/100Mbps PoE ports and 2 × 10/100Mbps uplink ports
Ports 1–4 support IEEE 802.3af/at; port 4 supports up to 60W Hi-PoE
AI extend mode reaches 300m with automatic speed change on the selected port
VLAN isolation, port priority and AI PoE watchdog self-healing

Project inquiry

Request pricing and lead time

Tell us your model, quantity and project requirements. Our networking team will help you find the right fit.

info@ewindnet.com

Overview

EW-S1806CF-AP is a six-port 10/100Mbps smart Hi-PoE switch with 65W total PoE, AI watchdog, VLAN isolation and 300m extend mode for managed edge connections.

Six-port Fast Ethernet

Four PoE ports and two uplinks connect cameras, access points and local network devices.

60W Hi-PoE

Port 4 supports IEEE 802.3af/at/bt with up to 60W for higher-power endpoints.

300m extend mode

AI Extend sends a selected connection up to 300m while other ports keep normal 100m operation.

Watchdog and VLAN

AI PoE self-healing and port isolation reduce camera downtime and improve edge security.

Product technical specifications
Specification	Details
Ports	4 × 10/100Mbps RJ45 PoE ports and 2 × 10/100Mbps RJ45 uplink ports
PoE standard	Ports 1–4 support IEEE 802.3af/at; port 4 also supports IEEE 802.3bt up to 60W
PoE budget	65W total; standard power 15.4W/port and 30W/port for af/at devices

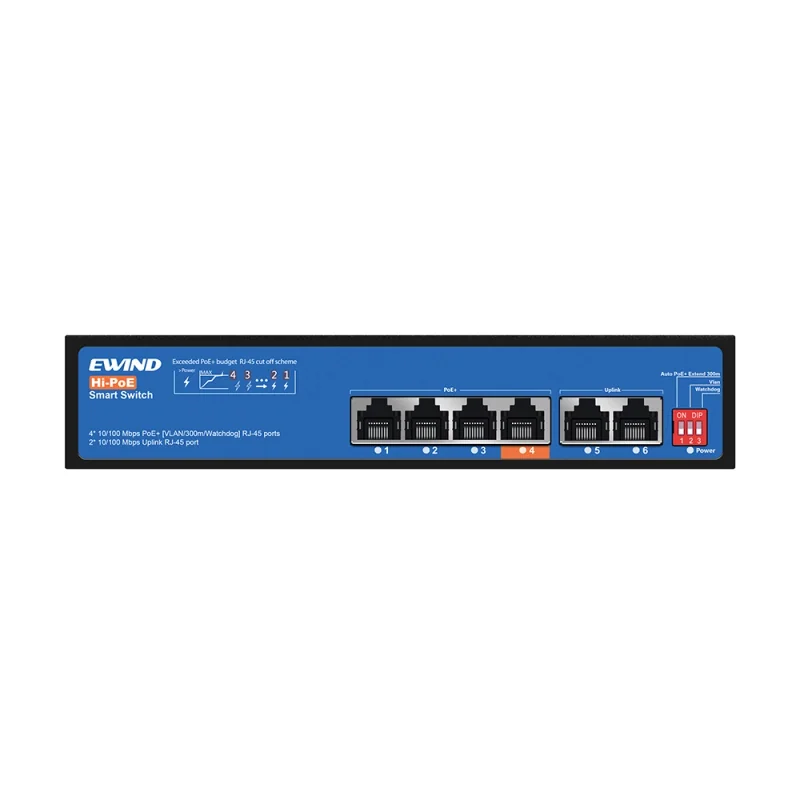

Port modes	Port priority by default; V enables 1–4 port isolation and VLAN; D enables AI PoE watchdog
Extend mode	E enables 300m transmission and automatic speed change on the selected port, limited to 10Mbps
PoE pinout	Default power pins 1,2 positive and 3,6 negative

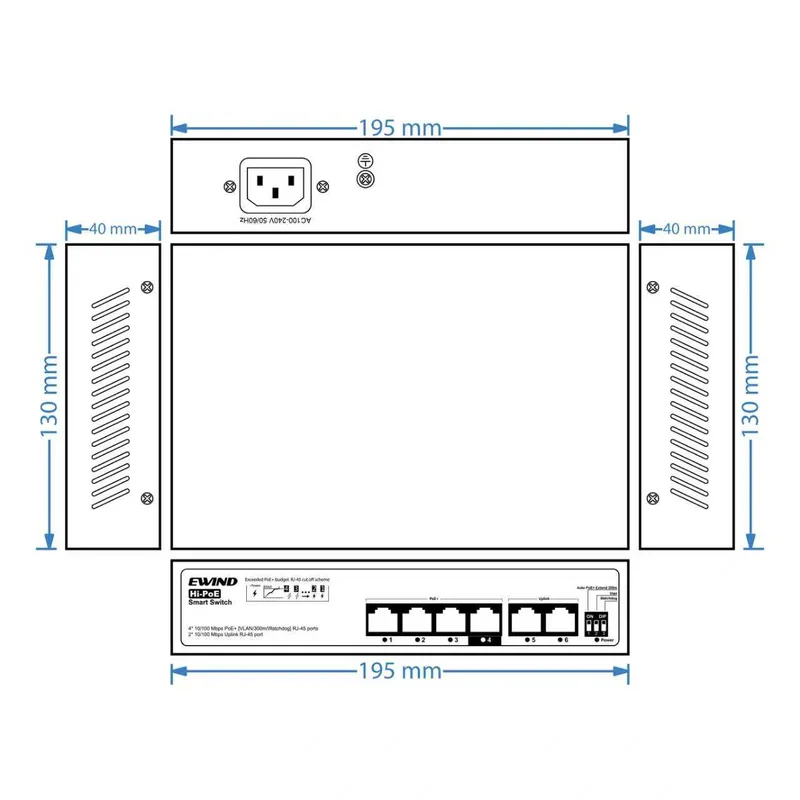

Dimensions	195 × 130 × 40mm

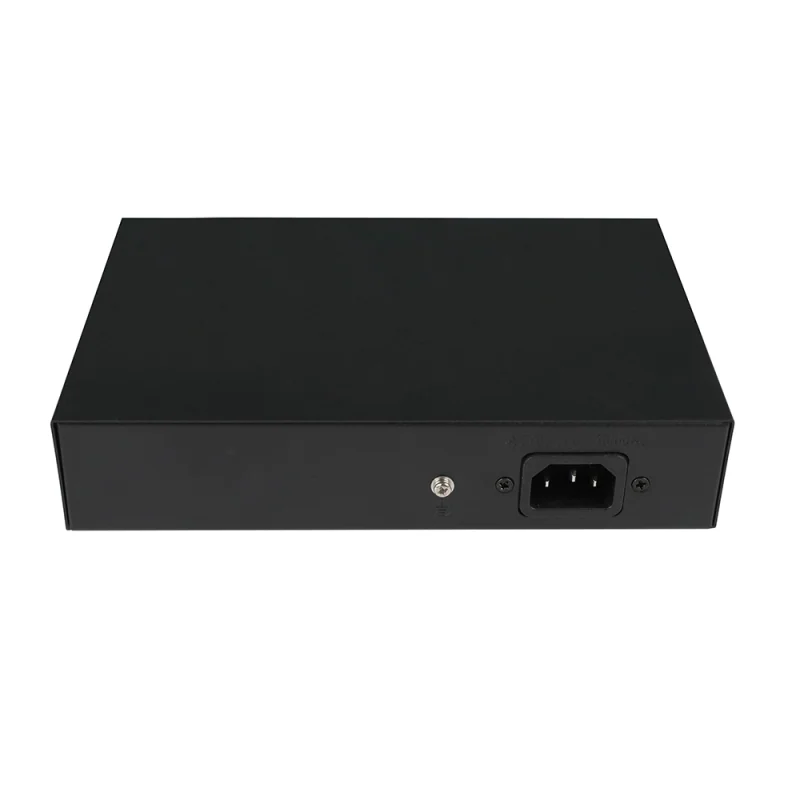

Installation	Desktop installation with AC input
Environment	Operating −40℃ to +85℃; 5%–90% RH, non-condensing
Protection	Smart PoE protection with port isolation, AI watchdog and automatic speed adjustment
