Model: EW-S1910CG-DP

8-Port Gigabit PoE Switch with 2 Gigabit RJ45 Uplinks

8 × 10/100/1000Mbps PoE ports · up to 30W per port
2 × 10/100/1000Mbps data-only RJ45 uplinks
120W external supply · extend, isolation/VLAN and PoE watchdog modes

Project inquiry

Request pricing and lead time

Tell us your model, quantity and project requirements. Our networking team will help you find the right fit.

info@ewindnet.com

Overview

EW-S1910CG-DP provides eight Gigabit PoE ports and two dedicated Gigabit uplinks in a compact, externally powered enclosure. Its 120W budget, extended-reach mode, port isolation and PoE watchdog cover small surveillance, access and wireless networks.

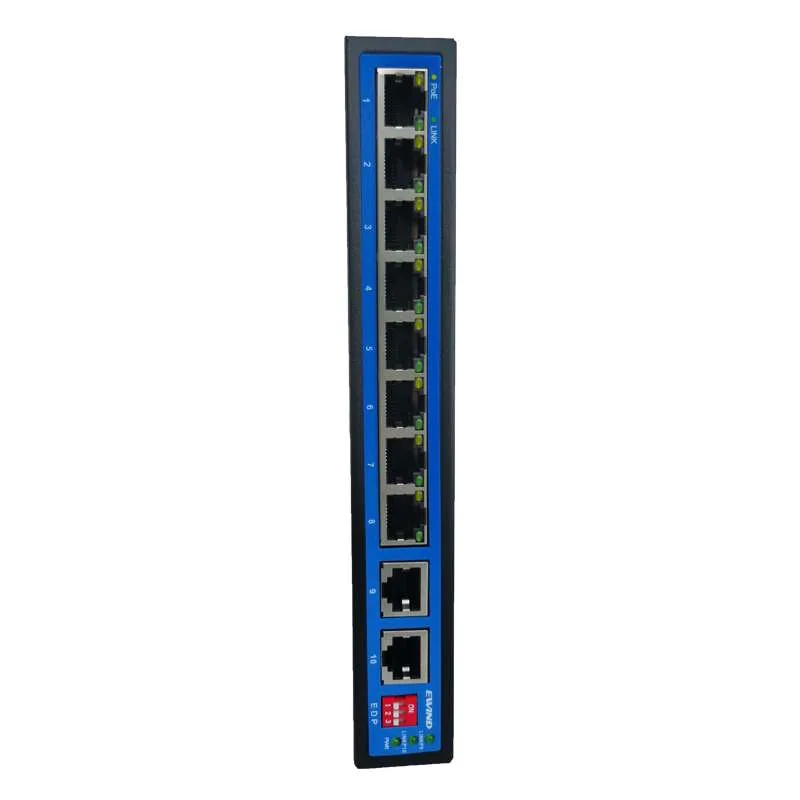

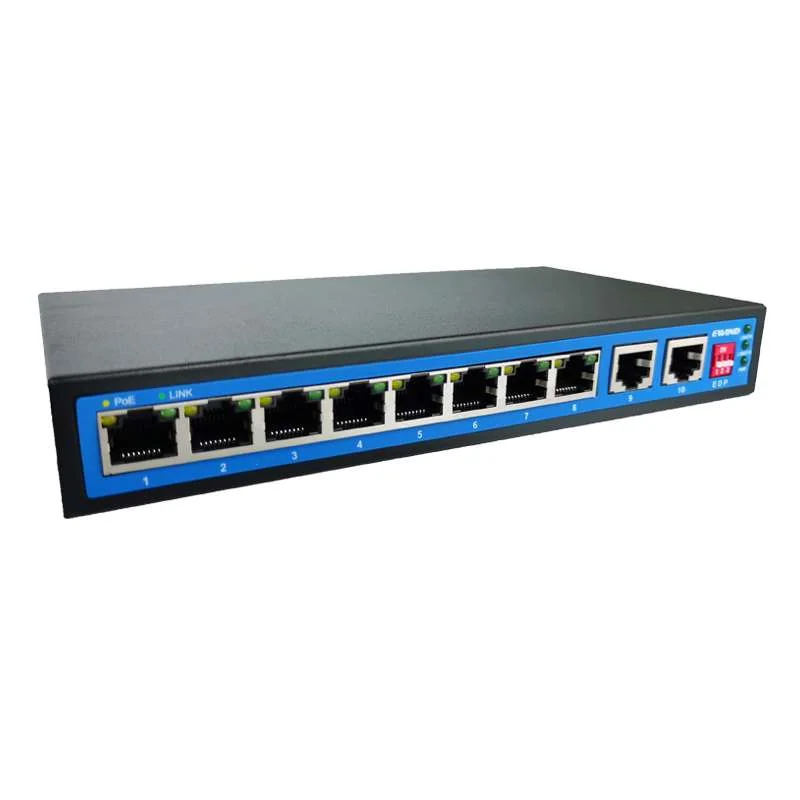

Eight Gigabit PoE outputs

Ports 1–8 support IEEE 802.3af/at detection with up to 30W per port.

Two dedicated uplinks

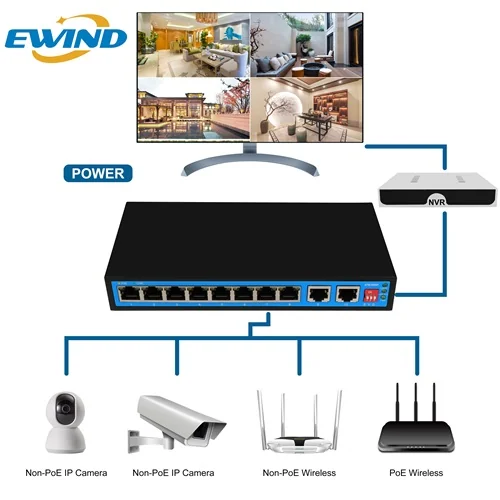

Two Gigabit RJ45 data ports connect cameras and wireless endpoints to the upstream network.

Simple hardware controls

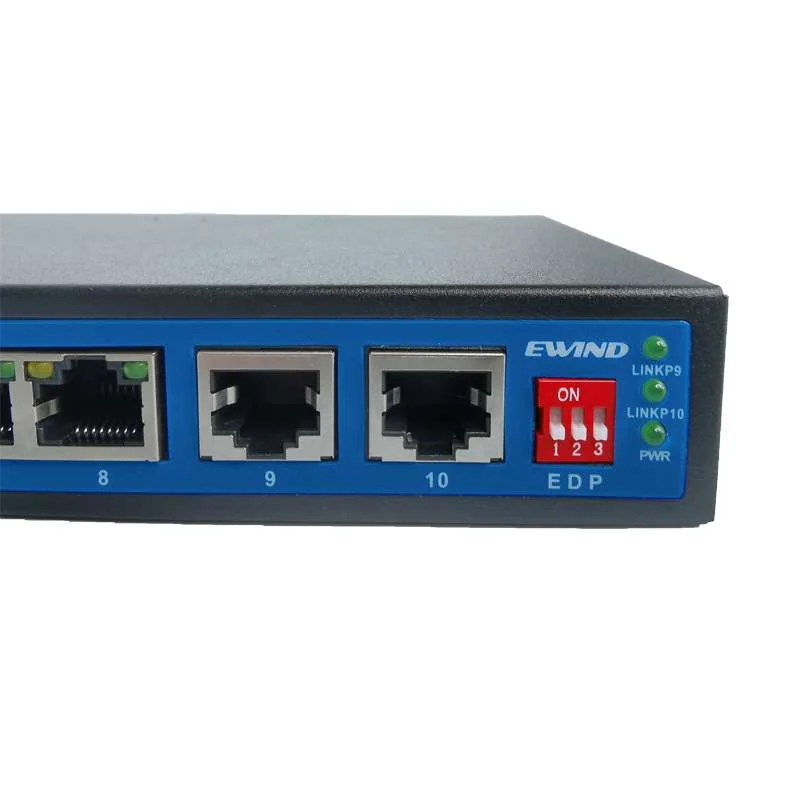

DIP switches provide extended reach, isolation/VLAN and AI PoE watchdog recovery.

Product technical specifications
Specification	Details
Model	EW-S1910CG-DP
PoE ports	8 × 10/100/1000BASE-T PoE; ports 1–8
Uplinks	2 × 10/100/1000BASE-T RJ45 data ports
PoE standard / port limit	IEEE 802.3af/at; up to 30W per port
Total PoE budget / input	120W; 52VDC external adapter
Management	Unmanaged; DIP-switch controls
Switching / forwarding	20 Gbps / 14.88 Mpps
MAC / buffer	8K / 2M
Power supply	External 120W power adapter

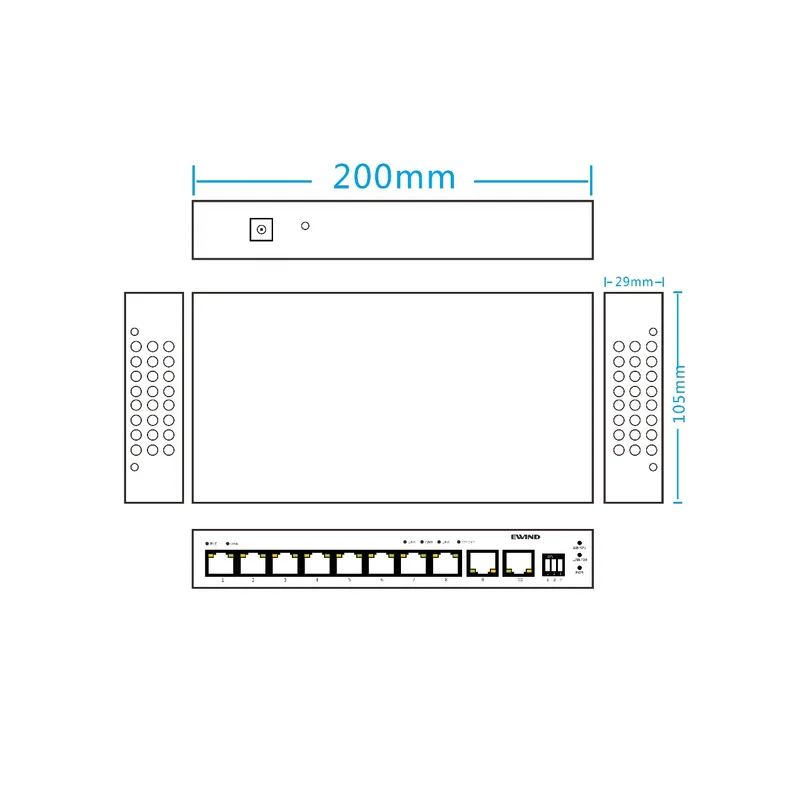

Dimensions / installation	200 × 105 × 29 mm; desktop or wall mount
Protection / environment	IP30; 4kV port surge protection; −20 to +55°C
Warranty	3 years; lifetime maintenance
