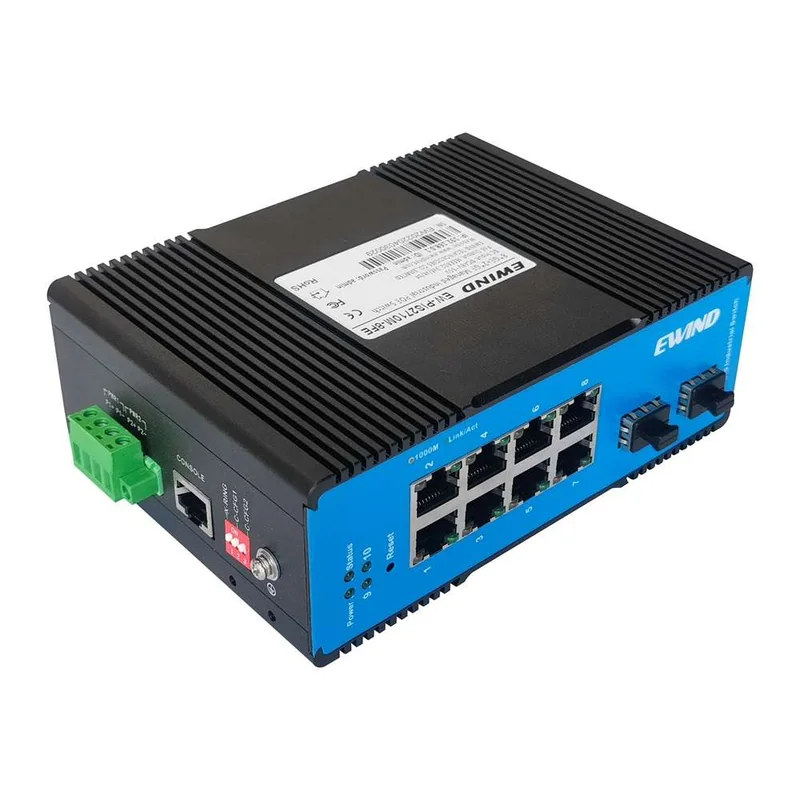

Eight Fast Ethernet ports
Eight 10/100Base-TX ports connect industrial cameras, controllers and local devices.
Model: EW-IS2710M
10-Port Fast Ethernet Managed Industrial Switch with SFP Uplink
- 8 × 10/100Base-TX ports and 2 × 10/100/1000Base-X SFP ports
- Managed industrial switching with 5.6Gbps non-blocking capacity
- Redundant dual 12–48VDC Phoenix-terminal power inputs
- Gigabit SFP fiber reach up to 120km with the appropriate optic
Project inquiry
Request pricing and lead time
Tell us your model, quantity and project requirements. Our networking team will help you find the right fit.
Overview
EW-IS2710M is a managed industrial Ethernet switch with eight Fast Ethernet ports, two Gigabit SFP uplinks, redundant 12–48VDC input and IP40 protection for controlled fiber-connected edge networks.
Dual Gigabit SFP uplinks
Two auto-sensing 10/100/1000Base-X SFP ports provide fiber backhaul and redundancy.
Managed switching
Non-blocking store-and-forward forwarding supports controlled industrial edge networks.
Industrial resilience
Redundant DC input, IP40 protection, lightning protection and wide temperature operation support cabinets.
| Specification | Details |
|---|---|
| Interfaces | 8 × 10/100Base-TX data ports and 2 × 10/100/1000Base-X SFP ports |
| Network standards | IEEE 802.3, 802.3i, 802.3u, 802.3ab, 802.3z and 802.3x |
| Switching performance | Store-and-forward at full wire speed; 5.6Gbps non-blocking switching capacity and 4.17Mpps forwarding rate |
| Memory | 4K MAC table, 1M buffer memory and 10K jumbo frames |
| Fiber reach | Multimode 850nm up to 500m or 1310nm up to 2km; single-mode 1310nm up to 40km or 1550nm up to 120km |

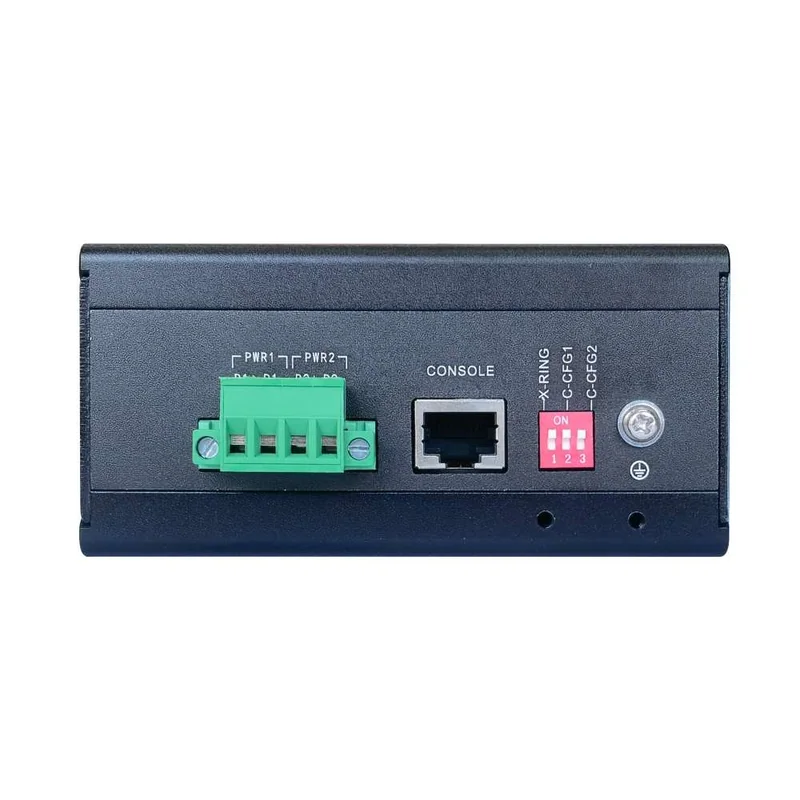

| Power input | Redundant 12–48VDC through four-pin industrial Phoenix terminals with anti-reverse protection |
| Power consumption | Standby under 2.5W |
| Dimensions and weight | 154 × 114 × 55mm; net under 1.3kg and gross under 1.8kg |
| Environment | Operating −40℃ to +80℃; storage −40℃ to +125℃; operating humidity 5%–90% RH, non-condensing |
| Protection | IP40, 6kV lightning protection, industrial ESD/EFT/surge and anti-vibration/anti-shock design |
| Warranty | 5 years, lifelong maintenance |

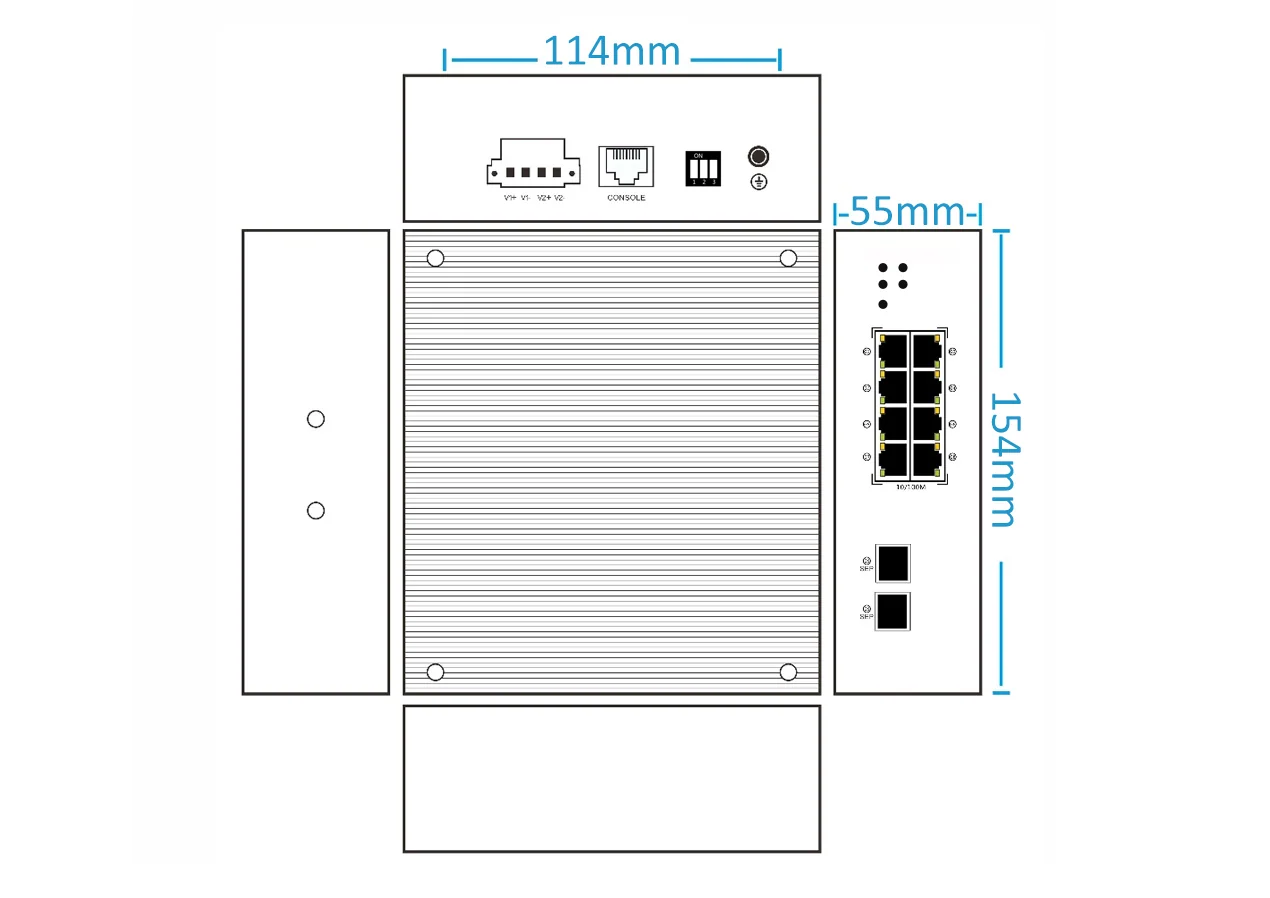

Dimensions
Order information
| Content | Quantity | Unit |
|---|---|---|
| 10 Ports Gigabit Uplink Managed Industrial Fiber Switch (EW-IS2710M) | 1 | SET |
| User Guide | 1 | PC |
| Warranty Card | 1 | PC |
