Model: EW-S1906FG-DP

6-Port Gigabit PoE Switch with 2 SFP Slots

4 × 10/100/1000Base-T PoE ports and 2 × 100/1000Base-X SFP uplinks
IEEE 802.3af/at PoE with 30W maximum and 60W total default budget
AI Extend up to 300m, VLAN isolation and AI PoE watchdog self-healing
12Gbps switching capacity and 8.93Mpps forwarding rate

Project inquiry

Request pricing and lead time

Tell us your model, quantity and project requirements. Our networking team will help you find the right fit.

info@ewindnet.com

Overview

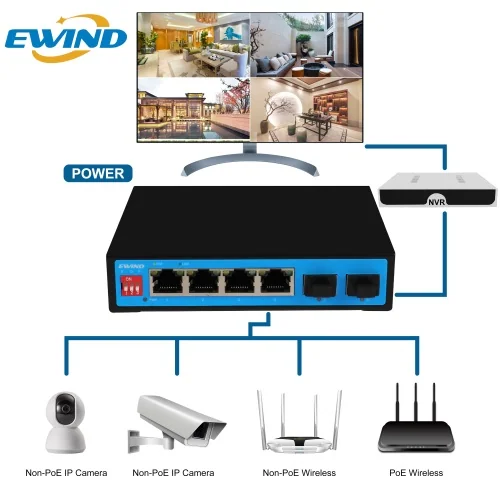

EW-S1906FG-DP is a six-port Gigabit PoE switch with four PoE ports, two SFP uplinks, AI watchdog, VLAN isolation and 300m extend mode for compact security networks.

Four Gigabit PoE ports

Four auto-sensing Gigabit copper ports power cameras, access points and edge devices.

Dual SFP uplinks

Two 100/1000Base-X SFP slots provide fiber backhaul and link redundancy options.

AI protection

VLAN isolation and AI PoE watchdog help isolate faults and recover unresponsive cameras.

60W default budget

Each PoE port supports up to 30W, with optional 120W power configuration.

Product technical specifications
Specification	Details
Fixed ports	4 × 10/100/1000Base-T/TX PoE ports and 2 × 100/1000Base-X SFP uplink slots
PoE standard	Ports 1–4 support IEEE 802.3af/at; 30W maximum and 15.4W typical per port
Features	Port priority, AI Extend 300m, VLAN and port isolation, AI PoE watchdog self-healing
Switching performance	Store-and-forward; 12Gbps switching capacity and 8.93Mpps forwarding rate
Memory	4K MAC table and 2M buffer memory
Copper reach	Cat5 up to 300m at 10Mbps; Cat5 or later up to 100m at 100Mbps and Gigabit

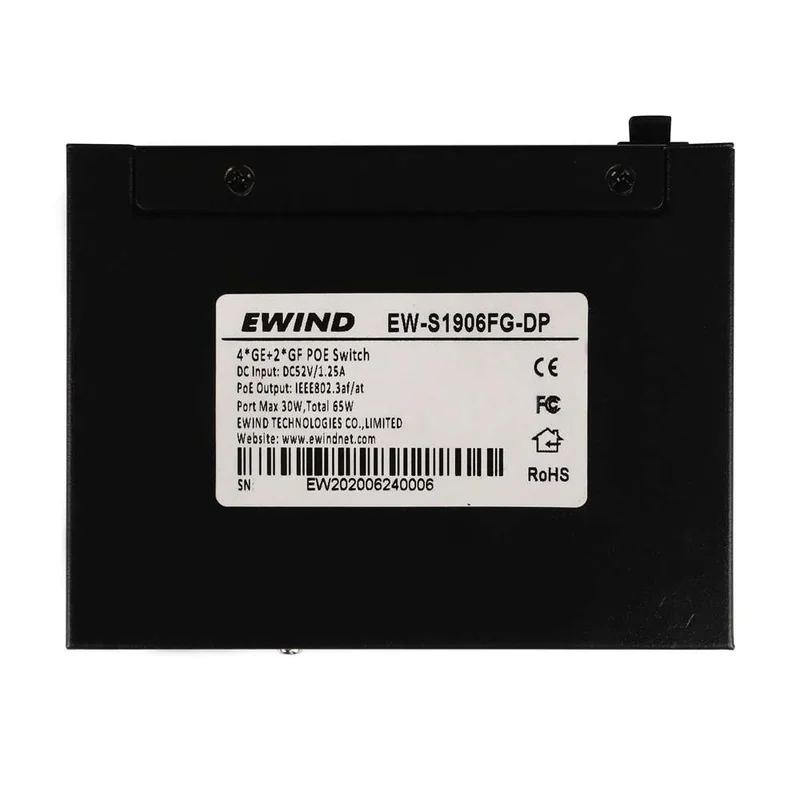

Power	Default 60W at 52VDC; optional 120W; external power adapter; standby under 2W

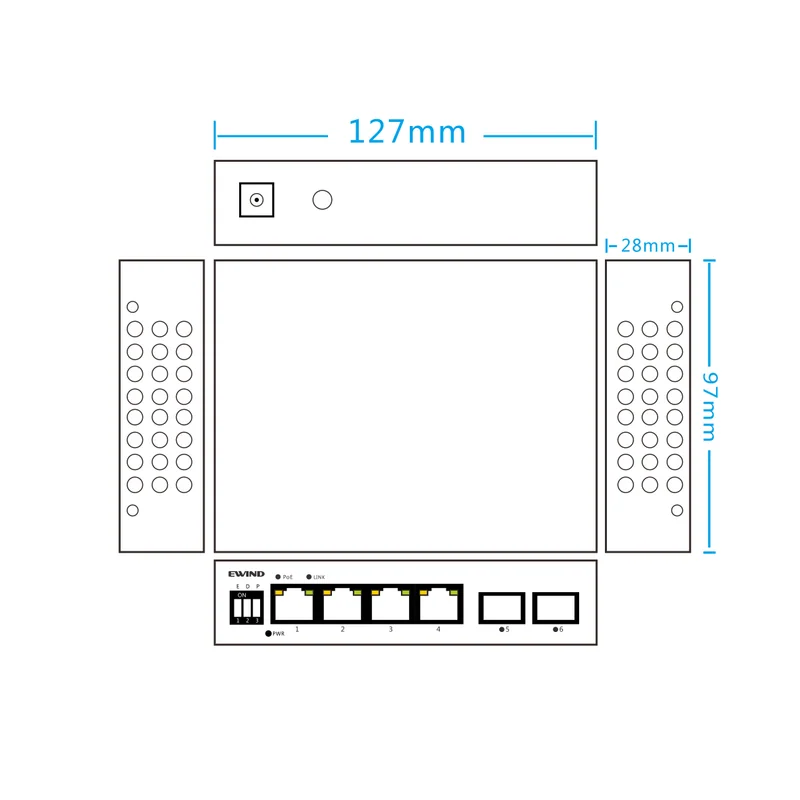

Dimensions and weight	127 × 97 × 28mm; net under 1.2kg and gross under 2kg
Installation	Desktop type or wall mounted
Environment	Operating −20℃ to +55℃; storage −40℃ to +75℃; operating humidity 5%–90% RH, non-condensing
Protection	IP30 with industrial ESD and surge protection
Warranty	3 years, lifetime maintenance
