Model: EW-S2924SM-AP

24-Port Gigabit Smart Managed PoE Switch

24 Gigabit IEEE 802.3af/at PoE ports
4 Gigabit RJ45/SFP combo uplinks
56Gbps switching capacity; 41.664Mpps forwarding
Web management with VLAN, QoS and PoE controls

Project inquiry

Request pricing and lead time

Tell us your model, quantity and project requirements. Our networking team will help you find the right fit.

info@ewindnet.com

Overview

EW-S2924SM-AP combines 24 Gigabit PoE access ports with four Gigabit RJ45/SFP combo uplinks. Web management provides VLANs, QoS and PoE port controls for enterprise edge, campus and smart-building networks.

Gigabit access

24 PoE ports with four flexible copper/fiber uplinks.

PoE port control

Up to 30W per port with status monitoring and scheduling.

Network segmentation

802.1Q VLANs, QoS, isolation and loop protection.

Web administration

Port statistics, cable checks and configuration controls.

Product technical specifications
Specification	Details
PoE access ports	24 × 10/100/1000Mbps RJ45
Uplinks	4 × Gigabit RJ45/SFP combo
PoE standard	IEEE 802.3af/at; up to 30W per port
Management	Smart managed; web interface
Switching capacity	56Gbps
Forwarding rate	41.664Mpps
MAC address table	8K entries
Power input	100–240V AC, 50–60Hz
Power consumption	<10W standby; <300W full load

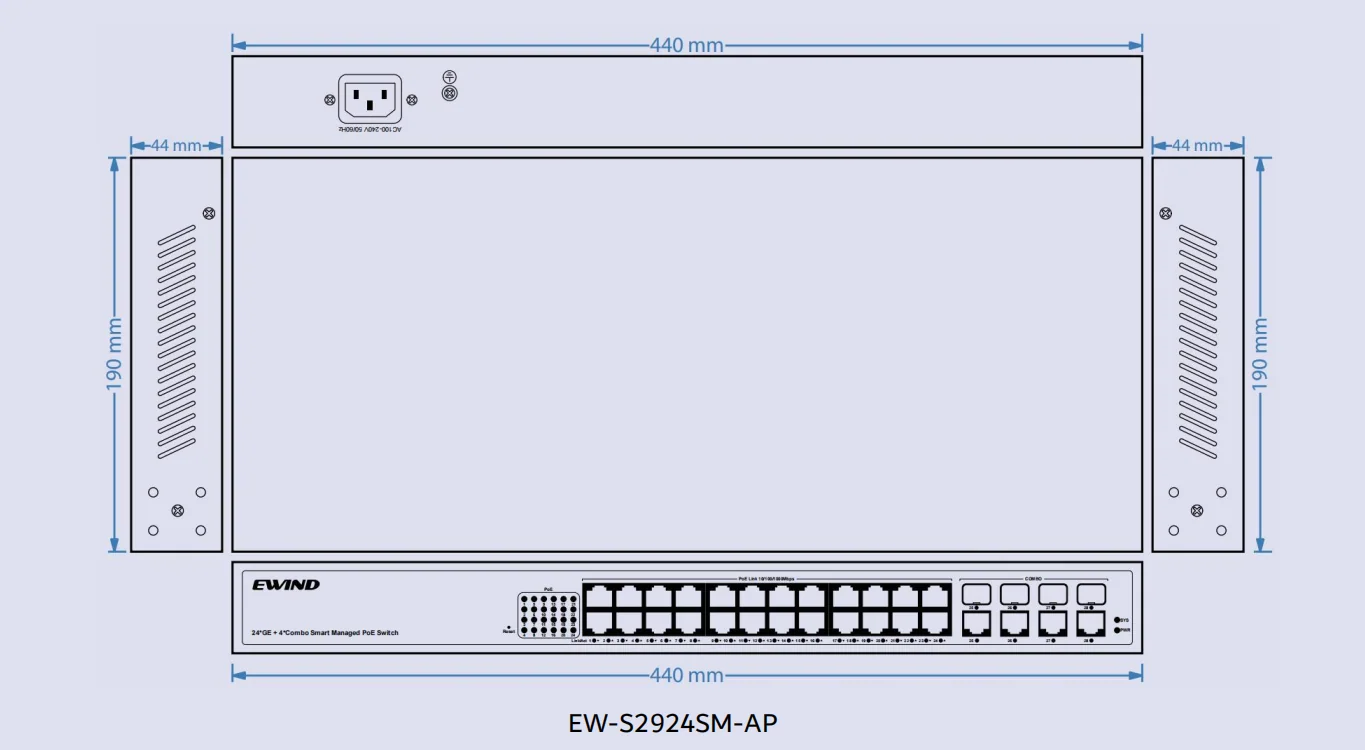

Dimensions (W × D × H)	440 × 190 × 44mm
Operating temperature	−20°C to +55°C
Warranty	3 years

Advanced capabilities

Detailed network functions stay available here without interrupting the main selection path.

PoE and uplinks

PoE pins are 1/2 (+), 3/6 (−). Port status, power/current monitoring and scheduled on/off controls are listed on the product page. Each combo uplink offers alternative RJ45 and SFP connections for one logical port; optics are ordered separately.

VLANs and redundancy

Port-based and 802.1Q VLANs, static aggregation, loop protection, STP/RSTP and ERPS ring support. IGMP snooping v1/v2 supports up to 256 multicast groups; DHCP snooping is listed.

Traffic controls

DiffServ QoS, eight output queues per port, 802.1p/DSCP priority mapping and remarking. Broadcast storm suppression, port rate limits, isolation and basic port mirroring.

Management

Web configuration, port status and traffic statistics, fixed-rate/duplex settings, flow control, EEE, cable checks and factory reset. SNMP, LLDP and SNTP are listed in the series feature set.

Environment and protection

Operating humidity: 10–90%, non-condensing. Storage: −40°C to +70°C and 10–90% RH. Listed protection: IP40, ESD ±8kV contact / ±15kV air, and 6kV lightning rating.
