Eight managed PoE ports
Ports 1–8 support IEEE 802.3af/at with a 30W per-port maximum and 120W full-load budget.
Model: EW-S2910SM-DP
8-Port 2.5G Managed PoE Switch with 2 SFP Uplinks
- 8 × 10/100/1000Mbps PoE ports · up to 30W per port
- 2 × 100/1000/2500M SFP uplinks
- 26Gbps switching · web, VLAN, QoS and ERPS management
Project inquiry
Request pricing and lead time
Tell us your model, quantity and project requirements. Our networking team will help you find the right fit.
Overview
EW-S2910SM-DP is a smart-lite managed PoE switch with eight Gigabit PoE ports and two 100/1000/2500M SFP uplinks. Web management, VLAN, QoS, ERPS and per-port PoE controls give small and medium networks practical segmentation and recovery without enterprise-scale complexity.
2.5G SFP uplinks
Two SFP ports support 100M, 1G or 2.5G modules for flexible aggregation and backbone links.
Smart-lite management
Web configuration, VLAN, STP/RSTP/ERPS, QoS, SNMP, IGMP and port controls cover edge deployments.
| Specification | Details |
|---|---|
| Model | EW-S2910SM-DP |
| PoE ports | 8 × 10/100/1000BASE-T PoE; ports 1–8 |
| PoE standard / port limit | IEEE 802.3af/at; up to 30W per port |
| Uplinks | 2 × 100/1000/2500M SFP |
| Switching / forwarding | 26Gbps / 19.34Mpps |
| MAC / buffer | 8K / 4M |
| Power budget / supply | Full load <120W; DC 52V/2.3A |
| Management | Web management with VLAN, SNMP, IGMP, DHCP snooping, STP/RSTP/ERPS, LLDP, SNTP, QoS, trunk and mirroring |
| Dimensions / installation | 200 × 98 × 28 mm; desktop or cabinet installation |
| Protection / environment | IP40; 6kV surge; −20 to +55°C; 10–90% RH |
| Warranty | 3 years; lifetime maintenance |

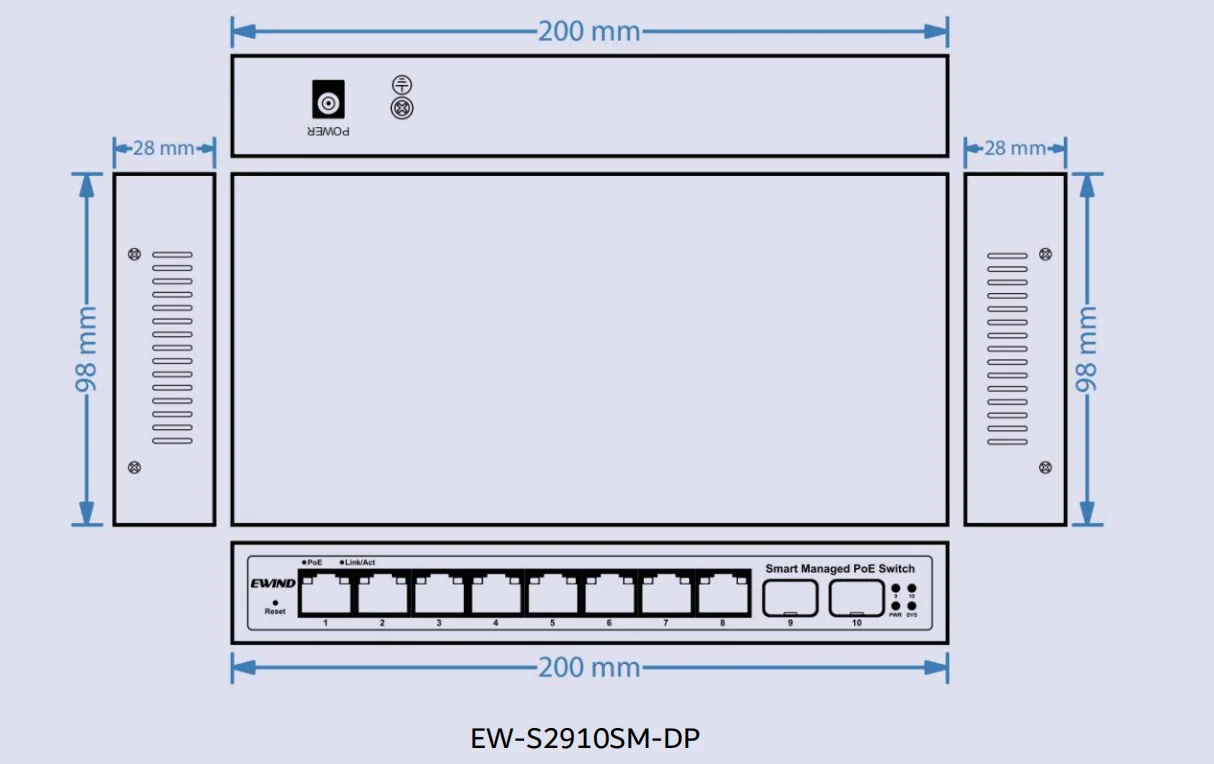

Dimensions
Order information
| Content | Quantity | Unit |
|---|---|---|
| EW-S2910SM-DP smart-lite managed PoE switch | 1 | SET |
| DC power adapter | 1 | PCS |
| User guide and warranty card | 1 | PC |
