Model: EW-S1920CG-AP-AT

20-Port Gigabit Unmanaged PoE Switch with SFP Uplinks

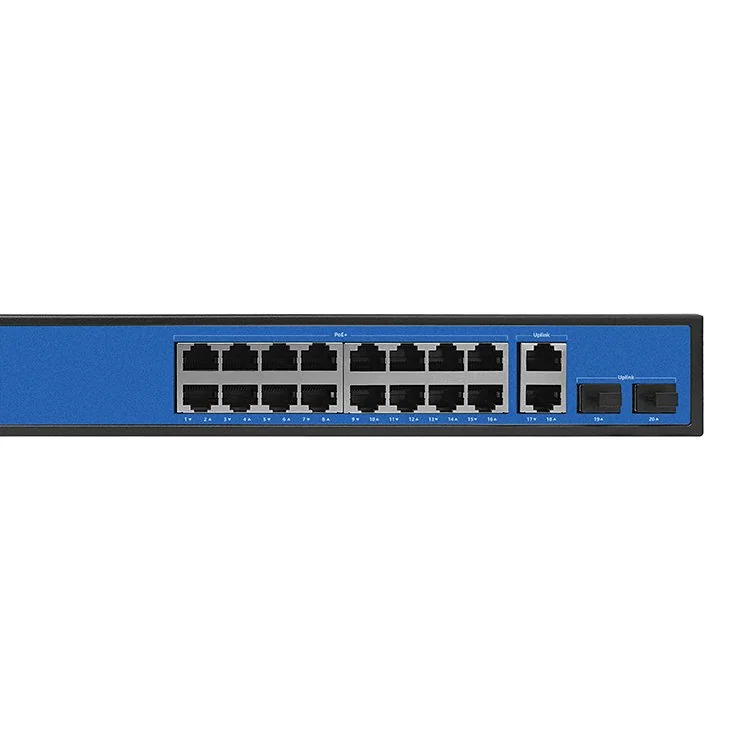

16 × 10/100/1000Mbps IEEE 802.3af/at PoE ports
2 × Gigabit RJ45 + 2 × Gigabit SFP uplinks
300W total supply; 30W maximum per PoE port
Fanless unmanaged design with 300m extend mode

Project inquiry

Request pricing and lead time

Tell us your model, quantity and project requirements. Our networking team will help you find the right fit.

info@ewindnet.com

Overview

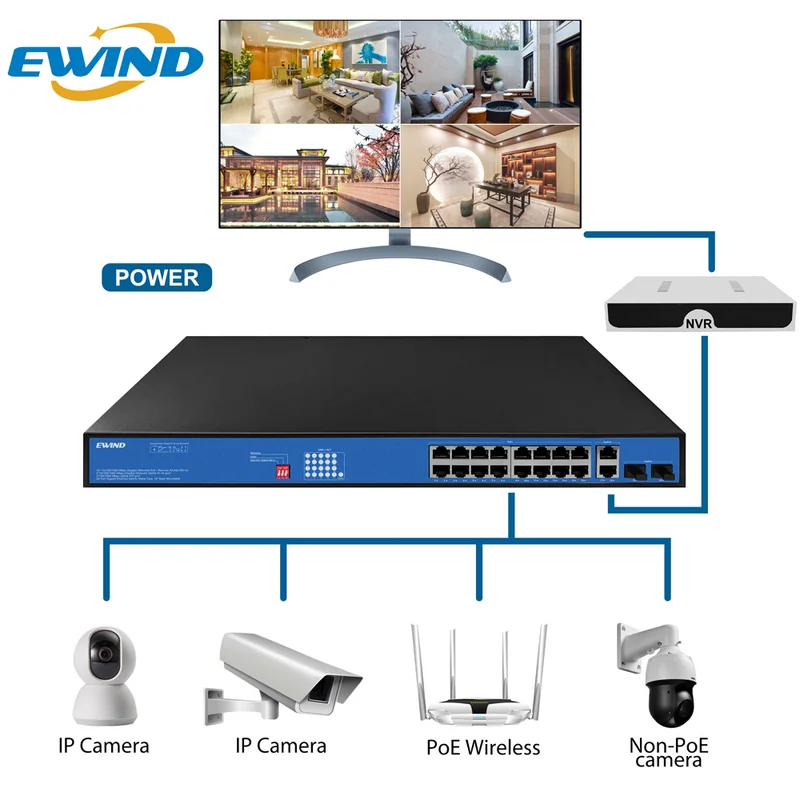

EW-S1920CG-AP-AT provides 16 Gigabit PoE ports, two Gigabit RJ45 uplinks and two Gigabit SFP fiber slots. IEEE 802.3af/at power delivery, a 300W supply and DIP-switch extend, isolation and watchdog modes support surveillance and industrial access networks.

16 Gigabit PoE ports

Power and data for cameras, APs and other PDs.

Four uplinks

Two copper and two fiber Gigabit uplinks.

300W system supply

IEEE 802.3af/at with 30W per-port maximum.

DIP-switch modes

Extend, VLAN isolation and PoE watchdog controls.

Product technical specifications
Specification	Details
PoE ports	16 × 10/100/1000Mbps RJ45
Copper uplinks	2 × 10/100/1000Mbps RJ45
Fiber uplinks	2 × 100/1000Mbps SFP
PoE standard	IEEE 802.3af/at
Maximum power per port	30W
Total supply / input	300W; 100–240V AC, 50/60Hz
Switching capacity	40Gbps
Forwarding rate	29.76Mpps
MAC address table	8K entries

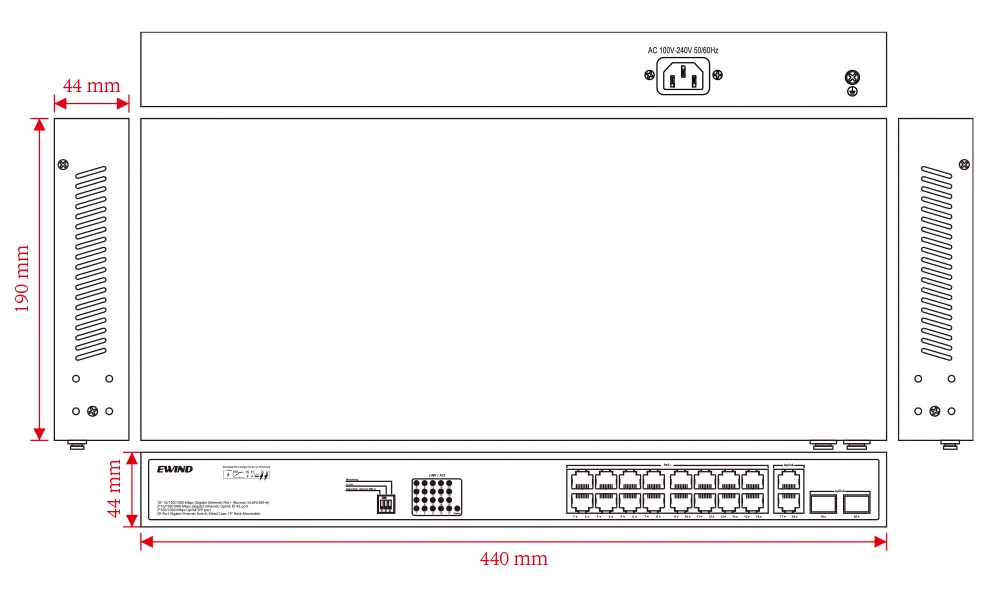

Dimensions	440 × 190 × 44mm
Installation / protection	Desktop or 19-inch 1U; IP30
Operating temperature	−20°C to +55°C
Warranty	3 years

Advanced capabilities

Detailed network functions stay available here without interrupting the main selection path.

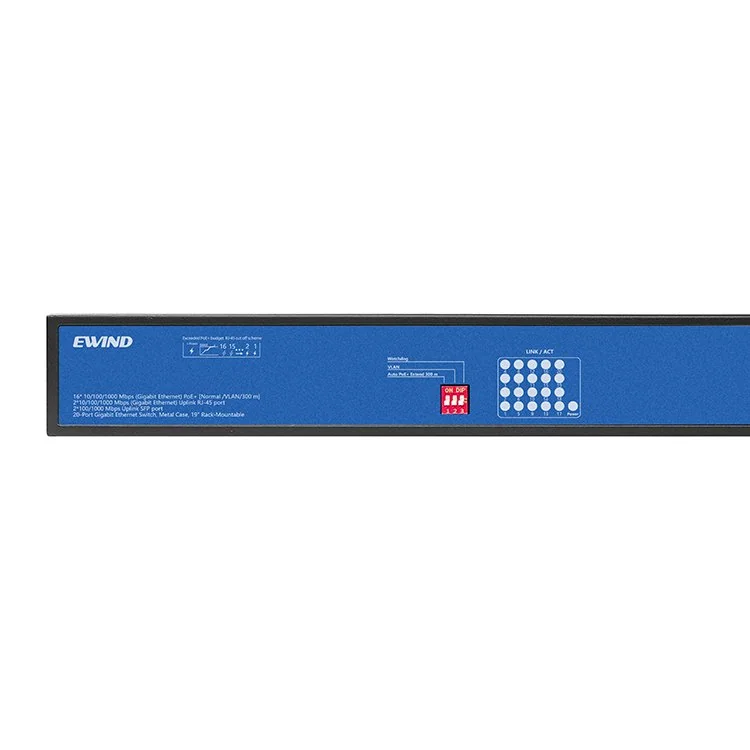

DIP-switch modes

E extends a selected link up to 300m at 10Mbps while other ports retain 1000Mbps within 100m. V enables isolation and VLAN on ports 1–16. D enables PoE watchdog/self-healing on ports 1–16. Port priority is enabled by default.

PoE delivery

Ports 1–16 support IEEE 802.3af/at with default pins 1/2 (+) and 3/6 (−). The 30W figure is the per-port maximum; simultaneous output is limited by the 300W supply.

Uplinks and fiber

The two RJ45 uplinks auto-negotiate Gigabit Ethernet. The two SFP slots accept separately ordered modules; optical mode and reach depend on the selected module.

Installation and environment

Fanless desktop or 19-inch 1U installation. Operating humidity: 5–90%, non-condensing. Storage: −40°C to +75°C and 5–95% RH. IP30 enclosure with listed ESD and surge protection.
