Eight PoE ports
Eight Fast Ethernet PoE ports connect cameras and wireless edge devices.

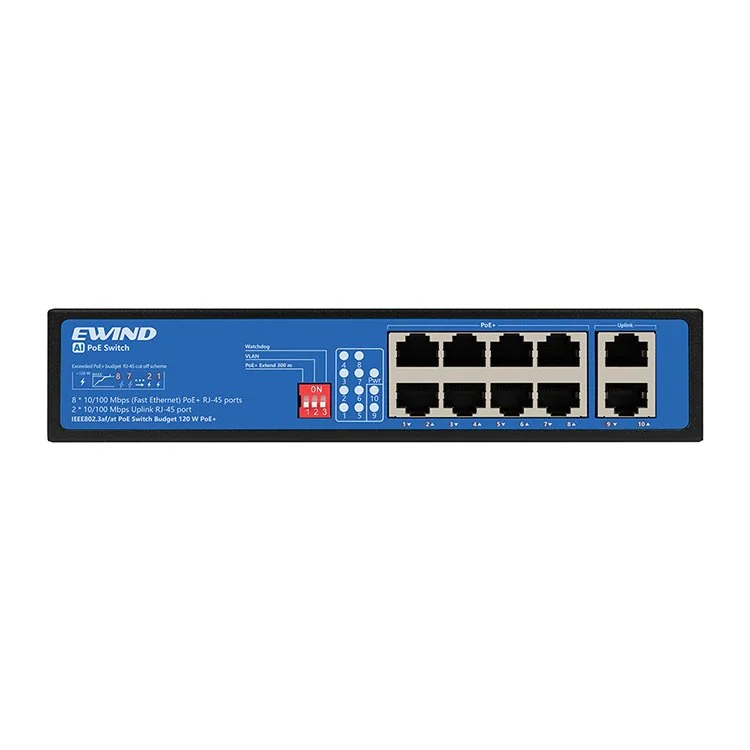

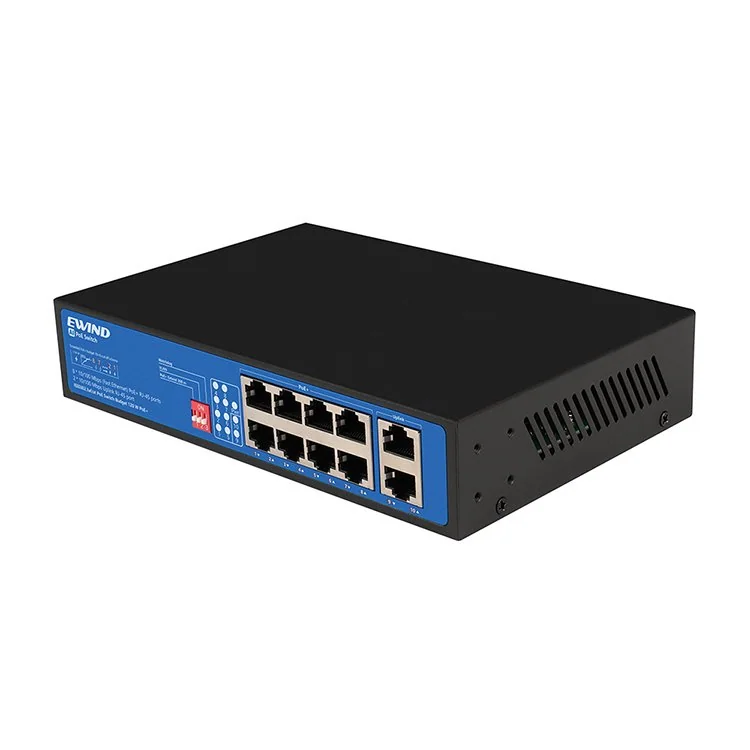

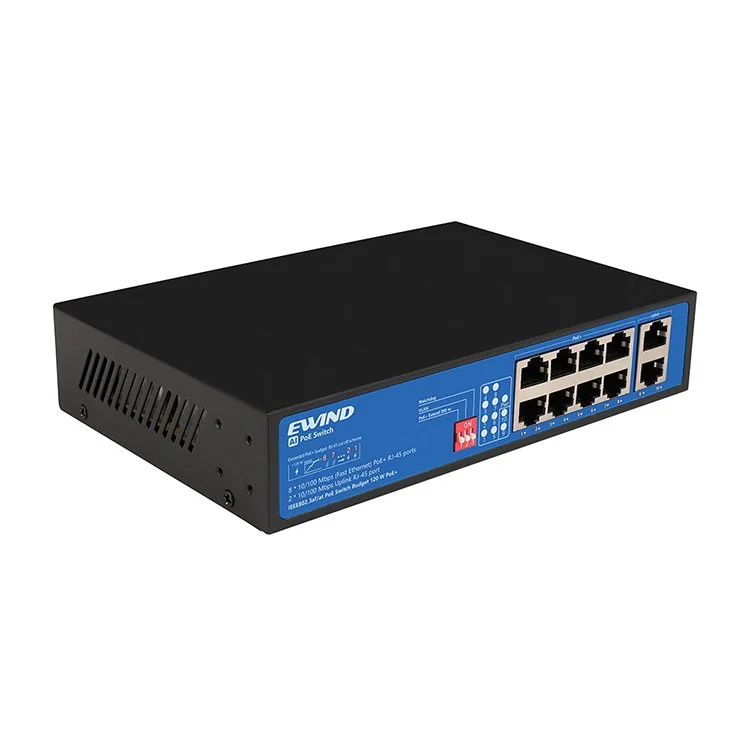

Model: EW-S1910CF-AP

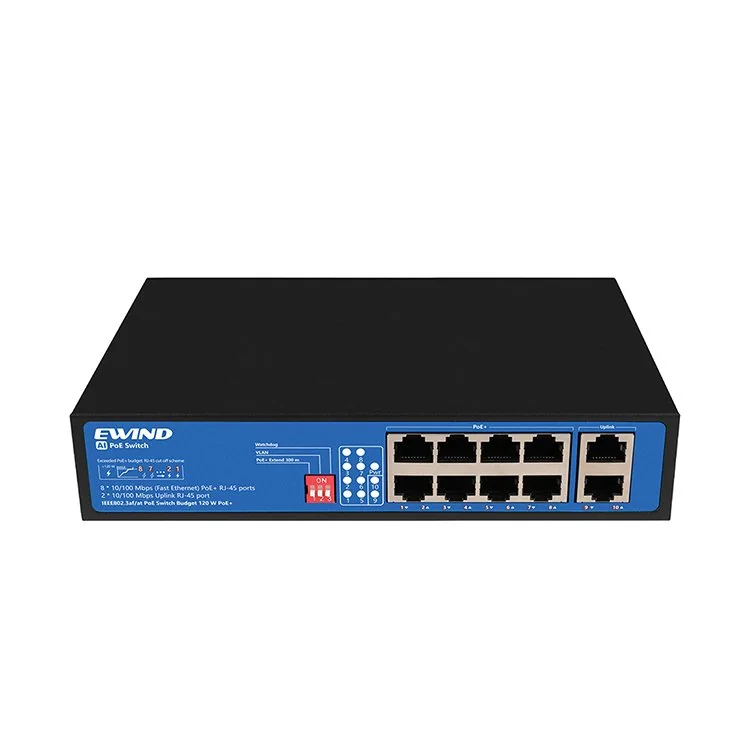

10-Port Fast Ethernet PoE Switch with Built-in Power Supply

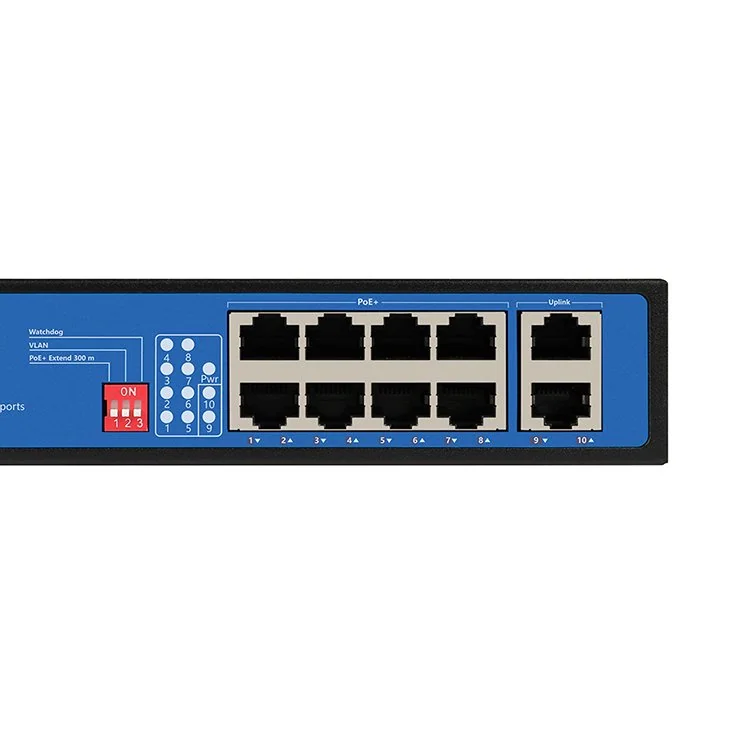

- 8 × 10/100Mbps PoE ports and 2 × 10/100Mbps uplink ports
- Built-in 100–240VAC power supply with 120W total PoE budget

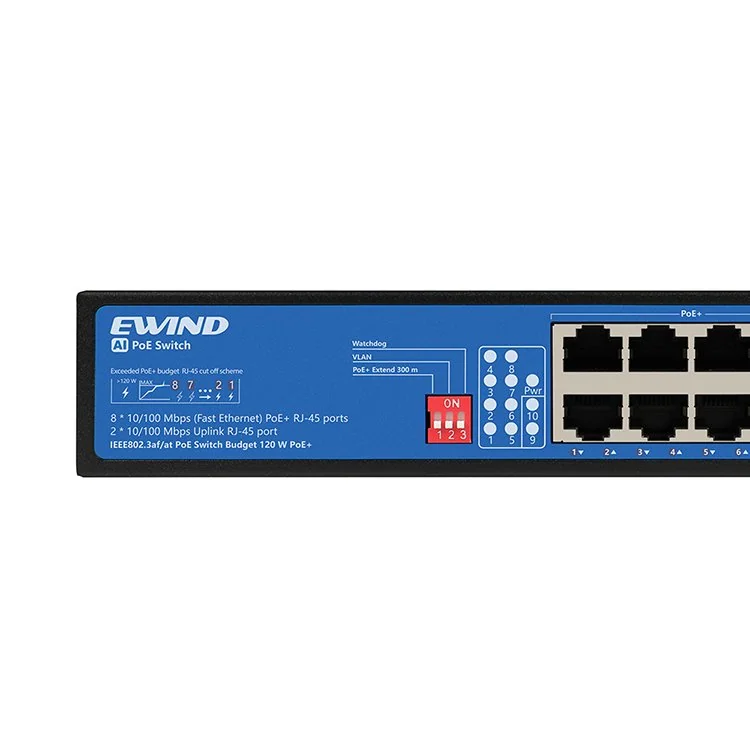

- Port priority, VLAN isolation and AI PoE watchdog functions
- AI Extend up to 300m with automatic speed change on the selected port
Project inquiry
Request pricing and lead time
Tell us your model, quantity and project requirements. Our networking team will help you find the right fit.
Overview
EW-S1910CF-AP is a 10-port 10/100Mbps PoE switch with eight PoE ports, two uplinks, a built-in AC power supply and smart VLAN and watchdog features for compact security networks.

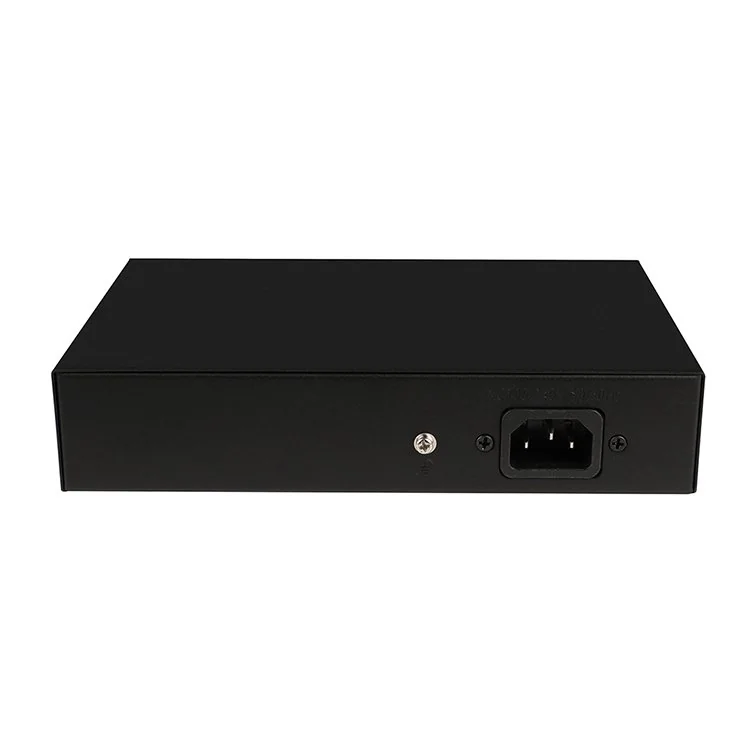

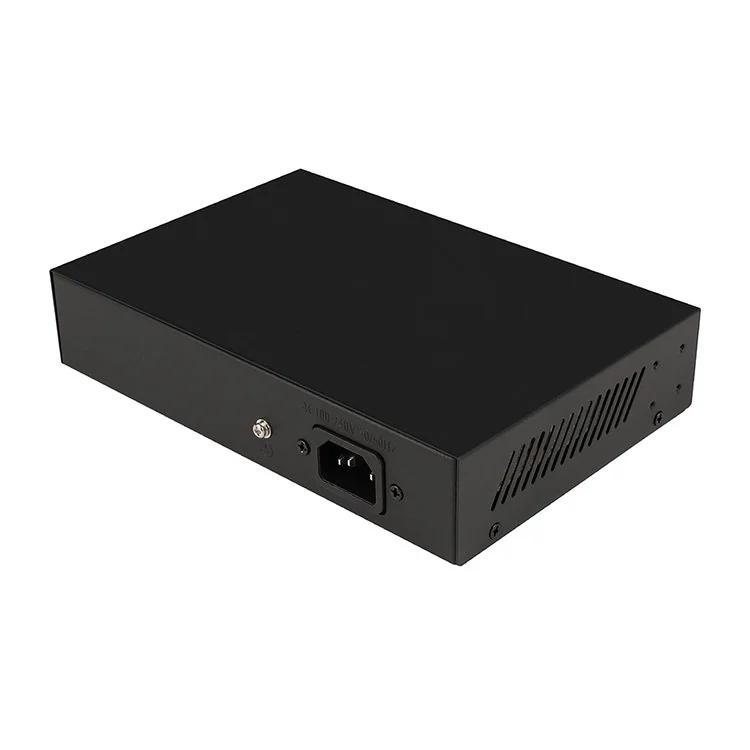

Built-in 120W supply
The integrated AC power supply supports a practical 120W PoE deployment.
300m extend mode
AI Extend reaches up to 300m on one selected port at reduced speed.
PoE protection
VLAN isolation, port priority and AI watchdog help maintain camera availability.
| Specification | Details |
|---|---|
| Ports | 8 × 10/100Mbps RJ45 PoE ports and 2 × 10/100Mbps RJ45 uplink ports |
| PoE standard | IEEE 802.3af/at compatible PoE ports; 30W maximum and 15.4W typical per port |
| Power budget | 120W total with built-in 100–240VAC 50–60Hz supply |
| Smart features | Port priority, VLAN isolation, AI PoE watchdog and AI Extend 300m mode |
| Uplink reach | Fast Ethernet copper uplinks with standard 100m cabling; AI Extend selected-port reach up to 300m |
| Dimensions | 195 × 130 × 40mm |
| Installation | Desktop type or wall mounted |
| Environment | Operating −20℃ to +55℃; storage −40℃ to +75℃; operating humidity 5%–90% RH, non-condensing |
| Protection | IP30 with ESD and surge protection |

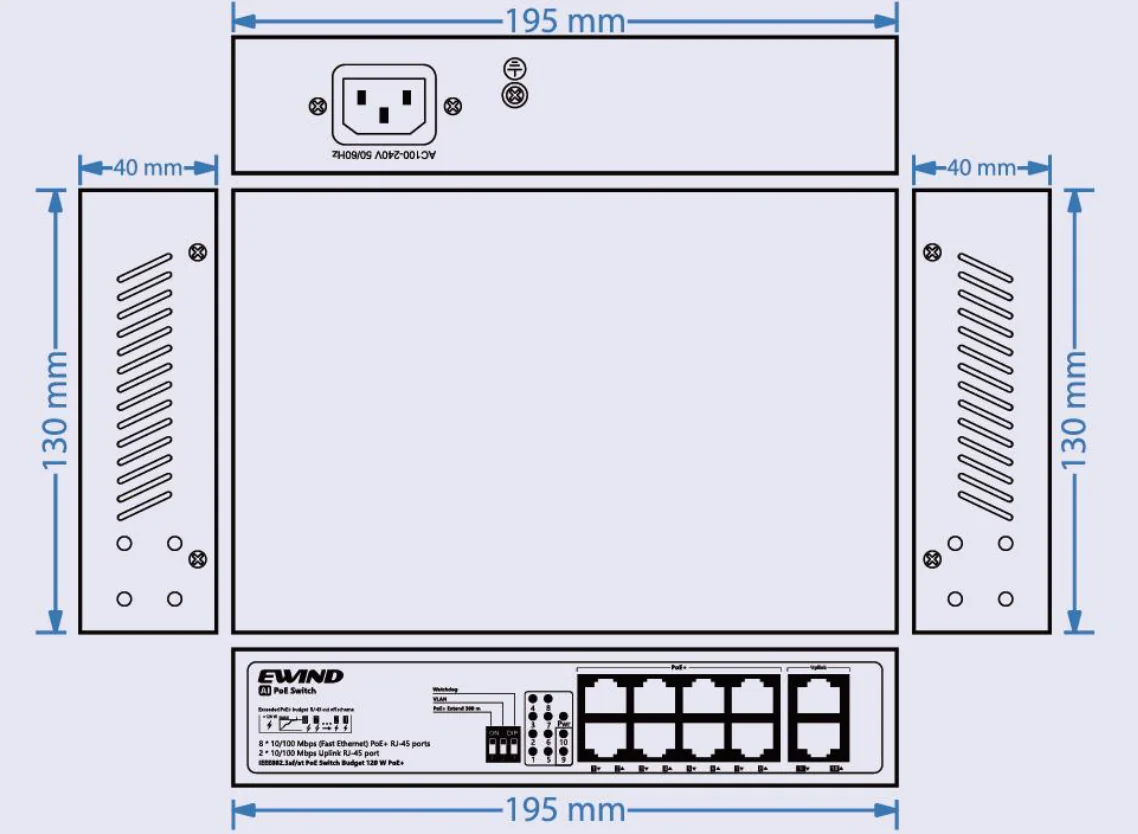

Dimensions
Order information
| Content | Quantity | Unit |
|---|---|---|
| 100M Unmanaged PoE Switch | 1 | SET |
| User Guide and Warranty Card | 1 | PC |
