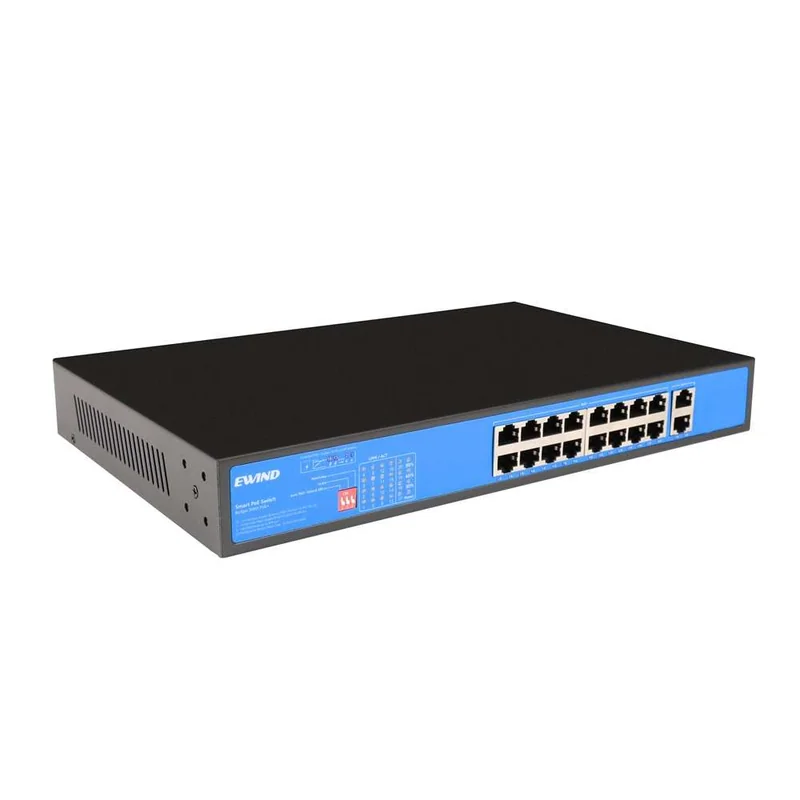

Model: EW-S1818CG-AP

18-Port Gigabit Unmanaged PoE Switch

16 × 10/100/1000Mbps IEEE 802.3af/at PoE ports
2 × 10/100/1000Mbps RJ45 uplinks
300W total power supply; 30W maximum per port
Fanless unmanaged design with extend, VLAN and watchdog modes

Project inquiry

Request pricing and lead time

Tell us your model, quantity and project requirements. Our networking team will help you find the right fit.

info@ewindnet.com

Overview

EW-S1818CG-AP provides 16 Gigabit PoE access ports and two Gigabit RJ45 uplinks for cameras, wireless access points and other powered devices. It supports IEEE 802.3af/at, a 300W power supply and DIP-switch modes for extend, isolation and PoE watchdog operation.

300W PoE system

Ports 1–16 deliver up to 30W each, subject to the shared supply.

Two Gigabit uplinks

Dedicated RJ45 data uplinks for upstream network connection.

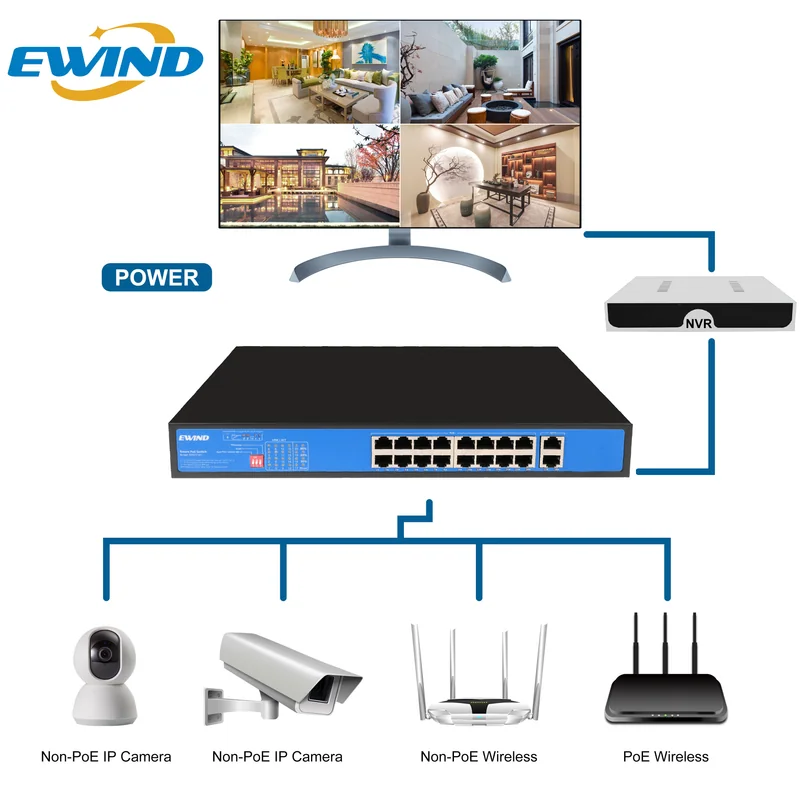

Surveillance access

PoE connections for cameras, wireless APs and VoIP devices.

DIP-switch modes

Extend, isolation and PoE watchdog settings without software setup.

Product technical specifications
Specification	Details
PoE access ports	16 × 10/100/1000Mbps RJ45
Uplinks	2 × 10/100/1000Mbps RJ45
Management	Unmanaged
PoE standard	IEEE 802.3af/at
Maximum power per port	30W
Power input	100–240V AC, 50/60Hz, built-in supply
Switching capacity	40Gbps
Forwarding rate	29.76Mpps

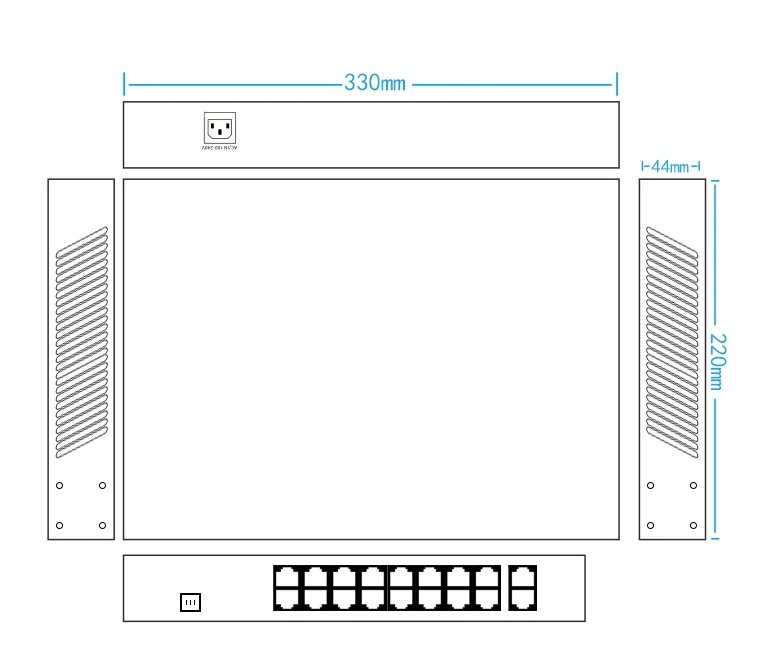

Dimensions (W × D × H)	330 × 220 × 44mm
Operating temperature	−20°C to +55°C
Warranty	2 years

Advanced capabilities

Detailed network functions stay available here without interrupting the main selection path.

DIP-switch modes

E enables up to 300m transmission at 10Mbps on the selected link while other ports retain normal rates within 100m. V enables isolation and VLAN behavior on ports 1–16. D enables AI-PoE watchdog/self-healing on ports 1–16. Port priority is enabled by default.

PoE delivery

Ports 1–16 support IEEE 802.3af/at with default pins 1/2 (+) and 3/6 (−). The 30W figure is the per-port maximum; the available simultaneous output is constrained by the 300W supply.

Ethernet operation

Store-and-forward switching, automatic speed negotiation and MDI/MDIX. The source lists 10/100/1000Mbps operation and twisted-pair links up to 100m, with the extend mode providing the stated longer reach.

Installation and environment

Fanless desktop, wall or 19-inch 1U installation. Operating humidity: 5–90%, non-condensing. Storage: −40°C to +75°C and 5–95% RH. IP30 enclosure.

Protection and status

Power and link/activity indicators are provided. ESD protection is ±8kV contact / ±15kV air; surge protection is power ±4kV common mode / ±2kV differential mode and ports ±4kV.
