Four PoE outputs
Ports 1–4 detect compatible IEEE 802.3af/at endpoints within the shared 65W budget.
Model: EW-S1907CG-AP

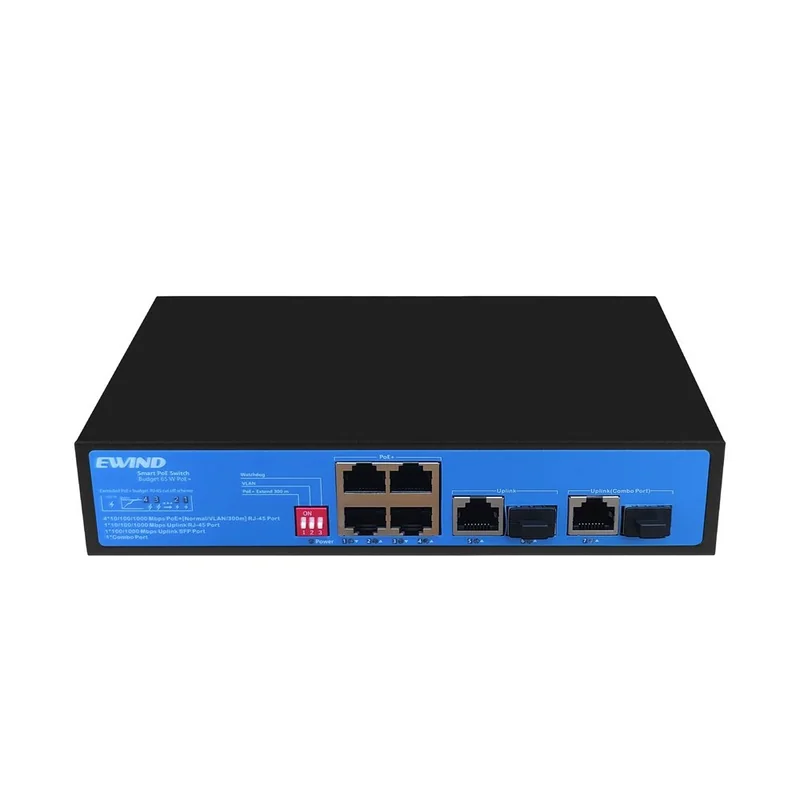

4-Port Gigabit PoE Switch with RJ45, SFP and Combo Uplinks
- 4 × Gigabit PoE ports · up to 30W per port
- 1 Gigabit RJ45 + 1 Gigabit SFP + 1 combo uplink
- 65W internal supply · 3-year warranty
Project inquiry
Request pricing and lead time
Tell us your model, quantity and project requirements. Our networking team will help you find the right fit.
Overview

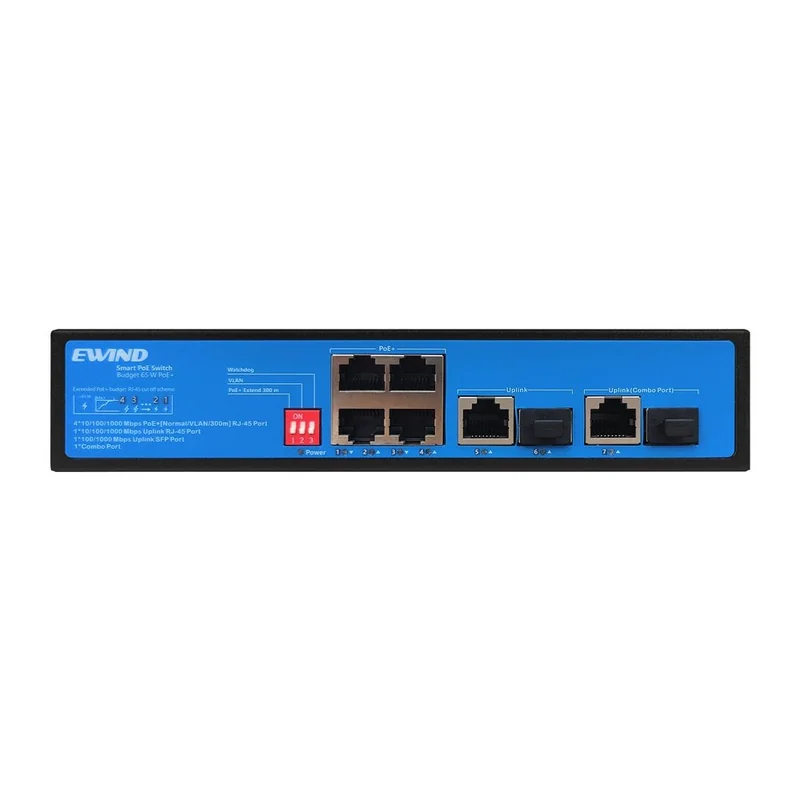

EW-S1907CG-AP powers four Gigabit PoE endpoints and provides a Gigabit RJ45 uplink, a Gigabit SFP slot and a shared Gigabit combo port. Its 65W internal supply and hardware watchdog controls suit small surveillance and access networks.

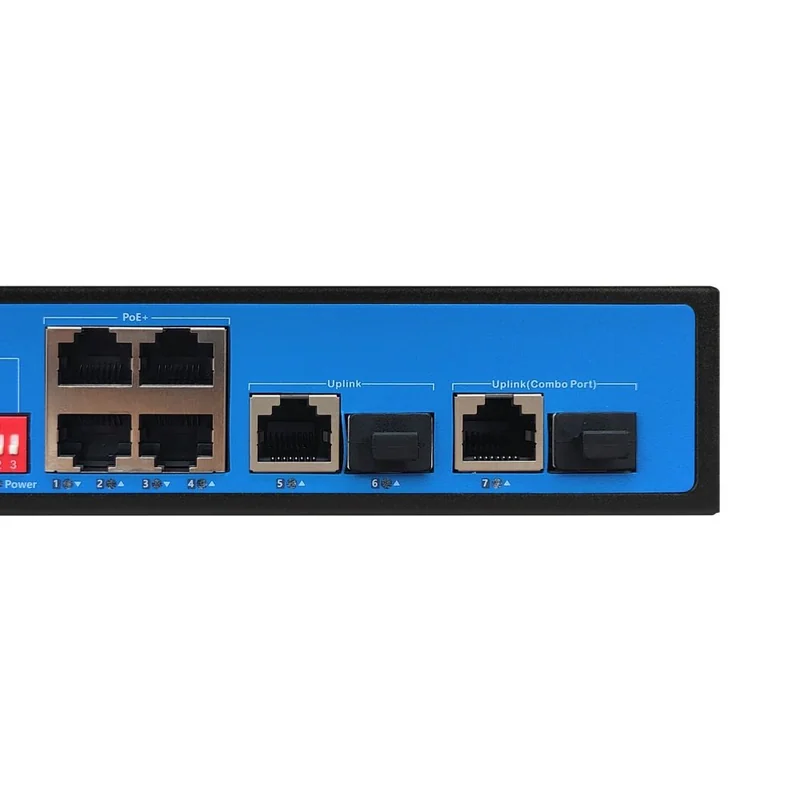

Flexible uplinks
Use the Gigabit RJ45, SFP or combo port for upstream connectivity; select compatible optics for the SFP slot.

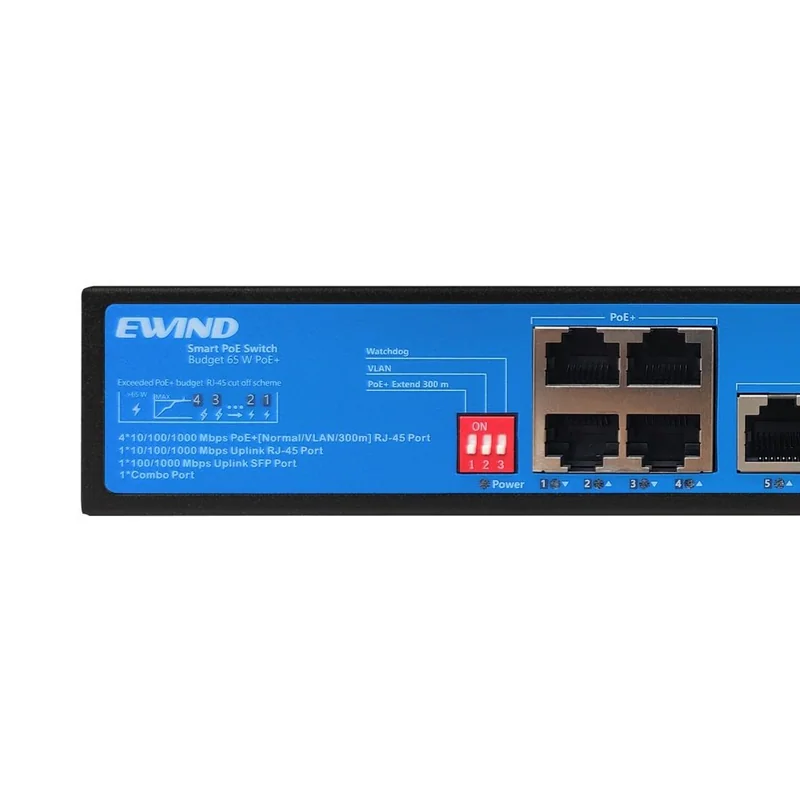

Hardware recovery modes
DIP switches enable extended reach, isolation/VLAN and PoE watchdog recovery.
| Specification | Details |
|---|---|
| Model | EW-S1907CG-AP |
| PoE ports | 4 × 10/100/1000BASE-T PoE |
| Uplinks | 1 × Gigabit RJ45 + 1 × 100/1000M SFP + 1 × 100/1000M combo port |
| PoE standard / port limit | IEEE 802.3af/at; up to 30W per port |
| Total PoE budget | 65W |
| Management | Unmanaged; DIP-switch controls |
| Switching / forwarding | 6.8 Gbps / 5.05 Mpps |
| MAC / buffer | 4K / 2M |

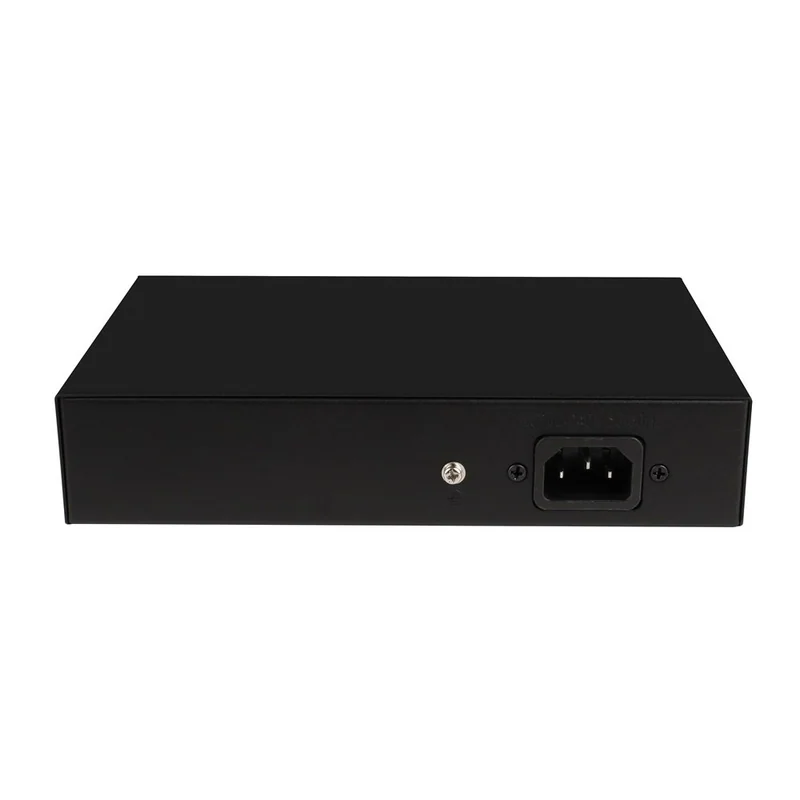

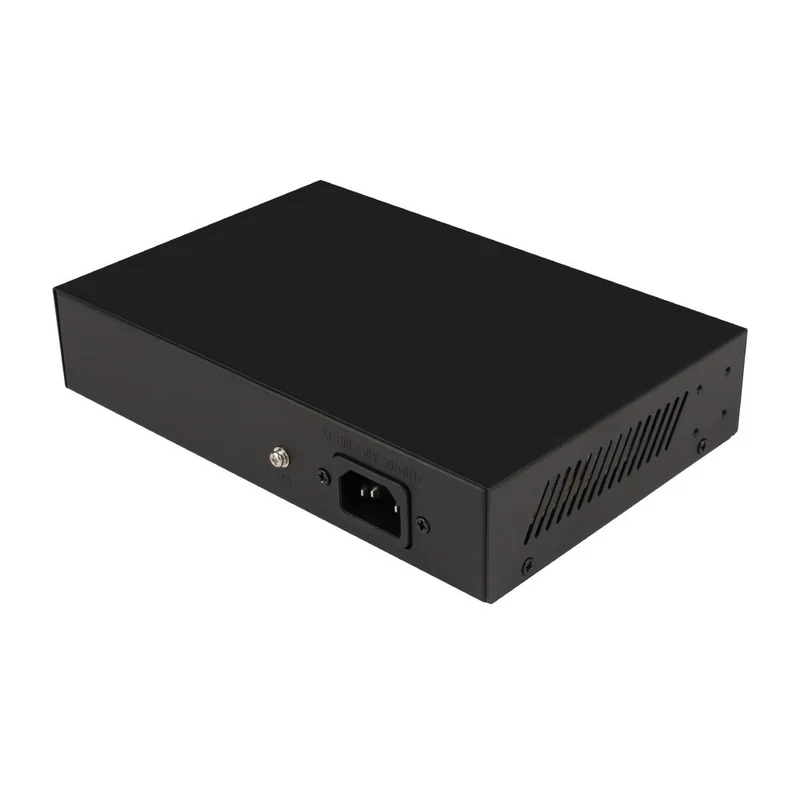

| Power supply | Built-in 65W adapter; AC 100–240V, 50/60Hz |
| Dimensions / installation | 195 × 130 × 40 mm; desktop or wall mount |
| Operating environment | −20 to +55°C; 5–90% RH, non-condensing |
| Warranty | 3 years |
Order information
| Content | Quantity | Unit |
|---|---|---|
| EW-S1907CG-AP PoE switch | 1 | SET |
| User guide | 1 | PCS |
| Warranty card | 1 | PCS |
Applications

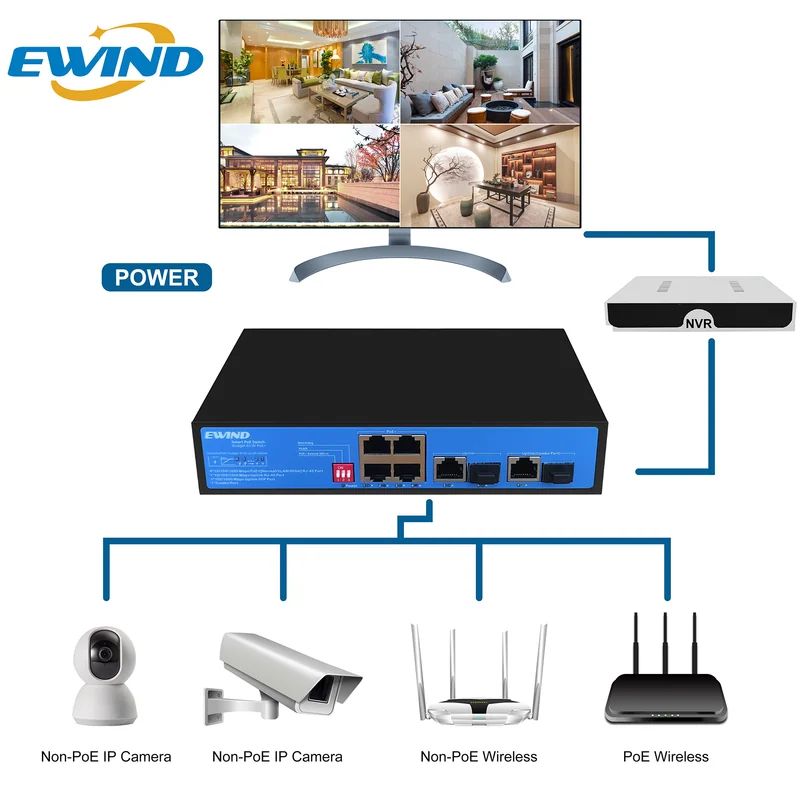

Small surveillance and wireless access networks with flexible Gigabit uplinks.
EW-S1907CG-AP Resources
PDF · Specifications · Installation · Ordering
