Four PoE endpoints
Power compatible cameras, access points and phones through the four IEEE 802.3af/at Ethernet ports.

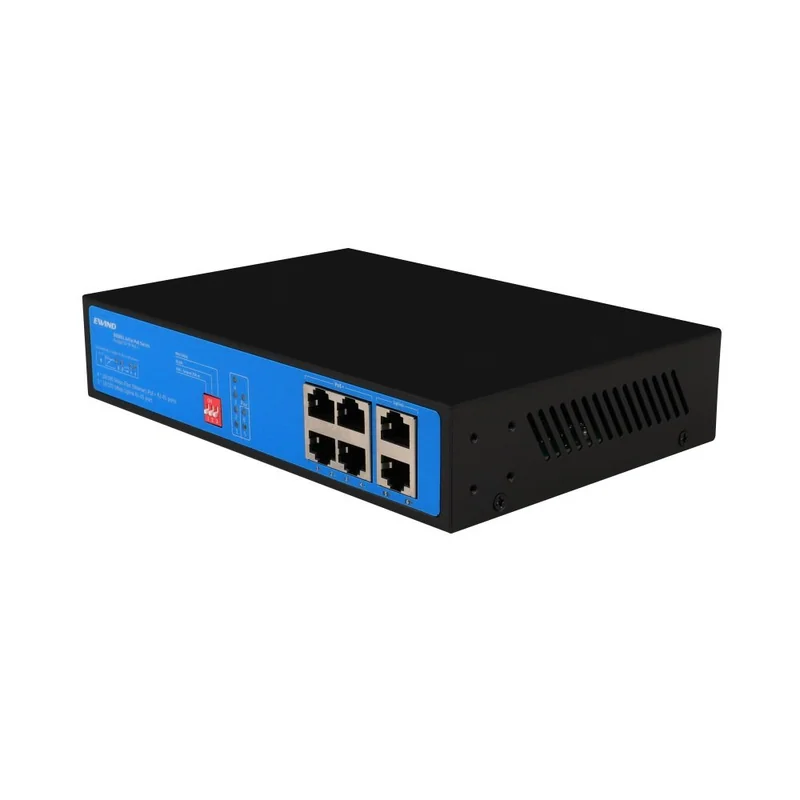

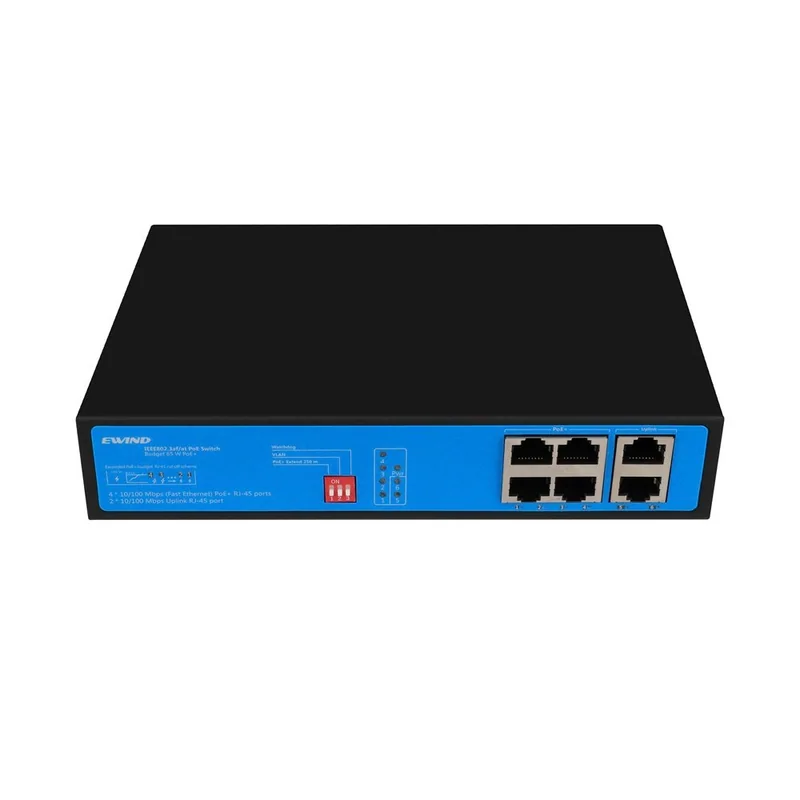

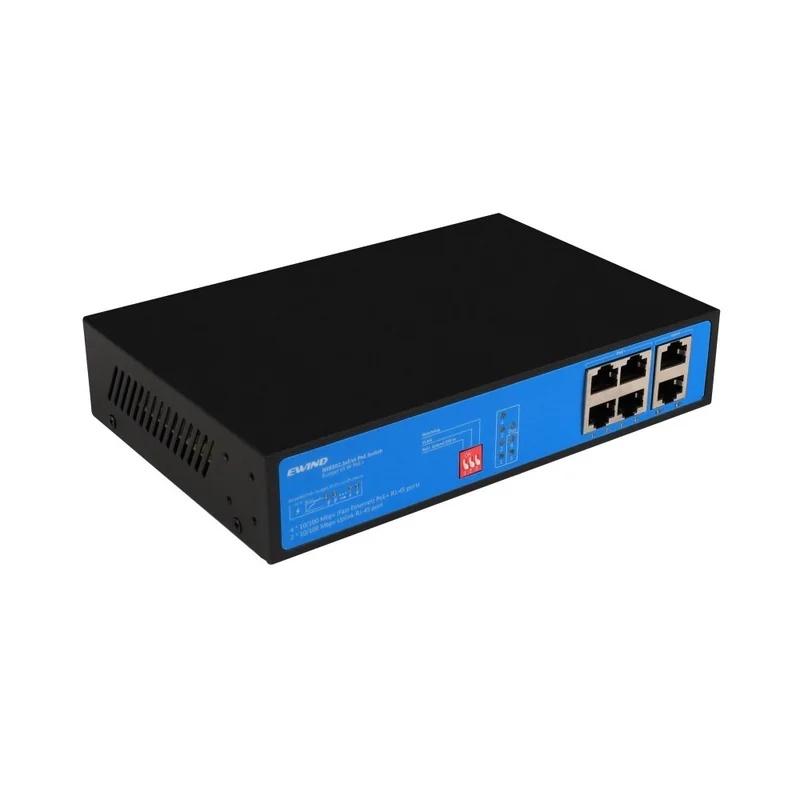

Model: EW-S1906CF-AP
4-Port Fast Ethernet PoE Switch with 2 Uplinks
- 4 × 10/100Mbps PoE ports + 2 × 10/100Mbps uplinks
- 65W built-in supply · IEEE 802.3af/at
- PoE watchdog, isolation and extended-reach modes
Project inquiry
Request pricing and lead time
Tell us your model, quantity and project requirements. Our networking team will help you find the right fit.
Overview
EW-S1906CF-AP is a compact unmanaged switch with four Fast Ethernet PoE ports, two Fast Ethernet uplinks and a 65W internal supply. Hardware switches provide extended reach, port isolation and PoE watchdog functions for small camera and access networks.
Two dedicated uplinks
Two data-only 10/100Mbps ports connect the switch to an upstream network or recorder.
Hardware maintenance modes

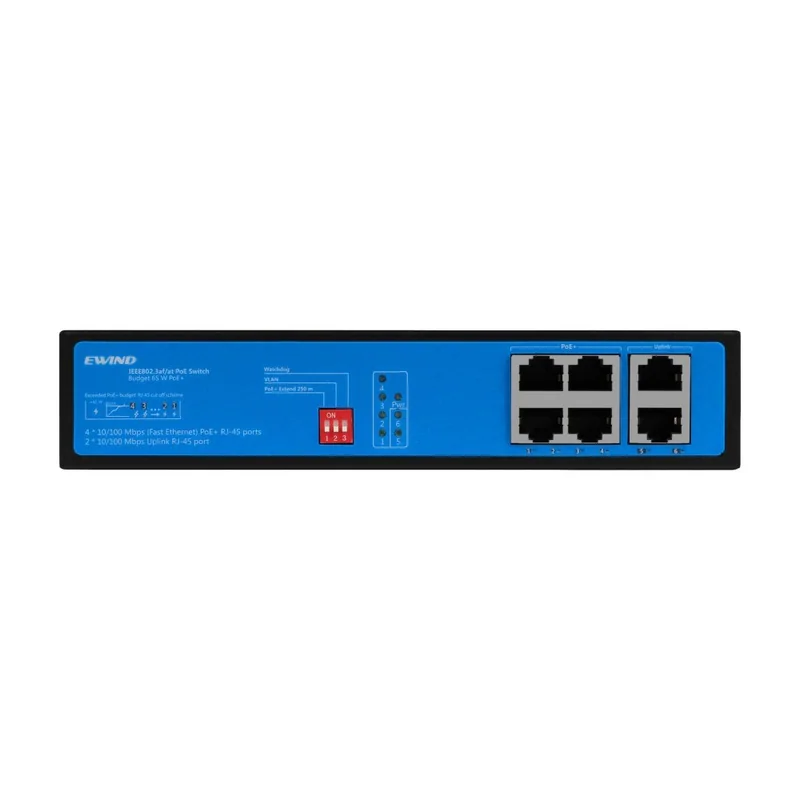

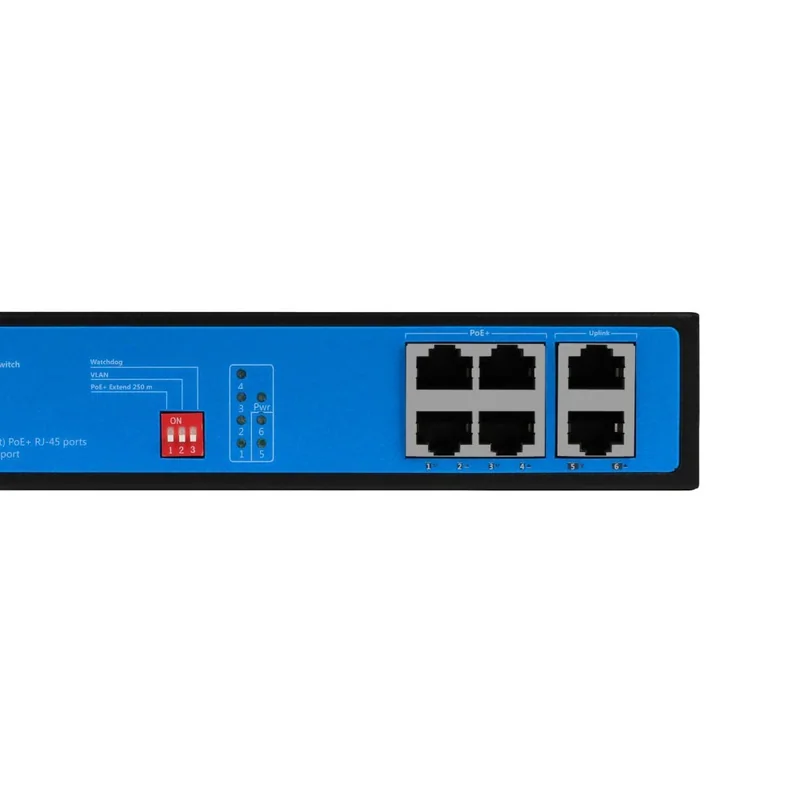

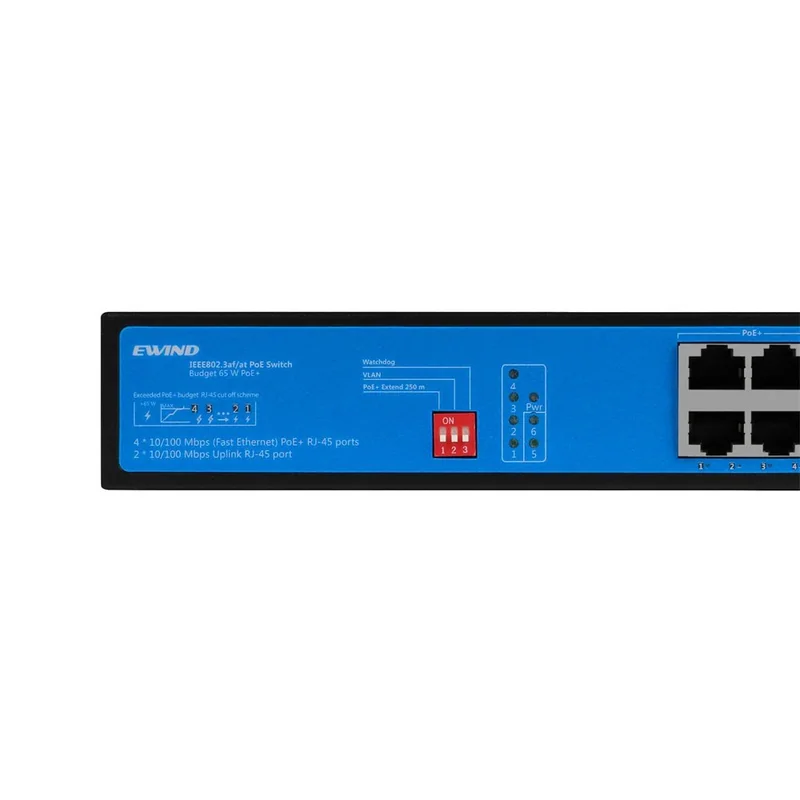

Enable PoE watchdog and port isolation using the front DIP switches, with no software setup required.
| Specification | Details |
|---|---|
| Model | EW-S1906CF-AP |
| PoE ports | 4 × 10/100BASE-TX RJ45 |
| Uplink ports | 2 × 10/100BASE-TX RJ45 |
| PoE standard | IEEE 802.3af/at |

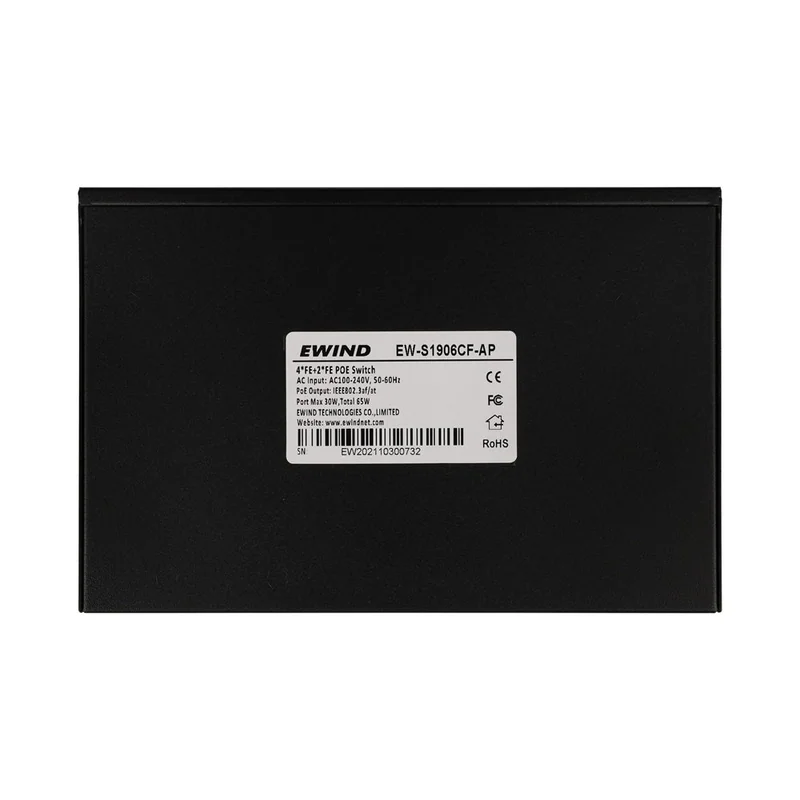

| Power supply | 65W internal supply; 100–240V AC, 50/60Hz |
| Management | Unmanaged; E/V/D DIP-switch modes |
| Switching / forwarding | 1.2 Gbps / 0.89 Mpps |
| MAC address table | 1K entries |
| Power consumption | Standby <2W; full load <65W |
| Dimensions | 195 × 130 × 40 mm |
| Installation / enclosure | Desktop or wall mount; IP30 |
| Operating environment | −20 to +55°C; 5–90% RH, non-condensing |
| Warranty | 3 years |

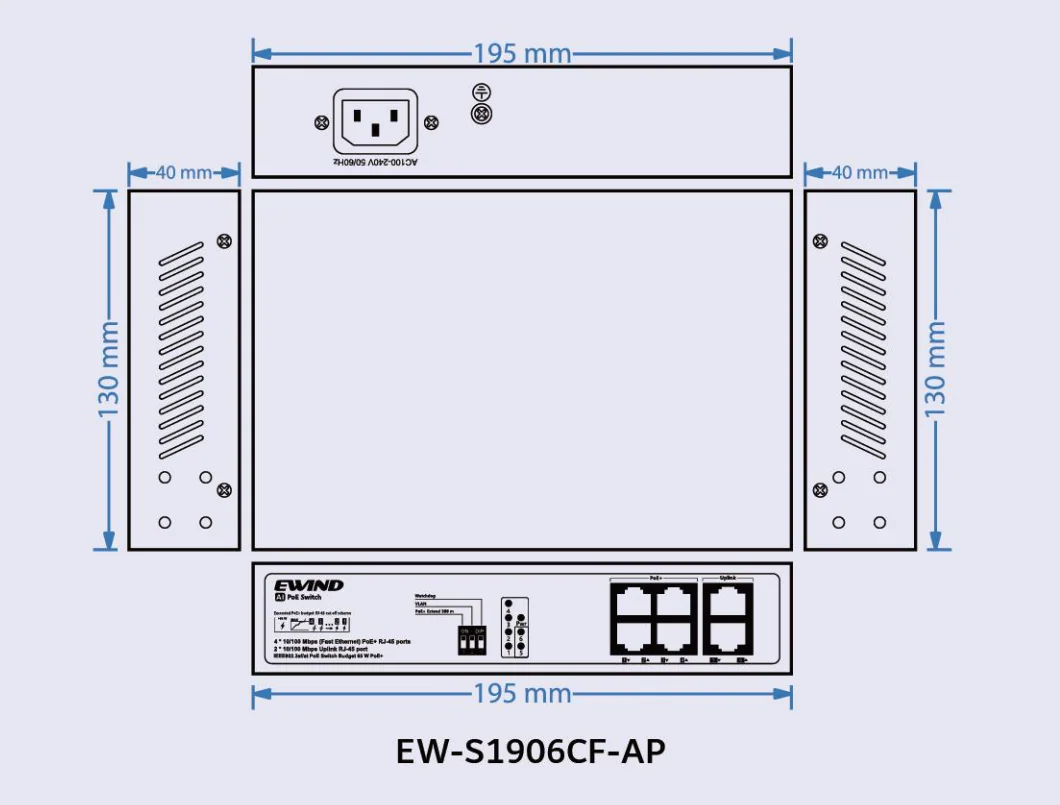

Dimensions
Order information
| Content | Quantity | Unit |
|---|---|---|
| EW-S1906CF-AP PoE switch | 1 | SET |
| User guide and warranty card | 1 | PCS |
