Model: EW-ES3006CGSH-AP

4-Port Gigabit Cloud-Managed PoE Switch with RJ45 and SFP Uplinks

4 × 10/100/1000Mbps PoE ports · ports 1–4 support af/at
1 × Gigabit RJ45 uplink + 1 × 100/1000Mbps SFP uplink
Cloud/app management · 65W supply · 12Gbps switching

Project inquiry

Request pricing and lead time

Tell us your model, quantity and project requirements. Our networking team will help you find the right fit.

info@ewindnet.com

Overview

EW-ES3006CGSH-AP provides four Gigabit PoE ports, one Gigabit RJ45 uplink and one 100/1000Mbps SFP fiber uplink in a compact cloud-managed enclosure. It adds remote monitoring, ONVIF topology and AI DIP functions for small surveillance and access networks.

Four Gigabit PoE outputs

Ports 1–4 support IEEE 802.3af/at; port 4 also supports bt according to the product feature sheet.

Copper and fiber uplinks

A Gigabit RJ45 uplink and a 100/1000Mbps SFP slot provide flexible upstream connectivity.

Remote control and recovery

Cloud alarms, ONVIF discovery, 300m extend mode, VLAN isolation and PoE watchdog keep edge devices visible.

Product technical specifications
Specification	Details
Model	EW-ES3006CGSH-AP
PoE ports	4 × 10/100/1000BASE-T PoE; ports 1–4
High-power PoE	Port 4 supports IEEE 802.3af/at/bt; the PDF feature summary says up to 90W, while its technical table lists 60W maximum
Uplinks	1 × 10/100/1000BASE-T RJ45 + 1 × 100/1000Mbps SFP fiber
Total power / supply	65W; built-in AC 100–240V, 50–60Hz
Management	Cloud-managed; web platform, mobile app and DIP controls
Switching / forwarding	12Gbps / 8.928Mpps
MAC / buffer	2K / 2M

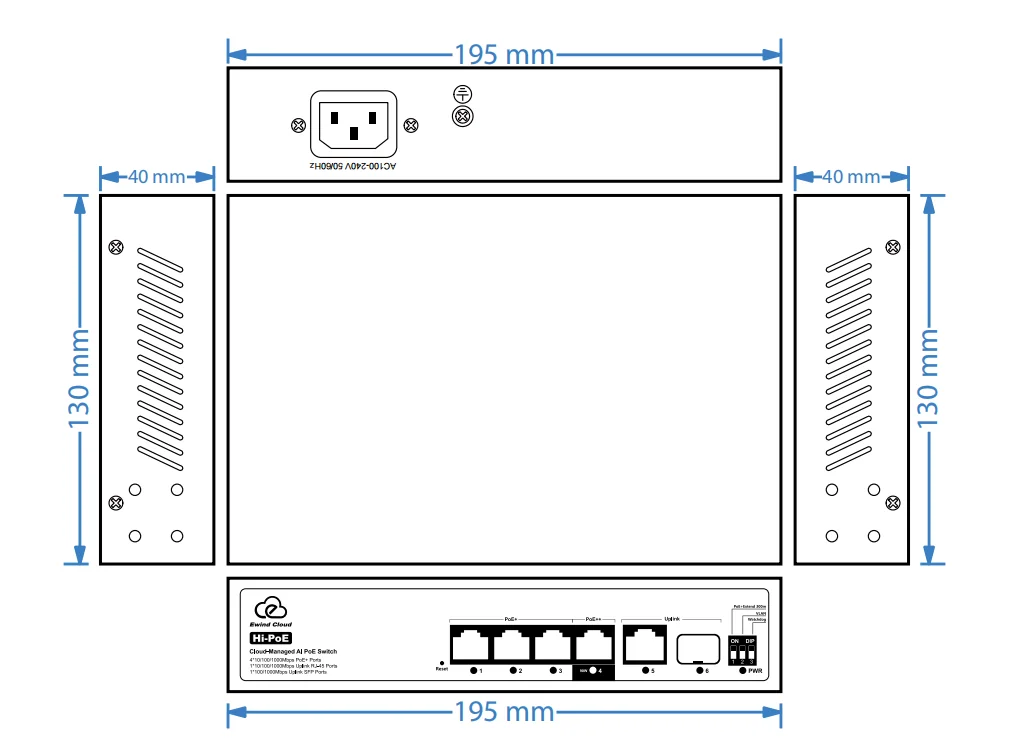

Dimensions / installation	195 × 130 × 40 mm; desktop or wall mount
Protection / environment	IP30; −20 to +55°C; 5–90% RH
Warranty	3 years; lifetime maintenance

Advanced capabilities

Detailed network functions stay available here without interrupting the main selection path.

Power rating review

The product feature text advertises Port 4 up to 90W, but the technical specification table for EW-ES3006CGSH-AP lists a 60W maximum. Confirm the required endpoint class and obtain the final power limit from the supplier before deployment.

Cloud workflow

The EWIND cloud platform and app support remote monitoring, real-time alarms, fault detection, port reset and network configuration. ONVIF discovery builds a cloud topology map.

DIP-switch functions

AI Extend enables 300m transmission with a 10Mbps limit on the extended port, while other ports remain 1000Mbps within 100m. Additional positions provide per-port isolation/VLAN and AI PoE watchdog recovery.

Uplink planning

The RJ45 and SFP interfaces are data uplinks and do not provide PoE output. Choose compatible 100/1000Mbps SFP modules for the fiber link.
