Model: EW-ES3010CGSH-AP

8-Port Gigabit Cloud-Managed PoE Switch with RJ45 and SFP Uplinks

8 × 10/100/1000Mbps PoE ports · ports 7–8 up to 90W
1 × Gigabit RJ45 uplink + 1 × 100/1000Mbps SFP uplink
Cloud/app management · 120W supply · 20Gbps switching

Project inquiry

Request pricing and lead time

Tell us your model, quantity and project requirements. Our networking team will help you find the right fit.

info@ewindnet.com

Overview

EW-ES3010CGSH-AP combines eight Gigabit PoE ports with a Gigabit RJ45 uplink and a 100/1000Mbps SFP fiber uplink. Ports 7–8 support IEEE 802.3af/at/bt with up to 90W each, while cloud management, ONVIF topology and AI DIP controls simplify remote security networks.

High-power Gigabit PoE

Ports 1–8 support IEEE 802.3af/at; ports 7–8 additionally support bt up to 90W per port.

Copper and fiber uplinks

A Gigabit RJ45 uplink and a 100/1000Mbps SFP slot provide flexible upstream connectivity.

Remote control and recovery

Cloud alarms, ONVIF discovery, 300m extend mode, VLAN isolation and PoE watchdog keep edge devices visible.

Product technical specifications
Specification	Details
Model	EW-ES3010CGSH-AP
PoE ports	8 × 10/100/1000BASE-T PoE; ports 1–8
High-power PoE	Ports 7–8 support IEEE 802.3af/at/bt, up to 90W per port
Uplinks	1 × 10/100/1000BASE-T RJ45 + 1 × 100/1000Mbps SFP fiber
Total power / supply	120W; built-in AC 100–240V, 50–60Hz
Management	Cloud-managed; web platform, mobile app and DIP controls
Switching / forwarding	20Gbps / 14.88Mpps
MAC / buffer	2K / 2M

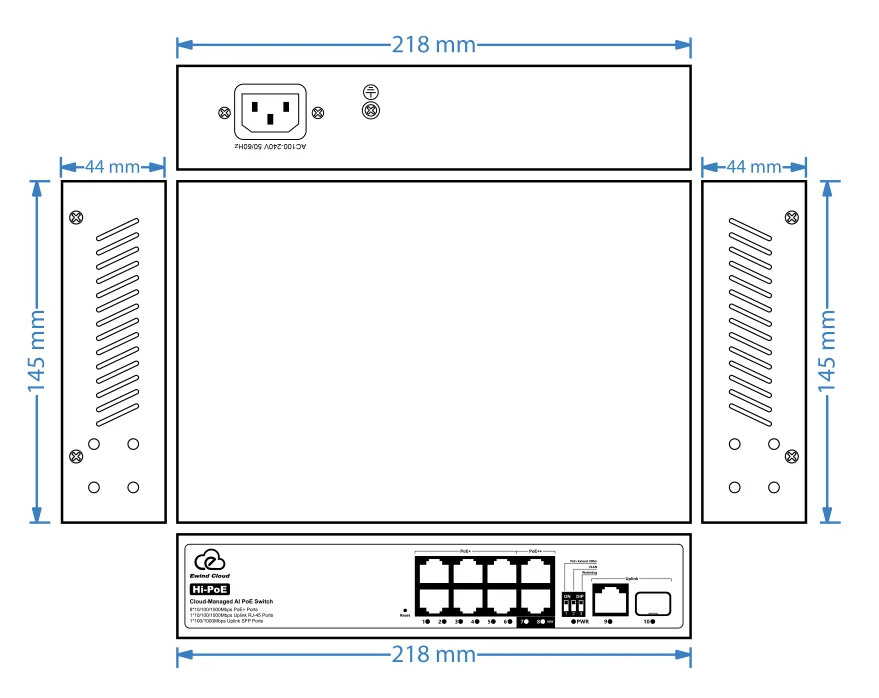

Dimensions / installation	218 × 145 × 44 mm; desktop or wall mount
Protection / environment	IP30; −20 to +55°C; 5–90% RH
Warranty	3 years; lifetime maintenance

Advanced capabilities

Detailed network functions stay available here without interrupting the main selection path.

Cloud workflow

The EWIND cloud platform and app support remote monitoring, real-time alarms, fault detection, port reset and network configuration.

DIP-switch functions

AI Extend enables 300m transmission with a 10Mbps limit on the extended port, while other ports remain 1000Mbps within 100m. Additional positions provide per-port isolation/VLAN and AI PoE watchdog recovery.

Power planning

The 120W supply is shared across the PoE ports. Ports 7–8 are rated up to 90W each under bt; verify the aggregate load and endpoint class before installation.

Uplink planning

The RJ45 and SFP interfaces are data uplinks and do not provide PoE output. Choose compatible 100/1000Mbps SFP modules for the fiber link.
